2013 Citroen DS5 HYBRID4 fuse box

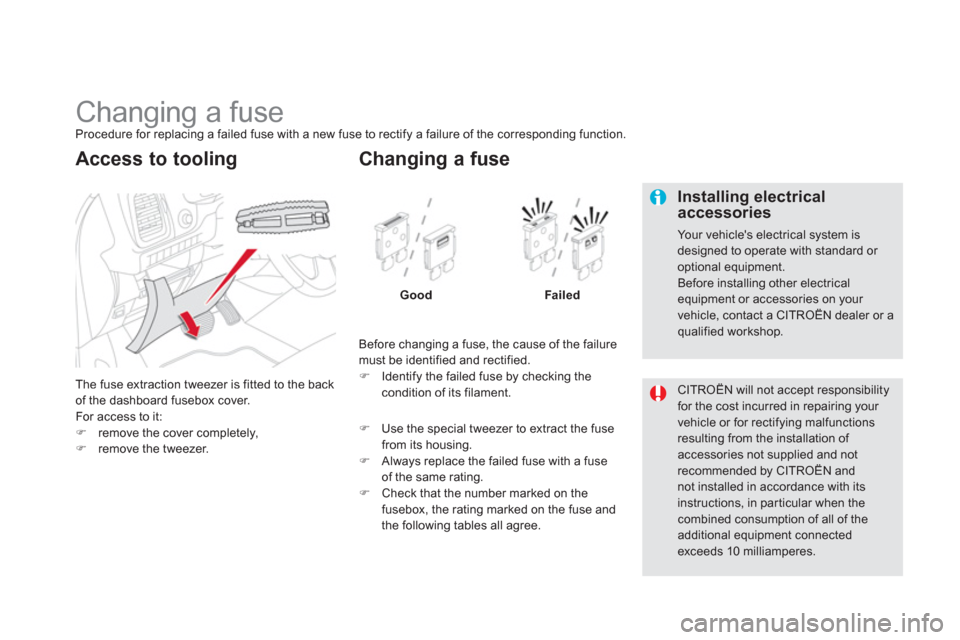

Changing a fuse Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
Th
e fuse extraction tweezer is fitted to the back of the dashboard fusebox cover.
For access to it: )remove the cover completely,)remove the tweezer.

Access to tooling

Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the failed fuse by checking thecondition of its filament.


Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse
from its housing.)
Always replace the failed fuse with a fuse of the same rating.)
Check that the number marked on thefusebox, the rating marked on the fuse and
the following tables all agree.

CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.



Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

223Practical information

Dashboard fuses

The fusebox is placed in the lower dashboard(left-hand side).


Access to the fuses
)Remove the cover.
Fuse
N°


Rating (A)Functions
F6 A or B 15
Audio system.
F
83 Alarm.
F1
310
Front cigarette lighter, front 12 V socket.
F14 10
R
ear 12 V socket.
F1
63 Rear map reading lamps.
F173 Courtesy mirror.
F28 A or B
15 Audio system.
F3
020 Rear wiper.
F32 10
Audio ampli
fier.

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph). )When you have finished, close the cover carefully to ensure correct sealing of the
f
usebox.




Fuse N°

Rating (A)Functions
F20
15 Front / rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

Practical information




12 V battery
The presence of this label indicates the use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a CITROËNdealer or qualified workshop is requiredwhen replacing or disconnecting the battery.
Failure to observe this recommendation may cause premature wear of the battery.The battery is located under the bonnet.
To
gain access to it:) open the bonnet using the interior releaselever, then the exterior safety catch,)
remove the plastic cover on the (+)
terminal
,) if necessary, unclip the fusebox to remove
the battery.
Access to the battery
) Raise the locking tab D
fully to release thecable terminal clamp E.


Reconnecting the (+) cable
)
Position the open clamp E
of the cable on
the positive post (+) of the battery. ) Press ver tically on the clamp E
to position
it correctly on the battery.) Lock the clamp by spreading thepositioning lug and then lowering the tab D.

Do not apply excessive force on the tab as locking will not be possible if the clamp is not positioned correctly; star tthe procedure again.
Before doing any work on your vehicle,
switch off the ignition ( Readylamp off)to avoid any risk of injury resulting from automatic operation of the engine. Y
our vehicle is fitted with a conventional 12 V
battery, located under the bonnet, in addition
to the hi
gh voltage battery used by the hybridsystem.
In cer tain conditions, if the 12 V battery is
too discharged to activate the hybrid system,
recharging from another conventional 12 V battery is possible.
Do not carry out this recharge if the Readylamp is on.
Procedure
for star ting the engine using another battery or charging a discharged battery.



Disconnecting the (+) cable

235
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption.
Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.


Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).


Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecologicalproducts in the "TECHNATURE" range,products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...



"Multimedia":

audio systems, steering mounted audio controls, speakers, Hi-Fi module, Bluetoothhands-free system, por table satellite navigationsystem, semi-integral suppor t bracket for portable navigation system, driving assistancesystems, USB Box, reversing camera, por table
video screen, por table video suppor t bracket,
230 V/50 Hz socket, 230 V/12 V adaptor, Wi-Fion board...

The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.














Diesel engine
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump. 11.
Bleed screw.
HDi 160 PEF 6-SPEED ELECTRONIC GEARBOX

349Alphabetical index
Defrosting..............................................108, 122Demisting.......................................................122Diesel...................................................42,46,61Diesel additive level.......................................244
Dimensions ....................................................253Dipped beam ...........................60, 152,214, 215Dipstick ....................................................71, 242Directional lighting.................................161, 162Direction indicators........158, 184, 214,217, 219Driving positions (memorising)......................102Dynamic emergency braking..................126-131Dynamic stability control(DSC).......................................63,66,187, 189
EBA (Emergency braking assistance) ...........187EBFD.............................................................187Eco-driving......................................................47Economical driving .........................................47Economy mode..............................................228Eco off.............................................................f46Electronic brake force distribution (EBFD)....187Electronic engine immobiliser....................r33,86Electronic gearbox.........................135,227, 247Emergency boot release..................................88Emergency call......................................185, 259Emergency warning lamps....................115, 184eMyWay ...................................................73, 261Energy economy mode..................................228Engine, Diesel .........................97, 240,241, 251Engine compartment ...............................53, 240
Filling with fuel............................................95-97Fitting a wheel...............................................211Fitting roof bars..............................................233Fittings, boot ..................................................114Flashing indicators.................................158,184Flat bed lorry or trailer.............................r55,231Foglamps, front...................... 154, 162, 214, 218Foglamps, rear..............................r154, 219, 220Folding/unfolding the door mirrors.................108Front seats..............................................100-102Fuel............................................................47, 97Fuel consumption ......................................47, 49Fuel consumption fi gures................................49Fuel fi ller cap ...................................................95Fuel fi ller fl ap .............................................95, 96Fuel gauge...........................................21, 57, 95Fuel tank....................................................95, 96Fusebox, dashboard......................................223Fuses.............................................................222
EFG
G.P.S. ............................................................267Gearbox, electronic............................... 135, 247Gear lever, electronic gearbox system ..........135Guidance.......................................................267Guide-me-home.....................................156, 158
Engine compartment fusebox........................224Engine oil level indicator..........................r71,242Engines..................................................250,251Environment..................9,47,85, 117, 122, 245
Halogen headlamps.......................................214Hands-free kit ........................................ 284, 329Hazard warning lamps...........................115, 184Head-up display.............................140, 143, 145Headlamp adjustment....................................160Headlamps, directional..........................161, 214Headlamp wash .....................................164, 244Head restraints, front .............................100, 103Head restraints, rear......................................r107Heated seats.................................................104Heating .................................................... 47, 116Height and reach adjustment,steering wheel.............................................109High voltage...............................50, 52, 227, 239Hill start assist...............................................134History.............................................................49Hybrid .....................................................8, 26-54Hybrid fl ow.......................................................40Hybrid selector.................................................35Hybrid system .........................................8, 26-54
H
