Comfort











Sliding sun visor

Sliding blinds are provided for your protection
against bright sunlight. They can be adjusted manually.)Slide the blind to the desired position by pushing at A.
Sun visor rails











Glove box


Depending on equipment, it may contain a CD
player. ) To open the glove box, raise the handle.
It is illuminated when the lid is opened.
It is cooled by a manual directional ventilation
nozzle.
It is connected directly to your vehicle's air conditioning system and is supplied with cool
air whatever the temperature setting for the
passenger compartment.
The refrigeration of your glove box operates only with the engine running and the air conditioning on. Th
e blinds are extended on the sun visor rails.
Fold the visor downwards, to protect against dazzle to the face.
If dazzle is coming from the side windows,
detach the visor from its housing above the centre of the windscreen and pivot it to the side.
The visors are fitted with a locking system on
their central housing when the blind is reeled in.
To detach the visor or to reposition it, it must be
in a ver tical position.

Sliding blinds
Do not attach or suspend heavy objects on the slide rail of the sun blind.

121
3
Comfort
Central storage compartment
)To open the central storage compar tment, pull the grip and lower the cover.
It is illuminated on opening.
A button on the upper par t allows the lighting tobe deactivated.
230 V / 50 Hz power socket
A 230 V / 50 Hz socket (maximum power:
120 W) is fitted in the central storage box.
To use the socket: ) open the central storage box, )
check that the warning lamp is on green,)
connect your multimedia or other electrical
device (telephone charger, laptop computer, CD-DVD player, baby food
warmer...).
This socket works with the engine running, aswell as in STOP mode with Stop & Star t.
Depending on equipment, it may contain:


- one 230 V socket,

- one 12 V socket,

- one or two U
SB ports,

- one auxiliary socket

In the event of a fault with the socket, the
greenwarning lamp flashes.
Have it checked by a CITRO

122
Comfort

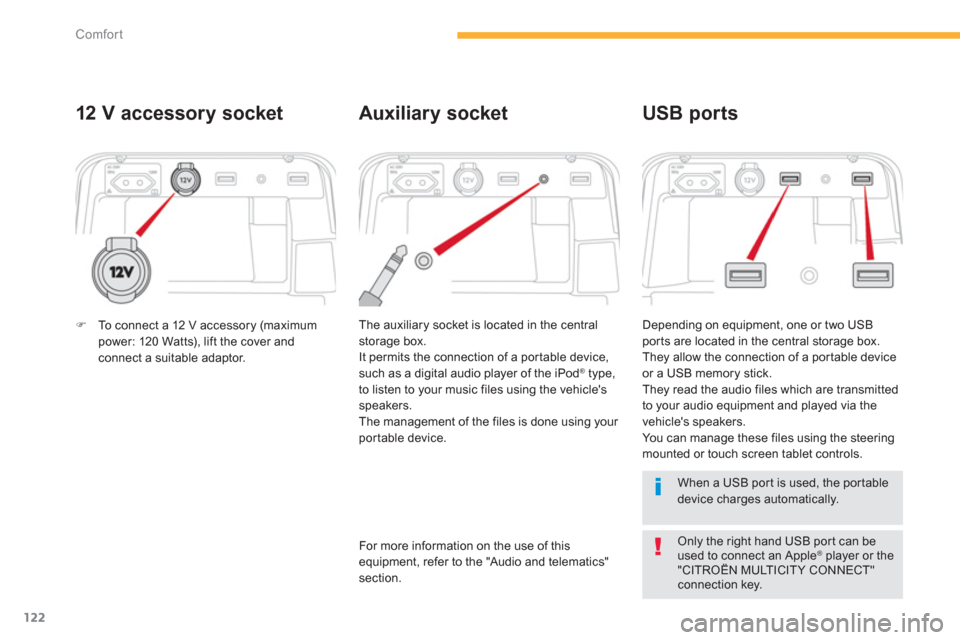

12 V acc essory socket
The auxiliary socket is located in the central
storage box.
It permits the connection of a por table device,
such as a di
gital audio player of the iPod® type,®
to listen to your music files using the vehicle's
speakers.
The management of the files is done using your
por table device. Dependin
g on equipment, one or two USBports are located in the central storage box.
They allow the connection of a por table device
or a USB memory stick.
They read the audio files which are transmitted
to your audio equipment and played via the
vehicle's speakers.
You can manage these files using the steeringmounted or touch screen tablet controls.






Auxiliary socket USB ports


For more information on the use of thisequipment, refer to the "Audio and telematics"section.



When a USB por t is used, the por tabledevice charges automatically.

Only the right hand USB por t can be used to connect an Apple®
player or the ®
"CITROËN MULTICITY CONNECT" connection key.

)To connect a 12 V accessory (maximum power: 120 Watts), lift the cover andconnect a suitable adaptor.

127
3
Comfort





Rear multimedia

This multimedia system allows rear passengers
to connect one or two external portablesystems (audio or video player, games consoles, DVD player...). The sound is played
through two Bluetooth ®wireless headphone sets, while the video content is displayed in two
7- i nch screens built into the backs of the frontseat head restraints.
Description

This system operates only with theengine running.
The
pack includes:
- the connection and control panel fitted on
the rear face of the centre console,
- tw
o 7- i nch screens built into the front head restraints (with protective covers),
- two wireless Bluetooth technologyheadphone sets with rechargeable batteries,
- a 12 V charger with two outlets allowing the simultaneous charging of two headphones,
1
. Power switch2.AV1 video input (yellow RCA socket)3.Stereo audio input A (red and white RCA sockets)4.AV2 video input (yellow RCA socket)
5.Stereo audio input B (red and white RCA sockets)6. Selection of display in the left hand screen (AV1 or AV2)
7.Selection of display in the right handscreen (AV1 or AV2) 8. Connection indicator lamps for the Bluetooth audio headphones (blue)

290
Practical information

Type 1 fuse tables
Fusebox 1


Dashboard fuses

The fusebox is located in the lower dashboard (left-hand side).
Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse N°RatingFunctions
F
85 A Steering mounted controls
F1
820 A Touch screen tablet, audio and navigation system, CD player,USB por ts and auxiliary sockets.
F1
615 A
Front 12V socket.
F1
515 A
Boot 12V socket.
F2
85 A STA R T/STOP button.
F3
015 A Rear wiper.
F27 15 A
Front screenwash pump, rear screenwash pump.
F2
615 A
Horn.
F20 5
A Airbags.
F215 A Instrument panel.
F1
95 A Rain and sunshine sensor.
F12 5
A Keyless starting unit.
F2 5
A Manual headlamp adjustment control.

292
Practical information
Type 2 fuse tables
Fuse N°RatingFunctions
F
33 A START/STOP button.
F6A 15 A Touch screen tablet, audio and navi
gation system, CD player,USB ports and auxiliary sockets.
F8 5
A Alarm.
F
93 A Steering mounted controls.
F1
95 A Instrument panel.
F2
43 A Rain and sunshine sensor.
F25 5
A Airbags.
F33 3
A Memorisation of driving position.
F3
45 A Electric power steering.
F13 10 A
Fr
ont 12V socket.
F1410 A
Boot 12V socket.
F1
63 A Map reading lamps in row 1 cour tesy lamps.
F27 5
A Electronic gearbox gear selector.
F3
020 A Rear wiper.
F3
83 A Manual headlamp adjustment control.

308
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.

Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in thevehicle.
"Multimedia":
Speakers, Hi-Fi module, Bluetooth hands-freesystem, head-up display screen, por tablesatellite navigation system, semi-integralsuppor t bracket for por table navigation system,
driving assistance systems, reversing camera, por table video screen, por table video carrier,
telephone carrier, two-screen video pack,
por table video player, CD player, solar USB charger, 230 V/50 Hz socket, 230 V/12 Vadaptor, iPhone/iPad charger, Wi-Fi on board...
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range, products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
