2013 Citroen C4 PICASSO Controls

290
Practical information

Type 1 fuse tables
Fusebox 1


Dashboard fuses

The fusebox is located in the lower dashboard (left-hand side).
Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse N°RatingFunctions
F
85 A Steering mounted controls
F1
820 A Touch screen tablet, audio and navigation system, CD player,USB por ts and auxiliary sockets.
F1
615 A
Front 12V socket.
F1
515 A
Boot 12V socket.
F2
85 A STA R T/STOP button.
F3
015 A Rear wiper.
F27 15 A
Front screenwash pump, rear screenwash pump.
F2
615 A
Horn.
F20 5
A Airbags.
F215 A Instrument panel.
F1
95 A Rain and sunshine sensor.
F12 5
A Keyless starting unit.
F2 5
A Manual headlamp adjustment control.

292
Practical information
Type 2 fuse tables
Fuse N°RatingFunctions
F
33 A START/STOP button.
F6A 15 A Touch screen tablet, audio and navi
gation system, CD player,USB ports and auxiliary sockets.
F8 5
A Alarm.
F
93 A Steering mounted controls.
F1
95 A Instrument panel.
F2
43 A Rain and sunshine sensor.
F25 5
A Airbags.
F33 3
A Memorisation of driving position.
F3
45 A Electric power steering.
F13 10 A
Fr
ont 12V socket.
F1410 A
Boot 12V socket.
F1
63 A Map reading lamps in row 1 cour tesy lamps.
F27 5
A Electronic gearbox gear selector.
F3
020 A Rear wiper.
F3
83 A Manual headlamp adjustment control.

337
operate in your vehicle.
Touch screen tablet


01 General operation


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 First steps - Control panel

04 Media

05 Navigation

06 Configuration

07 Connected services

08 Telephone p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p.
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA AUDIO SYSTEM
BLUETOOTH TELEPHONE
8
340
358
342
378
388
390
400

03 Steering mounted controls p. 341

341
03STEERING MOUNTED CONTROLS
- Mute.
- Volume increase
/ decrease.
- Radio: displa
y the list of stations.
Media: displa
y the list of tracks.
- R
otation
Radio: automatic selection of next / previous frequenc
y.
Media: previous
/ next track.
-
Press then rotation: access to preset stations.
-
Change the audio source.
- M
ove in the menus.
Zoom the map in and out
Press: con
fi rmation, choice of source accepted
- TEL
button:
Access to the telephone menu:
Call list / Contacts / Hands-free mode / Answer / Hang up.
Accept an incomin
g call
Long press: reject an incoming call or end the current call. - Short press:
Change the multimedia source.
Accept an incoming call.
Call in progress: access to the telephone menu (End call, Secret mode, Hands-free mode).
- Lon
g press:
Re
ject an incoming call.
End a call in pro
gress.
Other than call in progress: access to the telephonemenu (Dial, Contacts, Call log, Answerphone).
-
Rotation.
Radio: automatic search
for previous / next station.
Media: previous
/ next track.
- Pr
ess: confi rmation.
- Short
press:
Radio: displa
y the list of stations.
Media: displa
y the list of tracks.
- Lon
g press: update the list of stations received.
- In
crease volume.
- D
ecrease volume.

353
04

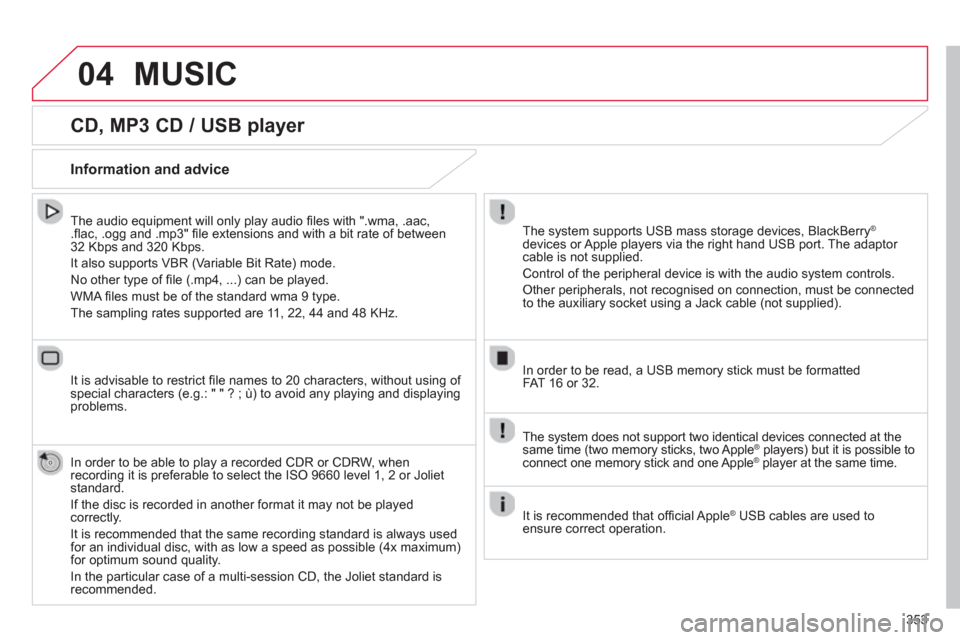

CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between32 Kbps and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, ...) can be played.
WMA fi les must be of the standard wma 9 t
ype.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict fi le names to 20 characters, without usin
g of special characters (e.g.: " " ? ; ù) to avoid any playing and displayingproblems.

In order to be able to play a recorded
CDR or CDRW, whenrecording it is preferable to select the ISO 9660 level 1, 2 or Jolietstandard.
If the disc is recorded in another format it ma
y not be playedcorrectly.

It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard isrecommended.


Information and advice

The system supports USB mass storage devices, BlackBerry®

devices or Apple players via the right hand USB port. The adaptor cable is not supplied.

Control of the peripheral device is with the audio system controls.

Other peripherals, not recognised on connection, must be connected
to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a U
SB memory stick must be formatted FAT 16 or 32.
MUSIC

The system does not support two identical devices connected at thesame time (two memory sticks, two Apple®players) but it is possible to ®
connect one memory stick and one Apple ®
player at the same time. ®

It is recommended that offi cial AppleÆ
USB cables are used toÆ
ensure correct operation.

04
356


















Using the auxiliary input (AUX)
(cable not supplied)
Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable.
First ad
just the volume of your portable device (to a high level). Then
adjust the volume of your audio system.
Displa
y and management of the controls are via the portable device.
Select change the source.
Select Mediato display the primary page.

Select the AUXILIARYsource.Y
MUSIC

397
08

Press on Telephoneto display the primary page.


Calling a new number







Calling a contact






Making a call

Use of the telephone is not recommended while driving.
We recommended that you park safely or make use of thesteering mounted controls.

Enter the phone number usin
g the keypad then
" Call
" to start the call.

Pr
ess on Telephone
to display the primary page.

Select "Contacts ".

Select the desired contact from the list offered.

Select "CALL".

CONTACTS

Or make a long press on the steering mountedTEL button.

.
409
