2013 Citroen C3 RHD tow

Visibility
88
Rear wiper
park,
intermittent wipe,
wash-wipe
(set duration).


Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
w
ipers are operating.


Programming

The function is activated or deactivated via the
vehicle configuration menu.
This function is activated by default.

Windscreen wash

Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
wipers, operate for a pre-determined time. B
. Rear wiper selection ring:

If a significant accumulation of snow or ice is present, or when using a tailgate bicycle carrier, deactivate the automatic rear wiper via the multifunction screenconfiguration menu.

Fittings
96








Boot fi ttings
Rear parcel shelf(see following page for details)2.Hooks(see following page for details)3.Location for Hi- Fi amplifier4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)
(see following page for details) or
Tool box (version equipped with a spare
wheel) (refer to section "Practical Information -§ Changing a wheel")

Child safety
104
with the ISOFIX regulation.
The seats, represented below, are fitted with
regulation ISOFIX mountings:
There are three rin
gs for each seat:
- two rings A
, located between the vehicle
seat back and cushion, indicated by a label, This IS
OFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seatsare fitted with two latches which are secured on the two rings A.
When fitting an ISOFIX child seat to the right hand rear seat, before fixing the seat in place,first move the centre rear seat belt towards the
middle of the vehicle so as to not interfere with
the operation of the seat belt.

Some seats also have an upper strap which isattached to ring B.
To attach this strap, raise the vehicle seat's head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.

- a ring B
, behind the seat, referred to as theTOP TETHER
for fixing the upper strap.
For in
formation regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.




















"ISOFIX" mountings

The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.

Safety
108











Direction indicators Selection of the left or right direction indicators
to signal a change of direction of the vehicle.
)Left: lower the lighting stalk beyond thepoint of resistance.)Right: raise the lighting stalk beyond thepoint of resistance.
"Motorway" function
)Press briefly upwards or downwards,
without going beyond the point of resistance; the direction indicators will flash 3 times.







Hazard warning lamps
)
Press this button, the direction indicatorsflash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps come on automatically.
They switch off automatically the first time you accelerate.)You can also switch them off by pressingthe button.
A visual warnin
g by means of the direction
indicators to alert other road users to a vehiclebreakdown, towing or accident.

8
Safety
113

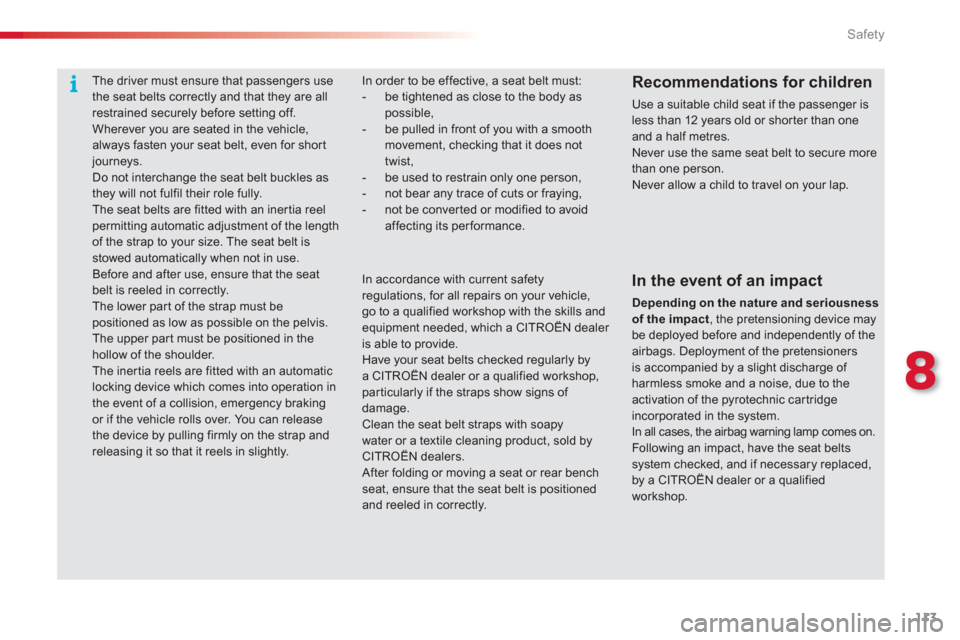

The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off. Wherever you are seated in the vehicle, always fasten your seat belt, even for shor t
journeys.
Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the lengthof the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower part of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger isless than 12 years old or shorter than one and a half metres.Never use the same seat belt to secure morethan one person. Never allow a child to travel on your lap.
In order to be effective, a seat belt must:- be tightened as close to the body aspossible, - be pulled in front of you with a smoothmovement, checking that it does not
twist, - be used to restrain only one person,- not bear any trace of cuts or fraying,- not be converted or modified to avoid affecting its performance.
In accordance with current safety regulations, for all repairs on your vehicle,go to a qualified workshop with the skills andequipment needed, which a CITROËN dealer is able to provide.Have your seat belts checked regularly bya CITROËN dealer or a qualified workshop,particularly if the straps show signs of damage.Clean the seat belt straps with soapy water or a textile cleaning product, sold byCITROËN dealers. After folding or moving a seat or rear benchseat, ensure that the seat belt is positionedand reeled in correctly.
In the event of an impact
Depending on the nature and seriousnessof the impact
, the pretensioning device may be deployed before and independently of theairbags. Deployment of the pretensionersis accompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridge incorporated in the system. In all cases, the airbag warning lamp comes on.Following an impact, have the seat belts system checked, and if necessary replaced,by a CITROËN dealer or a qualified workshop.

Safety
114
Airbags


Impact detection zones
A.
Front impact zone.
B. Side impact zone.
Front airbags

Deployment

The airbags are deployed, except thepassenger's front airbag if it is deactivated,
in the event of a serious front impact applied
to all or par t of the front impact zone A , in
the longitudinal centreline of the vehicle on a horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the head-
thorax of the front occupant of the vehicleand the dashboard to cushion their forwardmovement. S
ystem designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
The airbags supplement the action of the force-
limiting seat belts (with the exception of the centre rear passenger).
If a collision occurs, the electronic detectors record and analyse the front and side impacts
sustained in the impact detection zones:
- in the case of a serious impact, the airbagsare deployed instantly and contribute
towards better protection of the occupants
of the vehicle
(with the exception of the rear centre passenger); immediately after theimpact, the airbags deflate rapidly so that
they do not hinder visibility or the exit of the
occupants,
- in the case of a minor or rear impact
or in cer tain roll-over conditions, the
airbags will not be deployed; the seat belt alone contributes towards ensuring your protection in these situations.
The airbags do not operate when the ignition is switched off. This equipment will only deploy once. If a second impact occurs (during thesame or a subsequent accident), theairbag will not be deployed again.
Deployment of the airbag(s) is
accompanied by a slight emission of smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation. The noise of the detonation may result in a slight loss of hearing for a shor t time.

System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of in
jury to the head and chest.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.

Safety
116
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t o
f the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airba
g inflates between the hip andshoulder of the front occupant of the vehicle and the corresponding door trim panel.

Impact detection zones
A.
Front impact zone.
B. Side impact zone.


Curtain airbags

System which protects the driver and
passengers (with the exception of the rear centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the side of the head.
Each cur tain airbag is built into the pillars and
the upper passen
ger compar tment area.

Deployment

The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.

Operating fault

If this warning lamp comes on in the instrument panel, accompanied by anaudible signal and a message in thescreen, contact a CITROËN dealer or a
qualified workshop to have the systemchecked. The airbags may no longer be
deployed in the event of a serious impact.
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision, the airbag is not deployed.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of in
jury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest frame, door side.

Driving
126
Manual operation
)Select position M for sequentialchanging
of the four gears.)Push the lever towards the + sign tochange up a gear. )Pull the lever towards the -
sign to changedown a gear.
It is onl
y possible to change from one gear to another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears engaged appear in succession in the instrument panel.


Invalid value during manual operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).



Stopping the vehicle

Before switching off the engine, you can engage
position Por N to place the gearbox in neutral.
In both cases, apply the parking brake to immobilise the vehicle.

Operating fault
When the ignition is on, the lighting
o
f this warning lamp, accompanied by an audible signal and a message in the multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up mode and is locked in 3rd gear. You may feel
a substantial knock when changing from Pto Rand from N to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
workshop as soon as possible.
To r e d u c e fuel consumption when at a prolonged standstill with the enginerunning (traffic jam...), put the gear lever in the Nposition and apply the parkingbrake.



There is a risk of damage to thegearbox:


- if you press the accelerator and brake pedals at the same time,


- if you force the movement of the gear lever from the P
position to another position when the battery is flat.
If the lever is not in position P
, when the Pdriver's door is opened or approximately 45 seconds after the ignition is switchedoff, a warning message appears in the screen.)Return the lever to position P; the message disappears.

If the en
gine speed is too low or too high, the gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D(automatic) to position M (manual) at any time.When the vehicle is stationary or movingvery slowly, the gearbox selects gear M1automatically.
The spor t and snow programmes do not
operate in manual mode.
