2013 Citroen C3 RHD language

On-line owner's handbook


Referring to the owner's handbook on-line also gives you
access to the latest information available, easily identifi ed by
the bookmarks, associated with this symbol:

If the "MyCitroën" function is not available on the CITROËN public
website for your country, you can fi nd your handbook at the following
address:
http://service.citroen.com
Select:
You can fi nd your handbook on the CITROËN website, under
"MyCitroën".




This personal and customisable space allows you to establish direct
and special contact with CITROËN.

The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration
of your vehicle.
You have access to your handbook on line, together with the latest
information, identifi ed by the symbol:

2
Multifunction screens
43







Monochrome screen A

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of the doors and boot,

- audio sources
(radio, CD...),

- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.:
"Boot open") may appear temporarily. Thesecan be cleared by pressing the "Back"button.
Controls
From the control panel of your Audio system,you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items in the screen,) press the "MODE"
button to change
the permanent application (date, audio source...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "Back"button to abandon the
operation in progress.



Main menu
)
Press the "MENU"
button to gain access to
the main menu
, then press the " "or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
- units.)
Press the "OK"button to select the menurequired.


Radio-CD

With the Audio system switched on, once the
"Radio- CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio-CD"
application, refer to the Audio system par t of
the "Audio and Telematics" section.


Displays in the screen

2
Multifunction screens
45

Languages

Once the "Languages" menu has been selected,you can change the language used by the display (Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been selected, you can change the units of the followingparameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.
Once the fuel consumption units have been set to mpg, the information in the instrument panel screen on speed and distance will also be in mph and miles.

Multifunction screens
48
Example: setting of the duration of the guide-
me-home lighting) Press the "
" or "
" buttons, then
the "OK"button to select the menurequired.
) Press the "
" or "
" buttons, then
the "OK"button to select the "Guide-
me-home headlamps" line.
) Press the " " or " " buttons to set thevalue required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
)Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"boxand confirm or press the "Back"button to cancel.

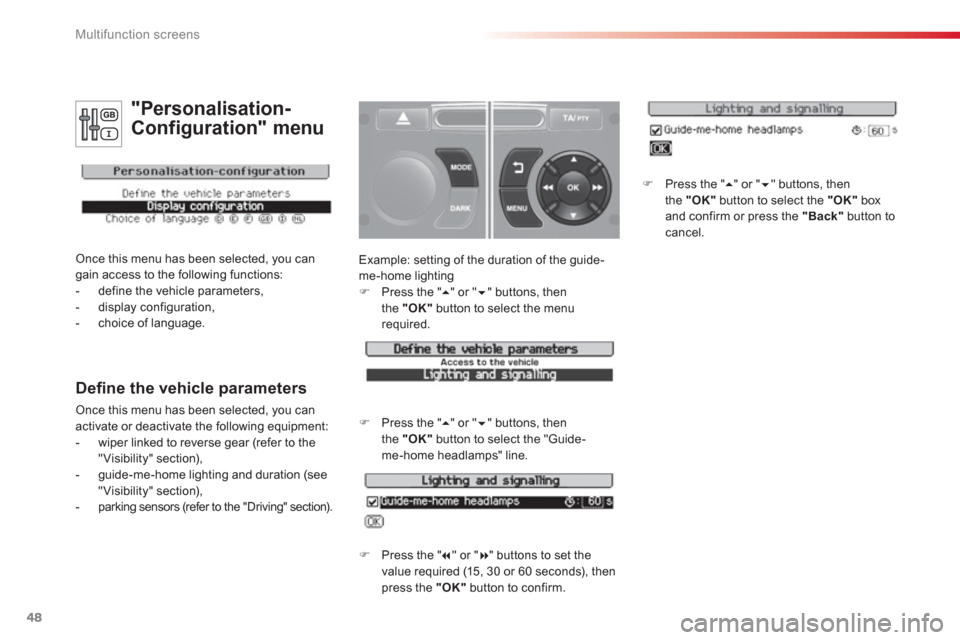

"Personalisation-
Confi
guration" menu
Defi ne the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration (see "Visibility" section),
- parking sensors (refer to the "Driving" section).
Once this menu has been selected, you can gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- choice of language.

2
Multifunction screens
49

"Telephone" Menu
With Audio system on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the"Audio and telematics" section.
Choice of language
Once this menu has been selected, you canchange the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portu
gues, Portugues-Brasil,
Türkçe * ).

For safety reasons, configuration by the
driver of the multifunction screen mustonly be done when stationary.



Display confi guration

Once this menu has been selected, you can gain access to the following settings:


- brightness-video setting,

-
date and time setting,

- selection of units.
Once the fuel consumption units havebeen changed to mpg, the informationin the screen relating to speed and distance also changes to mph and miles respectively.
*
Accordin
g to country of destination. Settin
g the date and time)Select the " Set date and time" function
using the " " or " " button. )Press "OK"
to confirm the selection. )Adjust the settings one by one using the " " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

Multifunction screens
50













16/9 colour screen (eMyWay)
It displays the following information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature
(the value displayed
flashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information (see the "Monitoring" section),
- satellite navigation system information.


Controls

To select one of the applications, from theeMyWay control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"
or "PHONE"
button for access to thecorresponding menu, )
turn the knob to change the selection, )
press the knob to confirm the selection,
or ) press the "Back"button to abandon thecurrent operation and return to the previous
display.
For more in
formation on these applications, refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.


"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",
- "Units",
- "S
ystem".


Displays in the screen

2
Multifunction screens
51

*
According to country.


System language

This menu allows you to select the language
used by the display: Deutsch, English,Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the
time:)Press "SETUP"

. )Select the "Date and time" function andpress the knob to confirm. )Select the "Adjust date and time" function and press the knob to confirm. )Adjust the settings in turn using the
directional arrows, confirming with the knob.)Select the "Date format" function and press
the knob to confirm.)Confirm the desired format using the knob. )Select the "Time format" function andpress the knob to confirm. )Confirm the desired format using the knob.

Display
This menu allows you to set the brightness of
the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
Vehicle
This menu allows you to activate or deactivate cer tain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration(refer to the "Visibility" section),
- parking sensors (refer to the "Driving"section).


Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

200
EMERGENCY OR ASSISTANCE CALL







CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the CITROËN Emergency service * . gg
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

CITROËN LOCALISED ASSISTANCE CALL


When the ignition is switched on, thegreen LED comes on for 3 seconds
indicating that the system is operating correctly.

If the oran
ge LED fl ashes: there is asystem fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN
dealer. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency callis made automatically.
*
These services are sub
ject to conditions and availability.

Consult a CITROËN dealer. If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website in your country, accessible on www.citroen.com.
