.Familiarisation
9
1. Steering wheel adjustment control. 2.Cruise control / speed limiter switches.3.Lighting and direction indicator controlstalk.4.
Central adjustable air vents.
5. Storage tray.
Scented air freshener.
6.Sunshine sensor.
7
. Passenger's airbag.8.Side adjustable air vent.9.
Glove box.
Fusebox.10.Bonnet release. 11. Dynamic stability control (ESP/ASR) switch.
Parking sensors switch.
Central locking switch.
Hazard warning lamps switch.
Electric child lock switch.
Stop & Star t switch.
12. Heating / air conditioning controls.13.Audio system. 14 .Emergency or assistance call. 15.12 V socket (100 W max).16.
USB por t / auxiliary socket.17.Cup holder. 18.Parking brake.

Instruments and controls

Comfort
56








Scented air freshener System permitting the diffusion of a fragrance in the passenger compar tment in accordance with your requirements, by means of the adjustment dial and the various fragrance car tridges available.

Fitting the cartridge
)Remove the cartridge from the sealing case. )Install the car tridge (flower at top right).
)Press the dial and turn it a quarter of a turnclockwise.

Thi
s dial is located on the dashboard or in the
upper glove box.
It allows you to adjust the intensity of diffusion
of the fragrance.)Turn the dial to the right to permit diffusion
of the fragrance.)Turn the dial to the left to stop diffusion of
the
fragrance.

Fragrance cartridge


Removing the cartridge
)Press the dial and turn it a quarter of a turnanti-clockwise. )Remove the cartridge.)Refit its sealing case.

As a safety precaution, do not carry out any action on the car tridge whiledriving. Do not dismantle the car tridges.Do not attempt to refill the fragrancediffuser or the cartridges.
Avoid all contact with the skin and eyes.Keep out of reach of children and animals.
Do not discard the original cartridge as this ser ves as a plug when no fragrance car tridge is in use. In order to preser ve the ser vice life of thecartridge, turn the dial to the left when you no longer wish to diffuse the fragrance in the passenger compartment.

Leave the central vents open.
The intensity of diffusion of the fragrance may depend on the ventilationor air conditioning settings.
Adjustment dial
This car tridge can be removed easily.
You can change it at any time and store it in the
sealed case which keeps it closed once it has been opened.
You can obtain different fragrance car tridges
from a CITROËN dealer or a qualified
workshop.

Fittings
92
































Front interior fi ttings

Sun visor. 2.
Child surveillance mirror.3.
Grab handle with coat hook. 4.
Upper storage box. Scented air freshener adjustment.5.
Storage compar tments.
6.Glove box.
Fusebox.
7. Storage pockets.8.Ticket holder.9.
12 volt socket (100 W max).10.USB por t / auxiliary socket. 11.
Cup holder.

6
Fittings
93

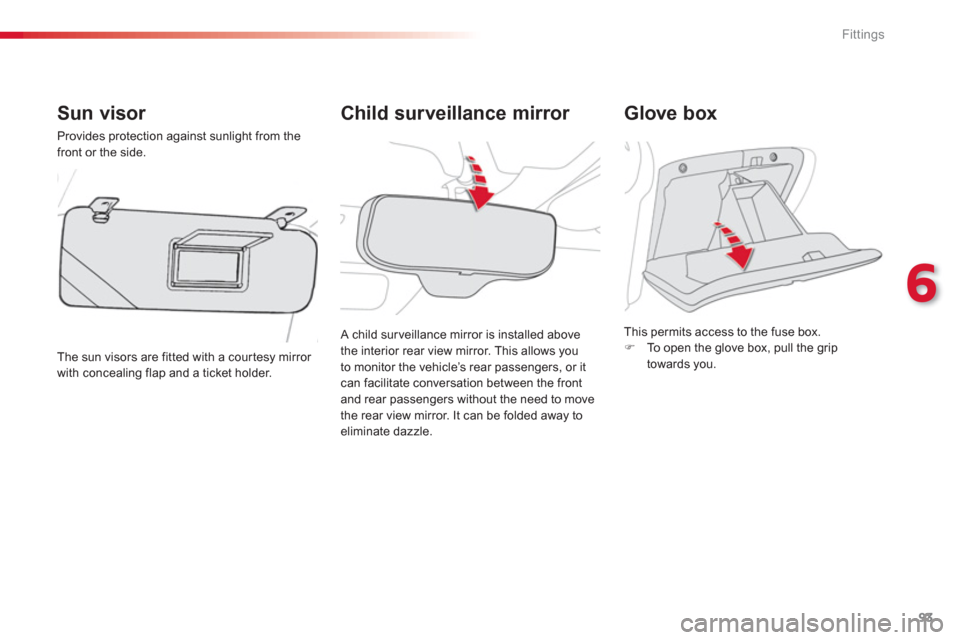

Child surveillance mirror Sun visor

Provides protection against sunlight from the
front or the side.
The sun visors are
fitted with a cour tesy mirror
with concealing flap and a ticket holder.
Glove box

This permits access to the fuse box.)
To open the glove box, pull the grip
towards you. A child surveillance mirror is installed abovethe interior rear view mirror. This allows you
to monitor the vehicle’s rear passengers, or it can facilitate conversation between the front and rear passengers without the need to move
the rear view mirror. It can be folded away toeliminate dazzle.

10
Checks
145














Petrol engines
1.
Screenwash fluid reservoir. 2.Coolant header tank.3.Air filter.4.
Brake fluid reservoir.
5. Battery.
6.Fusebox.7. Engine oil dipstick.8.Engine oil filler cap.
To avoid damaging the electrical units,the use of a high pressure washer in the engine compar tment is strictly prohibited.

Checks
146













Diesel engines

Screenwash fluid reservoir.2.
Coolant header tank.3.Air filter.4.
Brake fluid reservoir.5.
Battery.
6.Fusebox.7. Engine oil dipstick. 8.Engine oil filler cap.9.
Priming pump (on fuel filter).

Practical information
172




















Changing a fuse
The extraction tweezer and the spare fusestorage compar tment are installed on the backof the dashboard fusebox cover.
For access to them:)Open the glove box,)unclip the fuse access cover by pulling on
the side, )remove the cover completely,)remove the tweezer.



Changing a fuse

Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the failed fuse by checking thecondition of its filament.
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse of the same rating.)
Check that the number marked on thefusebox, the rating marked on the fuse and
the following tables all agree.
GoodFailed
CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.



Installing electricalaccessories
Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.
Access to the tools
