Opening The Access CoverRear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 535

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.Cavity Car-
tridge Fuse Mini-
Fuse Description
260 AmpYel-low — Front PDC Feed #1
3 — — Fuse – Spare
460 AmpYel-low — Front PDC Feed #2
530 AmpPink — Sunroof
640 Amp
Green — Exterior Lighting #1

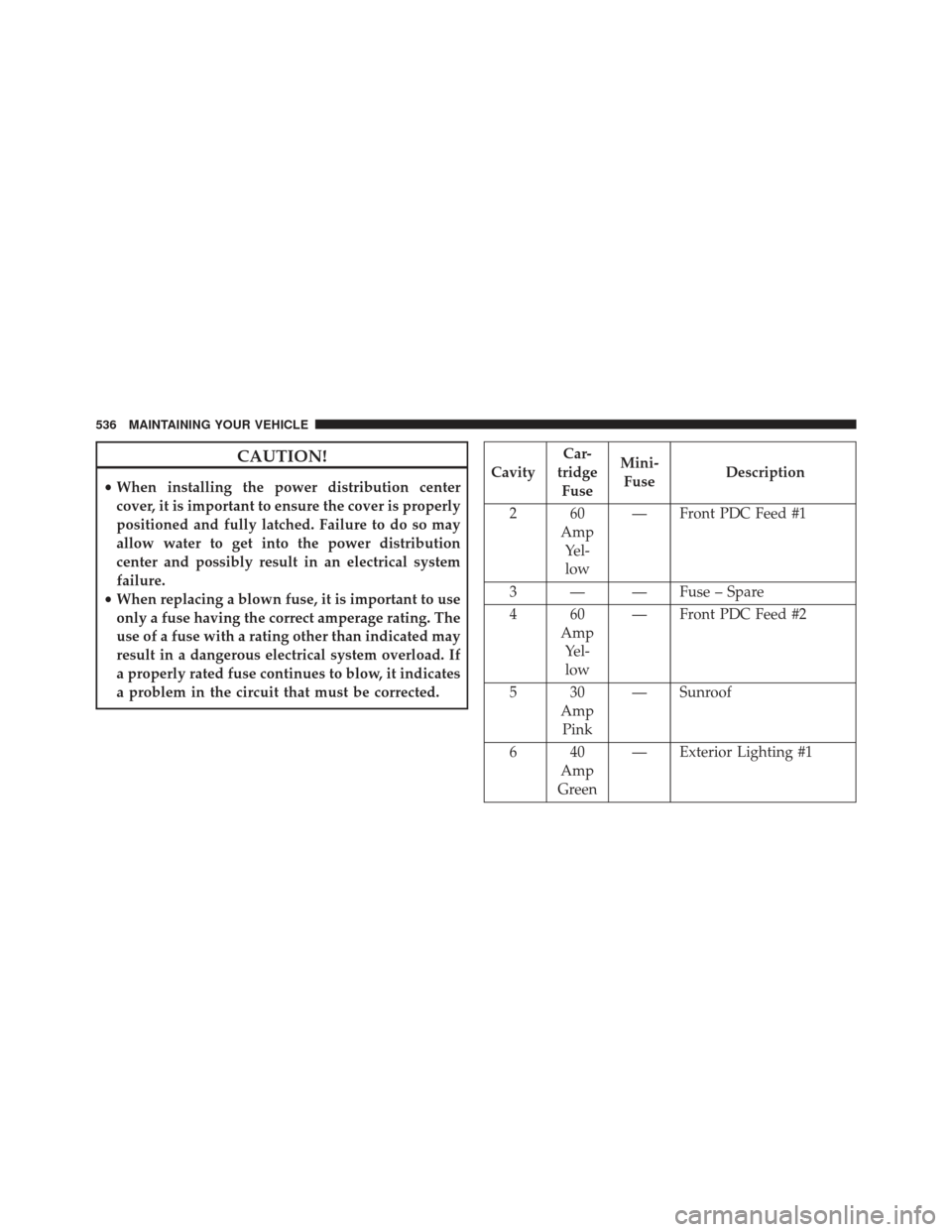

536 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
740 Amp
Green — Exterior Lighting #2
830 AmpPink — Interior Lighting/Washer
Pump
930 AmpPink — Power Locks
10 30 AmpPink — Driver Door
11 3 0 AmpPink — Passenger DoorCavity
Car-
tridge Fuse Mini-
Fuse Description
12 — 20 AmpYel-low Cigar Lighters, Instru-
ment Panel & Power
Outlet Console Rear
15 40 Amp
Green — HVAC Blower
16 — — Fuse — Spare
17 — — Fuse — Spare
18 — — Fuse — Spare
19 — — Fuse — Spare
20 — — Fuse — Spare
21 — — Fuse — Spare
22 — — Fuse — Spare
7

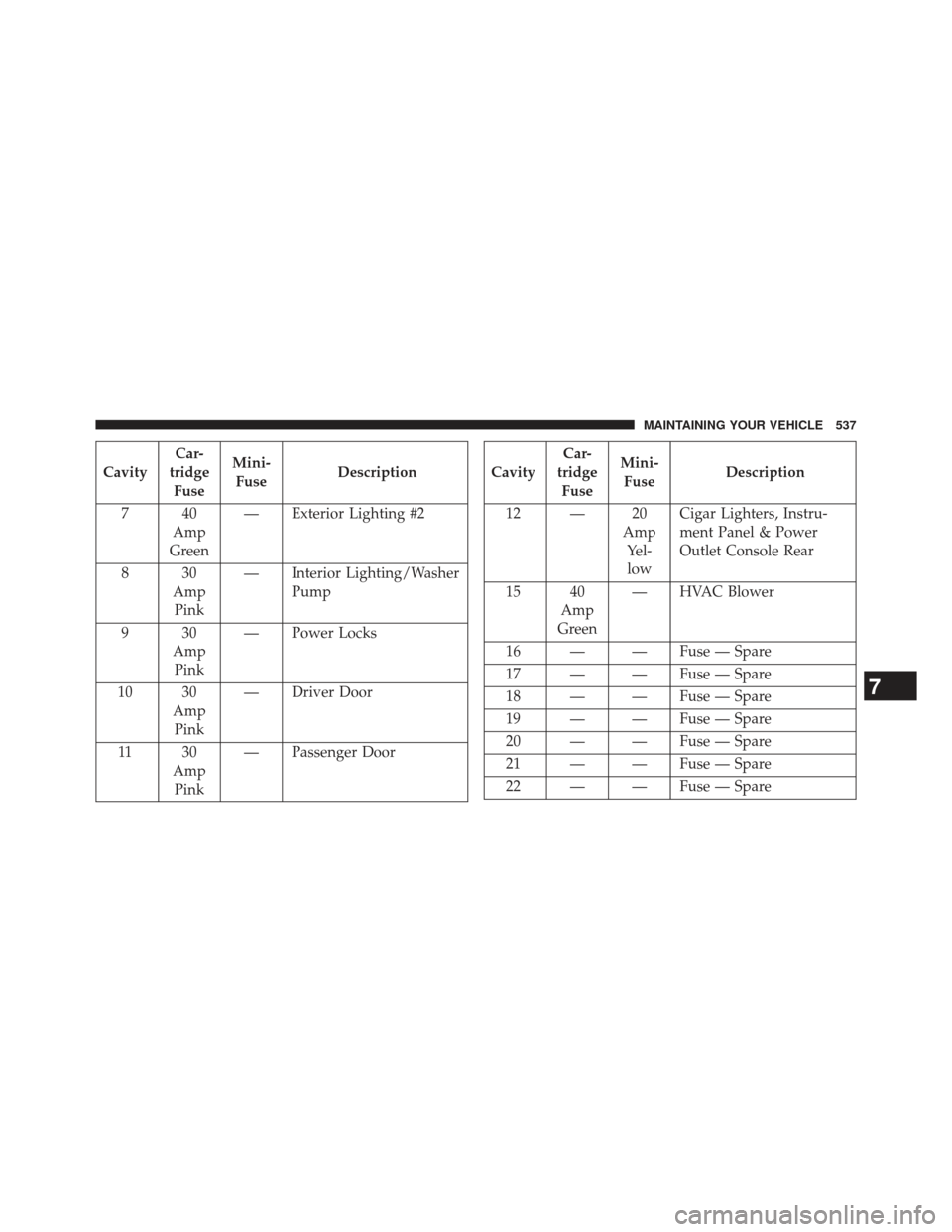

MAINTAINING YOUR VEHICLE 537

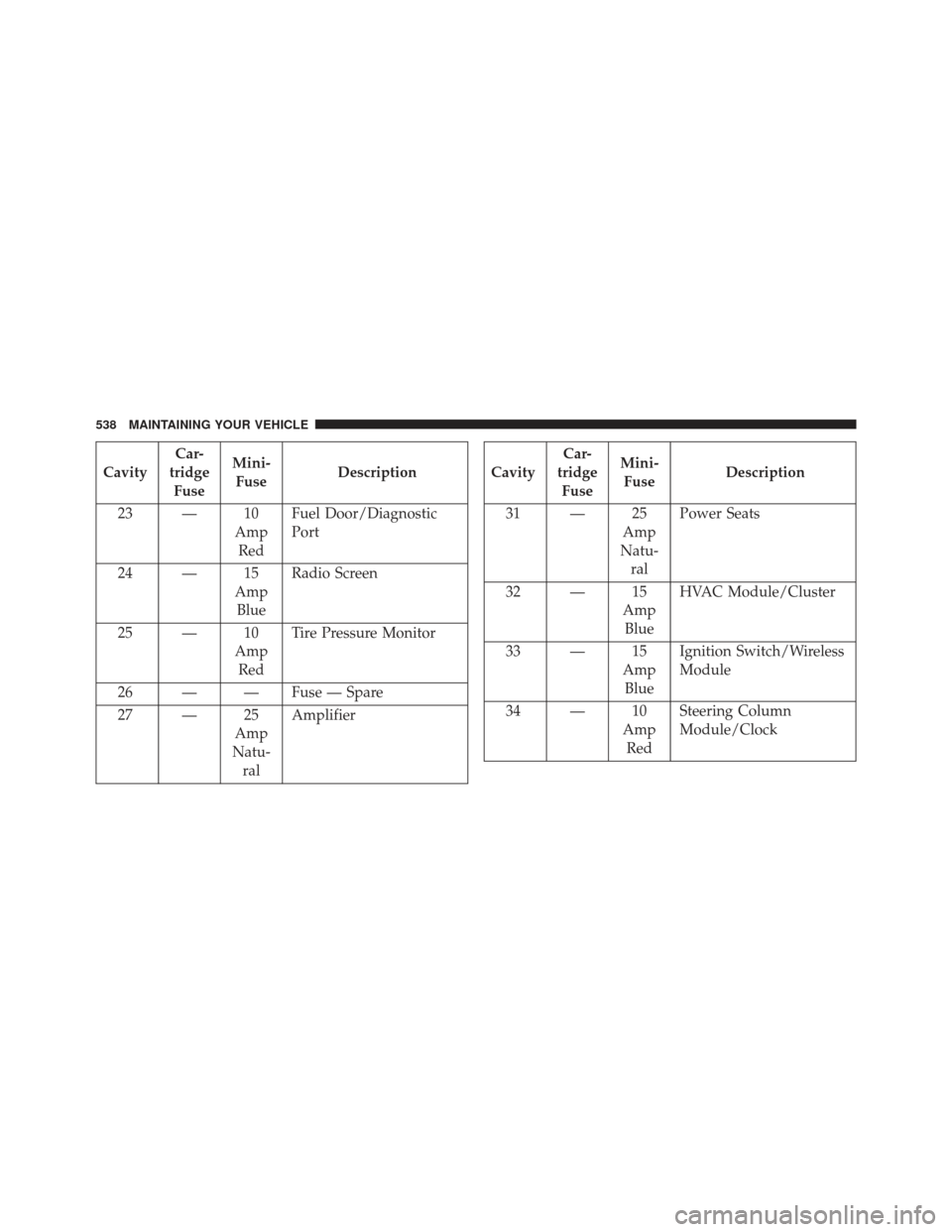

CavityCar-
tridge Fuse Mini-
Fuse Description
23 — 10 AmpRed Fuel Door/Diagnostic
Port
24 — 15 AmpBlue Radio Screen
25 — 10 AmpRed Tire Pressure Monitor
26 — — Fuse — Spare
27 — 25 Amp
Natu- ral AmplifierCavity
Car-
tridge Fuse Mini-
Fuse Description
31 — 25 Amp
Natu- ral Power Seats
32 — 15 AmpBlue HVAC Module/Cluster
33 — 15 AmpBlue Ignition Switch/Wireless
Module
34 — 10 AmpRed Steering Column
Module/Clock
538 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
35 — 10 AmpRed Battery Sensor
36 — — Fuse — Spare
37 — 15 AmpBlue Radio
38 — 20 AmpYel-low Power Outlet Inside Arm
Rest
40 — — Fuse — Spare
41 — — Fuse — SpareCavity Car-
tridge Fuse Mini-
Fuse Description
42 30 AmpPink — Rear Defrost
43 — 25 Amp
Natu- ral Rear Heated Seats/
Steering Wheel
44 — 10 AmpRed Park Assist/Blind Spot/
Camera
45 — 15 AmpBlue Cluster/Rearview
Mirror/Compass
7
MAINTAINING YOUR VEHICLE 539

CavityCar-
tridge Fuse Mini-
Fuse Description
46 — 10 AmpRed Adaptive Cruise Control
47 — 10 AmpRed Adaptive Front Lighting
48 — 20 AmpYel-low Active Suspension
49 — — Fuse — Spare
50 — — Fuse — SpareCavity Car-
tridge Fuse Mini-
Fuse Description
51 — 20 AmpYel-low Front Heated Seats
52 — 10 AmpRed Heated Cupholders/Rear
Heated Seat Switches
53 — 10 AmpRed HVAC Module/In Car
Temperature Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare

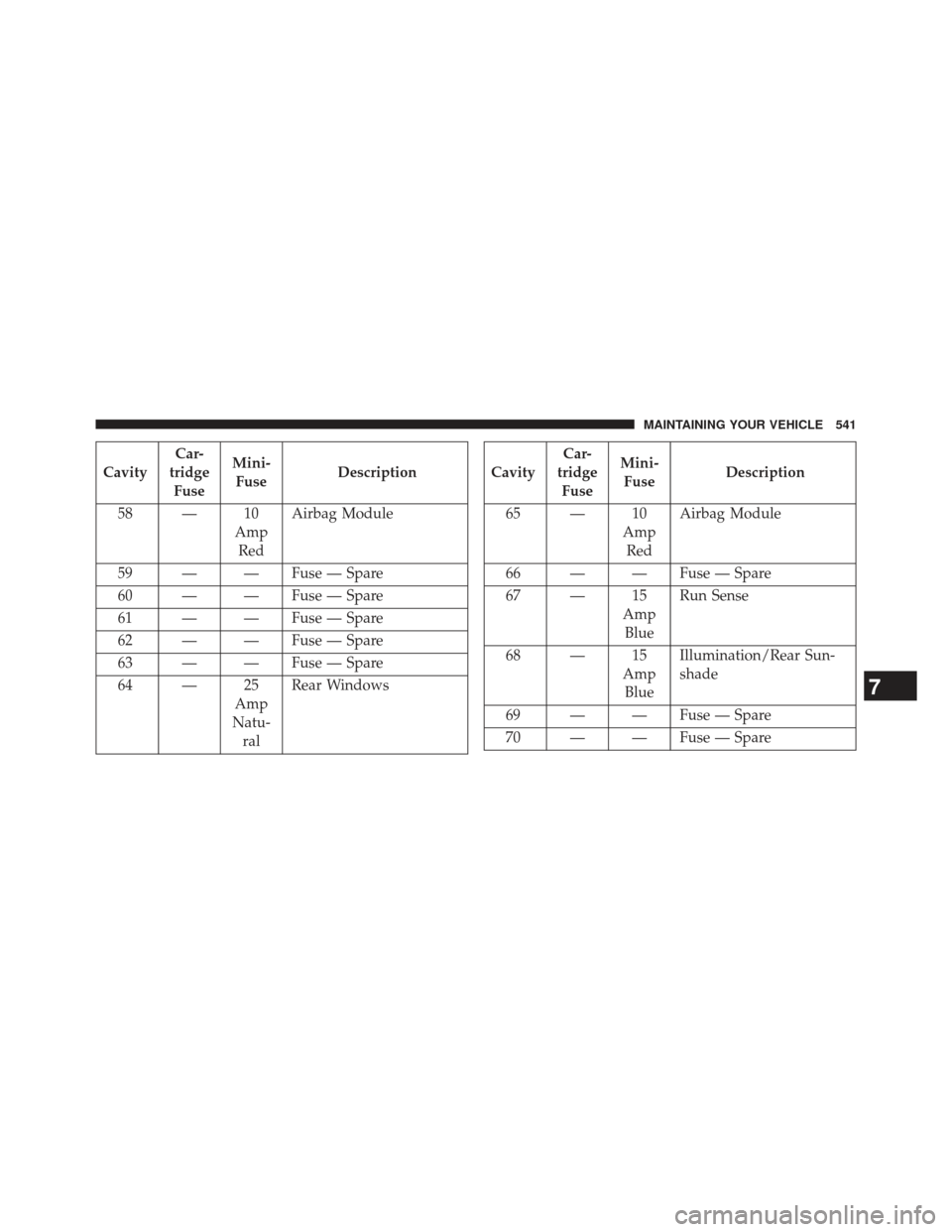

540 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
58 — 10 AmpRed Airbag Module
59 — — Fuse — Spare
60 — — Fuse — Spare
61 — — Fuse — Spare
62 — — Fuse — Spare
63 — — Fuse — Spare
64 — 25 Amp
Natu- ral Rear WindowsCavity
Car-
tridge Fuse Mini-
Fuse Description
65 — 10 AmpRed Airbag Module
66 — — Fuse — Spare
67 — 15 AmpBlue Run Sense
68 — 15 AmpBlue Illumination/Rear Sun-
shade
69 — — Fuse — Spare
70 — — Fuse — Spare
7
MAINTAINING YOUR VEHICLE 541

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading
Lamps W5W
Rear Compartment
(Trunk) Lamp 562
Overhead Console Read-
ing Lamps 578
Visor Vanity Lamps A6220
Glove Box Lamp – If
Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map
Pocket/Cupholder LED (Serviced at Autho-
rized Dealer)
For lighted switches, see your authorized dealer for
replacement instructions.
