2013 BMW Z4 SDRIVE28I Owners Manual

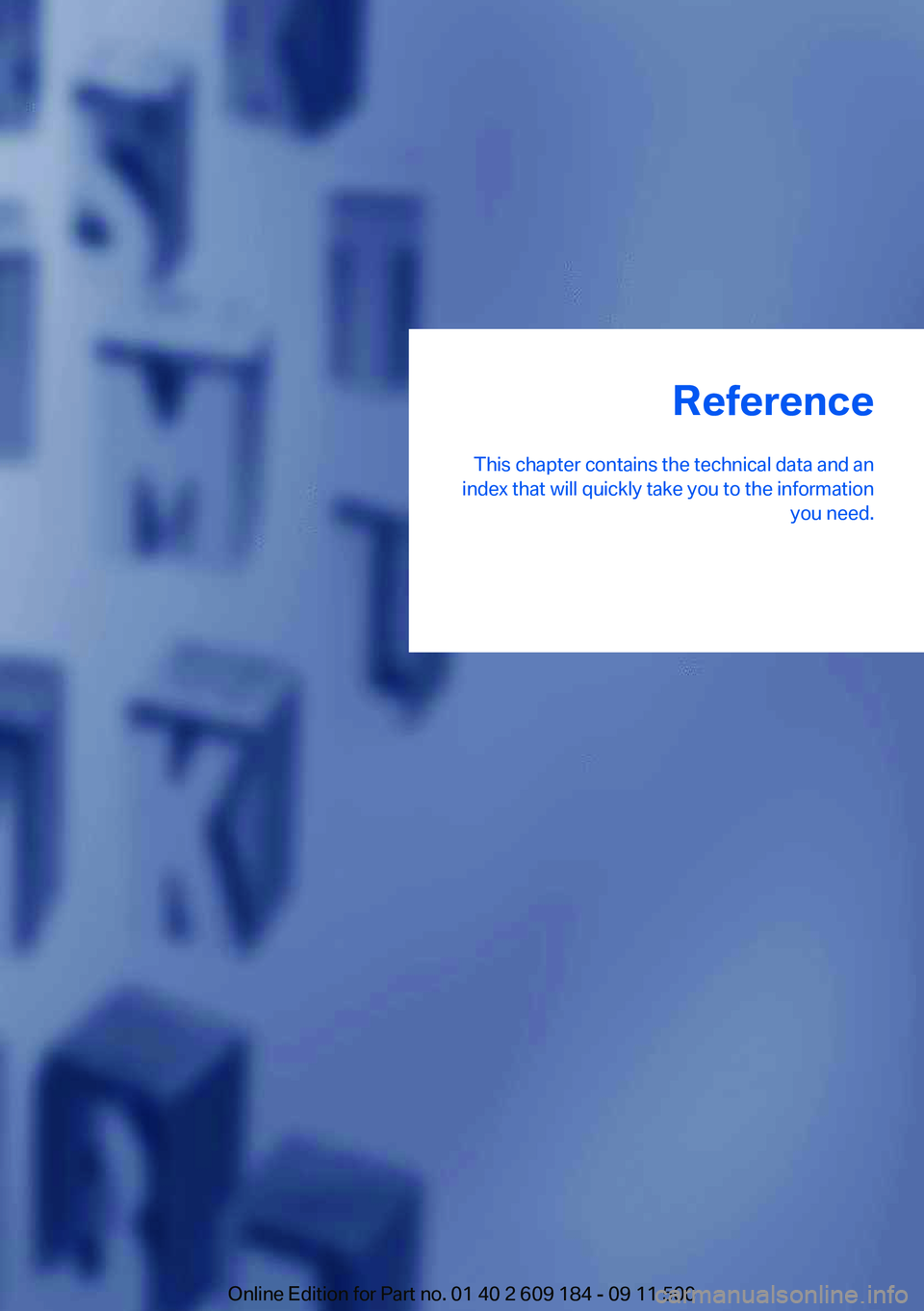

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Technical dataVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it alsodescribes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Engine specifications

Z4 sDrive28iDisplacementcu in/cm³122/1,997No. of cylinders4Maximum outputhp241at engine speedrpm5,000Maximum torquelb ft/Nm258/350at engine speedrpm1,500 ‐ 4,800

Z4 sDrive35iDisplacementcu in/cm³182/2,979No. of cylinders6Maximum outputhp300at engine speedrpm5,800Maximum torquelb ft/Nm300/407at engine speedrpm1,400 ‐ 5,000

Z4 sDrive35isDisplacementcu in/cm³182/2,979No. of cylinders6Maximum outputhp335at engine speedrpm5,900Seite 202ReferenceTechnical data202
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Z4 sDrive35isMaximum torquelb ft/Nm332/450at engine speedrpm1,500

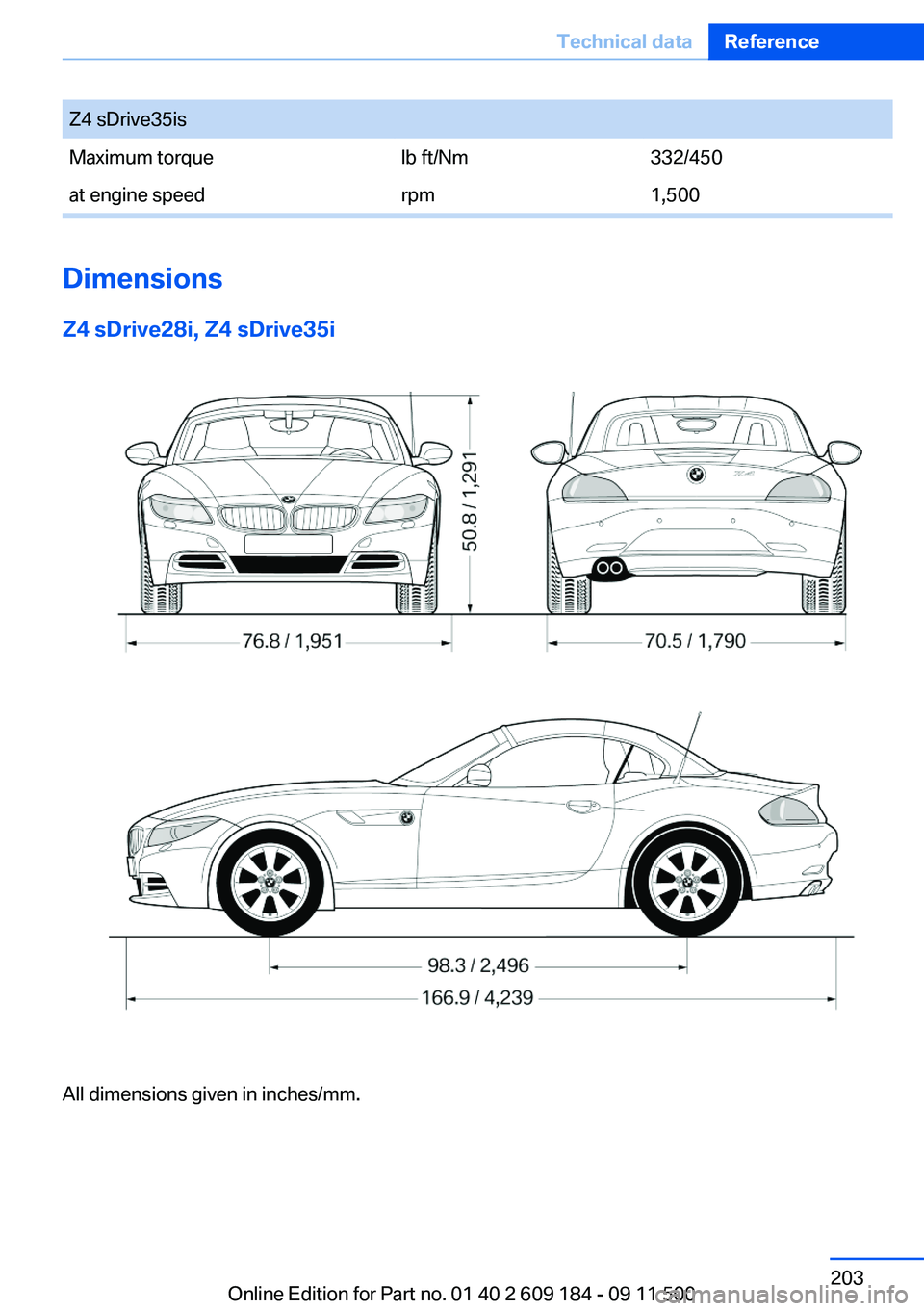

Dimensions
Z4 sDrive28i, Z4 sDrive35i
All dimensions given in inches/mm.Seite 203Technical dataReference203
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Z4 sDrive35isAll dimensions given in inches/mm.Smallest turning circle
dia.: 35.1 ft/10.7 m

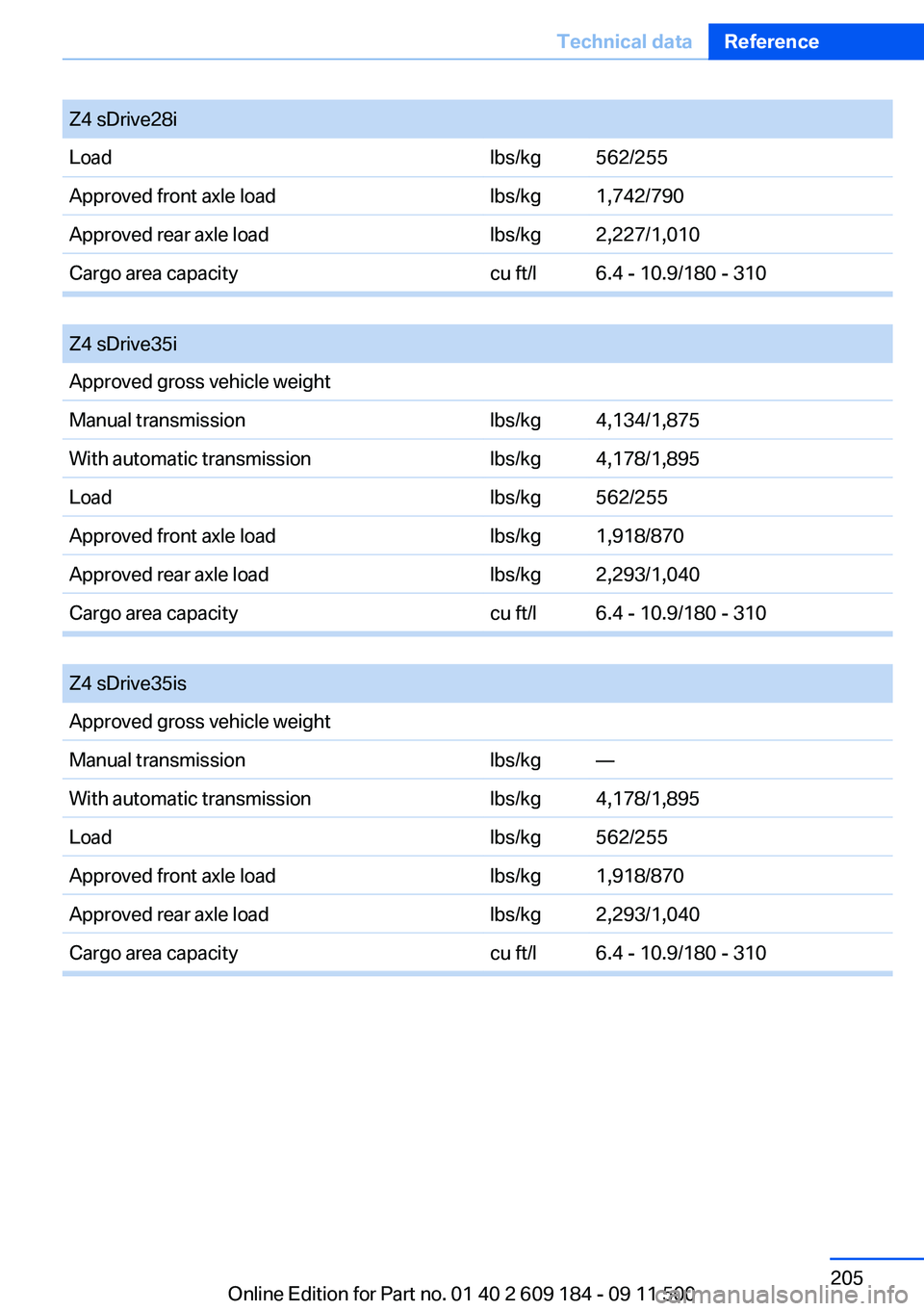

Weights

Z4 sDrive28iApproved gross vehicle weightManual transmissionlbs/kg3,858/1,750With automatic transmissionlbs/kg3,924/1,780Seite 204ReferenceTechnical data204
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Z4 sDrive28iLoadlbs/kg562/255Approved front axle loadlbs/kg1,742/790Approved rear axle loadlbs/kg2,227/1,010Cargo area capacitycu ft/l6.4 ‐ 10.9/180 ‐ 310

Z4 sDrive35iApproved gross vehicle weightManual transmissionlbs/kg4,134/1,875With automatic transmissionlbs/kg4,178/1,895Loadlbs/kg562/255Approved front axle loadlbs/kg1,918/870Approved rear axle loadlbs/kg2,293/1,040Cargo area capacitycu ft/l6.4 ‐ 10.9/180 ‐ 310

Z4 sDrive35isApproved gross vehicle weightManual transmissionlbs/kg—With automatic transmissionlbs/kg4,178/1,895Loadlbs/kg562/255Approved front axle loadlbs/kg1,918/870Approved rear axle loadlbs/kg2,293/1,040Cargo area capacitycu ft/l6.4 ‐ 10.9/180 ‐ 310Seite 205Technical dataReference205
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Capacities
NotesFuel tankUS gal/litersApprox. 14.5/55Fuel quality, refer to page 154Window washer system
Including headlamp washersUS qt/litersApprox. 6.3/6.0Details, refer to page 52Seite 206ReferenceTechnical data206
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Seite 207Technical dataReference207
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Everything from A to Z
IndexA
ABS, Antilock Brake Sys‐ tem 81
Acceleration assistant, Launch Control 58
Accident, refer to Emergency Request, initiating 176
Activated charcoal filter with automatic climate control 95
Adaptive brake light, refer to Brake force display 80
Adaptive light control 70
Additives– Coolant 166
Additives, oil 166
After washing vehicle 183
Airbags 73
Airbags
– Indicator/warning lamps 75
Air circulation, refer to Recir‐
culated air mode 90, 94
Air conditioner 90
Air conditioning mode
– Air conditioner 90– Automatic climate con‐
trol 92– Ventilation 91, 94
Air distribution
– Automatic 93– Individual 90– Manual 90
Air flow rate 90, 93
Airing, refer to Ventila‐ tion 91, 94
Air outlets, refer to Air vents 89
Air pressure, refer to Tire infla‐ tion pressure 155
Air supply– Air conditioner 90– Automatic climate con‐
trol 92– Ventilation 91, 94
Air vents 89
Air vents
– Refer to Ventilation 91, 94
Alarm system 30
Alarm system
– Avoiding unintentional
alarms 31– Ending an alarm 30– Interior motion sensor 31– Tilt alarm sensor 31
All around the headliner 16
All-season tires, refer to Win‐ ter tires 162
Alternating-code hand-held transmitter 97
Alternative oil types 166
Antifreeze
– Coolant 166– Washer fluid 52
Antilock Brake System,
ABS 81
Anti-slip control, refer to DSC 81
Anti-theft protection 22
Anti-theft protection, lug bolts 174
Approved axle loads, refer to Weights 204
Approved engine oils 166
Approved gross vehicle weight, refer to Weights 204
Armrest, refer to Center arm‐ rest 103
Assist 145
Assistance, Roadside Assis‐ tance 177
Assistance systems, refer to
Driving stability control sys‐
tems 81
Assistance when driving off 84
Audio device, external 103
Automatic air distribution 93
Automatic air flow rate 93
Automatic car wash 182
Automatic climate control– Automatic air distribution 93
Automatic cruise control 85
Automatic Curb Monitor 40
Automatic Engine Start/Stop Function 47
Automatic headlamp con‐ trol 69
Automatic recirculated air control 94
Automatic transmission
– 7-gear with dual clutch 55– 8-gear 53
AUTO program with automatic
climate control 93
AUX-IN port 103, 127
Average fuel consumption 62
Average fuel consumption
– Setting the units 63
Average speed 62
Axle loads, refer to Weights 204
B
Backrest curvature, refer to Lumbar support 37
Backrests, refer to Seat ad‐ justment 36
Backrest width adjustment 37
Backup lamps
– Bulb replacement 172, 173Seite 208ReferenceEverything from A to Z208
Online Edition for Part no. 01 40 2 609 184 - 09 11 500
