2013 BMW M3 CONVERTIBLE Owner's Manual

244
MobilityWheels and tires
Front: 225/35 R 19 88 Y XL RSC 2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.1/45- 3.3/48
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature

00320051004F004C00510048000300280047004C0057004C005200510003

245
Wheels and tires
Mobility
Coupe: inflation pressures 335is
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 3.0/44 3.4/49
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.8/41 - 3.4/49
Front: 225/40 R 18 88 Y RSC 2.3/33 - 2.6/38 -
Rear: 255/35 R 18 90 Y RSC - 2.8/41 - 3.1/45
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46 - 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60

00320051004F004C00510048000300280047004C0057004C005200510003

246
MobilityWheels and tires
Convertible: tire inflation pressures for the 328i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC 2.3/33 2.8/41 2.5/36 3.0/44
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 91 W RSC 2.3/33 2.8/41 2.5/36 3.0/44
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 2.7/39 3.2/46
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V RSC - 2.5/36 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.1/45
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y RSC - 2.9/42 - 2.9/42
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46 - 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60

00320051004F004C00510048000300280047004C0057004C005200510003

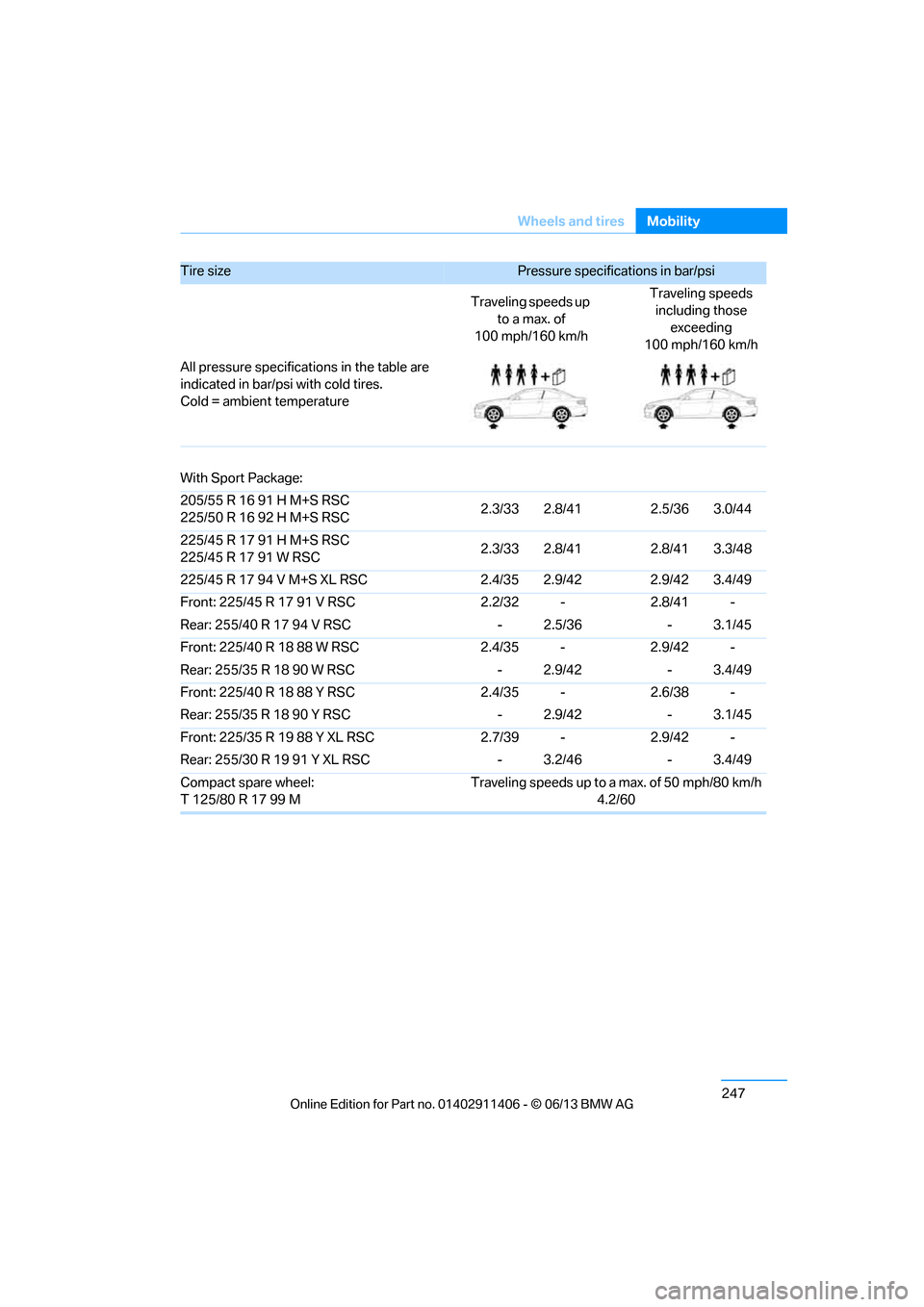

247
Wheels and tires
Mobility
With Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
2.3/33 2.8/41 2.5/36 3.0/44
225/45 R 17 91 H M+S RSC
225/45 R 17 91 W RSC 2.3/33 2.8/41 2.8/41 3.3/48
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 2.9/42 3.4/49
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.8/41 -
Rear: 255/40 R 17 94 V RSC - 2.5/36 - 3.1/45
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.4/49
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 Y RSC - 2.9/42 - 3.1/45
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46 - 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature

00320051004F004C00510048000300280047004C0057004C005200510003

248
MobilityWheels and tires

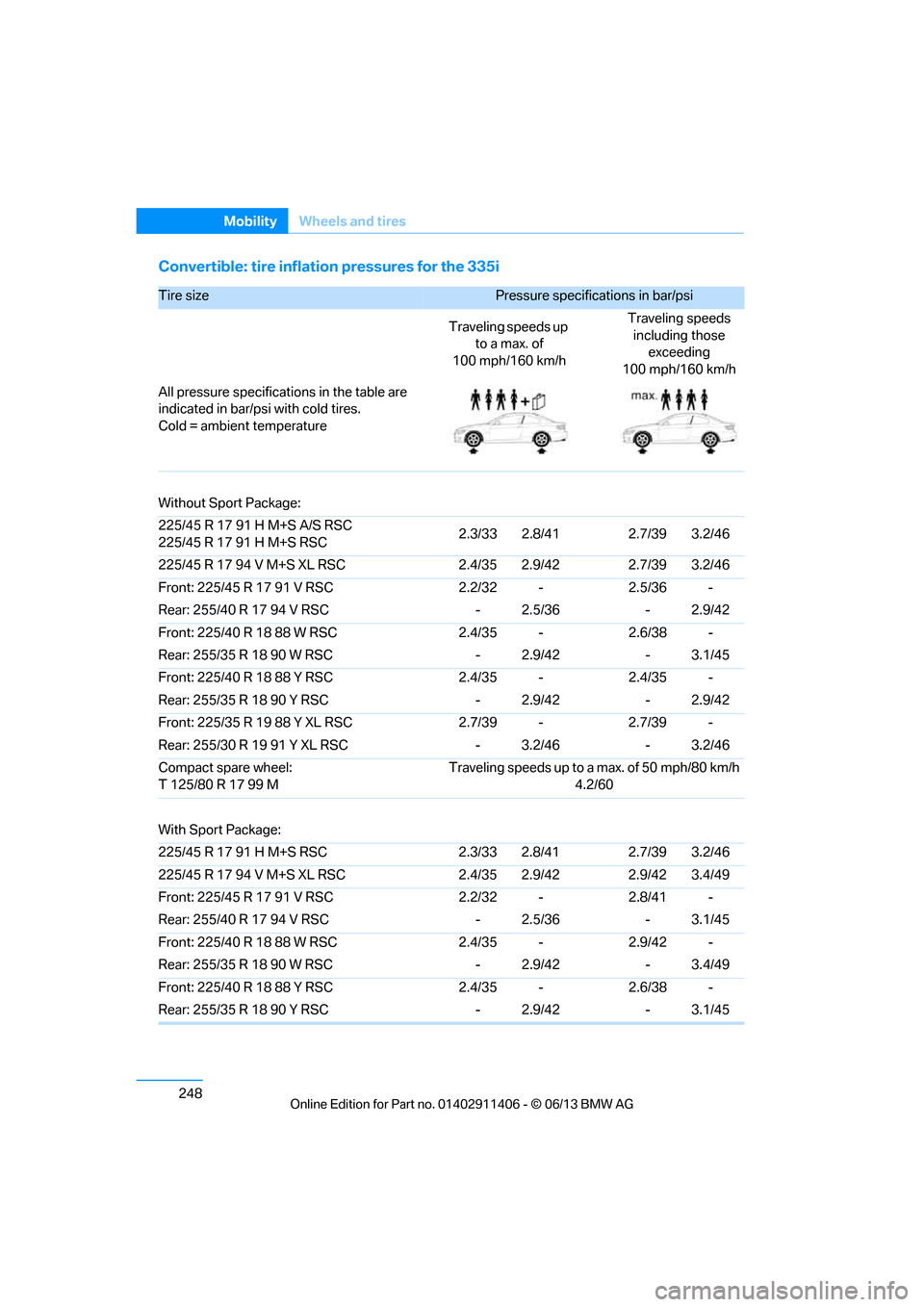

Convertible: tire inflation pressures for the 335i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 2.7/39 3.2/46
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V RSC - 2.5/36 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.1/45
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y RSC - 2.9/42 - 2.9/42
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46 - 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S RSC 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 2.9/42 3.4/49
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.8/41 -
Rear: 255/40 R 17 94 V RSC - 2.5/36 - 3.1/45
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.4/49
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 Y RSC - 2.9/42 - 3.1/45

00320051004F004C00510048000300280047004C0057004C005200510003

249
Wheels and tires
Mobility
Convertible: inflation pressures 335is
Front: 225/35 R 19 88 Y XL RSC
2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46- 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those
exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
225/45 R 17 91 H M+S RSC 2.3/33 2.8/412.7/39 3.2/46
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/422.9/42 3.4/49
Front: 225/40 R 18 88 W RSC 2.4/35 -2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.9/42- 3.4/49
Front: 225/40 R 18 88 Y RSC 2.4/35 -2.6/38 -
Rear: 255/35 R 18 90 Y RSC - 2.9/42- 3.1/45
Front: 225/35 R 19 88 Y XL RSC 2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46- 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60

00320051004F004C00510048000300280047004C0057004C005200510003

250
MobilityWheels and tires
Tire identification marks
Knowledge of the labeling on the side of the tire
makes it easier to identify and choose the right
tires.
Tire size
Speed code letter
Q = up to 100 mph or 160 km/h
T = up to 118 mph or 190 km/h
H = up to 131 mph or 210 km/h
V = up to 150 mph or 240 km/h
W = up to 167 mph or 270 km/h
Y = up to 186 mph or 300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of
the US Department of Transportation.
DOT code:
Tire age
The manufacturing date of tires is contained in
the tire coding: DOT ... 1013 means that the tire
was manufactured in week 10 of 2013.
BMW recommends that you replace all tires
after 6 years at most, even if some tires may last
for 10 years.
Uniform Tire Quality Grading
Quality grades can be found where applicable
on the tire sidewall betw een tread shoulder and
maximum section width. For example:
Tread wear 200 Traction AA
Temperature A
DOT Quality Grades
Tread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform to
Federal Safety Requir ements in addition
to these grades. <
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditio ns on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 γ) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditio ns of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteris-
tics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B, and C.
These grades represent the tire's ability to stop
on wet pavement, as measured under con-
trolled conditions on specified government test
surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.
e.g.
Nominal width in mm
Aspect ratio
in
Ξ
Radial belt construction
Rim diameter in inches
Load rating,
not on ZR tires
Speed code letter, in
front of the R on ZR tires
225/45 R1791 V
e.g.
Manufacturer's
code for tire make
Tire size and
tire design
Tire ageDOT xxxx xxx 4012

00320051004F004C00510048000300280047004C0057004C005200510003

251
Wheels and tires
Mobility
The traction grade assigned to this tire is
based on straight-ahe
ad braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics. <
Temperature
The temperature grades are A, the highest, B,
and C, representing the ti re's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and reduce
tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehi-
cle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the
laboratory test whee l than the minimum
required by law.
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive speed,
underinflation, or exce ssive loading, either
separately or in combin ation, can cause heat
buildup and possible tire failure. <
RSC – run-flat tires
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the side
of the tire, refer to page252.
M+S
Winter and all-season tires.
These have better wint er properties than
summer tires.
XL
Designation for specia lly reinforced tires.
Tire condition
Inspect your tires frequently for tread wear,
signs of damage and for foreign objects lodged
in the tread. Check the tread depth.
Minimum tread depth
The tread depth should not drop below 0.12 in/
3 mm, although, for example, European legisla-
tion only specifies a minimum tread depth of
0.063 in/1.6 mm. At tread depths below 0.12 in/
3 mm there is an increased risk of high-speed
hydroplaning, even when only small amounts of
water are present on the road surface.
When winter tires wear down past a tread depth
of 0.16 in/4 mm, they be come perceptibly less
suitable for winter condit ions. In the interest of
safety, new tires sh ould be installed.
Wear indicators in the base of the tread groove
are distributed around th e tire's circumference;
the letters TWI, for Tread Wear Indicator, on the
tire's sidewalls identify tires that incorporate
these wear indicators. On ce the tire tread has
worn down to the wear indicators, the tire has
worn to a depth of 0.063 in/1.6 mm.
Wheel/tire damage
Driving over rough or damaged road surfaces,
as well as debris, curbs and other obstacles can
cause serious damage to wheels, tires, and sus-
pension parts. This is more likely to occur with
low-profile tires, which provide less cushioning
between the wheel and th e road. Be careful to
avoid road hazards and reduce your speed,
especially if your vehi cle is equipped with low-
profile tires.

00320051004F004C00510048000300280047004C0057004C005200510003
