2013 BMW 6 SERIES COUPE Owner's Manual

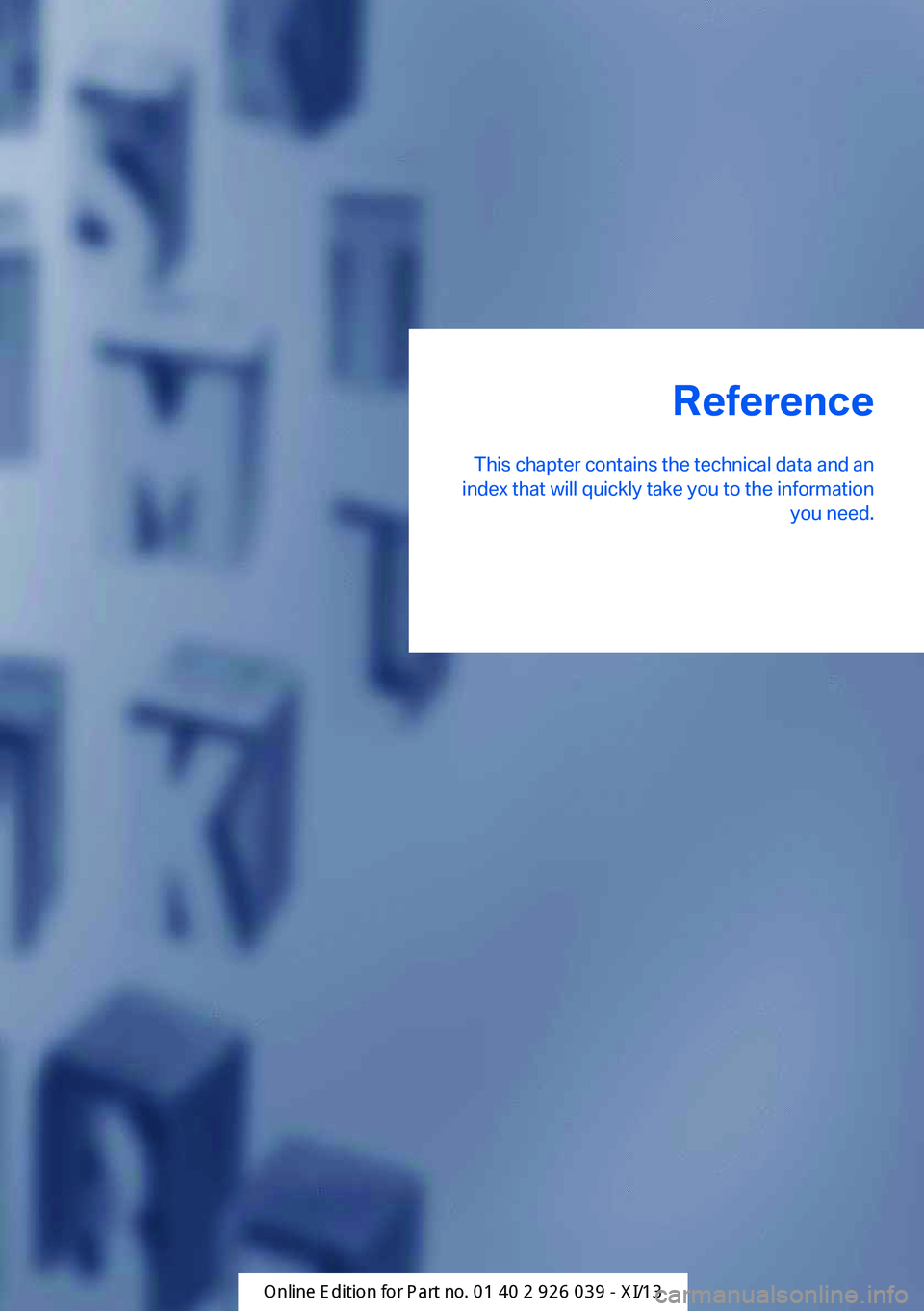

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 0140 2 910 771 - VI/13

Technical dataVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
Dimensions
Width, height
1Vehicle height: 53.9 inches/1,369 mm2Vehicle width without mirrors: 74.6 inches/
1,894 mm3Vehicle width with mirrors: 81.9 inches/
2,081 mmSeite 222ReferenceTechnical data222
Online Edition for Part no. 0140 2 910 771 - VI/13

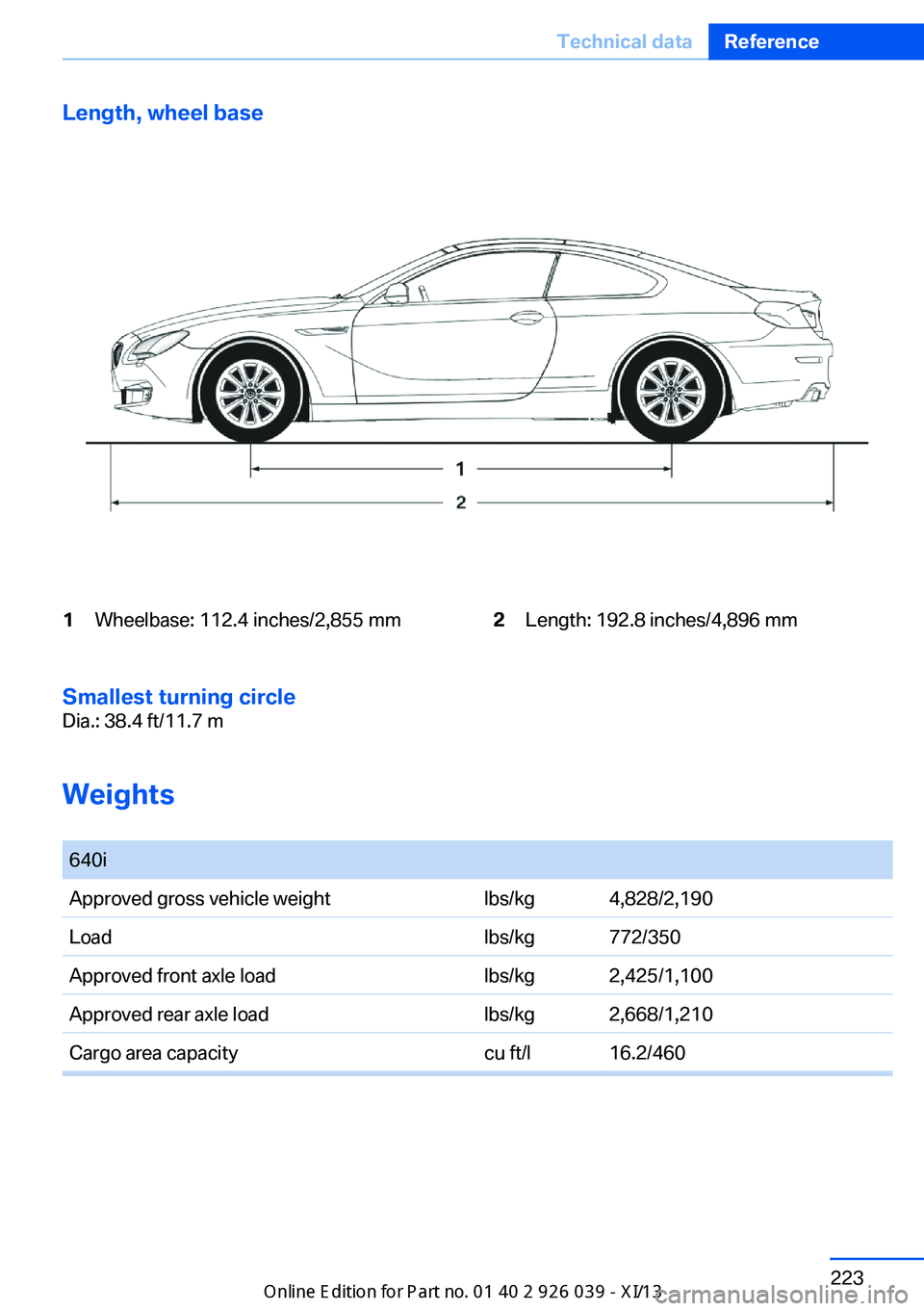

Length, wheel base1Wheelbase: 112.4 inches/2,855 mm2Length: 192.8 inches/4,896 mm
Smallest turning circle
Dia.: 38.4 ft/11.7 m
Weights

640iApproved gross vehicle weightlbs/kg4,828/2,190Loadlbs/kg772/350Approved front axle loadlbs/kg2,425/1,100Approved rear axle loadlbs/kg2,668/1,210Cargo area capacitycu ft/l16.2/460Seite 223Technical dataReference223
Online Edition for Part no. 0140 2 910 771 - VI/13

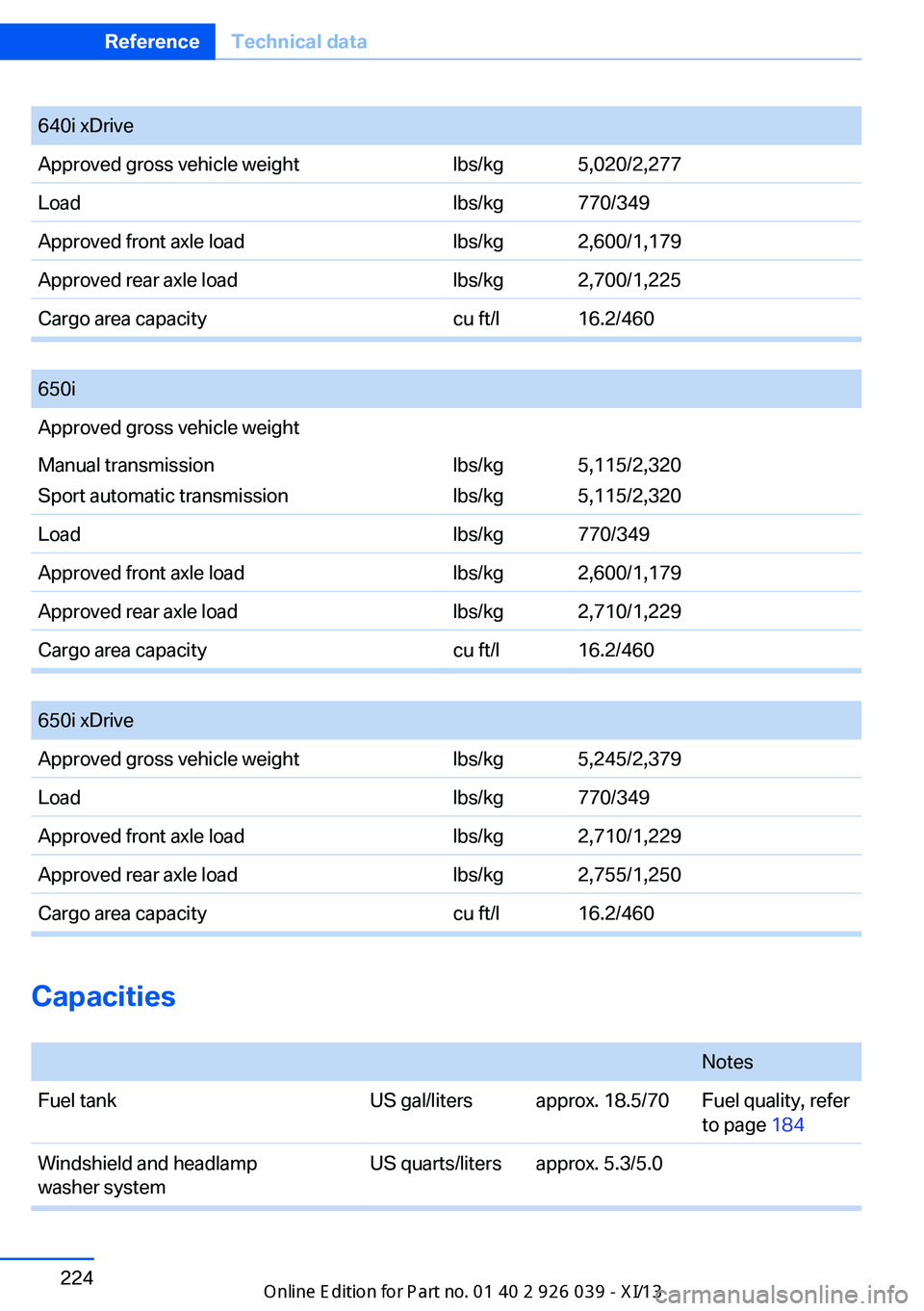

640i xDriveApproved gross vehicle weightlbs/kg5,020/2,277Loadlbs/kg770/349Approved front axle loadlbs/kg2,600/1,179Approved rear axle loadlbs/kg2,700/1,225Cargo area capacitycu ft/l16.2/460

650iApproved gross vehicle weightManual transmission
Sport automatic transmissionlbs/kg
lbs/kg5,115/2,320
5,115/2,320Loadlbs/kg770/349Approved front axle loadlbs/kg2,600/1,179Approved rear axle loadlbs/kg2,710/1,229Cargo area capacitycu ft/l16.2/460

650i xDriveApproved gross vehicle weightlbs/kg5,245/2,379Loadlbs/kg770/349Approved front axle loadlbs/kg2,710/1,229Approved rear axle loadlbs/kg2,755/1,250Cargo area capacitycu ft/l16.2/460
Capacities

NotesFuel tankUS gal/litersapprox. 18.5/70Fuel quality, refer
to page 184Windshield and headlamp
washer systemUS quarts/litersapprox. 5.3/5.0Seite 224ReferenceTechnical data224
Online Edition for Part no. 0140 2 910 771 - VI/13

Seite 225Technical dataReference225
Online Edition for Part no. 0140 2 910 771 - VI/13

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 116
ACC, Active Cruise Control with Stop & Go 124
Activated-charcoal filter 154
Active Blind Spot Detec‐ tion 112
Active Cruise Control with Stop & Go, ACC 124
Active Protection 113
Active roll stabilization, see Dynamic Drive 119
Active seat, front 47
Active seat ventilation, front 47
Active Steering, integral 119
Adaptive brake assistant 116
Adaptive brake lights, refer to Brake force display 113
Adaptive drive 119
Adaptive light control 87
Additives, oil 200
Adjusting, steering wheel 53
Adjustments, seats/head re‐ straints 45
After washing vehicle 216
Airbags 91
Airbags, indicator/warning light 92
Air circulation, refer to Recir‐ culated-air mode 153
Air distribution, manual 152
Air drying, refer to Cooling function 153
Air flow, automatic climate control 152
Air pressure, tires 185
Air vents, refer to Ventila‐ tion 154 Alarm system 40
Alarm, unintentional 41
All around the center con‐ sole 14
All around the interior rear‐ view mirror 15
All around the steering wheel 12
All-season tires, refer to Win‐ ter tires 194
All-wheel-drive 118
Alternating-code hand-held transmitter 158
Alternative oil types 200
Ambient light 89
Antifreeze, washer fluid 67
Antilock Brake System, ABS 116
Anti-slip control, refer to DSC 116
Approved engine oils 200
Armrest, refer to Front center armrest 163
Arrival time 83
Ashtray 159
Assistance, Roadside Assis‐ tance 211
Assistance when driving off 116
Attentiveness assistant 114
AUTO H button, refer to Au‐ tomatic Hold 63
AUTO intensity 152
Automatic car wash 215
Automatic Cruise Control with Stop & Go 124
Automatic Curb Monitor 52
Automatic deactivation, front passenger airbags 93
Automatic headlamp con‐ trol 87 Automatic Hold 63
Automatic locking 39
Automatic recirculated-air control 153
Automatic Soft Closing, doors 36
Automatic transmission with Steptronic 67
AUTO program, automatic cli‐ mate control 152
AUTO program, intensity 152
Auto Start/Stop function 60
Average fuel consumption 83
Average speed 83
Axle loads, weights 223
B Backrest curvature, refer to Lumbar support 46
Backrest, seats 45
Backrest, width 46
Backup camera 138
Band-aids, refer to First aid kit 211
Bar for tow-starting/ towing 213
Battery replacement, remote control for parked-car heat‐
ing/ventilation 156
Battery replacement, vehicle battery 208
Battery replacement, vehicle remote control 30
Battery, vehicle 208
Belts, safety belts 48
Beverage holder, cu‐ pholder 164
Blinds, sun protection 42
BMW Assist, see user's manual for Navigation, En‐Seite 226ReferenceEverything from A to Z226
Online Edition for Part no. 0140 2 910 771 - VI/13

tertainment and Communi‐
cation
BMW Homepage 6
BMW Internet page 6
BMW maintenance sys‐ tem 202
Bonus range, ECO PRO 175
Bottle holder, refer to Cu‐ pholder 164
Brake assistant 116
Brake assistant, adaptive 116
Brake discs, breaking in 168
Brake force display 113
Brake lamps, brake force dis‐ play 113
Brake lamps, bulb replace‐ ment 206
Brake lights, adaptive 113
Brake pads, breaking in 168
Braking, hints 169
Breakdown assis‐ tance 210, 211
Breaking in 168
Brightness of Control Dis‐ play 85
Bulb replacement, front 204
Bulb replacement, rear 206
Button, RES 127
Button, Start/Stop 58
Bypassing, refer to Jump- starting 212
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 39
Calling up seat adjust‐ ment 39
Calling up steering wheel ad‐ justment 39
Camera, backup camera 138
Camera, care 218
Camera, Side View 143
Camera, Top View 141 Can holder, refer to Cu‐
pholder 164
Car battery 208
Car care products 216
Care, displays 218
Care, vehicle 216
Cargo 171
Cargo area lid 36
Cargo area, storage compart‐ ments 164
Cargo, securing 172
Cargo straps, securing cargo 172
Car key, refer to Remote con‐ trol 30
Carpet, care 218
Car wash 215
Catalytic converter, refer to Hot exhaust system 168
CBS Condition Based Serv‐ ice 202
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center console 14
Center-Lock, see button for central locking 33
Central locking system 33
Central screen, refer to Con‐ trol Display 16
Changes, technical, refer to Safety 7
Changing parts 204
Changing wheels 207
Changing wheels/tires 193
Check Control 75
Checking the oil level elec‐ tronically 199
Children, seating position 54
Children, transporting safely 54
Child restraint fixing sys‐ tem 54
Child restraint fixing system LATCH 55 Child restraint fixing systems,
mounting 54
Child seat, mounting 54
Child seats 54
Chrome parts, care 217
Cigarette lighter 159
Cleaning, displays 218
Climate control 151
Climate control laminated tinted safety glass 169
Climate control wind‐ shield 169
Clock 78
Closing/opening from in‐ side 36
Closing/opening via door lock 35
Closing/opening with remote control 34
Clothes hooks 164
Coasting 177
Coasting with engine decou‐ pled, coasting 177
Coasting with idling en‐ gine 177
Collision warning with braking function 100
Collision warning with City Braking function 103
Combination switch, refer to Turn signals 64
Combination switch, refer to Wiper system 65
COMFORT+ program, Driving Dynamics Control 122
Comfort Access 37
COMFORT program, Driving Dynamics Control 122
Computer 82
Condensation on win‐ dows 152
Condensation under the vehi‐ cle 170
Condition Based Service CBS 202
Configure driving mode 122 Seite 227Everything from A to ZReference227
Online Edition for Part no. 0140 2 910 771 - VI/13

Confirmation signal 39
Congestion Assistant 130
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 16
Control Display, settings 84
Controller 16
Control systems, driving sta‐ bility 116
Convenient opening 34
Coolant 201
Coolant temperature 78
Cooling function 153
Cooling, maximum 153
Cooling system 201
Corrosion on brake discs 170
Cruise control 133
Cruise control, active with Stop & Go 124
Cruising range 78
Cupholder 164
Current fuel consumption 79
D
Damage, tires 193
Damping Control, dy‐ namic 119
Data, technical 222
Date 78
Daytime running lights 87
Defrosting, refer to Windows, defrosting 152
Departure time, parked-car heating 155
Departure time, parked-car ventilation 155
Destination distance 83
Digital clock 78
Dimensions 222
Dimmable exterior mirrors 52
Dimmable interior rearview mirror 52 Direction indicator, refer to
Turn signals 64
Display in windshield 148
Display lighting, refer to In‐ strument lighting 89
Displays 71, 72
Displays, cleaning 218
Disposal, coolant 201
Disposal, vehicle battery 208
Distance control, refer to PDC 136
Distance information 149
Distance to destination 83
Divided screen view, split screen 20
Door lock, refer to Remote control 30
Doors, Automatic Soft Clos‐ ing 36
Downhill control 118
Drive-off assistant 116
Drive-off assistant, refer to DSC 116
Driver assistance, see Intelli‐ gent Safety 99
Driving Assistant, see Intelli‐ gent Safety 99
Driving Dynamics Con‐ trol 120
Driving instructions, breaking in 168
Driving mode 120
Driving notes, general 168
Driving stability control sys‐ tems 116
Driving tips 168
DSC Dynamic Stability Con‐ trol 116
DTC driving dynamics 117
DTC Dynamic Traction Con‐ trol 117
Dynamic Damping Con‐ trol 119
Dynamic Drive 119
Dynamic Stability Control DSC 116 Dynamic Traction Control
DTC 117
E ECO PRO 174
ECO PRO, bonus range 175
ECO PRO display 174
ECO PRO displays 74
ECO PRO driving mode 174
ECO PRO mode 174
ECO PRO Tip - driving in‐ struction 176
EfficientDynamics 176
Electronic displays, instru‐ ment cluster 72
Electronic Stability Program ESP, refer to DSC 116
Emergency detection, remote control 31
Emergency release, door lock 36
Emergency release, fuel filler flap 182
Emergency Request 210
Emergency service, refer to Roadside Assistance 211
Emergency start function, en‐ gine start 31
Emergency unlocking, trunk lid 37
Energy Control 79
Energy recovery 79
Engine, automatic Start/Stop function 60
Engine, automatic switch- off 60
Engine compartment 197
Engine compartment, work‐ ing in 197
Engine coolant 201
Engine idling when driving, coasting 177
Engine oil 199
Engine oil, adding 200
Engine oil additives 200 Seite 228ReferenceEverything from A to Z228
Online Edition for Part no. 0140 2 910 771 - VI/13
