2013 BMW 328I XDRIVE COUPE Owners Manual

280
Referen ceTechnical data
Technical data
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.

00320051004F004C00510048000300280047004C0057004C005200510003

281
Technical data
Reference
Dimensions
Coupe
1
Vehicle width, with exterior mirrors:
77.2 in/1,961 mm 4
Wheelbase: 108.7 in/2,760 mm
2 Vehicle height: 54.9 in/1,395 mm
Vehicle height, 335is: 54.1 in/1,375 mm 5
Vehicle length: 181.9 in/4,620 mm
3 Vehicle width, without exterior mirrors:
70.2 in/1,782 mm
Smallest turning circle diam.: 36.1 ft/11.0 m, with xDrive: 38.7 ft/11.8 m.

00320051004F004C00510048000300280047004C0057004C005200510003

282
Referen ceTechnical data
Convertible
1Vehicle width, with exterior mirrors:
77.2 in/1,961 mm 4
Wheelbase: 108.7 in/2,760 mm
2 Vehicle height: 54.5 in/1,384 mm
Vehicle height, 335is: 53.9 in/1,370 mm 5
Vehicle length: 181.9 in/4,620 mm
3 Vehicle width, without exterior mirrors:
70.2 in/1,782 mm
Smallest turning circle diam.: 36.1 ft/11.0 m.

00320051004F004C00510048000300280047004C0057004C005200510003

283
Technical data
Reference
Weights
Coupe
328i328i
xDrive335i335i
xDrive
Approved gross weight
> with manual transmission lbs/kg 4,288/1,945 4,508/2,045 4,486/2,035 4,663/2,115
> with automatic transmission lbs/kg 4,354/1,975 4,553/2,065 4,508/2,045 4,685/2,125
Load lbs/kg 882/400 882/400 882/400 882/400
Approved front axle load lbs/kg 2,061/935 2,227/1,010 2,172/985 2,326/1,055
Approved rear axle load lbs/kg 2,425/1,100 2,447/1,110 2,469/1,120 2,513/1,140
Approved roof load capacity lbs/kg 165/75 165/75 165/75 165/75
Trunk capacity cu ft/
liters 15.5/
440 15.5/
440 15.2/
430 15.2/
430
335is
Approved gross weight
> with manual transmission lbs/kg 4,497/2,040
> Sport automatic transmis-
sion with double clutch lbs/kg 4,519/2,050
Load lbs/kg 882/400
Approved front axle load lbs/kg 2,183/990
Approved rear axle load lbs/kg 2,513/1,140
Approved roof load capacity lbs/kg 165/75
Trunk capacity cu ft/liters 15.2/430

00320051004F004C00510048000300280047004C0057004C005200510003

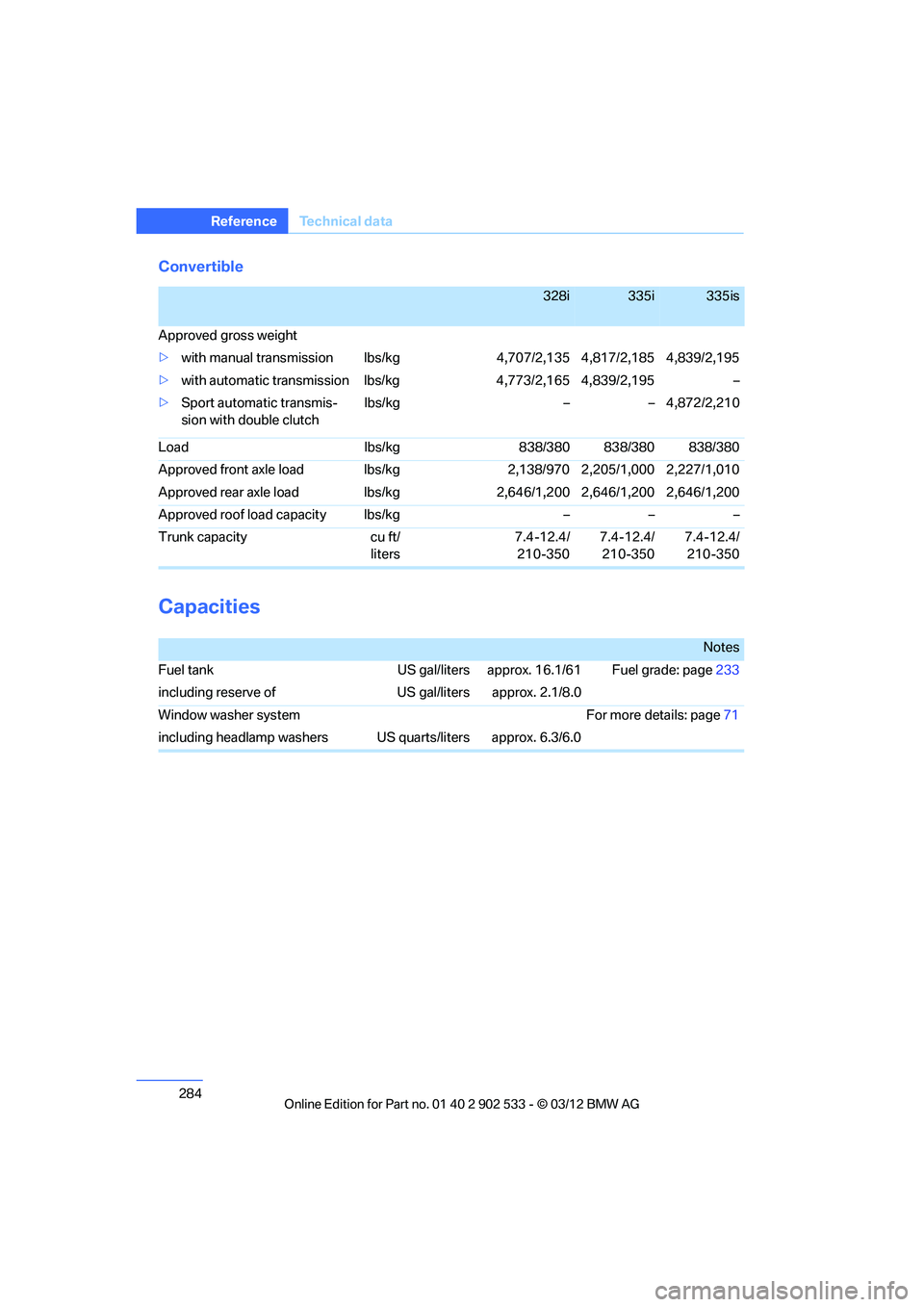

284
Referen ceTechnical data
Convertible
Capacities
328i335i335is
Approved gross weight
> with manual transmission lbs/kg 4,707/2,135 4,817/2,185 4,839/2,195
> with automatic transmission lbs/kg 4,773/2,165 4,839/2,195 –
> Sport automatic transmis-
sion with double clutch lbs/kg
–– 4,872/2,210
Load lbs/kg838/380 838/380 838/380
Approved front axle load lbs/kg 2,138/970 2,205/1,000 2,227/1,010
Approved rear axle load lbs/kg 2,646/1,200 2,646/1,200 2,646/1,200
Approved roof load capacity lbs/kg –––
Trunk capacity cu ft/
liters 7.4-12.4/
210-350 7.4-12.4/
210-350 7.4-12.4/
210-350
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page 233
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page71
including headlamp washers US quarts/liters approx. 6.3/6.0

00320051004F004C00510048000300280047004C0057004C005200510003

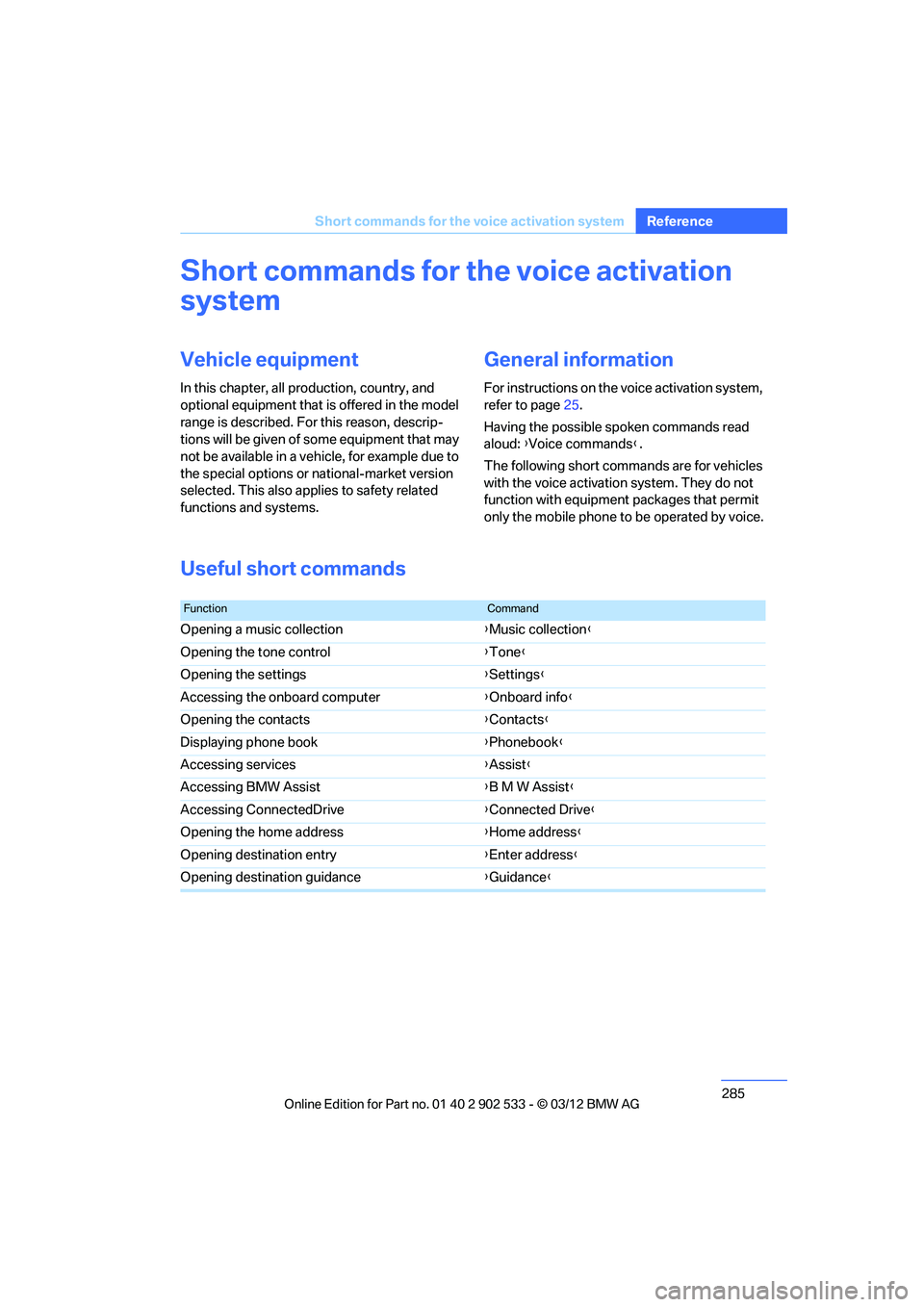

285
Short commands for the voice activation system
Reference
Short commands for the voice activation
system
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
General information
For instructions on the voice activation system,
refer to page
25.
Having the possible spoken commands read
aloud: {Voice commands }.
The following short commands are for vehicles
with the voice activation system. They do not
function with equipment packages that permit
only the mobile phone to be operated by voice.
Useful short commands
FunctionCommand
Opening a music collection {Music collection}
Opening the tone control {Tone }
Opening the settings {Settings }
Accessing the onboard computer {Onboard info }
Opening the contacts {Contacts }
Displaying phone book {Phonebook }
Accessing services {Assist }
Accessing BMW Assist {B M W Assist }
Accessing ConnectedDrive {Connected Drive }
Opening the home address {Home address }
Opening destination entry {Enter address }
Opening destination guidance {Guidance}

00320051004F004C00510048000300280047004C0057004C005200510003

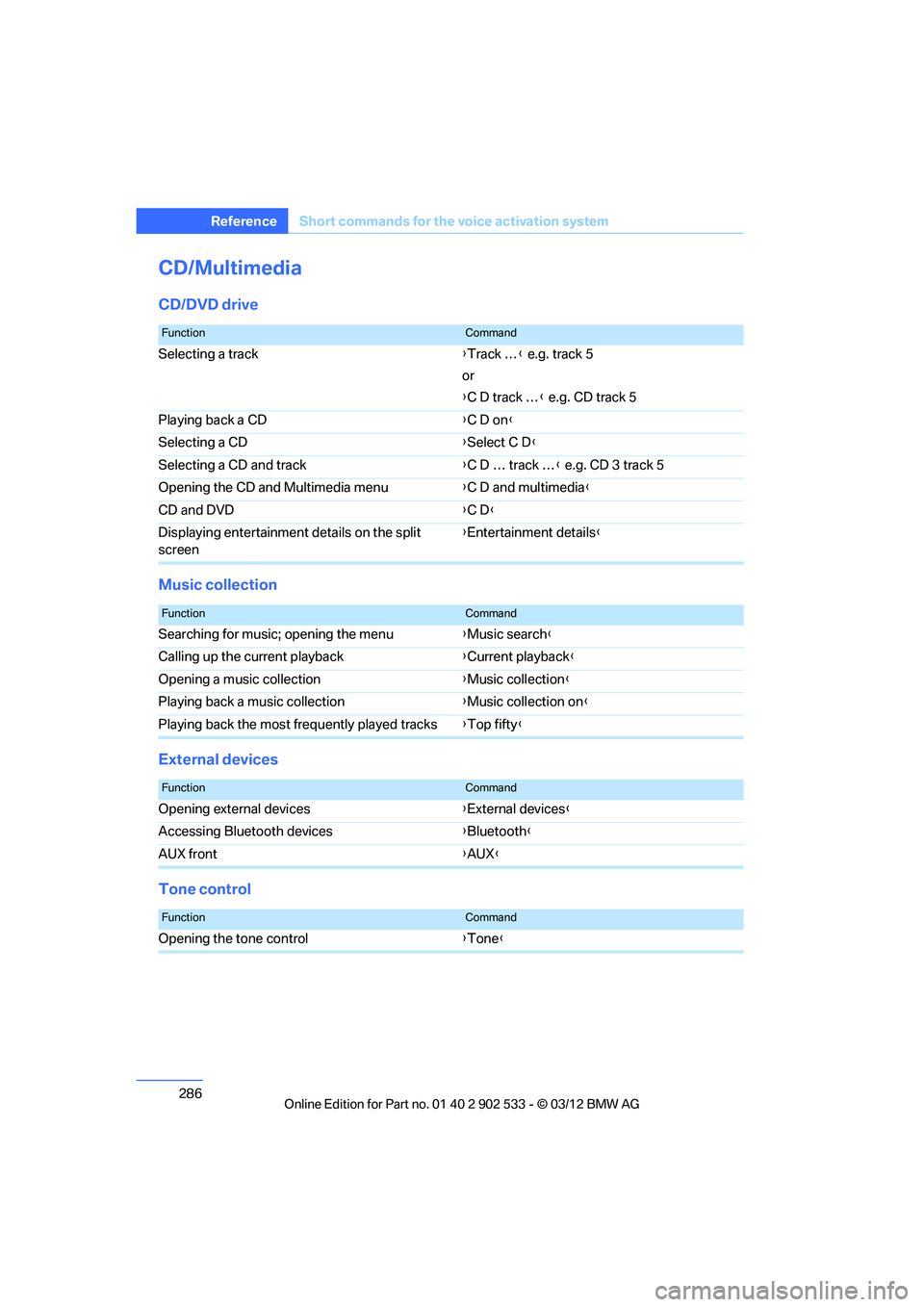

286
Referen ceShort commands for the voice activation system
CD/Multimedia
CD/DVD drive
Music collection
External devices
Tone control
FunctionCommand
Selecting a track {Track … } e.g. track 5
or
{ C D track … } e.g. CD track 5
Playing back a CD {C D on}
Selecting a CD {Select C D }
Selecting a CD and track {C D … track … } e.g. CD 3 track 5
Opening the CD and Multimedia menu {C D and multimedia }
CD and DVD {C D }
Displaying entertainment details on the split
screen {
Entertainment details }
FunctionCommand
Searching for music; opening the menu {Music search}
Calling up the current playback {Current playback }
Opening a music collection {Music collection}
Playing back a music collection {Music collection on }
Playing back the most frequently played tracks {Top fifty }
FunctionCommand
Opening external devices {External devices }
Accessing Bluetooth devices {Bluetooth}
AUX front {AUX }
FunctionCommand
Opening the tone control {Tone }

00320051004F004C00510048000300280047004C0057004C005200510003

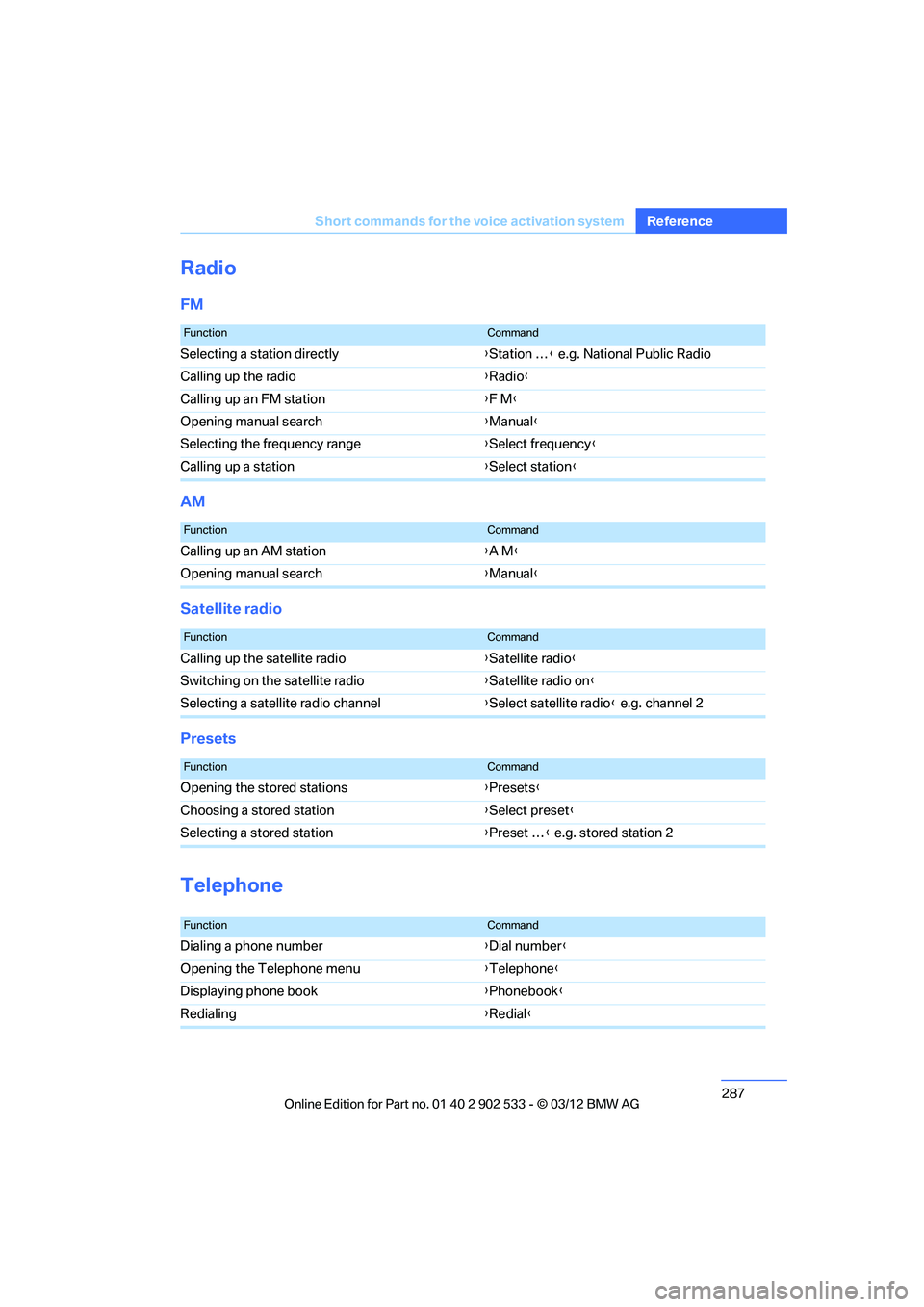

287
Short commands for the voice activation system
Reference
Radio
FM
AM
Satellite radio
Presets
Telephone
FunctionCommand
Selecting a station directly
{Station … } e.g. National Public Radio
Calling up the radio {Radio }
Calling up an FM station {F M }
Opening manual search {Manual }
Selecting the frequency range {Select frequency }
Calling up a station {Select station }
FunctionCommand
Calling up an AM station {A M }
Opening manual search {Manual }
FunctionCommand
Calling up the satellite radio {Satellite radio }
Switching on the satellite radio {Satellite radio on }
Selecting a satellite radio channel {Select satellite radio } e.g. channel 2
FunctionCommand
Opening the stored stations {Presets }
Choosing a stored station {Select preset }
Selecting a stored station {Preset … } e.g. stored station 2
FunctionCommand
Dialing a phone number {Dial number }
Opening the Telephone menu {Telephone}
Displaying phone book {Phonebook }
Redialing {Redial }
