188 Checking and filling
Before you check anything in the engine com­
partment,
alwa ys r ea d and heed all WARN­
INGS ¢ A in Working in the engine compart­
ment on page 180.
• Park your vehicle on a level surface.
• Switch the ignition off.
• Read the coolant level at the coolant expan­
s ion tank ¢
page 182, fig . 134. With a cold
engine, it must be above the "min" mark .
With a hot engine, it ca n be a little above
the indicated range .
The location of the coolant expans ion tank
can be seen in the engine compartment illus­
tration
¢ page 182.
To obtain an accurate read ing, the engine
must be switched off.
The expansion tank in yo ur vehicle is equipped
with an e lectric coolant level sensor .
When the coo lant level is too low, the warning
light in the A uto- Check System ¢
page 16 will
illuminate until yo u add coo lant and the level
has been restored to normal. Even though
there is an electric coo lant level sensor, we
still recommend you check the coolant leve l
from time to time .
Coolant loss
Coolant loss may indicate a leak in the cooling
system . In the event of coolant loss, the cool­
ing system should be inspected immediately
by your author ized Audi dealer. It is not
enough merely to add coolant .
In a
sealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheat ing.
(D Note
Do not add any type of radiator lea k seal­
ant to your vehicle's eng ine coolant. Add­
ing radiator repair f luid may adversely af­
fect the function and performance of your
cooling system and could res ult in damage
not covered by your New Vehicle Limited
Warranty.
Adding coolant
Be very careful when adding engine coolant.
Before you check anyth ing in the engine com­
partment,
always read and heed all WARN­
INGS ¢ A in Working in the engine compart­
ment on page 180 .
• Turn off the engine.
• Let the engine cool down.
• Place a thick rag over t he coo lant expansion
tank
¢ page 187, fig . 138 a nd carefully
tw ist the cap counter-clockwise ¢&_ .
• Add coo la nt.
• Twis t the cap on aga in
t ightly.
Replacement engine coolant must conform to
exact spec ificat ions ¢
page 18 7, Coolant.
Even in a n emerge ncy, if coolant add i-
t ive G1 2++, G12+ or G12 is not ava ilable , do
not use a d iffe ren t addit ive. Use plain water
instead unti l you can get the cor rect additive
and can restore the correct ratio . This sho uld
be done as soon as possible .
If you have los t a considerab le amount o f
coolant , then you sho uld add cold ant ifreeze
and co ld wate r on ly w hen the engine is cold.
Alw ays use
new engine coo la nt whe n refilling .
Do not fill coola nt above the "MAX" mark. Ex­
cess coola nt wi ll be fo rced o ut through the
pressure relief valve in t he cap w hen the en­
gine becomes hot.
,&. WARNING ~ -
- T he cooling system is under pressure and
can get very hot. Reduce the risk of
scalding from hot coolant by followi ng
these steps.
- T urn off the engine and allow it to coo l
down.
- Protect yo ur face, hands and arms from
escaping fluid and steam by covering
the cap w ith a large, t hick rag.
- T urn the cap s lowly a nd ve ry carefully
in a counter-clo ckwise direction while
applying light, downward pres sure on
the top of the cap.

-To avoid being burned, do not spill an­
tifreeze or coolant on the exhaust sys­ tem or hot engine parts. Under certain
conditions, the ethylene glycol in en­
gine coolant can catch fire.
- Antifreeze is poisonous. Always store an­
tifreeze in its original container and well out of the reach of children.
- If you drain the coolant, it must be
caught and safely stored in a proper con­
tainer clearly marked "poison".
(D Note
- Coolant pollutes the environment and
could cause an engine fire. Excess cool­
ant will be forced out through the pres­
sure relief valve in the cap when the en­
gine becomes hot.
- If, in an emergency, only water can be
added, the correct ratio between water
and antifreeze¢
page 187 must be re­
stored as soon as possible.
@ For the sake of the environment
Drained coolant should not be reused. Al­
ways dispose of used coolant while observ­ ing all environmental regulations.
Radiator fan
The radiator fan switches on automatically by
itself
The electric radiator fan is controlled by ther­
moswitches that switch on and off depending
on coolant and engine compartment tempera­
tures.
An auxiliary electric radiator fan* switches on
and off depending on coolant temperature
and other vehicle operation conditions.
After you switch the engine off, the auxiliary
fan can continue running for up to 10 minutes
- even with the ignition off.
It can even switch
on again later by itself
c::> &., , if
- the temperature of the engine coolant rises due to the heat build-up from the engine in
the engine compartment, or

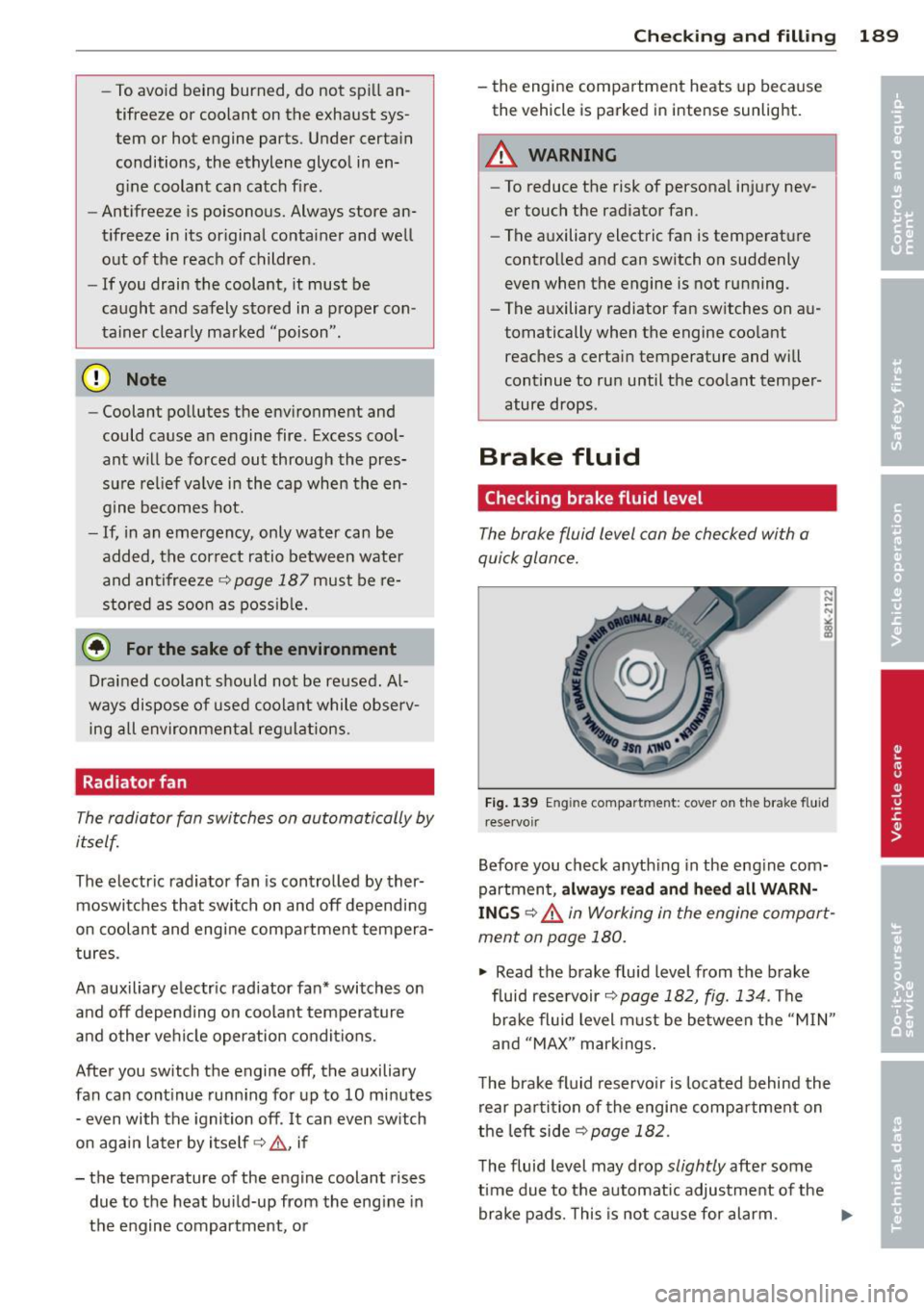

Checking and filling 189
- the engine compartment heats up because
the vehicle is parked in intense sunlight.
A WARNING
-To reduce the risk of personal injury nev­
er touch the radiator fan .
- The auxiliary electric fan is temperature
controlled and can switch on suddenly
even when the engine is not running.
- The auxiliary radiator fan switches on au­
tomatically when the engine coolant
reaches a certain temperature and will
continue to run until the coolant temper­
ature drops.
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance.
Fig. 139 Engin e compart ment: cover on th e br ake fluid
re se rvoir
Before you check anything in the engine com­
partment,
always read and heed all WARN­
INGS c::> .&. in Working in the engine compart­
ment on page 180.
~ Read the brake fluid level from the brake
fluid reservoir
c::> page 182, fig. 134 . The
brake fluid level must be between the "MIN"
and "MAX" markings.
The brake fluid reservoir is located behind the
rear partition of the engine compartment on
the left side
c::> page 182.
The fluid level may drop slightly after some
time due to the automatic adjustment of the brake pads. This is not cause for alarm.
i,,.

192 Checking and filling
Working on the battery
Be especially careful when working on or near
the battery!
The battery is located in the luggage compart­
ment under the floor. Before you work on or
near the battery,
read and heed all WARN­
INGS ~.&. -
Always heed the safety warnings, when work­
ing on the vehicle battery or the vehicle elec ­
tr ical system to prevent injury .
The following WARNINGS are very
important when working on the battery:
Always heed the following WARNING SYM· BOLS and safety precautions when working
on the battery.
@ Always wear eye protection .
b,. Battery acid contains sulfuric acid. Al­
~ ways wear gloves and eye protection.
~~-
No
@ -sparks
-flames
-smoking.
When a battery is charged , it produces
hyd rogen gas which is explosive and
could cause personal injury.
I ~ Always keep the battery well out of
V;!J/ reach of children .
A WARNING
=
Whenever working on the battery or on
the electrical system, there is the risk of
injury, accident and even fire. Read and
heed the following WARNINGS:
- Always wear eye protection. Do not let
battery acid or any lead particles get on
your sk in or cloth ing. Sh ield your eyes.
Explosive gases can cause blindness or
other injury .
- Battery acid contains sulfur ic acid. Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye protection.
Do not tilt the battery because ac id
-
could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or
on your skin, immediately rinse with cold water for several minutes and get
med ical attention.
- If you shou ld ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, e lectr ic sparks or an open light.
- Do not smoke .
- Do not interchange the positive and neg -
ative cables .
- When working on the battery, be sure
not to short-circuit the terminals with
too ls or othe r metal objects . This would
cause the battery to heat up very quickly,
which could lead to damage or explosion
and personal injury.
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury.
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­ tem, disconnect the negat ive ground ca­
ble.
- Before performing any work on the e lec­
tr ical system, switch off the engine and
ignit ion as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected .
If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
- When disconnecting the battery, first disconnect the negative cable and then
the positive cab le .
- Before reconnecting the battery, make
sure all electr ica l consumers are switch­
ed off . Reconnect the positive cable first
and then the negative cable. Never inter­
change the cables - this could start a fire!
- Never charge a frozen or a thawed-out
battery. It could exp lode! If a battery has
frozen, then it must be replaced. A
llll-

dischar ged battery can freeze over at
32 °F (0 °C).
- Make sure the vent hose is alw ays attach­
ed to the opening on the side of the bat­
tery.
- Never use batteries which are damaged .
Danger of explosion! A lways rep lace a
damaged battery.
A WARNING
California Propos ition 65 Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­ pounds , chemicals known to the State of
Californ ia to cause cancer and reproduc ­
t ive p roblems. Wash ha nds after han­
dling .
CD Note
-Do not d isconnect the vehicle battery
when the ignition is switched on or when
t h e engine is running, otherwise, you will
damage e lectronic components in the
ele ctr ical sy stem.
-If your vehicle is goi ng to stand for a
l ong pe riod of time wit ho ut being d riven,
p rotec t the battery from "freezing ", o th­
erwise it will be d amaged and w ill t hen
h ave to be replaced.
Checking the battery acid level on magic
eye batteries*
Th e battery acid level in the batt ery can be
checked through the clear inspection window.
F ig. 140 Lu ggag e co mpart ment : Bat te ry w it h m agi c
eye.
Checkin g and fillin g 193
On top o f the battery , there is a round "win ­
dow" . This window (magic eye) changes co lor
as the battery charge and ac id leve l change .
.. Read and heed all WARN INGS
c::> .&_ in
Working on the battery on page 192
.. Read the acid level from the window on the
battery c:>fig .140.
Air bubb les in the window can cause an inac ­
cu rate reading. Carefu lly tap on the s ide of
t h e window .
- If the window is green , the batte ry acid level
is cor rect .
- If the w indow h as
no color or is bright yel­
low ,
the batte ry a cid level is too low. Have
the ba ttery tested by your authori zed Audi
dea ler or a qua lified workshop .
- If the window is black , then the ba ttery is
insufficiently charged. Recharge the battery
as soon as possib le
c::> page 193.
CD Note
Do not overfill the bat tery, otherwise b at­
tery ac id will ove rflow through the vent
ope ning . This ca n damage the paint and
cause corrosion .
Charging of battery
Starting the engine requires a well charged
battery.
.. Alway s read and heed all WARNINGS be ­
low
c::> .&. and c::> .&. in Working on the bat­
tery on page 192 .
.. Switch off the ignition and a ll electr ical con­
sumers .
.. Make sure the area is well ven tilated when
you cha rge the battery .
.. Connect charger cables.
ALWAYS conne ct
charger cable s POSITIVE
G) to POSITIVE
G) ; NEGATIVE Oto NEGATIVE Q .
.. Swit ch o n the charge r .
.. Tu rn off the charger
c::> .&_ .
.. Disconnect the charger cab les.
.. Connect both battery cab les to the battery
if necessary -
first plus, then minus. II>-

194 Checking and filling
When charging at low voltages (e.g . w ith a
tri ckle charger ), the battery cables do not
have to be d isconnected first. Be fore charging
at
high voltages, i.e. " fast charging ", you
must disconnect both cables. In e ither case,
follow the instruct ions from the ma nufacturer
of the charger .
Fastcharging a battery is
dangerous c:> .&. in
Working on the battery on page 192 .
It re­
qu ires specia l charg ing equipment a nd the
k nowledge to go wi th it. We recomme nd hav­
ing your battery fast charged on ly by a quali­
fied workshop.
A discharged batte ry can
freeze at tempera­
tures of on ly 32 °F (0
°(). A llow a frozen bat­
tery to thaw completely befo re attempt ing to
cha rge it
c:> ,&. . Howeve r, we re comme nd not
usi ng a thawe d batt ery again bec ause t he bat­
tery cas ing ca n be cracked d ue to ice forma ­
tion and can lea k bat tery aci d.
D o not open the batte ry caps whe n charg ing
the ba ttery.
_&. WARNING
-
Cha rging a batte ry can be dange rous.
- N ever charge a fro zen b att ery .
It may ex­
plode beca use o f gas t rappe d in t he i ce.
Allow a frozen battery to thaw o ut first .
- D o no t reu se batte ries which we re fr o­
zen . The batte ry housing m ay h ave
c rac ked an d weakened whe n the battery
froze .
- C harge the b attery in a we ll ven tilated
area . Kee p away from open flame o r elec­
trical spa rk. Do not smoke. Hydrogen gas
generated by the battery is exp losive.
- To reduce the danger o f explosion, never
co nnect or disconnect charger cables
wh ile the charger is operating .
- Fast charg ing a battery is dangerous and
shou ld on ly be attempted by a compe­
tent technician w ith the proper eq uip­
me nt.
- Battery acid that may spill d uring charg­
ing should be washed
off wit h a so lution
of warm water and baki ng soda to neu ­
t raliz e the aci d.
(D Note
Neve r use a fast charger as a booster to
start the eng ine. Th is w ill seriously dam­
age sensit ive e lectronic components, such
as cont ro l units, re lays, radio, etc. , as well
as the battery charge r.
(D Tips
The vehicle batte ry must not be charged
with a standard small charger that plugs in to the c igarette lighter or outlet.
Windshield/headlight
washer container
Fi g. 141 Fen der, left: cove r o n th e w inds hield a nd
h ead lig ht• wa sher fl uid re se rvoir
T he was her fluid co nta iner is mar ked w it h the
symbol
Q o n its c a p<=> page 182, fig . 134.
""' Before yo u check anything in the engine
compa rtme nt,
always read and heed all
WARNINGS c:> ..&. in Wor king in the engine
c ompartment on page 18 0.
""' Lift th e fill er ca p tongue to ad d washer flu­
id . You can f ill the containe r to the top .
""' Press the cap back o nto the fi ller neck after
fi lling the container.
You can find the reservo ir
capacity in t he table
in
<=> page 24 0
Clean wa ter should be used when filling up. If
poss ible, use so ft wat er to preven t sc aling o n
t h e washer jets . A lways ad d a glass clea ner
solution (with frost protection in the winter) . ..,.

(D Note
-Do not mix engine coolant antifreeze or
any other additives to fill up the
windsh ield washer rese rvoir.
- Do not use glass cleane rs contain ing
paint solvent; you r isk damaging the
paint.
Checkin g and fillin g 195
•
•

Tires and wheels 201
you have stored. The system does not recog ­
nize the load condition of your vehicle.
The effectiveness of the tire pressu re monitor­
ing system w ill be impaired if you store nor­
mal load pressures but then operate the vehi ­
cle at its maximum load¢,& .
See the illustration ¢
fig. 142 for the location
of the label on driver's side B-pillar (color of
the actual labe l and exact location on the ve­
hicle will vary slig htly) .
Note that the following table is accurate at
the time of go ing to press and is subject to change.
In the event of discrepancies, the tire
pressure label (on driver's side B-pi llar) always
takes precedence.
T he table below lists the recommended cold
ti re inflation pressures for the Audi mode l
covered by your Owner's Literature at the vehi­
cle's capacity weight and the tir e sizes instal­
l ed on the respective models as orig inal
equipment, or as a factory option.
I
Model/ U Tire designation Tire pressure front Tire pressure rear
Engine normal load normal load
condition full load condition full load
(upto 2 oc- condition (up to 2 oc-
condition
cupants) cupants)
PSI JI kPA PSI ]I kPA PSI II kPA PSI II kPA '.
TT/TIS: 225/50 Rl 7 94H All Sea-
32 220 32 220 29 200 29 200
2.0 liter son
4-cylin-
225/50 Rl 7 94W XL High
der Performance
32 220 32 220 29 200 29 200
245/45 R17 95H All Sea- 32 220 32 220 29 200 29 200
son
245/45 R17 95VXL High
32 220 32 220 29 200 29 200
Performance
245/40 R18
93H All Sea-
32 220 32 220 29 200 29 200 son
245/40 R18 93V XL High
32 220 33 230 29 200 30 210
Performance J
255/35 R19 96V XL High
32 220 32 220 29 200 29 200
Performance
TT RS:
245/40 R18 93V 220
2.5 liter
255/35 R19 96V XL High
5-cylin- Performance
35 240 36 250 32 220 32 220
der
XL= reinforced or extra load tire. It may also appear as xl, EXTRA LOAD, or RF on the tire side-
wall.
The correct tire pressure for the spore wheel i s
located on a label on the driver's side B-pillar.
Because technical changes may be made to
ve hicle equipment during the model year, a l­
ways compare the tire size designation on the tire press
ure label on your vehicle with the
tires on your vehicle. Make sure that the tire
s ize info rmat ion on the vehicle label is the
same as the size of the tires on the veh icle .
This is especially important if the vehicle be-
long s to someone e lse o r you boug ht the ..,.
•
•

220 What do I do now?
What do I do now?
Vehicle tool kit
The tools ore stored underneath the floor
panel in the luggage comportment.
Fig. 152 Luggage compartment: vehicle tool kit
• Swing the luggage compartment floor up-
wards.
• Remove the veh icle tool kit .
The on board tool kit includes:
- Hook for removing wheel covers*
- Plastic clip to
remove wheel bolt covers*
-Wheel bolt wrench
- Alignment pin for changing wheels
- Screwdr iver w ith reversible blade
- Replacement bit (reversible Torx b it for
changing lamps)
- Open ended wrench 10 x 13
- Towing eye
- Jack *
Some of the on board items listed above are provided on certain models on ly or are opt ion­
al extras.
Before returning the jack* to its place, retract
the jack arm fully.
_& WARNING
Improper use of the vehicle jack can cause
serious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts can­ not attain the necessary tightening tor­
que if you use the hex head, potentially causing an accident. -
The factory-supplied jack is intended on­
ly for your vehicle model. Under no cir­
cumstances should it be used to
lift
heavy veh icles or other loads; you risk in­
juring yourself .
- Never start the engine when the vehicle
is raised, which could cause an accident.
- Support the vehicle securely with appro­
priate stands if work is to be performed
underneath the vehicle; otherwise, there is a potentia l risk for injury.
- Never use the jack supplied with your
Aud i on another vehicle, part icularly on a
heav ier one . T he jack is only s uitable for
use on the vehicle it came with.
Tire repair
General and safety pointers
Applies to vehicles: wit h Tire Mobility Sys tem
Tire repair is intended only for temporary,
short-term use .
Fig. 153 Tire damage for whic h the Tir e Mob ility Sys­
tem is not suited
Your vehicle is equipped with a tire repa ir kit,
the
Tire Mobility System (TMS).
In the event of a tire failure, the TMS is in the
luggage compartment under the floor.
It con­
s ists of the tire sealant and an electric air
pump .
Using
TMS , tir e damage caused by foreign
bodies up to about
0.16 inch (4 mm) in diam­
eter can be sealed reliably.
The foreign object can stay in the tire .
