2013 AUDI A8 tow

286 Emergency situations
-When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the engine compar t­
ment .
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
c:> page 226 , Engine com­
partment.
(D Note
Improper hook-up of jumper cables can ru­
in the generator.
- Always connect POSITIVE(+) to POSI­
TIVE( +), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs prior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­
necting a jumper cable as described
above applies specifically to the case of
your vehicle being jump started. When
you are giving a jump start to another ve­
hicle, do
not connect the negative(-) ca­
ble to the negative(-) terminal on the
discharged battery ©
c:> fig. 230. In­
stead, securely connect the negative(-)
cable to either a solid metal component
that is firmly bolted to the engine block
or to the engine block itself . If the bat­
tery that is being charged does not vent
to the outside, escaping battery gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
tng.
The following information is to be used by
commercial tow truck operators who know
how to operate their equipment safely.
-Never tow your Audi. Towing will cause
damage to the engine and transmission.
- Never wrap the safety chains or winch ca­
bles around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck.
- To load the vehicle on to the flat bed, use
the towing loop found in the vehicle tools
and attach to the front or rear anchorage
c:> pag e 286 and c:> page 287.
.&_ WARNING
=
A vehicle being towed is not safe for pas-
sengers. Never allow anyone to ride in a
vehicle being towed, for any reason.
Front towing loop
Only install the front towing loop when it is
needed .
C7
0
Fig. 231 Front bumper: cover
Fig. 232 Front bumper : sc rewing in th e towin g loop
-
The towing loop fits into the threaded hole lo ­
cated on the right side of the front bumper
and covered by a small cover when not in use.
.,. Remove the towing loop from the veh icle
tool kit.

.. Press in ward strongly on the left side of the
cap to remove it from the bumper
e::>fig . 231 .
.. Screw the towing loop in the threaded
opening and tighten it until it stops
e::> fig . 232 .
Remove the towing loop when you are done
using it and place it back in the vehicle tool
kit. Install the cover in the bumper. Always
keep the towing loop in the vehicle .
..&_ WARNING
If you do not sc rew the tow ing loop com­
pletely, it cou ld come out of the threaded
hole while the vehicle is bei ng towed caus ­
ing damage to the vehicle and possib le se­
r ious perso nal injury .
Rear towing loop
Only install the rear towing loop when it is
needed.
0 0

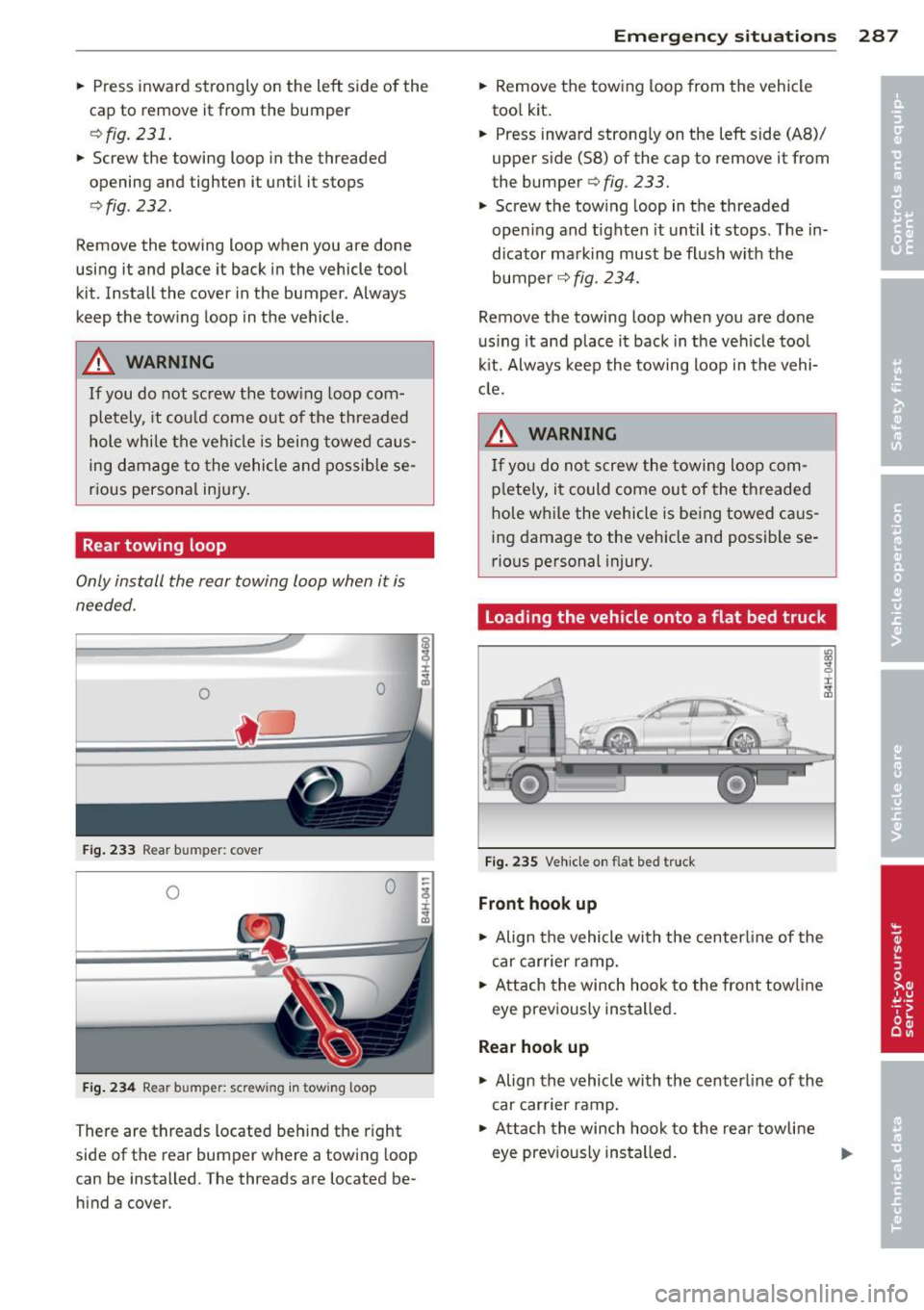

Fig . 233 Rear bumper: cover
0 0
Fig. 2 34 Rear bumper : screw ing in towing loop
There are threads located be hind the right
side of the rear bumper w here a towing loop
can be installed. The threads are located be­
hind a cover.
-
Emergenc y situ ation s 287
.. Remove the tow ing loop from the vehicle
too l kit .
.. Press inward strongly on the left side (AB)/
upper s ide (58) of the cap to remove it from
the bumper
e::>fig. 233.
.. Screw the towing loop in the threaded
open ing and t ighten it unt il it stops. The in­
dicator ma rking must be f lush with the
bumper
e::> fig. 234 .
Remove the towing loop when you are done
using it and plac e it back in the ve hicle too l
ki t. Always keep the towing loop in the vehi­
cle.
..&_ WARNING
If yo u do not screw the towing loop com ­
p letely, i t could come ou t of the t hreaded
hole while the vehicle is be ing towed caus­
ing damage to the vehicle and possible se­
rious pe rsonal injury.
loading the vehicle onto a flat bed truck
Fi g. 235 Vehicle on flat bed tru ck
Front hook up
.. Align the vehicle wi th the centerline of the
car car rier ramp .
.,. Attach the winch hook to the front tow line
eye prev iously insta lled .
Rear hook up
.,. Align the vehicle with the c enter line of the
car earner ramp .
.. Att ach the winch hook to the re ar towli ne
eye prev ious ly insta lled .

288 Emergency situations
@ Tips
Check carefully to make sure the hook- up
is secure before moving the car up the flat­
bed truck ramp.
Vehicle transport
Whenever you have your vehicle transported ,
be sure to note the following:
(D Note
Mou nt the tie-down cha ins/cab les over the
r u nning surface (c ircumference) of the
tires. Never secure the vehicle by the ax le,
the suspension struts or the front or rear
towline eye . For technical reaso ns, the
pressure i n the suspension struts may
change during the t ransport and this will
adve rsely affe ct vehicle handling.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
The vehicle may only be lifted at the lif ting
poin ts illustra ted.
F ig . 23 6 Fro nt lift in g po int
Fi g. 237 Rea r lift in g point
.,. Read and heed WARNING ¢ _& .
.,. Ac tivate the vehicle jack mode in the M MI:
!CARI fu nction button > Car systems cont ro l
button
> Servicing & checks > Air susp. :
jack mode
> On .
.,. Locate lifting poi nts ¢ fig . 236 and
¢fig . 237 .
.,. Adjust lifting arms of worksho p hoist o r
floo r jack to match ve hicle lift ing poi nts .
.,. In sert a rubbe r pad be tween the floo r ja ck/
w or ksho p hoist and t he lift ing poin ts.
The veh icle jack mode must be ac tiva ted so
t h at the au tomat ic ad justment of the Adap­
t ive A ir Suspens io n does not ma ke i t more dif­
ficu lt to raise t he vehicle wit h the floor ja ck.
If you must lift your veh icle with a floor jack
to work underneath, be sure the vehicle is
safel y supported on stand s intended for thi s
purpo se.
Front lifting point
T he lifti ng poi nt is located o n the floor pan re­
i nforcement abo ut at the same l eve l as the
ja ck mount ing poi nt
¢ fig . 236 . Do not lift
the vehicle at the verti cal sill reinforcement.
Rear lifting point
The lifting po int is located on the vert ica l rein ­
fo rcement of the lower s ill for the on-boa rd
jack
¢ fig . 237 .
Lifting with vehicle jack
Refer to ¢page 276.
A WARNING ,= -
-To reduce the risk of ser ious injury and
veh icle damage .
- Alw ays li ft the vehicle o nly at the spe ­
c ia l workshop hoist and floor jac k lift
points illustrated
¢ fig. 236 and
¢fig. 237 .
-Fail ure to lift the ve hicl e at these
po ints co uld cause the vehicle to tilt or
fall from a lift if there is a change i n ve­
hicle weight dist ributi on and balance .
This might happen, fo r example, when
heavy components such as the eng ine
block o r transmission a re remove d .

296 Consumer Information
