-Always make sure the forward-facing
seat has been des igned and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Never put the forward-facing child re­
straint up aga inst or very near the instru­
ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the fo rward -facing child restraint. T he
b ackres t m ust be adjus ted to an upr igh t
posit ion.
- Make su re that the
PASSENGER AIR BAG
OFF
light comes on and s tays on all the
t ime whenever the ignition is switched
on .
Advanced Airbag System components
The front passenger seat in your vehicle has a
l ot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing mat, sensors, wiring, brack­
ets, and more . The function of the system in
the front passenger seat is checked by the
e lectronic control un it when the ign it ion is on .
The control un it mon itors the Advance d Air ­
bag Sys tem and turn s the a irbag i ndica tor
light on when a ma lfunction in t he system
compo nents is detected . The function of the
ai rbag indicator light is described in greater
deta il below. Because the front passenger
seat contains important parts of the Ad­
va nced A irbag System, you must take care to
prevent it from being damaged . Damage to
the seat may p revent the Advanced A irbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag System
consists of the following:
- Crash senso rs in the front of the veh icle that
measu re ve hicle accelera tion/decele ra ti on
to provide info rm ation to the Advanced Air ­
bag System abo ut the severity of the crash.
A irbag system 159
-An elect ron ic cont ro l unit, with integrated
crash sensors for front and side impacts .
The control un it "decides" whether to f ire
the front a irbags based on the informat ion
received from the crash sensors. The control
unit also "decides" whether the safety belt
prete nsione rs shou ld be act iva ted.
- An Advanced A irbag w it h gas generator and
cont ro l valve for the d river ins ide the steer ­
ing wheel h ub.
- An Advanced A irbag w ith gas generator and
cont ro l valve inside the instrument pa ne l for
the front passenger .
- A weight -sensing mat unde r the upho lstery
padding of the front passenge r seat cushion
that measures the to tal weight o n the seat.
The info rmat ion reg iste red is sent continu­
ously to the elect ronic con trol u nit to regu ­
la te deployment of the front Advanced Air ­
bag on the passenger side .
- An airbag moni tor ing sys tem and ind icator
light in the instr ument cluster
¢ page 163.
-A sen sor in each fron t seat regis ters the dis ­
t ance betwee n the respec tive seat and the
steering whee l or instrument panel. The i n­
formation registered is sent cont inuo usly to
the electron ic contro l unit to regulate de­
ployment of the front Advanced A irbags .
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center o f the instr u­
ment panel¢
page 163, fig. 168 and tells
you whe n the front Advanced Airbag on the
passe nger side has been tu rned off.
- A sensor below the safety belt latch for the
front seat passenger to measure t he tension
on the safety belt. The tension o n the safety
be lt and the weight regis tered by the
weigh t-sensi ng mat he lp the cont rol uni t
"de cide" whe ther the front airbag fo r the
front passenge r seat should be turned off or
not
~ page 154, Child restraints on the
front seat -some important things to
know.
- A sensor in t he safety be lt latch fo r the d riv­
er and for the front seat passenger that
senses w hethe r th at safety belt is latched or
not and transmits this information to the
electronic control unit.
•
•

160 Airbag sys te m
_& WARNING
Damage to the front passenger seat can
prevent the front airbag from working
properly.
- Improper repair or disassembly of the
front passenger and driver seat wi ll pre­
vent the Advanced A irbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by q ualified and properly
trained workshop personnel.
- Never remove the front passenger or
dr iver seat from the veh icle.
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat . If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-se nsing mat and send the
wrong info rmation to the airbag control
unit.
- Never store items under the front pas­ senger seat. Parts of the Advanced Ai r­
bag System under the passenge r seat
c ou ld be damaged, prevent ing them and
the a irbag sys tem from working proper ­
ly .
- N ever place sea t covers or replacement
upholstery that have not been specifical­
ly approved by A udi on the fron t seats.
- Seat covers can preven t th e Advanced
Airbag System from recognizing child re ­
st raints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploy ing prop­
er ly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat. The add itiona l padd ing will prevent
the weight-sensing mat in the seat from
accu rately reg iste ring the c hild restra int
-
or person on the seat and prevent the
Advanced Airbag System from function­
ing p roperly.
- If you must use a child restraint on the
front passenger seat and the child re­
straint manufacturer's instructions re­
qu ire the use of a towel, foam cushion or
something e lse to prope rly pos ition the
child restraint, make certain t hat the
PASSENGER AIR BAG OFF lig ht comes
on and stays on whenever the ch ild re­
straint is installed on the front passen ­
ge r seat .
- If the PASSENGER AIR BAG OFF light
does not come on and stay on, immedi ­
ately insta ll child restraint in a rear seat­
ing position and have the ai rbag system
inspected by your Audi dea ler.
How the Advanced Airbag System
components work together
T he front Advanced Airbag System and the
s ide a irbags supp lem ent the p rotection of­
fered by the front three-po int safety belts
with pre tensione rs and load lim iters and the
adjustable head res train ts to help redu ce the
risk of in jury in a wide ra nge of accident and
crash situations . Be s ure to read the impor­
tant information about safety and heed the
WARNINGS in th is chapter.
Deployment of the Adv a need Airbag System
and t he activation of the safety belt preten ­
s ioners depend on the deceleration measured
by the crash sensors and registered by the
electron ic co ntrol unit. The amount of infla­
t ion of t he front airbags can a lso be adapted
to the front seat pos ition, depending on the
distance between the respective front seat
and t he steer ing w heel or instrument panel as
regis tered by sensors in the seats. C rash se ­
verity depends on speed and dece leration as
well as the mass and st iffness of t he vehicle
or object involved in the crash .
On t he passenger side, rega rdless of sa fe ty
belt use, the airbag w ill be turned off if the
weight on the passenger seat is less than the ..,.

Monitoring the
Advanced Airbag
System
I ( USA models) /!{ (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN­
GER AIR BAG OFF
light.
The Advanced Airbag System (including the
electronic control un it, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioning properly
whenever the ignit ion is on. Each time you
switch on the ignition, the airbag monitoring
indicator light
I (USA models)/ m (Canada
models) will come on for a few seconds (self
diagnost ics).
The system must be inspected when the
indicator light
I (USA models)/fll
(Canada models):
-does not come on when the ignition is
switched on ,
- does not go out a few seconds after you
have switched on the ignition, or
- comes on while driving.
If an airbag system malfun ction is detected,
the indicator light will first start flashing to
catch the driver's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immediately.
If a malfunction occurs that turns the front
airbag on the passenger side
off, the PASSEN­
GER AIR BAG OFF
light will come on and stay
on whenever the ignition is on.
A WARNING
An airbag system that is not funct ioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light
c:> page 18
comes when the vehicle is be ing used,
have the system inspected imm ediately
by your autho rized Audi dealer.
It is pos-
Airbag system 163
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
PASSENGER AIR BAG OFF light
Fig. 168 Sect io n from the instrument pane l: PASSEN·
GER AIR BAG OFF light
The PASSENGER AIR BAG OFF light is located
in the center of the instrument panel
c:>fig . 168.
The PASSENGER AIR BAG OFF light will come
on and stay on to tell you when the front Ad­
vanced Airbag on the passenger s ide has been
turned
off by the electron ic control unit. Each
time you switch on the ignition, the
PASSEN­
GER AIR BAG OFF
light will flash for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small ch ild or child
restraint on the front passenger seat,
- w ill go out if the front passenger seat is oc·
cupied by an adult as registered by the
weight-sensing mat.
The
PASSENGER AIR BAG OFF l ight must
come on and stay on
if the ignition is on and
- a car bed has been installed on the front seat, or
- a rearward-facing child restraint has been
installed on the front passenger seat, or
- a forward-facing child restraint has been in·
stalled on the front passenger seat, or

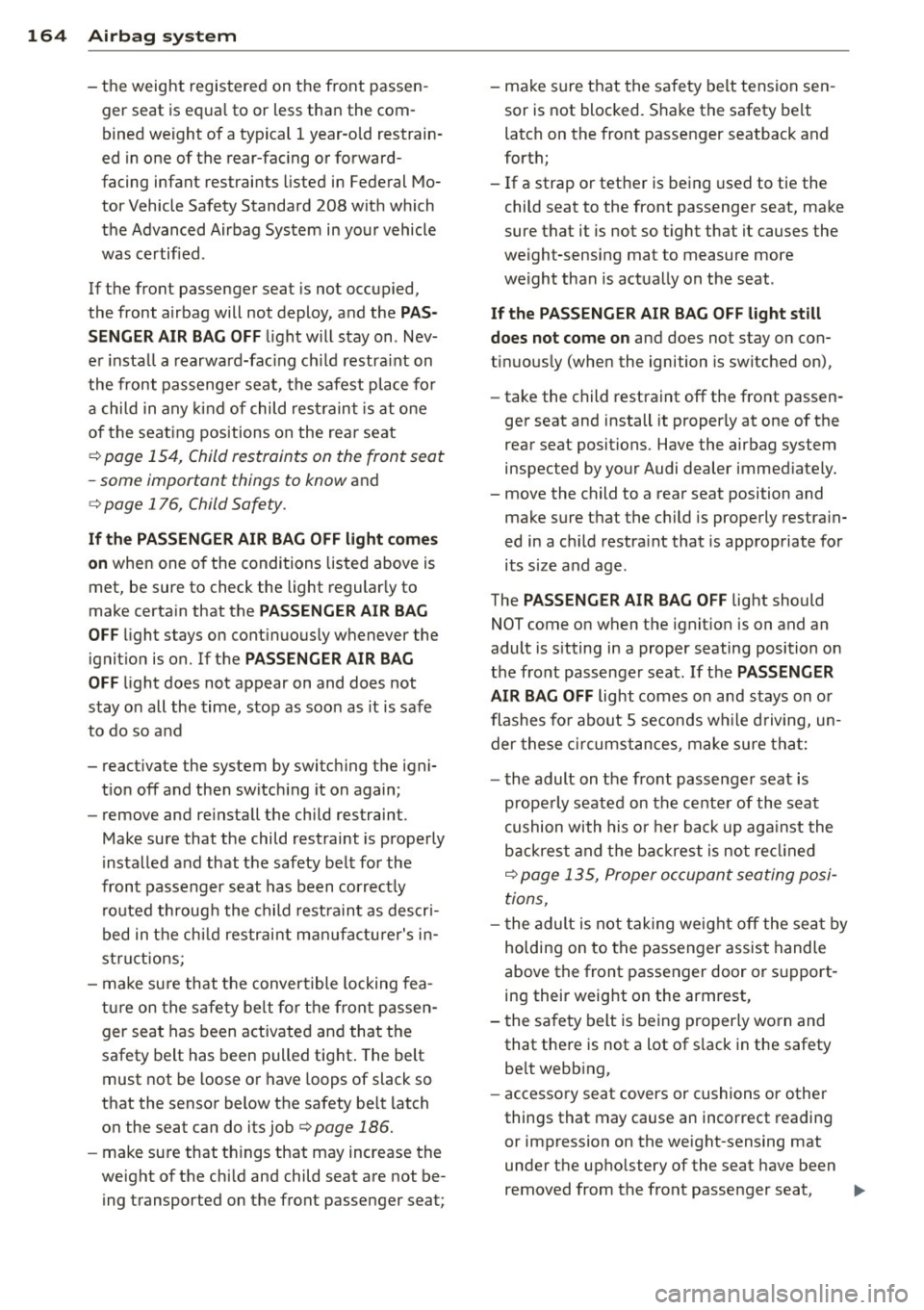

164 Airbag sys te m
- the weight regis tered on the front passen­
ger seat is equa l to or less tha n the com ­
bined weight of a ty pical 1 year-old restrain­
ed in one of the rear-facing or forward­
facing infant restraints listed in Federal Mo­
tor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle
was certified .
If the front passenger seat is not occupied,
the front airbag will not deploy, and the
PA S­
SENGER AIR BAG OFF
li ght w ill stay on. Nev­
e r i nsta ll a rearwa rd-fac ing ch ild restra int on
the front passenger seat, the safest place fo r
a child in any kin d of child restraint is at o ne
of the seat ing positions on the rear seat
¢ page 154, Child restraints on the front seat
- some important things to know
and
¢ page 176, Child Safety .
If the PASSENGER AIR BAG OFF light c om es
on
when one o f the conditions listed above is
met, be sure to check the light regularly to
make certa in that the
PASSENGER AIR BAG
OFF
light stays on cont inuo usly whenever the
ignit io n is on. If the
PASSENGER AIR BAG
OFF light does not appear on and does not
stay on all the time, stop as soon as it is safe
to do so and
- react ivate the system by switc hing the igni­
t ion off and then switch ing it on again;
- remove and re install the child restraint.
Make sure that the child restraint is properly
installed and that the safety be lt fo r the
front passenger seat has been correct ly
r o uted throug h the child rest raint as descri­
bed in the chi ld restrai nt ma nufactu rer's i n­
stru ct ions;
- make su re that the convertible locking fea­
t u re on the sa fe ty be lt for the front p assen­
ger seat has been activated and that the
safety belt has been pulled tight . The belt
must not be loose or have loops of slack so
that the sensor below the safety be lt latch
on the seat can do its job
¢ page 186.
- ma ke sure that th ings that may increase the
weight of the chi ld and child seat are not be­
ing transported on the front passenger seat; -
make sure that the sa fety belt tension sen ­
sor is not blocked. S hake the safety be lt
latch on the front passenger seatback and
forth;
- If a strap or tether is be ing used to tie the
child seat to the front passenger seat, make
sure that it is not so t ight that it causes the
weight-sensi ng mat to measure more
weight than is actually on the seat .
If the PASSENGER AIR BAG OFF light still
does not come on
and does not stay on con­
t in uous ly (when the ignition is switched on),
- take the child restraint off the front passen -
ger seat and install it proper ly at one of the
rear seat positions. Have the airbag system
inspected by your Audi dealer immed iate ly.
- move the child to a rear seat position and
make sure that the child is properly restra in­
ed in a ch ild restra int that is appropriate for
its s ize and age.
The
PASSENGER AIR BAG OFF light should
NOT come on when t he ignit ion is on and an
adult is s itting in a proper seating position on
the front passenge r seat. If the
PASSENGER
AIR BAG OFF
light comes on and stays on o r
flashes fo r about 5 seconds w hile d riving, un­
der these c ircumstances, make sure tha t:
- the adult on the front passenge r seat is
prope rly seated on the cente r of the sea t
cushion with his or her back up aga inst the
backrest and the backrest is not re cli ned
¢ page 135, Proper occupan t seating posi­
tions,
- t he adult is not tak ing we ight off the sea t by
holding on to the passenger assis t handle
above the front passenger door or s upport­
ing their weight on the armrest,
- t he sa fety belt is being properly worn and
that the re is not a lot of s lack in the safety
be lt webb ing,
- accesso ry seat covers or cushions or other
things that may cause an incorrect reading
or impression on the weight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat, .,..

and safety belts with pretensioners are
scrapped, all applicable laws and regula­
tions must be observed. Your authorized
Audi dealer is familiar with these require­
ments and we recommend that you have
your dealer perform this service for you .
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-rim combinations not approved by Audi,
lowering the vehicle, changing the stiffness of
the suspension, including the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic control
unit. Some suspension changes can, for exam­ ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in which it would not deploy if the
changes had not been made. Other kinds of
changes may reduce the force levels meas­
ured by the sensors and prevent the airbag
from deploying when it should.
The sensors in the safety belt buckle for the
driver and front passenger seat tell the elec­
tronic control module if the safety belt is
latched or not. If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular collision, it is possible that an airbag
will not deploy at a seating position where the safety belt is being used but will inflate at the
position where the safety belt is not being
used . It is important that nothing interfere
with the safety belt buckles so that the sen­
sors can send the correct information about
safety belt use to the electronic control unit.
A WARNING
Changing the vehicle's suspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag per-
Airbag system 167
formance and increase the risk of serious
personal injury in a crash.
- Never install suspension components
that do not have the same performance characteristics as the components origi­nally installed on your vehicle.
- Never use tire-rim combinations that have not been approved by Audi.
A WARNING
Items stored between the safety belt buckle and the center console can cause
the sensors in the buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­
bag System from working properly.
- Always make sure that nothing can inter­
fere with the safety belt buckles and that
they are not obstructed.
Knee airbags
Description of knee airbags
The knee airbag system can provide supple­
mental protection to properly restrained
front seat occupants.
Fig . 169 Driver 's knee airbag
The driver knee airbag is in the instrument
panel underneath the steering wheel
¢ fig . 169, the airbag for the passenger is at
about the same height in the instrument pan­
el underneath the glove compartment.
The knee airbag offers additional protection
to the driver 's and passenger's knees and up­
per and lower thigh areas and supplements
the protection provided by the safety belts.
Ill-

1 7 0 Airbag system
of the passenger seat. If the airbag de­
ploys, this can resu lt in serious or fata l
injuries.
- Never carry objects of any kind in the
footwell area in front of the driver's or
passenger's seat. Bulky objects (shop­
p ing bags, for examp le) can interfere
with or p revent proper dep loyment of
the airbag . Small objects can be
thrown through the vehicle i f the a ir­
bag deploys and injure you or yo ur pas­
sengers.
- Make sure there are no cra ck s, deep
scratches or ot her damage in the area of
the instrument pane l where the knee air­
bags are located .
- If children are incorrect ly sea ted, their
risk of inj ury i ncreases in a collision
¢ page 176, Child Safety .
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
----
Fi g. 1 71 Side a irbag loca tion in the driver's seat
The side airbags are lo cated i n the sides of the
front seat ba ckrests
¢fig. 171 and the rear
backrest facing the doors. They are identified
by the word "AIRBAG" .
The s ide airbag system ba sically consis ts of :
-the electronic control module and external
s ide impact sensors
- the two side airbags located in the sides of
the front backrests
- two rear side airbags -
the airbag warning light in the ins trument
cluster .
T he airbag system is mon itored elec tronically
to make certain tha t it is f unctioning p roperly
at all times. Each time you switch on the igni ­
tion, the airbag system indicator light will
come on for a few seconds (se lf diagnostics) .
T he side airbag system supplements the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's, front and rear passenger's
u pper torso on the side of the vehicle that is
struck in a side collision. The airbag dep loys
only in side impacts and only when the vehicle
acce lerat ion reg istered by the contro l unit is
high enough. If this rate is be low the refe r­
ence value p rog rammed into the control unit,
the side ai rbags will not be triggered, even
t h ough the car may be bad ly damaged as a re­
s ul t of the co llision. It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impact, since the cir­
cumstances will vary cons iderably between
one collis ion and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc. ¢
page 172, Important
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty be lts work to help keep the driver or front
passenge r in position in t he event of a s ide
co llision so that the side airbags can provide
protection.
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overa ll oc­
c u pant restraint system in you r vehicle . A l­
ways remember that t he side ai rbag system
c a n only help to protect you if you are wea ring
your sa fety be lt and wearing it p roperly. This
is another reason why you should always wear
your safety belts, not j ust because the law re­
quires yo u to do so¢
page 144, General
notes.
It is important to remembe r that w hile the
supplementa l side airbag system is designed
to reduce the likelihood of ser ious injuries,
other injur ies, for example, swelling, bru is ing, ..,..

and minor abrasions can also be associated
with deployed side airbags. Remember too,
side airbags will deploy only once and on ly in
certain k inds of accidents -your safety belts
are always there to offer protect ion.
Vehicle damage, repair costs or even the lack
of vehicle damage are not necessar ily an indi ­
cation of over-sensitive or failed airbag activa­
tion . In some collisions, both front and s ide
a irbags may inf late . Remember too, that air ­
bags will deploy only once and only in certain
kinds of collisions -your safety belts are al­
ways there to offer protect ion in those acci­
dents in wh ic h airbags are not supposed to
deploy or w hen they have already deployed .
The side airbag system will not depl oy :
- when the ignition is switched off
- in s ide collisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in ro llovers.
I n some types of a ccidents the front a irbags,
side curta in a irbags and side airbags may be
triggered together.
A WARNING
- Safety belts and the airbag system will
only provide protection when occupants
are in the proper seating posit ion
<=)page 172.
- If the airbag indicator light Q page 18
comes when the vehicle is be ing used,
have the system inspected immediately
by you r aut ho rized Aud i dealer. It is pos­
sible that the a irbag will inflate when it
is not supposed to, or w ill not inflate
when it should.
-
A irba g sy stem 1 71
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig . 1 72 Inflated side a irbags on left side of vehicle ,
rear side airbag
When the system is triggered, the a irbag is
filled with propellant gas and breaks through
a seam in the seat surface area ma rked ''AIR­
BAG".
It expands between the side trim panel
and the passenger. In orde r to help provide
th is add it ional protect ion, the side airbag
must inflate within a fraction o f a second at
very high speed and with great force. The sup­
plementa l side airbag could injure you if your
seat ing position is not proper or upright or if
items are located in the area where the sup­
plementa l side airbag expands . This applies
especially to child ren
Q page 176, Child Safe­
ty. Supplemental side airbags inflate between
the occupant and the door panel on the side
of the vehicle that is struck in certa in side co l­
lis ion
Q fig. 172.
Although they are not a soft pi llow, they can
"cushion" the impa ct and in this way they can
help to reduce t he risk of injury to the upper
part o f th e body.
A fine dust may deve lop when the airbag de­
ploys . This is normal and does not mean there
is a fire in the vehicle.

172 Airbag system
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
& WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
-Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer. -
Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position.
-Always use the built-in coat hooks only for lightweight clothing. Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer.
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 176, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through ..,.
