CD Note
Never use a fast charger as a booster to
start the engine . This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc ., as well
as the battery charger .
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery .
Intelligent energy management in your vehi­
cle is responsible for d istributing the electr i­
cal energy throughout your vehicle
c::> page 203 . The intelligent energy manage­
ment system w ill keep the engine battery
charged bette r than vehicles w ithout t his sys­
tem. To make sure the additional electr ica l en­
ergy is available once again after you have
changed the battery, we recommend that you
install batteries of the same type and manu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the bat tery hous ing. Your
author ized dealer must code the battery in
the energy management system to enable you
to use the energy management functions cor­
rectly after replac ing the battery .
T he new battery must have the same capacity ,
voltage (12 volts), amperage, construction and p lug sealing.
When installing the battery, make sure the ig­
n ition and all electr ical consumers are sw itch­
ed off .
CD Note
-Make sure the ventilat ion hose on the
s ide of the battery is connected, other­
wise fumes or battery acid can leak out.
- Vehicles with the Start-Stop-System* are
equipped with a special cycle-proof AGM
battery. Insta lling a different type of
batte ry can cause prob lems in the vehi­
cle elect rical system. When replacing the
vehicle battery, always insta ll one wi th
Checkin g and fillin g 247
the same specifications as the origina l
battery .
- Battery mounts and clamps must always
be sec ured correct ly .
- Read and fo ll ow the warnings under
c::> page 244, Working on the battery be ­
fore performing any work on the battery.
@ For the sake of the environment
Because of the prob lem of p roper disposal
of a ba ttery, we recommend your author­
ized Audi dealer change the battery for
you. Batteries contain sulfuric acid and l ead and must always be disposed of prop­
erly in compliance with all environmental
regulat ions. Disposing of vehicle batter ies
i mproperly is very dangerous to the envi­
r o nment .
Windshield/headlight
washer container
.., N
-N
" ~
Fig. 203 Eng in e compa rtm ent: cove r on the w inds hield
washer flu id rese rvo ir
T he washer fluid container is marked w ith the
symbol-$ on its cap
c::>fig. 203, c::>page 234.
.,. Before you check anything in the engine
compa rtment, always read and heed all
WARNINGS c::> A in Working in the engine
compartment on page 232.
.,. Lift the filler cap tongue to add washer flu­
id. You can fi ll the container to the top .
.,. Press the cap back onto the f iller neck after
filling the container .
You can find the reservoir capacity in the table
inc::>page292. ""
•
•

284 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicles w ith an automatic transmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumpe r cables to start the en­
g ine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specif ications.
Use only jumper cables with
insulated termi­
na l clamps which are distinctly marked:
plus(+) cable in most cases colored red
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
inju ry. Follow the instructions below for
safe handling of your veh icle's battery.
- Always shield you r eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can freeze at tem­
peratures just be low 32 °F (0 °C). Before connecting a
jumper cable, you must
thaw the frozen battery complete ly, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with a low acid level in the battery.
- The vo ltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of d ifferent voltage
or substantially different "Ah" rating
may cause an exp losion and personal in­
jury.
- Never charge a frozen batte ry. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batter ies of different voltage or
substantially different capacity (Ah) rat­
ing may cause an exp losion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis ­
charged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS¢
page 226 , Engine com­
partment.
«I) Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
contro l units, relays, rad io, etc .
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,_

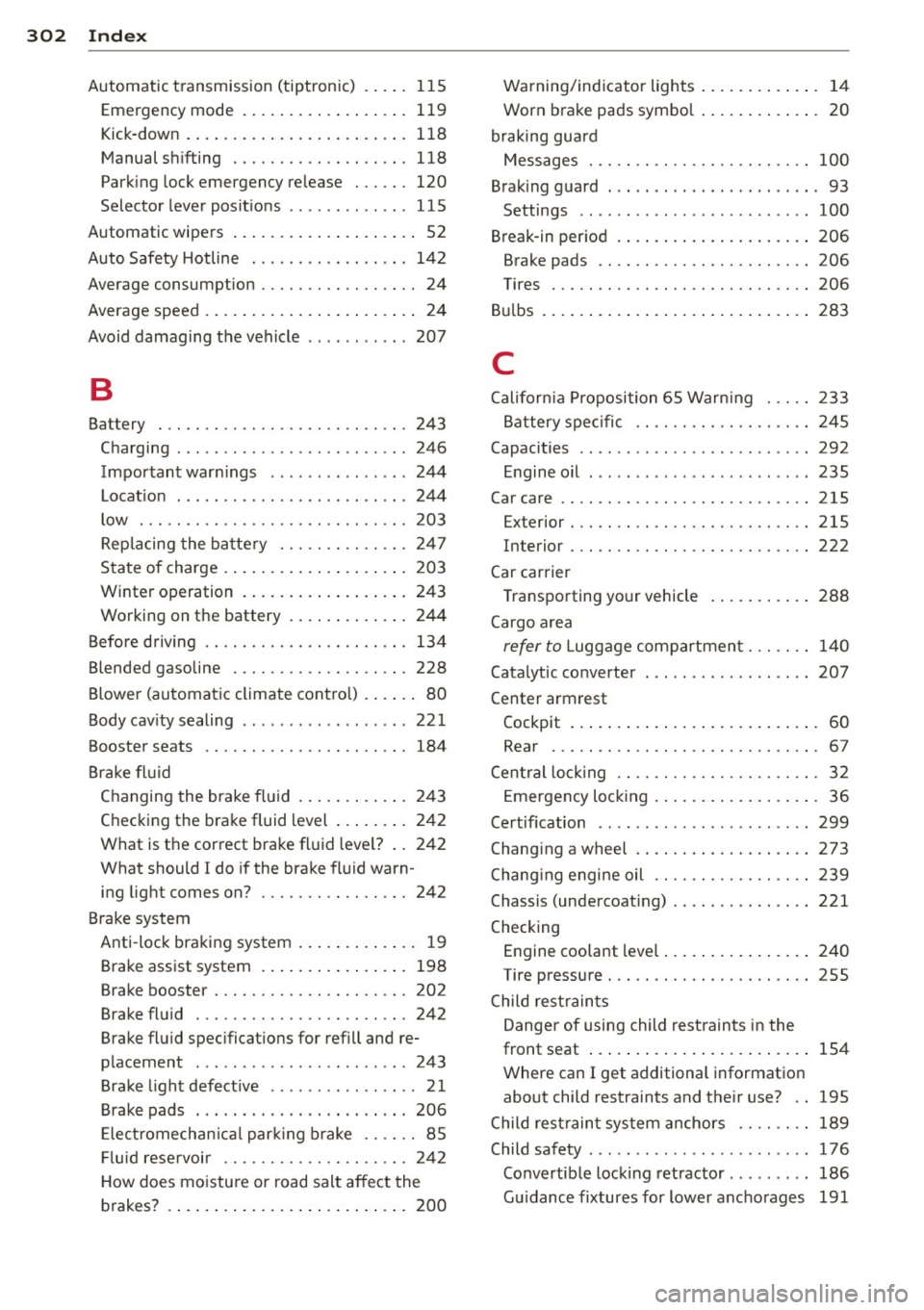

302 Index
Automatic transmission (tiptronic) .... . 115
Emergency mode . ..... ... .. .. .... . 11 9
Kick-down . .... ... .... ... .. .. .... . 118
Manual shifting . . . . . . . . . . . . . . . . . . . 118
Park ing lock emergency release ..... . 120
Selector leve r posit ions . . . . . . . . . . . . . 115
Automatic wipers . . . . . . . . . . . . . . . . . . . . 52
Auto Safety Hotline ...... .. .. .. .. .. . 142
Average consumption ................. 24
Average speed . . . . . . . . . . . . . . . . . . . . . . . 24
Avoid damaging the vehicle . ... .. .. .. . 207
B
Ba ttery . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
C harging ... ................ ... ... 246
Important warnings ...... .. .. .. .. . 244
L ocat ion . . . . . . . . . . . . . . . . . . . . . . . . . 244
low . .. .. .. ............. .. .. .. .. . 203
Replacing the battery ..... .. .. .. .. . 247
State of charge . .. ..... ... .. .. .... . 203
Winter operation . ..... ... .. .. .... . 243
Wo rking on the battery . . . . . . . . . . . . . 244
B efore d riving .. ........... .... .... . 134
Blended gasoline ............ .. .... . 228
Blower (automatic climate cont rol) . . . . . . 80
Body cav ity sealing .......... .... .... 221
Booster seats ...................... 184
B rake fl uid
Changing the brake fl uid ... .. .. .. .. . 243
Checking the brake fluid level ..... .. . 242
What is the correct brake fluid leve l? .. 242
What should I do if the brake fluid warn-
ing light comes on? ................ 242
Brake system Anti-lock braking system ... .. .. .. ... . 1 9
Brake assist system .. ... .. .. .... .. . 198
Brake booste r .. .......... .. .. .... . 202
Brake fluid .............. .. .. .. .. . 242
Brake fluid spec ificat ions for refill and re­
placement . . . . . . . . . . . . . . . . . . . . . . . 243
Brake light defect ive ....... .... ..... 21
Brake pads . ........ ......... .... . 206
E lec tromechan ica l par king brake ...... 85
Fl uid reservoir ........... .. .. .. .. . 242
H ow does mo isture or road salt affect the
b rakes? .... ... .. ..... ... .. .. .... . 200 Warning/ind
icator lights ..... .... . .. . 14
Worn brake pads symbol . . . . . . . . . . . . . 20
braking guard Messages . .. .. .. ............. .. .. 100
Brak ing guard . .. .. .......... ...... .. 93
Settings ......... ............... . 100
Break-in period .... .. ... ..... ... .. .. 206
Brake pads .... .. ............. .... 206
Tires . .. .. .. .. .. ............. .. .. 206
Bu lbs . ... .. .... .. ... .. ..... .... . .. 283
C
Californ ia Pr oposition 65 Warn ing . .... 233
Battery spe cific .. ... .......... .. .. 24S
Capacities ........ .. .............. . 292
Engine o il ... .. .. .. ... ....... ... .. 23S
Car care .. .. .. .. .. ............. .. .. 215
Exterior ....... .. .. ........... .... 215
Interior ....... ................... 222
Car carrier Transporting your vehicle .... ... .. .. 288
Cargo a rea
refer to L uggage compartmen t ... .. . .
Catalytic converter
Center armrest 140
207
Cockpit ... .... .. .. ... .. ... ... .. .. . 60
Rear . .... .... .. ............. .... . 67
Cen tral lock ing ...................... 32
E mergency lock ing . .. .. ..... ... .. .. . 36
Certif ication .. .. .................. . 299
Changi ng a wheel .. .. .... .... ... .. .. 273
Changi ng engine oil ............. .... 239
Chassis (undercoat ing) .............. . 221
Checking Engine coolant level .. .. ..... .... . .. 240
Tire pressure . .. .. ............. .. .. 255
Child rest raints
Danger of using child restraints in the
front seat ..... .. .. ... ..... ... .. .. 154
Where can I get additional information
about child restraints and their use? .. 195
Child rest raint system anchors ........ 189
Child safety ... .. .. .. ... ....... ... .. 176
Convertible locking retractor ........ . 186
Gu idance fixtures for lower anchorages 191

starting .... ................ ... .... 83
Starting with jumper cables . ... .. .. . 284
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Engine compartment ....... .. .. .. .. . 234
C losing the hood ......... .. .. .. .. . 233
Opening the hood .............. .. . 232
Safety instructions ................. 232
Working in the engine compartment .. 232
Engine coolant . ........... .. .. .. ... 240
Adding coolant ........... .. .. .. .. . 241
Checking the engine coolant level .. .. . 240
Expansion tank .............. ... ... 240
Malfunction symbol .......... ... .. .. 16
Radiator fan ............. .... .. .. . 242
Temperature gauge ....... .. .. .. .. .. 10
Engine oil ... ................ ... ... 235
Adding .... ................ ... ... 238
Additives ... ................ ... ... 238
Changing .. ............. .... .. ... 239
Checking oil level ......... .. .. .. .. . 238
Checking the engine oil level .. .. .. .. . 237
Consumption ............... .... .. 238
Indications and conditions requiring ex-
tra checking ............. .... .. ... 23 7
I ndicator light . . . . . . . . . . . . . . . . . . . . . 17
O il consumption .......... .. .. .. .. . 236
Oil grades .. ................ ... ... 235
Oil level symbol ................ .... 20
Pressure malfunction ......... ..... .. 17
Recommended oil check intervals .. .. . 237
Sensor defective . . . . . . . . . . . . . . . . . . . . 21
Specification and viscosity .. .. .. .. .. . 235
Engine sound ................ ... ... 109
Engine speed limitation ....... .. .. .. .. 20
Engine start-stop mode
refer to Start-Stop-System . .. .. .. .. .. 89
Engine start system (indicator lights) . ... 17
Entry assistance . . . . . . . . . . . . . . . . . . . . . 63
Environment Break-in period ........... .. .. .. ... 206
Catalytic converter . ....... .. .. .. .. . 207
Disposing of your vehicle battery .... . 247
Driving at high speeds ...... ... ... .. 209
Driving to minimize pollution and noise 208
Fuel ... .. .. .. ............. .. .. ... 230
Fuel economy ............ .... .. .. . 208
Leaks under your vehicle ............ 232
Letting the vehicle stand and warm up. 209
Index 305
Proper disposal of drained brake fluid . 243
Proper disposal of drained engine cool-
ant ....... ... .. .. ............... 241
Proper disposal of drained engine
oil . . . . . . . . . . . . . . . . . . . . . . . . . 238, 239
Recycling used engine oil ............ 238
Unleaded fuel .. .. .. . .. .... ........ 228
What should I do with an old battery? . 247
EPC
refer to E lectronic power control (EPC) . 20
ESC
refer to Electronic Stabilization Control
(ESC) ............................ 198
ESC (Electronic Stab ilization Control)
Warning/ind icator lights ............ . 18
Event Data Recorder (EDR) ............ 198
Exhaust tail pipes .. .. .............. . 222
Expansion tank .. .. ................. 240
Exterior lighting . .. ................. . 45
Exterior mirrors Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dimming ... ... .... ................ 54
Heating ... .. .. .. .... ............. . 54
Exterior temperature display ........ .. . 23
F
Fastening
Booster seats .. .. .... ......... .... 184
Convertib le child safety seats .... .. .. 183
Infant seats . . . . . . . . . . . . . . . . . . . . . . 182
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fo lding table .. .. .. .. ............... . 68
Foot pedals ... .. .... ... .......... .. 139
For the sake of the environment Gasoline fumes and the environment .. 230
Reducing engine noise by ear ly upshift-
ing ....... .. .. .. .. .. ........... .. . 10
Refueling . .. .. .. .. ............... 230
Saving fuel by early upshifting ....... . 10
Four zone automatic climate control ..... 79
Front airbags Description .. .. .. ................. 156
How they work . .. ................. 161
Frontal collisions and the laws of physics 145
Front passenger seat adjustment . . . . . . . 63
•
•

306 Index
Front seats . ............... ... .... .. 57
Adjusting . ................. ..... . 136
Child restraints in the front seat ... .. . 154
Fuel Addit ives . .... ........... .. .. .... . 228
Bl ended gasoline .......... ... .... . 228
Current consumption . . . . . . . . . . . . . . . . 24
Economy messages (efficiency program) 25
Fuel filler flap emergency relea se .. .. . 231
Fuel filler neck ............. .. .... . 229
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Gasoline ... ... ... .... ......... .. . 228
Gasoline additives ............ .. ... 229
L ow fuel level symbo l . . . . . . . . . . . . . . . 21
Octane rating .......... .. .. .. .. .. . 228
Recommendation .......... ... .... . 228
Refue lling . ................. ..... . 230
Reserve .................... ..... .. 11
Tank capacity . . . . . . . . . . . . . . . . . 11,292
Fuses Assignment ...................... 279
Replacing .. ................ ..... . 279
G
Garage door opener (Homelink®) . .. .. . 132
Garment hooks .. ... .... ......... .. .. 75
Gas discharge lamps ......... ... .. .. . 283
Gauges Engine coolant temperature .. .. .. .... 10
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Speedometer . . . . . . . . . . . . . . . . . . . . . . 26
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 11
Trip odometer . . . . . . . . . . . . . . . . . . . . . 26
General illustration ............ .... ... 8
Generator . ................. .. .... .. 16
Glossary of tire and loading terminology 250
Glove compartment (cooled) ...... ..... 74
Gross Vehicle Weight Rating (GVWR) ... 290
H
Headlights
Cleaning system ............ .. .... .. 52
Defective . . . . . . . . . . . . . . . . . . . . . . . . . 21
He adlig ht range contro l . . . . . . . . . 21, 45
High beam assist .............. ... .. 48
Washer reservoir ............. .. ... 247 Head
restraints . . . . . . . . . . . . . . . . . 64, 138
Adjusting ..... .. ................. 138
H eated
exter ior mirrors . . . . . . . . . . . . . . . . . . . . 54
rear window ... .. ............. .... . 80
seats ......... .. .. .............. .. 80
windshield washer spray nozz les . . . . . . 52
H eating .. .. .. .. .. .. ............. .. . 78
Heavy clothing and safety belts ........ 147
High beam . ..... .. ............. ..... 47
High voltage warning label ..... .. .. .. 290
Hill descent contro l ................ . 118
Homelink ® un iversal remote control ... 132
Hood (release lever) ... .......... .. .. 232
Horn ..... ..... .. .. .............. ... 8
How are child restraint system anchors re-
lated to child safety ............. .. .. 189
How many air bags does my vehicle have? 159
How often should I check my tire pres-
sures? ......... .. .. .............. . 256
How safety belt pretens ioners work .. .. 150
Hydroplaning ... .. ............. .... 260
I
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 26
Important things to do before driving .. 134
Improperly worn safety belts .......... 150
Indicator lights
refer to Warning/indicator lights ..... . 11
Infant seats .. .. .. ... .......... .... 182
Installing child safety seats Safety belts . . . . . . . . . . . . . . . . . . . . . . 186
Installing the upper tether strap on the
anchorage . ..... .. ................. 194
Instruments Adjusting the light ing .......... .... . 50
Instruments and controls
General illustration . . . . . . . . . . . . . . . . . . 8
Instrument cluster .................. 10
Interior lighting
Ambience lighting ............. .. .. . 49
Front and rear ... .. ..... ...... .. .. . 49
Intermittent (windshield wipers) ... ... . 52

_______________________________ I~ n~ d:::: e~x 311
Speed warning system ................ 90
Sport different ial ....... ...... ... ... 109
In dicator light . . . . . . . . . . . . . . . . . . . . . 22
Start-Stop-System . . . . . . . . . . . . . . . . . . . 87
Eng ine does not switched off . .. .. .. .. 89
Eng ine starts automatically .. .. ... ... 89
Indicator lights . . . . . . . . . . . . . . . . . . . . 88
Messages .. ............. .... .. .. .. 90
Starting/stopping the engine ... .. .. .. 88
switch ing off/on .......... .. .. .. .. .. 89
START ENGINE STOP button ..... ... ... 83
Starting from rest . . . . . . . . . . . . . . . . . . . . 86
Starting off with a trai le r .... .. .. .. .. .. 87
Starting the engine ........ .. .. .. .. .. 83
Steer ing whee l
Adjusting steering column ........... 82
Easy entry feature .................. 82
Indicator light . . . . . . . . . . . . . . . . . 17, 22
Shift paddles . . . . . . . . . . . . . . . . . . . . . 118
Steering wheel heating .. ... ... ... ... 81
Steps for determining correct load limit . 258
Stopping the engine . . . . . . . . . . . . . . . . . . 84
Storage ..... ................. .. .... 74
Sunroof ... .. .. ................ ... .. 42
Sun shades Emergency closing (roof) ...... .. .... . 44
Panoramic sunroof ........ .. .. .. .. .. 44
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear window ............. .... .. .... 51
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . SO
Symbols
refer to Warning/Indicator lights .. .. .. 11
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 11, 23
Technical modifications ....... .. .. .. . 299
Temperature display ........ .. .. .. .. .. 23
Tether anchors ..................... 193
Tether strap ................. .... .. 193
T he first 1,000 miles (1,500 km) and after-
wards ....... ................. .. ... 206
Tie-downs . . . . . . . . . . . . . . . . . . . . . 69, 141
Tips for the environment
Saving fuel . . . . . . . . . . . . . . . . . . . . . . . . 72
tiptronic (automatic transmission) .. .. . 115
Tire pressure . ............. .... .. .. . 255 T
ire pressure monitoring system ...... .
267
Loss of air pressure ............... . 268
Malfunction
. . . . . . . . . . . . . . . . . . . . . . 268
Resetting tire pressures ............ .
269
Tires
....... .. .. .. ................. 249
Service life
.. .. .. .. ............... 259
speed rating letter code ........... . 262
Tire manufacturing date ........... .
261
Tire specifications ............. .. . .
261
Tread depth . .. .. ................ .
259
Uniform tire quality grading ........ . 263
Winter tires ... .. .. . .. .... ....... . 264
Tires and vehicle load limits .......... . 257
T ires and wheels
Checking tire pressure .............. 255
Cold tire inflation pressure .......... 253
Dimensions ...... .. ............... 260
General notes .. .. .. ............... 249
Glossary of tire and loading terminolo -
gy ..... .. .. .. .. .. ............... 250
Low aspect ratio tires .... ......... .. 266
New tires and wheels .............. .
Replacing ........ ...... ......... .
Snow chains ... .. .... ........... . .
T ires and vehicle load limits ..... .. . .
Wheel bolts . .. .. .... ............ .
Winter tires
Tire service life
.. .. .. ... ....... .....
Too ls ...... .. .. .. .................
260
261
265
257
266
264
259
271
T orn or frayed safety belts ............ 147
Touch -up paint .. .. .. ... ....... ..... 220
Towing Tow truck procedures .............. . 286
TPMS Tire pressure monitoring system ... .. 268
Trailer towing ...... ................ 211
Operati ng instructions ...... .... .... 211
Parking system ....... ........... .. 131
T echnical requirements . . . . . . . . 211, 212
T ra iler towing tips ............. .. .. 213
Train (transporting your vehicle) ....... 288
Transmission malfunction (indicator
light) ........ .. ...... ............. 119
T ransport Canada .. .. ............... 142
Transporting your vehicle ... .. .... .... 288
Tread Wear Indicator (TWI) ........... 259
•
•
