-Leather cleaning and care kit
- Creams to care for colo red leather
- Spot removers fo r ballpo int pens, shoe pol-
ish , etc.
- Oil/grease dissolving spray
- New and upcoming products.
A WARNING
Always read and heed all WARNINGS and
other information ~
page 213.
-Never use chemical solvents (e .g. lighter
flu id , turpentine), waxes, shoe polish or
s imilar products on the leather surfaces
i n your Audi.
- To avoid damage, have stubborn stains
r emoved by a commerc ial cleaning spe­
c ia list .
Cleaning Alcantara ® (synthetic suede)
Ap plies to vehicles : wit h Alcanta ra up hols tery
Removing dust and dirt
.,. Moisten a cloth, squeeze out excess water
and wipe down the se at s urfaces .
Removing stains
.,. Moisten a cloth w it h lukewarm water or
with diluted
ethyl (rubb ing) alcoho l.
.,. Dab at the stai n. Start at the outside and
wor k inwards.
.,. Once the s tain is no longer visib le , use a
soft dry cloth or t issue to soak up the mois ­
tu re .
D o no t use leather cleaning produc ts on Al­
cantara .
You may use a suitable s hampoo fo r removi ng
dust and dirt.
Dust and grit in the pores and seams can
scratch and damage the surface . If the car is
l eft standing in the sun fo r long pe riods , the
A lcantara covers sho uld be protected against
d ir ect sunlight to preve nt i t from fading.
Slight color var iat ions w ill deve lop in normal
Cleaning and protec tion 223
use and a re not an indication of material dete ­
rioration .
(D Note
-Never use chem ic al so lvents (e .g. lighter
fluid , tur pentine), waxes, shoe polish o r
simi lar products on A lcantara ® surfaces.
- To avoid damage, have stub born sta ins
removed by a commercial clean ing spe­
cialist .
- Do not use b rushes, sti ff spon ges or sim ­
ilar ly abrasive cleaning a ids.
Safety belts
Only well-maintained safety belts work relia ­
bly when needed.
.,. Keep belts clean.
.,. For cleaning, use a mild soap and water so l­
ution. Let belts dry thoroug hly and away
from direct sunlight .
.. Do not allow inertia ree l sa fety belts to re ­
tract before they are completely dry.
.,. Check t he condition of your safety belts reg·
ularly .
Heavi ly so iled safety belts may not retract
proper ly.
A WARNING
Damaged safety belts can break in a crash .
-Anyth ing that might damage your safety
be lts could mea n that you and your pas­
sengers would not be adequate ly pro ­
t e cted in an accide nt.
- Safety belt performance depends on co r­
rect installation . Never remove be lts
from the veh icle to clean t hem .
- Do not use chemical clea ning agents,
bleach or dyes . T hey have corrosive prop­
erties which wea ken the webb ing .
- When clea ning your safety be lts, inspect
them for damage . If you discover dam­
age, see your Audi d ealer.
- Always read a nd heed a ll WAR NINGS and
other information
~ page 213 .
•
•

230 Checking and filling
Checking and filling Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle .
Fig. 187 Driver foo twell: release lever
Fig. 188 Rocker switch un der the hood
Make sure the wiper arms are not raised up
from the windshield. Otherwise the paint
could be damaged .
.,. Pull the lever under the instrument panel in
the direction of the arrow
~ fig. 187.
.,. Raise the hood slightly~,&. .
... Press the rocker switch under the hood up­
ward
~ fig. 188. This releases th e catch.
... Open the hood.
&_ WARNING
Hot engine coolant can burn you.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood .
'Working in the engine compartment
Be especially careful whenever you work in
the engine compartment.
Whenever you must perform any work in the
engine compartment, for example checking
and filling different fluids, there is a risk of injury, burns and accidents. To prevent per­
sonal injury always observe the following
WARNINGS. The engine compartment of any
vehicle is a hazardous area
~ ,&. .
A WARNING
To help avoid injury, before you check any­
thing under the hood:
- Turn off the engine.
- Switch off the ignition .
- Apply the parking brake.
- Move selector lever to P (Park).
- Always let the engine cool down. Hot
components will burn skin on contact.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment. Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
- Keep children away from the engine com­
partment.
- Never spill fluids on hot engine compo­
nents . They can cause a fire .
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly .
- Never open the coolant reservoir cap
when the engine is still warm . The cool­
ant system is pressurized and hot cool­
ant could spray out.
- Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir.
- Do not remove the engine cover under
any circumstances. This increases the
risk of burns.
- If work on the fuel system or the electri­
cal system is necessary:

232 Checking and filling
Engine compartment
Engine compartment overview
These are the most important items that you can check.
Fig. 189 Typ ical layout for contai ners and eng ine o il filler cap
(D Jump start point(-) with hex
head screw .... .............
243, 279
@ Jump start point(+) under a cov-
er .. .. ............... .... .
243,279
®
©
®
®
Brake fluid reservoir ((0)) . . . . . 239
Engine oil filler cap ( Coolant expansion tank
(-L) ...
Windshield/headlight washer
237
t . (.'R) con ainer ,,.., ............ . . 244
The engine oil filler neck (item @) may be lo­
cated in a different area depending on the ver­
sion of the engine.
~ WARNING
Before you check anything in the engine
compartment, always read and heed all
WARNINGS
¢ &. in Working in the engine
compartment on page 230.
-
Engine oil
Engine oil specifications
The engine oil used in your Audi needs the
right kind of oil.
The engine in your Audi is a sophisticated
powerplant that was built to exacting specifi­
cations . This engine needs the right kind of
engine oil that meets specifications regarding
quality and viscosity so that it can run
smoothly and reliably . Choosing the right oil
and changing oil within the time and mileage
intervals printed in you r vehicle's Warranty
&
Maintenance booklet matters a lot more to­
day than it did years ago . Audi has developed
a special quality standard for engine oil that
will help assure that your vehicle's engine wi ll
get the lubrication it needs for proper opera-
tion. ..,.

234 Checking and filling
temperatures stay below freezing point for long periods.
Detergent additives in the oil w il l make fresh
oil look dark after the eng ine has been run­
ning for a short time . This is norma l and is not
a reason to change the oi l more often than
recommended.
Damage or malfun ctions due to lack of
maintenance
It is essential that you change your oil at the
recommended intervals using only engine o il
that complies with Audi oi l standard
VW 502 00. Your Limited New Vehicle War­
ranty does not cover damage or malfunctions
due to fail ure to fo llow recommended mainte­
nance and use requ irements as set forth in
the Audi Owner's Manual and Warranty &
Maintenance booklet . Your dealer will have to
deny warranty coverage unless you present to
the dea ler proof in the form of Service or Re­
pa ir Orders that all scheduled ma intenance
was performed in a timely manner.
Eng ine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all
of its moving parts.
In order to provide effective lubrication and
cool ing of internal engine components, all in­
ternal combustion eng ines consume a certain
amount of oil. Oil consumption varies from
engine to engine and may change significantly
over the life of the engine. Typically, engines
with a specif ied break-in period (see
¢ page 204) consume more oil during the
break-in period than they consume after oil
consumption has stabilized.
Under norma l conditions, the rate of oil con­
sumption depends on the quality and viscosity
of the oil, the RPM (revolutions per minute) at
which the engine is operated, the ambient
temperature and road condit ions . Further fac­
tors are the amount of oil d ilution from water
condensat ion or fuel residue and the oxida­
tion level of the oil. As any engine is subject to wear as mi
leage builds up, the oil consump­
tion may increase over time until replacement
of worn components may become necessary.
With all these variables coming into play, no
standard rate of oil consumption can be es­
tablished or specified. There is no alternative
to regu lar and frequent checking of the o il lev ­
el, see Note.
If the yellow engine oil leve l warning symbo l
in the instrument cluster
II lights up, you
sho uld check the oil leve l as soon as possible
c:> page 235. Top off the oil at your earliest
convenience
c:> page 235.
A WARNING '"---
Before you check anythi ng in the engine
compartment, always read and heed all
WARNINGS
c:> A in Working in the engine
compartment on page 230.
(D Note
Driving with an insufficient o il level is like­
ly to cause severe damage to the engine.
(D Tips
- The oil pressure warning display . is
not an indicator of the oil level. Do not
rely on it. Instead, check the oil level in
your engine at regular intervals, pref­
erably each time you refuel, and always
before going on a long trip.
- If you have th e impression your engine
consumes excessive amounts of oil, we
recommend that you consult your Audi
dealer to have the cause of your concern
properly diagnosed. Keep in mind that
the accurate meas urement of oil con­
sumption requ ires great care and may
take some t ime. Your Audi dealer has in­
structions about how to measure oil con­
sumption accurately.
-

238 Checking and filling
the level may be slightly above the "max"
marking.
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration
¢ page 232.
To obtain an accurate reading, the engine
must be switched off.
The expansion tank in your vehicle is equipped
with an electric coolant level sensor.
When the coolant level is too low, the warning light in the Auto-Check System¢
page 16 will
illuminate until you add coolant and the level
has been restored to normal. Even though
there is an electric coolant level sensor , we
still recommend you check the coolant level
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cool­
ing system should be inspected immediately
by your authorized Audi dealer.
It is not
enough merely to add coolant.
In a
sealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheating.
_& WARNING
The cooling system is under pressure and
can get very hot. Reduce the risk of scald­
ing from hot coolant by following these
steps. -
- Turn off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in
a counter-clockwise direction while ap­
plying light, downward pressure on the
top of the cap .
- To avoid being burned, do not spill anti­ freeze or coolant on the exhaust system
or hot engine parts. Under certain condi­
tions, the ethylene glycol in engine cool­
ant can catch fire .
(D Note
Do not add any type of radiator leak seal­
ant to your vehicle's engine coolant. Add­
ing radiator repair fluid may adversely af­
fect the function and performance of your
cooling system and could result in damage not covered by your New Vehicle Limited
Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine com­
partment,
always read and heed all WARN­
INGS ¢&. in Working in the engine compart ­
ment on page 230.
.. Turn off the engine .
.. Let the engine cool down.
.. Place a thick rag over the coolant expansion
tank ¢
fig. 192 and carefully twist the cap
counter-clockwise ¢,&. .
.,. Add coolant.
.. Twist the cap on again
tightly.
Replacement engine coolant must conform to
exact specifications ¢
page 23 7, Coolant. We
recommend using only coolant additive G12+
+, G13 or in an emergency G12+. Do
not use a
different additive. In an emergency use plain
water until you can get the correct additive
and can restore the correct ratio. This should
be done as soon as possible .
If you have lost a considerable amount of
coolant , then you should add cold antifreeze
and cold water only when the engine is cold.
Always use
new engine coolant when refilling.
Do not fill coolant above the "MAX" mark. Ex­
cess coolant will be forced out through the
pressure relief valve in the cap when the en­
gine becomes hot.
_& WARNING
-= -- The cooling system is under pressure and
can get very hot. Reduce the risk of ..,_

scalding from hot coo lant by following
these steps.
- Turn
off the engi ne and a llow it to cool
down.
- Protect your face, hands and arms from
escapi ng fl uid and steam by cover ing
the cap with a large, thick rag .
- Turn the cap slowly and very ca refully
i n a cou nte r-clockw ise dir ect ion while
a pply ing lig ht, downwa rd p ress ure on
the top of the cap.
- To avo id being burned, do no t sp ill an­
tifree ze o r coolan t on t he exh aust sys­
tem or ho t engine parts . Un der certain
conditions, the ethylene glyco l in en­
gine coolant can catch fire .
- Antifree ze is poisono us. Always store an­
tifreeze in its or iginal co ntainer and we ll
o ut o f the reac h of children.
- If you drain the coolant , it must be
caught and safely stored in a p roper con ­
tainer clear ly marked "poison".
(D Note
- Coolant po llutes the env ironment and
could ca use a n engine fire . Excess coo l­
ant wi ll be forced out through the pres ­
sure re lief va lve in the cap when the en­
gine becomes hot.
- If, in an emergency, only water can be
added , the correct ratio between water
and antifreeze¢
page 237 must be re­
stored as soon as possib le .
@ For the sake of the environment
Drained coolant should not be re used . Al­
ways dispose of used c oolant while observ­
ing all envir onmental regulations .
Radiator fan
The radiator fan switches on automa tically by
itself
An auxiliary e lectric radiator fa n switches on
and
off depending on coolant temperature
and other ve hicle operating conditions.
Checkin g and fillin g 239
After you switch the engine off, the auxi liary
fan can continue running for up to 10 minutes
- even w ith the ign ition off. It can even switch
o n again later by itself¢.& , if
- the temperature of the engine coo lant rises
due to the heat build- up from the engine in
the engi ne compartment, or
- the engine compa rtment heats up because
the vehicle is parked in intense sunlight.
&_ WARNING
--To reduce the risk of persona l in ju ry nev-
er touch the radiator fan .
- The a uxiliary electric fan is tempe rat ure
contro lled and can switch on suddenly
even when the engine is not ru nning.
- The a uxiliary radiator fan sw itches on a u­
tomatically when the engine coo lant
reaches a certai n temperature and will
cont inue to ru n until the coo lant temper­
atur e drops.
Brake fluid
Checking brake fluid level
N
N
N
.,; 0:, a,
Fig. 193 Engin e co mpa rt m ent: cove r on t he bra ke fluid
reservo ir
Before you check anything in the eng ine com­
partment,
alw ays r ead and heed all WARN­
INGS c:> A in Working in the engine compart­
ment on page 230 .
.. Read t he brake fluid level from the brake
fluid reservoir
c:> fig. 193, c:> fig. 189. The
brake fluid level must be between the "MIN"
and "MAX" markings. .,..

24 0 Ch eck ing and filling
The location of the brake fluid reservo ir can be
seen in the engine compartment illustration
¢ page 232.
The fl uid level may drop slightly after some
time due to the automatic adjustment of the
brake pads. This is not cause for alarm.
I f the brake fluid level falls
considerably be­
low the "MIN" mark, the brake warning/ind i­
cator light
1111 (U .S . models)/ . (Canadian
models) will come on¢
page 15. Do not con­
tinue to operate the vehicle. The comp lete
brake system shou ld be thoroughly checked
by an au thorized Audi dealer or other quali­
fied facility and the cause corrected . If the
brake fluid level is too low, the brake warn ing/
indicator light w ill illuminate . Contact an au­
thor ized Audi dealer
imm ediatel y.
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid absorbs moisture from the a ir . If
the water content in the brake fluid is too
h igh , corros ion in the brake system may result
after a per iod of t ime . The bo iling po int of the
brake fluid w ill also decrease considerably and
dec rease braking performance.
Therefore, the brake flu id must be changed
ev ery two year s. Always use new b rake fluid
which conforms to Fede ral Motor Vehicle
Standard "FMVSS
116 DO T 4".
The brake flu id reservoir can be difficult to
r each, therefo re , we recommend that you
have the brake fl uid changed by yo ur author­
ized
Audi d ealer. Your dea ler has the correct
too ls, the right brake fluid and the know -how
to do this for you .
A WARNING
-Brake fluid is poisonous . It must be stor ­
ed only in the closed orig inal container
out of the reach of children!
- Brake fa ilure can result from old or inap­
propriate brake fluid. Observe these pre­
caut ions: -
Use only brake fluid that meets SAE
specification
J 1703 and conforms to
Federa l Motor Vehicle Standard
116.
Always check with your authorized Audi
dealer to make sure you are using the
correct brake fluid . The correct type of
brake f lu id is also ind icated on the
brake flu id reservoir.
- T he brake fluid must be new. Heavy use
of the bra kes ca n cause a vapo r lock if
the b rake fluid is left in the system too
l ong . This can seriously affect the effi ­
c iency of the brakes as well as your
safety. This co uld resu lt in an accident.
(D Note
Bra ke fluid will damage the paint of you r
vehicle .
(® For the sake of the environment
Because of the p rob lem of p roper disposal
of b ra ke fluid as well as the spec ial too ls
r equired and the necessary expertise, we
re commend that you have the brake fluid
changed by yo ur authorized Aud i dea ler.
Battery
General information
U nder normal ope rat ing cond itions , the bat­
tery in yo ur Audi does not need any ma inte­
nance. With
high o utside tempe ra tu res or
l ong daily drives we recommend that you have
the e lectrolyte level checked by a service fa­
cility. The electrolyte leve l should a lso be
checked each t ime the battery is charged
<=> page 243.
Have th e battery checked when yo u take your
veh icle in for service. You are well advised to
replace a battery that is o lder than S years .
With certain types of airbag deployment, the battery is disconnected from the veh icle elec­
trical system for safety reasons<=>.&
in Re­
pair , care and dispo sal of the airbags on
page
165.

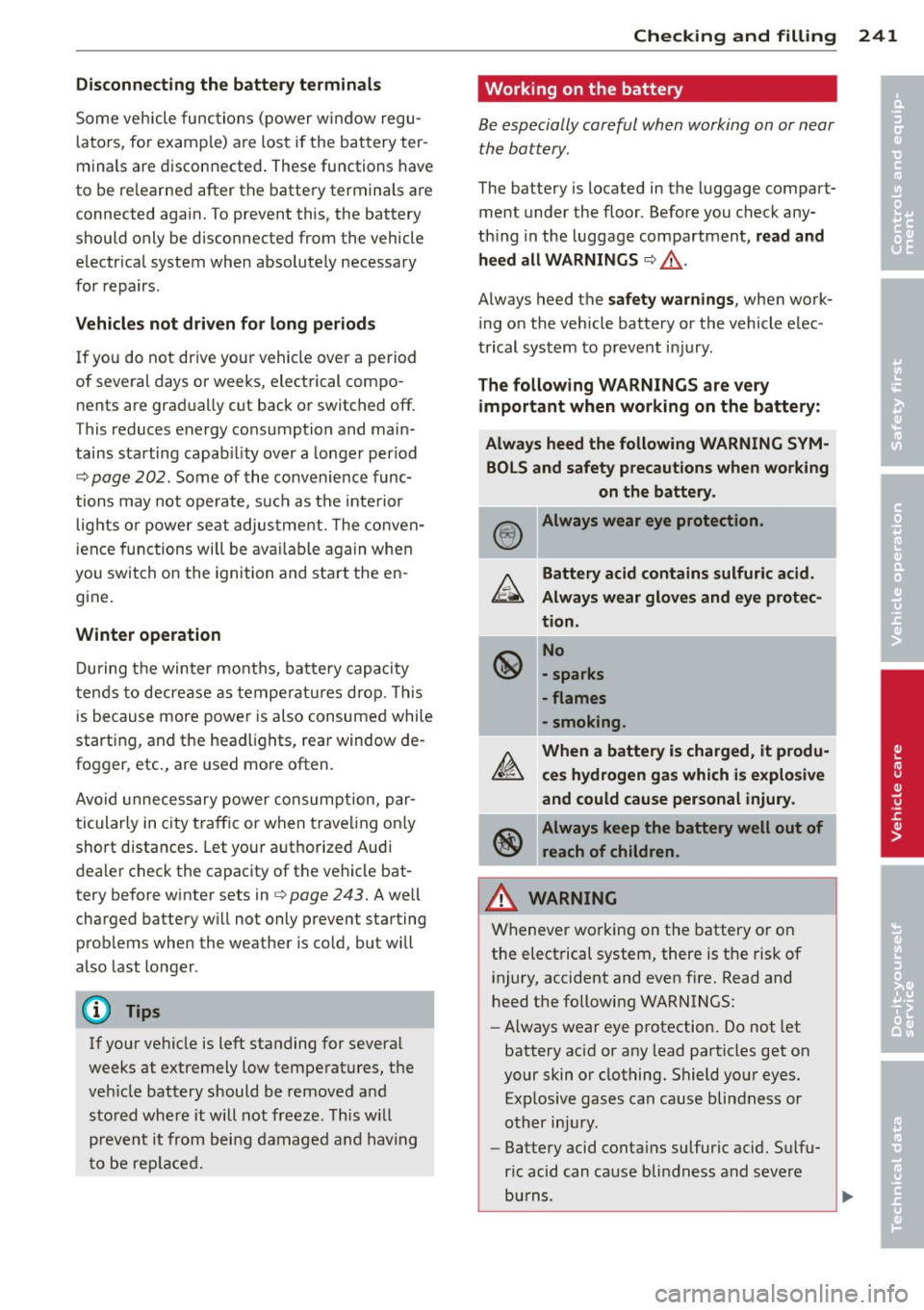

Disconne cting the batt ery t erminals
Some vehicle functions (power w indow regu ­
l ators, for example) are lost if the battery ter­
minals are disconnected . These functions have
to be re learned after the battery terminals are
connected again. To prevent this, the battery
should only be disconnected from the vehicle
electrical system when absolutely necessary
for repairs .
Vehicles not driven fo r lo ng period s
If you do not drive your vehicle over a period
of several days or weeks, electrical compo­
nents are gradually cut back or switched off .
This reduces energy consumption and main­
tains starting capab ility over a longer per iod
c> page 202 . Some of the convenience func­
tions may not operate, such as the inte rior
lights or power seat adjustment. The conven ­
ience functions will be ava ilable again when
you switch on the ignition and start the en ­
g ine.
Winter operation
D uring the winter months, batte ry capacity
tends to decrease as tempe ratu res d rop . This
is because more power is also consumed while
starting , and the headlights, rear window de ­
fogger, etc., are used more often.
Avoid unnecessary power consumption, par­
ticularly in city t raffic or when traveling on ly
short distances. Let your a uthorized Audi
dealer check the capacity of the vehicle bat­
tery before winter sets inc>
page 243. A well
charged battery w ill not only prevent starting
prob lems when the weather is cold, but will
also last longer .
@ Tips
If your vehicle is left standing for severa l
weeks at extremely low temperatu res, the
veh icle battery should be removed and
sto red where it will not freeze. This will
prevent it from being damaged and hav ing
t o be rep la ced.
Checkin g and fillin g 241
Working on the battery
Be especially careful when working on or near
the battery.
The battery is located in the luggage compart­ ment under the floor. Before you check any­
th ing in the luggage compartment,
read and
he ed all WARNINGS
<=> ..&_ .
Always heed the safet y warnings , when work­
i ng on the vehicle batte ry or the vehicle e lec ­
trical system to prevent inju ry.
The following WARNINGS ar e very
important when wor king on the battery:
Always heed the following WARNING SYM­ BOLS and safety pre cautions when working
on the battery.
Always wear eye protection.
Battery acid contains sulfuri c acid .
Always w ear glove s and eye protec ­
tion.
No
- sparks
- flames
- smoking .
1
When a batter y is charged, it produ­
ce s hydrogen g as which is e xplo sive
and could cause per sonal injury .
---·-
®
Always keep the battery well out of
reach of children .
A WARNING
Whenever working on the battery o r on
the electrical system, there is the risk of injury, accident and even fire. Read and
heed the following WARNINGS :
- Always wear eye protection. Do not let
-
battery ac id or any lead particles get on
your skin or clothing. Shield your eyes. Exp losive gases can cause blindness or
other inju ry.
- Battery acid conta ins sulfuric acid. Sulfu­
ric acid can cause blindness and severe
bu rns.
•
•
