2013 AUDI A5 COUPE rear view mirror

Turn the knob to the desired position:
Q/ P -In th is position , you can adjust the
d river's and front passenger's ex ter io r mir ro rs
by turning the knob in the des ired direc tion.
(ijjl -The mirrors are heated depending on the
ou tside temperature.
P assenger exter ior mirro r tilt function*
( only with memory for exterior mirrows)
To help yo u see the curb when backing into a
pa rking space, the surface of the m irror tilt s
slig htly . The knob m ust be in the P posit io n
for this to ha ppen .
You can adjust the t ilt ed mir ro r sur face by
turn ing t he knob in the des ired direction .
When you move out of reve rse and into ano th­
er gear, the new mi rror posit ion is stored and
assigned to the key you are using .
The mirro r goes back into its origina l posit io n
once yo u drive forward faster tha n 9 mph
(15 km/h) or sw itch the ignition off .
,&. WARNING
Curved mirror su rfaces (convex or spheri ­
cal *) increase yo ur field of view . Remem­
ber that vehicles or other objects will ap­
pea r smaller and farther away than w hen
seen in a flat m irr or. If you use this mirror
to estimate distances of following veh icles
when changing lanes, you co uld estimate
incorrectly and ca use an accide nt.
(D Note
- If you wash the veh icle in an automatic
ca r wash, yo u must fold the exte rior m ir­
r o rs in to reduce the r is k of damage to
the m irrors .
(D Tips
-The exterior mirror setti ngs are sto red
with the memory functio n* ~
page 57 .
- If there should be a malfunction in the
electr ica l system, you can st ill adjust the
exter ior mir ro rs by press ing the edge of
the mi rror.
-
Clear vi sion 4 7
Dimming the mirrors
N
~
><
~===~=======~ ~
Fig. 41 Auto matic dimmin g rearv iew mirro r*
Manu al d imming rearview mir ror
.,. Pull the lever on the bottom of the mirror
back .
Automat ic dimming rearview mirror*
.,. Press the button@~ fig. 41. The indicator
light @ turns on . The rearview and exterio r*
mi rrors dim a utomatically when light shines
on them, for example from headlights on a
veh icle to the rear .
A WARNING
-
Electrolyte fluid can leak from aut omatic
d imm ing mirrors if the glass is broken .
E lec trolyt e fluid can irritate skin, eyes and
res pirato ry system.
- Repeated or prolonged exposu re to elec­
trolyte can ca use i rritation to the respira­
to ry sy stem, especially among people
wit h asthma or o ther resp iratory co ndi­
tions . Ge t fresh a ir immediately by leav­
ing the vehicle o r, if that is no t possib le,
open w indows and doors all the way.
- If electroly te gets in to the eyes, f lush
them thorough ly with large amounts of
clean water for at least 15 minutes;
medical attention is recommended.
- If electrolyte contacts skin, fl ush affect­
ed area with clean water for at least 15
minutes a nd the n wash affected area
wit h soap and water; medical attention
is recommended. Thoroughly wash af­
fected cloth ing and shoes before re use .
.

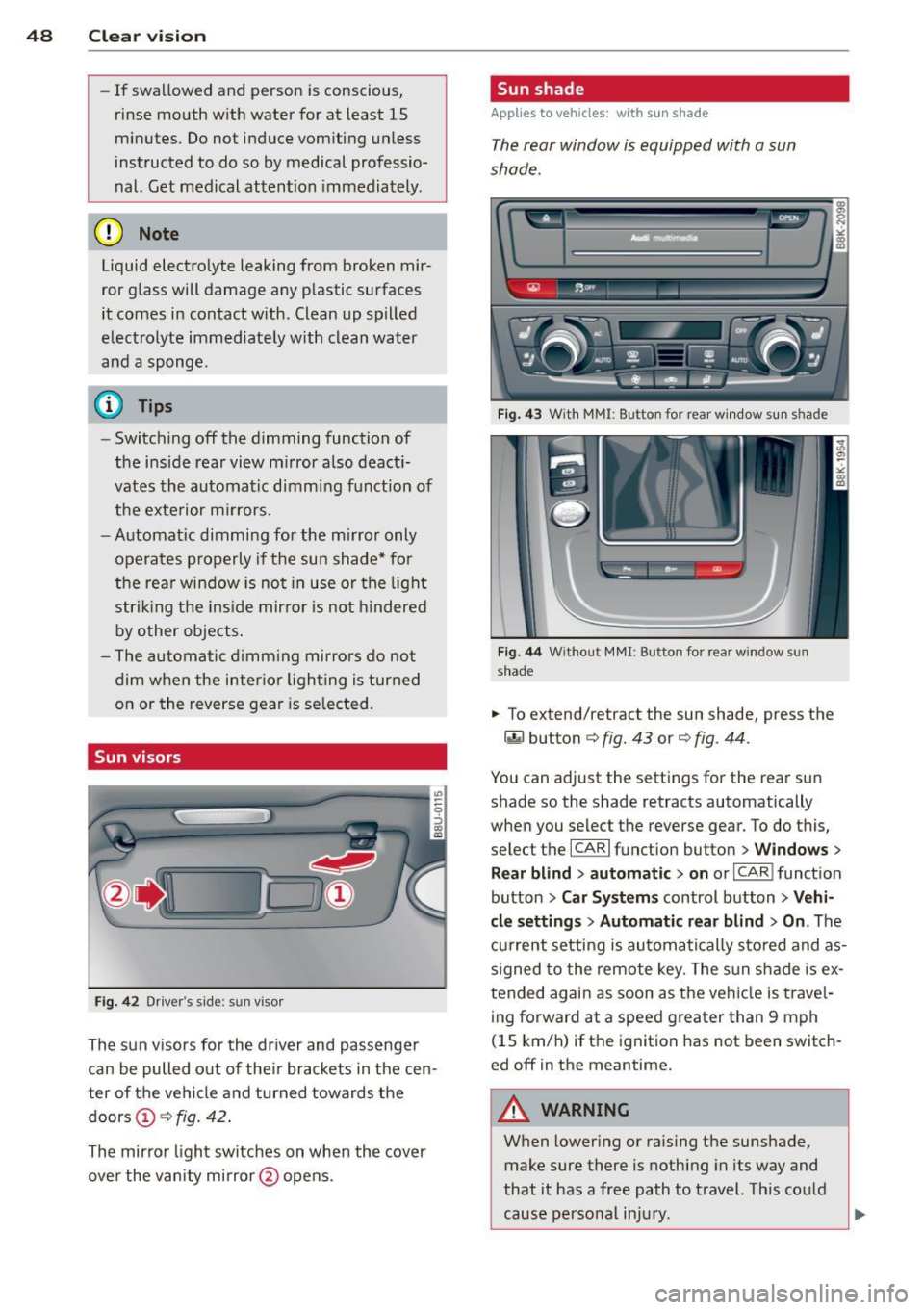

48 Clear vision
-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
d) Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors.
-Automatic dimming for the mirror only
operates properly if the sun shade* for
the rear window is not in use or the light
striking the inside mirror is not hindered
by other objects.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected.
Sun visors
Fig. 42 Drive r's side : su n v isor
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors
Ci) c::> fig. 42.
The mirror light switches on when the cover
over the vanity mirror @opens .
Sun shade
Applies to vehicles: with sun shade
The rear window is equipped with a sun
shade.
Fig. 43 W ith MM I: Bu tton for rear window sun s hade
Fig. 44 Withou t MMI : Bu tton for rea r win dow s un
shade
.. To extend/ret ract the sun shade, press the
~ button c::> fig. 43 or c::> fig. 44 .
You can adjust the settings for the rear sun
shade so the shade retracts automatically
when you select the reverse gear. To do this,
select the
I CAR I function button > Windows >
Rear blind> automatic> on or I CAR I function
button
> Car Systems control button > Vehi­
cle settings> Automatic rear blind > On .
The
current setting is automatically stored and as­
signed to the remote key. The sun shade is ex­
tended again as soon as the vehicle is travel­ ing forward at a speed greater than 9 mph
(1 S km/h) if the ignition has not been switch­
ed off in the meantime.
_8 WARNING
= When lowering or raising the sunshade,
make sure there is nothing in its way and
that it has a free path to travel. This could
cause personal injury.
-

-To help prevent damage to the wiper
arms or other components, do not at­
tempt to move the wipers by hand .
@ Tips
-Commercial hot waxes applied by auto ­
matic car washes affect the how easily
the glass surface can be cleaned.
- You can also use the service position, for
example, if you want to protect the
windshield from icing by using a cover.
Digital compass
Switching the compass on and off
A pp lies to vehicles: with digital compass
The compass direction is shown in the rear­
view mirror .
NlrJ
Fig . 47 Rearview mirror: D ig ital compass act ivated
.. To sw itch the compass on or off, press and
hold the button @ until the compass dis ­
play in the mirror~ fig. 47 appears or disap ­
pears.
The digital compass only works when the igni­
tion is on. The directions are indicated with
abbreviations:
N (north), NE (northeast), E
(east), SE (southeast), S (south), SW (south­
west),
W (west), NW (northwest).
(D Tips
To prevent inaccurate compass readings,
do not bring any remote controls, electri­
cal devices or metallic objects near the
m irror. Clear vi
sion 51
Adjusting the magnetic zone
App lies to vehicles : wi th digi ta l co mpass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
Fig. 48 North Amer ica: magne tic deflect ion zone
bou ndaries
.. Press and hold the but ton @ C? fig. 48 until
the number of the magnetic zone appears in
the rearview mirror .
.. Press the button @repeatedly to select the
correct magnetic zone. The selection mode
turns off after a few seconds.
Calibrating the compass
App lies to vehicles: wit h digita l comp ass
You must recalibrate the compass if it does
not display the correct direction.
.. Press and hold the button @ until a Cap­
pears in the rearview mirror.
.. Drive in a circle at about 6 mph (10 km/h)
until a direction is displayed in the rearv iew
m irror.
,&. WARNING
- To avo id endange ring yourse lf and other
d rivers, calibrate the compass in an area
where there is no traffic.

cannot fall out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
- Any articles of clothing that you have
hung up must not interfere with the driv­
er's v iew. The coat hooks are designed
only for lightweight clothing. Never hang any clothing w ith hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects cou ld injure any passen­
gers inside the vehicle .
- To reduce the r isk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Read and fo llow all WARN INGS
~ page 161, Important safety instruc­
tions on the side airbag system.
- Hang clothes in such a way that they do
not impair the driver's vision .
- T he coat hooks must only be used for
lightweight clothing. Do not leave any
heavy or sharp edged objects in the pock­
ets which may interfere with the side cur­
tain airbag deployment and can cause personal injury in a crash.
- Do not use coat hangers for hanging clothing on the coat hooks as this can in­
terfere with proper deployment of the
side curtain airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal in­
jury in a sudde n stop.
- Always keep the compartment above the
rearview mirror closed while driving to
reduce the risk of injury in the event of
sudden braking maneuvers or a col lision.
(D Note
Objects located on the rear shelf that rub
aga inst the rear w indow cou ld damage the
heating wires for t he rear w indow defog­
ger.
S ea ts a nd s to rage 61
@ Tips
-A vent slot is located between the shelf
and the rear w indow . Do not block the
vent with any items you may place on the
rear window she lf.
- Do not place bu lky items on the rear win­
dow shelf as they could restrict or block
the driver's vision in the rear view m irror.
Roof rack
Description and mounting location s
Additional cargo can be carried with a roof
luggage rack.
F ig . 63 Roof rack attachmen t po ints
.,. Always read and follow the i nstructions pro­
vided by the roof rack manufacturer when
installing the roof rack system.
If luggage or cargo is to be carried on the
roof, you must observe the fo llowing:
- Yo ur vehicle has aerodynam ic rai n gutters
mo lded into the roof. This is why conven­
tional roof luggage racks cannot be used.
We recommend using roof racks from the
Audi orig inal accessories program.
- On ly use roof racks approved for your vehi­
cle. These approved roof racks are the bas is
for a complete roof rack system. Addit ional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi orig inal accessories program .
- When installing the roof rack, make sure it
is only mounted on the designated locations
on the roof
Q fig . 63 . ..,.

Audi side assist Lane change assistant
Description
Applies to vehicles: with s ide assist
Fig . 108 Sensor detection range
Fig. 109 Disp lay on the exterior mirror
Side assist he lps you monitor your blind spot
and traffic behind your veh icle. W ith in the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling w ith you within sensor ra nge
(D
c::, fig . 108: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
c::> fig. 109 turns on.
The display in the left exterior mirror provides
assistance when making a lane change to the l eft, while the display in the right exter ior mir­
r or p rov ides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as crit ical. The display
i n the respective mirror turns o n, but is d im.
Aud i side assist 105
The display remains d im intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning st age
If you activate the turn signal, s ide assist
warns you about veh icles that are detected
and classified as critical. The display in the re ­
spective mirror blinks brightly . If this hap­
pens, check traff ic by glancing in the rearview
mirror and over your shoulder¢
A in General
information on page 106.
@ Tips
- You can adjust the brightness of the dis­
play @¢
page 107.
-Please refer to the instructions for tow­
ing a trailer located in¢
page 106.

-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if vehicles are approaching or being left
behind very quickly. The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface .
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system .
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
(D Tips
- If the window glass in the driver's door
or front passenger's door has been tint­
ed, the display in the exterior mirror may be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions
~ page 2 76.
Audi side assist 107
Activating and deactivating
Applies to vehicles: mit side ass ist
Fig. 112 D river 's doo r: Side assis t button
.,. Press the button c> .&. in General informa­
tion on page 106
to switch the system on/
off . The LED in the button turns on when
side assist is switched on.
Adjusting the display brightness
Applies to vehicles: with side assist
The signal brightness can be set in the radio
orMMI* .
.,. Select: I CAR I function button > Audi side as­
sist.
.,. Select: I CAR ! function button > Car systems
control button > Driver assist > Audi side
assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage . In
very dark or very bright surroundings, the dis­ play is already set to the minimum or maxi­
mum level by the automatic adjustment. In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the information stage will not disrupt
your view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness level in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor­
mation stage and is adjusted along with the
information stage adjustment.

The accuracy of the orientation lines and blue
surfaces diminis hes if:
- the rear view camera does not prov ide a re li­
able image, for examp le, in poor vis ibility
conditions or if the lens is dirty,
- the image on the screen is not visible due to
sun g lare and reflection .
Caring for th e rear view came ra lens
The rear view camera is located above the rear
license plate b racket . Fo r the pa rking assist to
ope rate, the lens
,=:,fig. 118 must be kept
clean:
- Dampen the lens with a househo ld alcohol­
based glass cleane r, and clean the lens with
a dry cloth
,=:, CD.
- Remove s now with a hand brush and ice
prefe rably with a de-icing spray
,=:, (D .
A WARNING
- T he pa rking aid cannot repla ce the dr iv­
er's attention. The driver a lone is respon­
sible for parking and similar driving ma­
neuvers .
- Always keep your eyes on the vehicle's
su rroundings, using the rear view mirror
as well.
- Do not a llow yourse lf to be d istracted
from traffic by the rear view camera pic­
tures.
- If the position and the installation ang le
of the camera has changed, fo r example,
after a rear end collision, do not continue
to use the system for safety reasons. Have it checked by a qua lified dealership.
(D Note
- Low obstacles already signaled by a
warning can disappear from the system's
detection range as they are approached
and will not continue to be signaled . Ob­
jects such as barrier cha ins, trailer draw
bars, thin pa inted ve rtical po les o r fe n­
ces may not be detected by t he system,
pos ing risk of damage.
- Never use warm or hot water to remove
s n ow or ice from the rear view camera
.
P ark a ssis t 115
lens -dange r of crack format ion on the
lens !
- When cleani ng the lens, never use prod­
ucts that a re ab rasive.
Switching on/off
Applies to vehicles: with parking system (rear, with rear
view camera)
The rear view camera switches on automati­
cally together with the acoustic park assist
when you put the vehicle in reverse.
Switching on
"' Put the veh icle in reverse gear, the acoust ic
parking system with rear view camera is ac ­
tivated automat ica lly. Act ivat ion of the
acoust ic par king system is confirmed by a
brief ac knowledgement sou nd.
Switching off
"' Drive faster than 9 mph (15 km/h) , or
"' take the vehicle out of reverse gear . The
acoust ic park ing system is immediate ly de­
activated, and the rea r view came ra p icture
is deact ivated a utomat ically afte r a pe riod
o f abo ut 1 5 seconds , or
"' switch off the ignition.
T he de lay in deact ivat ing the came ra prov ides
an unin terrup ted view beh ind the ve hicle es­
pe cially when mane uver ing in tig ht park ing
spaces and prevents the picture from t urning
off the every time you shift out of reverse .
If the wa rning mess age ap pears in the dis play
but not the rea r view came ra p icture, read and
confirm the warni ng message. The acoustic
distance signal is always active .
If you press a fu nction button on the M MI
control console, the rea r view came ra p icture
disappears . The rear view camera picture reap­
pears the next time yo u pa rk.
Fur the r in forma tion on the warning mess age
and the MMI con tro l conso le can be found in
the MMI instruction book let.
Ill-

116 Park ass is t
@ Tips
- The rear view camera picture is avai lable
as soon as the MMI D isplay or the MMI is
switched on, or the start-up phase is
completed.
- Keep the sensors in the rear bumper and the rear view camera lens clean and free
of snow and ice, so that the parking sys­
tem can work properly . Please follow the
additional notes on~
pag e 118.
Reverse Park ing
App lies to vehicles: with parking system (rear, wit h rear
view came ra)
Parking mod e 1 can be used when parking in
a garage or parking space.
F ig. 1 19 MMI Di splay : Aim ing at a p arkin g spot
Fig . 120 MMI Disp lay: Ali gning th e vehi cle
"' Switch the MMI on and se lect the reverse
gear.
"' Turn the steering wheel until the orange
orienta tion lines
(D appear in the parking
spot ¢
fig. 119 . Use the mark ings @to help
yo u estimate the distance from an obstacle .
Each marking corresponds to 3
ft (1 m) . T he
blue a rea represents an extension of the ve- hicle's outline by approximate
ly 16
ft (5 m)
to the rear .
"' Wh ile driving in reverse gear, adjust the
steering whee l angle to fit the parking space
w ith the aid of the orange or ientation lines
¢ 0 . @ marks the rear bumper . You should
stop d riving in reve rse as soon as and no lat­
er than when the red orientation line©
abuts a n obje ct ¢ _&. !
_& WARNING
- The rear view c amera does not show t he
e ntire area behind t he vehicle
¢
page 114, fig . 117. Watch out espe­
cially for small children and anima ls. The
rear view camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really a re (for example, the
bumper of a parked vehicle , a trailer
h itch, o r the rea r of a truck). In this case,
you shou ld not use the h elp lines to help
wit h pa rking, wh ich poses danger of a n
a ccident!
(D Note
- Low obstacles a lready s ignaled by a
wa rning can disappear from th e system's
detec tion range as they are approa ched
and w ill not con tinue to be signaled. Ob­
jec ts such as barr ier chains, tr ailer draw
bars, thin painted vertica l poles or fen ­
ces may not be detecte d by the system,
posing risk of damage.
- In the MMI display, t he direction of trav­
el of the vehicle rear is represented de ­
pending on the steering wheel angle.
The ve hicle fro nt swings out more tha n
the vehicle rear . Maintain plenty of d is­
tance from an obstacle so that your out­ side mirror o r a corner of you r vehicle
d oes not co llide w it h any obs ta cl es -d an­
ger of accident!
