2013 Alfa Romeo MiTo technical specifications

Dear Customer,
we would like to congratulate and thank you for choosing Alfa Romeo.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way. Please read it all the way
through before taking your car on the road for the first time.
Here you will find information, tips and important warnings regarding use of your car and how to achieve the best performance from the technological
features of your Alfa Romeo. The handbook also provides a description of special features and tips as well as essential information for correct care,
maintenance, safety of car driving and use and preservation of your Alfa Romeo over time.
Carefully read the warnings and indications marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Alfa Romeo offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity;
❒the range of additional services available to Alfa Romeo Customers.
We are confident that these instructions will help you become familiar with your new car and the Alfa Romeo after-sales staff who will be at your
service.
Enjoy reading. Happy motoring!
This Owner Handbook describes all versions of the Alfa MiTo; please consider only the information
relevant to your version, engine and configuration. All data contained in this publication are purely
indicative. Fiat Group Automobiles can modify the specifications of the vehicle model described in this
publication at any time, for technical or marketing purposes. For further information, contact an Alfa
Romeo Dealership.

GETTING TO KNOW YOUR CAR
DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.1. Diffuser for directing air to the side windows 2. Adjustable air vent 3. Exterior light control lever 4. Instrument panel 5. Windscreen wiper/rear
window wiper/trip computer control lever 6. Car radio (for versions/markets, where provided) 7. Adjustable air diffusers 8. Hazard warning lights,
door locking/unlocking button 9. Passenger front airbag 10. Glove compartment 11. Heating/ventilation/climate control system controls 12. Gear
lever 13. "Alfa DNA" system 14. Ignition device 15. Driver side front knee bag (for versions/markets, where provided) 16. Driver front airbag
17. Cruise Control lever (for versions/markets, where provided) 18. Fuse box access flap 19. Panel with various controls.
fig. 1
A0J0330
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CONTROL PANEL ANDINSTRUMENTSVERSIONS WITH MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) B. Multifunction display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine coolant
temperature gauge with overheating warning light
Warning lights supplied on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
fig. 2
A0J0349
4
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAYA. Speedometer (speed indicator) B. Reconfigurable multifunction display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine
coolant temperature gauge with overheating warning light
Warning lights supplied on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
fig. 3
A0J0263
5GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SPEEDOMETER (SPEED INDICATOR)This shows the speed of the car.REV COUNTERThis indicates the engine rpm.FUEL LEVEL GAUGEThis shows the amount of fuel left in the tank.
0 - tank empty.
1 - tank full
The warning light in the gauge switches on when there are 5 to 7 litres
of fuel remaining in the tank; if this happens, refuel at the earliest
opportunity.
ENGINE COOLANT TEMPERATURE
GAUGEThis gauge indicates the temperature of the engine coolant. The
warning light in the gauge lights up to indicate an increase in coolant
temperature; in the event of this happening, switch off the engine
and contact Alfa Romeo Authorized Services.
6
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

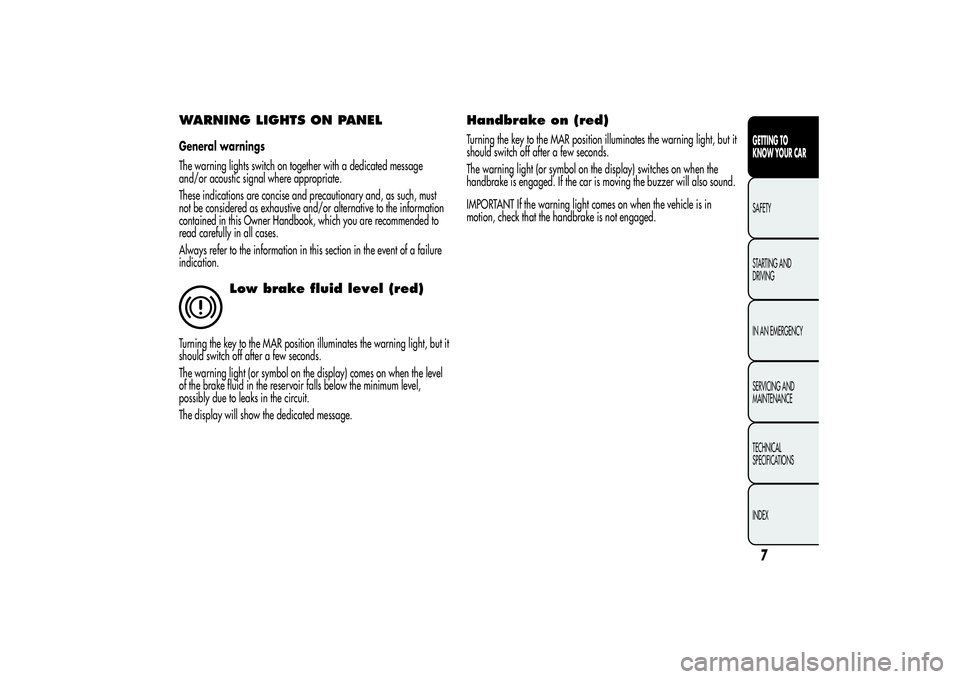

WARNING LIGHTS ON PANELGeneral warnings
The warning lights switch on together with a dedicated message
and/or acoustic signal where appropriate.
These indications are concise and precautionary and, as such, must
not be considered as exhaustive and/or alternative to the information
contained in this Owner Handbook, which you are recommended to
read carefully in all cases.
Always refer to the information in this section in the event of a failure
indication.
Low brake fluid level (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) comes on when the level
of the brake fluid in the reservoir falls below the minimum level,
possibly due to leaks in the circuit.
The display will show the dedicated message.
Handbrake on (red)Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) switches on when the
handbrake is engaged. If the car is moving the buzzer will also sound.
IMPORTANT If the warning light comes on when the vehicle is in
motion, check that the handbrake is not engaged.
7GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

EBD failure
The simultaneous switching on of the
(red) and
(amber)
warning lights with the engine on, indicates either a failure of the EBD
system or that the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when braking sharply.
Drive with extreme caution straight to the nearest Alfa Romeo
Authorized Services to have the system checked.
The display will show the dedicated message.
ABS FAILURE (amber)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) lights up when the system
is inefficient. Under these circumstances the braking system will work
as normal without the extra performance offered by the ABS system.
Drive with caution and contact Alfa Romeo Authorized Services as
soon as possible.
The display will show the dedicated message.
Brake pad wear (amber)
(for versions/markets, where provided)
The warning light (or symbol on the display) switches on when the
front and rear brake pads are worn. In this situation, replace as soon
as possible.
The display will show the dedicated message.
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Airbag failure (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light stays on constantly if there is a failure in the airbag
system.
The display will show the dedicated message.
If, when the key is turned to MAR, the
warning
light does not come on or if it stays on with the vehicle
in motion (together with the message on the display)
there could be a failure in the restraint systems; under these
circumstances the airbags or pretensioners may not be triggered
in the event of an accident or, more rarely, they could be
triggered accidentally. Before proceeding, contact Alfa Romeo
Authorized Services to have the system checked immediately.
The failure of the
warning light is indicated by the
flashing, for more than the normal 4 seconds, of the
front passenger airbag deactivated warning light
.
In addition, the airbag system automatically disables the airbags
on the passenger’s side (front airbag and side bags for
versions/markets, where provided). In this case, the
warning
light may not indicate a fault in the restraint systems. Before
proceeding, contact Alfa Romeo Authorized Services to have the
system checked immediately.
Passenger side airbag/side
bags deactivated (amber)
The
warning light switches on when the front passenger side airbag
and side bag are disabled.
With front passenger airbag on, when the ignition key is turned to
MAR, the
warning light switches on constantly for several seconds,
flashes for another few seconds and then should switch off.A failure of the
warning light is indicated by the
warning light switching on. In addition, the airbag
system automatically disables the airbags on the
passenger's side (front and side bags where provided). Before
proceeding, contact Alfa Romeo Authorized Services to have the
system checked immediately.
