CARRYING CHILDREN SAFELYFor optimal protection in the event of a collision, all passengers must
be seated and wearing adequate restraint systems. This is even more
important for children.
This prescription is compulsory in all EC countries according to EC
Directive 2003/20/EC. Compared with adults, a child's head is
proportionally larger and heavier than the rest of the body, while
muscles and bone structure are not fully developed. Therefore, correct
restraint systems are necessary which are different from adult seat
belts.
Over 1.50 m in height, from the point of view of restraint systems,
children are considered as adults and wear the seat belts normally.
The results of research in relation to the best protection for children is
summarised in European Regulation EEC-R44, which divides the
restraint systems into five groups in addition to making their use
compulsory:Group Weight groups
Group0 upto10kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kgAll restraint devices must bear the type-approval data along with the
control mark on a label firmly secured to the child seat which must
never be removed.Lineaccessori Alfa Romeo includes child seats for each weight group.
These devices are recommended having been specifically tested for
Alfa Romeo cars.
Do not arrange cradle child seats facing backwards if
the front passenger side airbag is enabled.
Deployment of the airbag in an accident could cause
fatal injuries to the baby regardless of the severity of the
collision. It is advisable to always carry children in a child seat on
the rear seat, which is the most protected position in the event
of a collision.Should it be absolutely necessary to carry a child on the
front seat in a backwards-facing cradle seat, the
passenger's front and side air bags must be deactivated
through the Setup menu. Deactivation should be verified by
checking the
warning light on the instrument panel.
The passenger seat must also be slid back as far as possible in order
to avoid the child seat from coming into contact with the dashboard.
130GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FITTING “UNIVERSAL” CHILD
SEAT (with seat belts)GROUP 0 and 0+Babies up to 13 kg must be carried facing backwards on a cradle seat,
which, supporting the head, does not induce stress on the neck in the
event of sharp deceleration.
The cradle is restrained by the car seat belts, as shown in fig. 96 and it
must restrain the child in turn with its own belts.
GROUP 1From 9 kg to 18 kg in weight, children may be carried facing forwards
fig. 97.
The figures are only examples for fitting purposes. Fit
the child seat according to the instructions, which must
be included with the seat itself.Child seats with Isofix attachments are available,
which allow them to be secured to the seat safely
without using the car seat belts.
fig. 96
A0J0097
fig. 97
A0J0371
131GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GROUP 2Children from 15 to 25 kg may use the car seat belts directly fig. 98.
The child seat is needed only to position the child correctly with respect
to the belts, so that the diagonal section crosses the child’s chest and
never the neck, and the horizontal section is snug on the pelvis, not the
abdomen.
GROUP 3For children from 22 kg up to 36 kg suitable risers are available to
position the seat belt correctly.
fig. 99 shows an example of correct child seat positioning on the rear
seat.
The figures are only examples for fitting purposes. Fit
the child seat according to the instructions, which must
be included with the seat itself.
fig. 98
A0J0099
fig. 99
A0J0100
132GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUITABILITY OF PASSENGER SEATS FOR UNIVERSAL CHILD SEAT USEThe car complies with the new European Directive 2000/3/EC which governs the arrangement possibilities for child restraints on the various seats
of the car as shown in the following table:Group Weight groups Front passengerRear side and central
passenger
Group 0, 0+ up to 13 kg
UU
Group 1 9-18 kg
UU
Group 2 15-25 kg
UU
Group 3 22-36 kg
UU
U= Suitable for child restraint systems in the "Universal" category, according to European Standard EEC-R44 for the specified "Groups".
133GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Main safety rules to be followed
when carrying children❒Install the child seats on the rear seat, which is the most protected
position in the event of an accident;
❒if the front passenger airbag is deactivated always check the
warning light on the instrument panel to make sure that it has
actually been deactivated.
❒Follow the instructions supplied with the child seat itself, which the
manufacturer must provide. Keep the instructions in the car along
with the other documents and this handbook. Do not use child seats
without instructions;
❒always check that the seat belt is well fastened by pulling on it;
❒only one child is to be strapped into each retaining system; never
carry two children using one child seat;
❒always check that the belts do not rest on the child’s neck;
❒while travelling, do not let the child sit incorrectly or release the
belts;
❒never carry children on your lap, even newborns. No-one could
restrain them in the event of an accident;
❒in the event of an accident, replace the child seat with a new one.
PREPARATION FOR “ISOFIX”
CHILD SEATThe car can be fitted with a Universal Isofix child seat, a new European
standardised system for carrying children safely.
Isofix systems can be fitted alongside traditional child seats.
fig. 100
A0J0093
134GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

An example of a Universal Isofix child seat for weight group 1 is
shown in fig. 100.
The other weight groups are covered by the specific Isofix child seat,
which can be used only if specifically designed, tested and approved
for this car (see car list provided with the child seat).
IMPORTANT The central rear seat is not approved for any type of Isofix
child seatsINSTALLING A UNIVERSAL ISOFIX
CHILD SEATProceed as follows:
❒secure the child seat to the dedicated lower metal rings A fig. 101,
positioned between the backrest and the cushion of the rear seat;
❒fix the upper belt (available together with the seat) to the special
attachments B fig. 102 located in the rear part of the backrest.Traditional systems can be fitted alongside “Universal Isofix” child
seats. Remember that, when using a "Universal Isofix" child seat, you
can only use type-approved seats with the marking ECE R44/03
“Universal Isofix”.
The Universal Isofix “Duo Plus” child seat and the specific “G 0/1” seat
are available from Lineaccessori Alfa Romeo.
For further details on child seat installation and/or use, refer to the
instruction manual provided with the child seat.
Fit the child seat only when the car is stationary. The
child seat is correctly secured to the brackets when you
hear the click. Follow the instructions for fitting,
removing and positioning that the manufacturer must supply
with the child seat.
fig. 101
A0J0092
fig. 102
A0J0335
135GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD SEAT USEThe table below shows the various installation possibilities for Isofix child seats on seats fitted with Isofix attachments in accordance with European
standard ECE 16.Weight group Child seat position Isofix size classRear passenger
left side right side
Portable cradleFacing backwards F
XX
Facing backwards G
XX
Group 0 up to 10 kg Facing backwards E
XX
Group 0+ up to 13 kgFacing backwards E
XX
Facing backwards D
XX
Facing backwards C
XX
Group 1 from 9 up toFacing backwards D
XX
Facing backwards C
XX
Facing forwards B
IUF IUF
Facing forwards BI
IUF IUF
Facing forwards A
XX
X: Isofix position not suitable for child seats in this weight group and/or size class.
IUF: Suitable for Isofix restraint systems to be positioned facing forwards, universal class (fitted with third upper mounting), type-approved forthe relevant weight
group.
136GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
18 kg

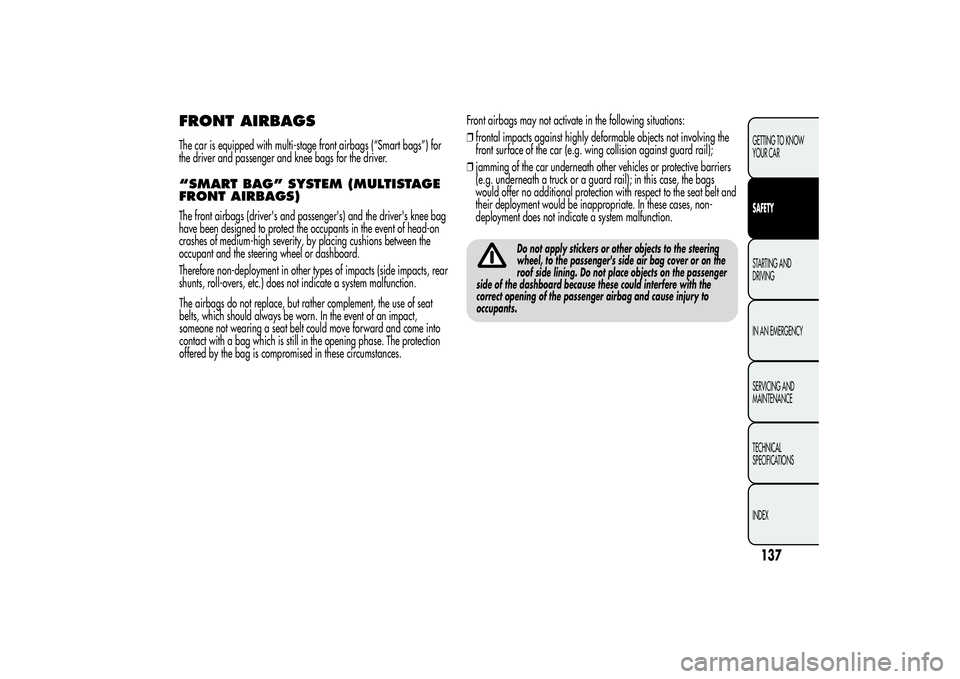

FRONT AIRBAGSThe car is equipped with multi-stage front airbags (“Smart bags”) for
the driver and passenger and knee bags for the driver.“SMART BAG” SYSTEM (MULTISTAGE
FRONT AIRBAGS)The front airbags (driver's and passenger's) and the driver's knee bag
have been designed to protect the occupants in the event of head-on
crashes of medium-high severity, by placing cushions between the
occupant and the steering wheel or dashboard.
Therefore non-deployment in other types of impacts (side impacts, rear
shunts, roll-overs, etc.) does not indicate a system malfunction.Front airbags may not activate in the following situations:
❒frontal impacts against highly deformable objects not involving the
front surface of the car (e.g. wing collision against guard rail);
❒jamming of the car underneath other vehicles or protective barriers
(e.g. underneath a truck or a guard rail); in this case, the bags
would offer no additional protection with respect to the seat belt and
their deployment would be inappropriate. In these cases, non-
deployment does not indicate a system malfunction.
Do not apply stickers or other objects to the steering
wheel, to the passenger's side air bag cover or on the
roof side lining. Do not place objects on the passenger
side of the dashboard because these could interfere with the
correct opening of the passenger airbag and cause injury to
occupants.
137GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The airbags do not replace, but rather complement, the use of seat
belts, which should always be worn. In the event of an impact,
someone not wearing a seat belt could move forward and come into
contact with a bag which is still in the opening phase. The protection
offered by the bag is compromised in these circumstances.
