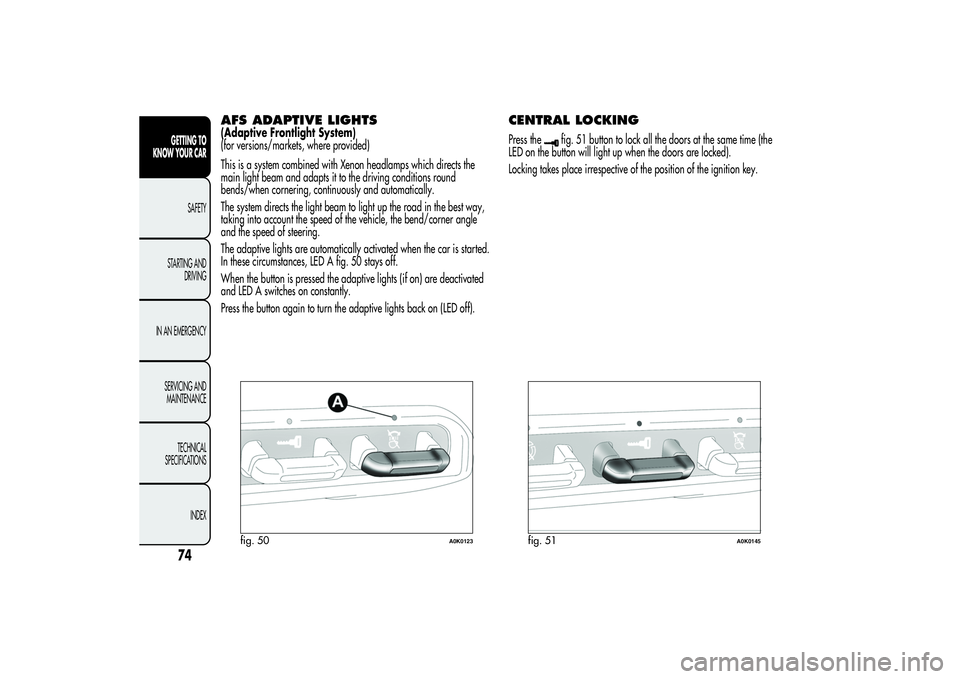

AFS ADAPTIVE LIGHTS(Adaptive Frontlight System)
(for versions/markets, where provided)
This is a system combined with Xenon headlamps which directs the
main light beam and adapts it to the driving conditions round
bends/when cornering, continuously and automatically.
The system directs the light beam to light up the road in the best way,
taking into account the speed of the vehicle, the bend/corner angle
and the speed of steering.
The adaptive lights are automatically activated when the car is started.
In these circumstances, LED A fig. 50 stays off.
When the button is pressed the adaptive lights (if on) are deactivated
and LED A switches on constantly.
Press the button again to turn the adaptive lights back on (LED off).
CENTRAL LOCKINGPress the
fig. 51 button to lock all the doors at the same time (the
LED on the button will light up when the doors are locked).
Locking takes place irrespective of the position of the ignition key.
fig. 50
A0K0123
fig. 51
A0K0145
74GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL CUT-OFF SYSTEMThis intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the engine consequently
cutting out;
❒the automatic unlocking of the doors;
❒the interior lights being switched on.
The intervention of the system is indicated by a message shown on the
display.
Carefully check the car for fuel leaks, for instance in the engine
compartment, under the car or near the tank area.
After a collision, turn the ignition key to STOP to prevent the battery
from running down.To restore the correct operation of the car, proceed as follows:
❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.
If, after a collision, you smell fuel or notice leaks from
the fuel system, do not reactivate the system to avoid
fire risk.
75GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INTERIOR FITTINGSSTORAGE COMPARTMENTSUpper compartment
Operate in the point shown by the arrow to open the compartment A
fig. 52.
Passenger side compartment
Operate handle A fig. 53 to open the compartment.
When the compartment is opened a courtesy light switches on.
There is a document holder inside the compartment and an eyewear
holder on the rear of the flap.
On some versions the compartments may be heated/cooled by an air
vent connected to the climate control system (operate wheel A fig.
54 to adjust the air flow rate in the lower compartment).In versions with dual zone automatic climate control system, the glove
compartment is set to the same temperature as the passenger side.
In some versions inside the glove compartment, on the passenger side,
a bottle/can holder is also present (fig. 54).
fig. 52
A0K0142
fig. 53
A0K0100
fig. 54
A0K0185
76GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

There is space to hold1×50clbottleand2×slimcans
simultaneously. The handbook can be inserted under the bottle holder
with the longest side facing the front of the car.
Do not travel with the glove compartments open: they
may injure the front seat occupants in the event of
an accident.
FRONT ARMREST(for versions/markets, where provided)
This is located between the front seats. To bring it to its standard use
position, push it downwards.
The front armrest is equipped with an inner storage compartment.
To access the compartment, position the armrest in the standard use
configuration (fully down) and then lift the cover with lining A fig. 55For correct use of the armrest specific measures must be followed for
the opening of the cover:
❒it must be opened only with armrest completely lowered;
❒to prevent content of the armrest from falling, the opening of the
cover is inhibited in positions other than "completely lowered".
NOTE During the armrest tilting stage (complete tilting upwards or
downwards), make sure the cover with lining is always closed
correctly.
fig. 55
A0K0166
77GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR ARMREST(for versions/markets, where provided)
To use armrest A fig. 56, lower it as shown in the figure.
There are two cup and/or can holders B in the armrest. To use these,
pull tab C in the direction shown by the arrow.A storage compartment is available inside the armrest; this can be
accessed by raising the flap.
SKI COMPARTMENT(for versions/markets, where provided)
The compartment may be used for carrying long loads.
To access the compartment, lower the rear armrest and then press
device A fig. 57 to lower flap B.
fig. 56
A0K0211
fig. 57
A0K0217
78GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

POWER SOCKETThis is located on the left side of the luggage compartment fig. 58. It
only operates with the ignition key at MAR.
IMPORTANT Do not connect devices with power higher than 180 W to
the socket. Do not damage the socket by using unsuitable adaptors.CIGAR LIGHTERThis is located on the central tunnel. Press button A fig. 59 to activate
the cigar lighter.
After a few seconds the button automatically returns to its initial
position, and the cigarette lighter is ready for use.IMPORTANT Always check that the cigar lighter is switched off.
IMPORTANT Do not connect devices with power higher than 180 W to
the socket. Do not damage the socket by using unsuitable adaptors.
The cigar lighter gets very hot. Handle it carefully and
make sure that children don’t use it: risk of fire
and/or burns.
fig. 58
A0K0140
fig. 59
A0K0087
79GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ASHTRAYThe ashtray is a removable spring-loaded plastic box that can be fitted
into the cup/can holders on the central tunnel fig. 60
Do not use the ashtray as a waste paper basket: it
may catch fire in contact with cigarette stubs.
SUN VISORSThese are located at the sides of the interior rear view mirror. They can
be adjusted forwards and sideways.
A courtesy mirror with roof light is fitted on the back of the visors. The
light allows the mirror to be used even in poor visibility conditions.
Lift cover A fig. 61 to access the mirror.
EXTINGUISHER(for versions/markets, where provided)
This is located under the front passenger seat fig. 62.
NoteOn some versions, the extinguisher is located on the right side
of the luggage compartment inside a suitable container.
fig. 60
A0K0112
fig. 61
A0K0113
fig. 62
A0K0212
80GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ELECTRIC SUN ROOF(for versions/markets, where provided)
The sun roof comprises two glass panels; the front one is mobile and
the rear one fixed. These feature two sun blinds (front and rear) that
can be moved manually.
With the roof closed, the blinds can be placed in any position.OPERATIONThe sun roof can be operated only with the ignition key turned to MAR.
The controls A and B fig. 63 on the trim next to the front courtesy light
operate the sun roof opening/closing functions.
Roof opening
Press and hold down button A fig. 63. The front glass panel will move
into the spoiler position. Press button A again and keep it pressed
for more than half a second to automatically move the sun roof to an
intermediate position (“Comfort” position).If button A is pressed again for more than half a second, the roof will
automatically continue until it reaches end of travel position. The front
glass panel can be stopped in an intermediate position by pressing
button A again.
Do not open the sunroof if there is snow or ice on it: you
may damage it.When leaving the vehicle, always remove the key from
the ignition to avoid the risk of injury to those still
inside the car due to accidental operation of the
sunroof. Improper use of the roof can be dangerous. Before
operation, always check that no-one is at risk of being injured by
the moving sun roof or by objects getting caught and dragged
by it.
Closing the sun roof
With the roof in the fully open position, press button B fig. 63 and, if
the button is operated for more than half a second, the front roof glass
will automatically assume the intermediate position (comfort position).
If the button is operated again for about half a second the roof will
assume the spoiler position. Lastly, if closing button B is pressed again,
the roof will move to completely closed position.
fig. 63
A0K0131
