2013.5 PEUGEOT 5008 height adjustment

.
66
67
Familiarisation11
Sitting comfortably
Driver's seat
Forwards-backwards Height
Manual adjustment
Electric adjustment
Seat back angle

68, 69
80
119, 122
Familiarisation
12
Sitting comfortably
Front seats
Head restraint height and angle
Lumbar
Steering wheel adjustment
1. Releasing the adjustment mechanism. 2. Adjustment of height and reach. 3. Locking the adjustment mechanism.
As a safety precaution, these operations must only be carried out when stationary.
Centre console
This has a large storage area (with recesses for 2 bottles, ...) for the front passengers and, according to version, a multimedia system for the rear passengers.

.
78
79
79158
Familiarisation13
Sitting comfortably
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted. B. Adjustment of the position of the mirror in the four directions.
Rear view mirror
Manual model
1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror.
Automatic day/night model
1. Adjustment of the mirror.
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
Also...C. Folding / Unfolding.

170
173175
Familiarisation
22
Your vehicle is equipped with a system which keeps it immobile for a short time (approximately 2 seconds) to assist you when starting on a hill, the time required for you to move your foot from the brake pedal to the accelerator pedal. This system only operates: - when the vehicle has been completely stopped with your foot on the brake pedal, - on certain gradients, - when the driver's door is closed.
Driving safely
Head-up display
1. Head-up display on / off. 2. Brightness adjustment. 3. Display height adjustment.
Distance alert
1. Distance alert on /off. 2. Alert value increase / decrease.
Hill start assist
The adjustments must be made with the engine running and the vehicle stationary.
Do not get out of the vehicle during the hill start assist temporary holding phase.

Comfort
66

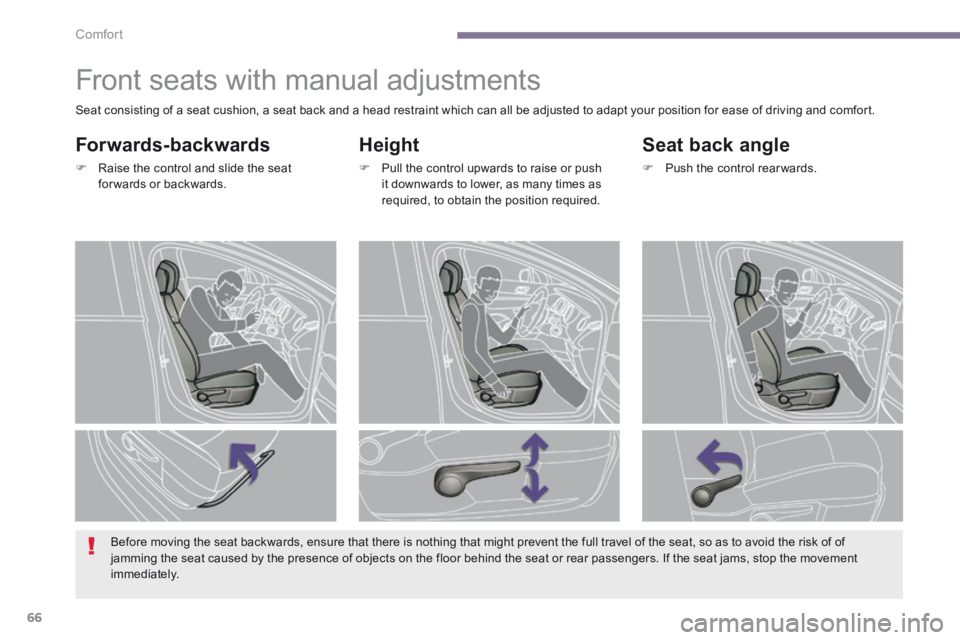

Front seats with manual adjustments
Height
 Pull the control upwards to raise or push it downwards to lower, as many times as required, to obtain the position required.
Seat back angle
 Push the control rear wards.
Forwards-backwards
 Raise the control and slide the seat for wards or backwards.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

Comfort
68
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so
as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
The electrical functions of the driver's seat are active approximately one minute after opening the front door. They are deactivated approximately one minute after the ignition is switched off and in economy mode. To reactivate them, switch on the ignition.
 To raise the head restraint, pull it for wards and upwards at the same time.  To remove the head restraint, press thelug A and pull the head restraint upwards.  To put the head restraint back in place,
engage the head restraint stems in the openings keeping them in line with the seat back.  To lower the head restraint, press the lug Aand the head restraint at the same time.  To adjust the angle of the head restraint, tilt its lower part forwards or rearwards.
Head restraint height and
angle adjustment
The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the upper edge of the head restraint is level with the top of the head. Before moving off, check the adjustment of the head restraint; adjust it if the seat has been occupied by someone of different size. Never drive with the head restraints removed; they must be in place and adjusted correctly.

Comfort
80
Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.

5
Visibility107

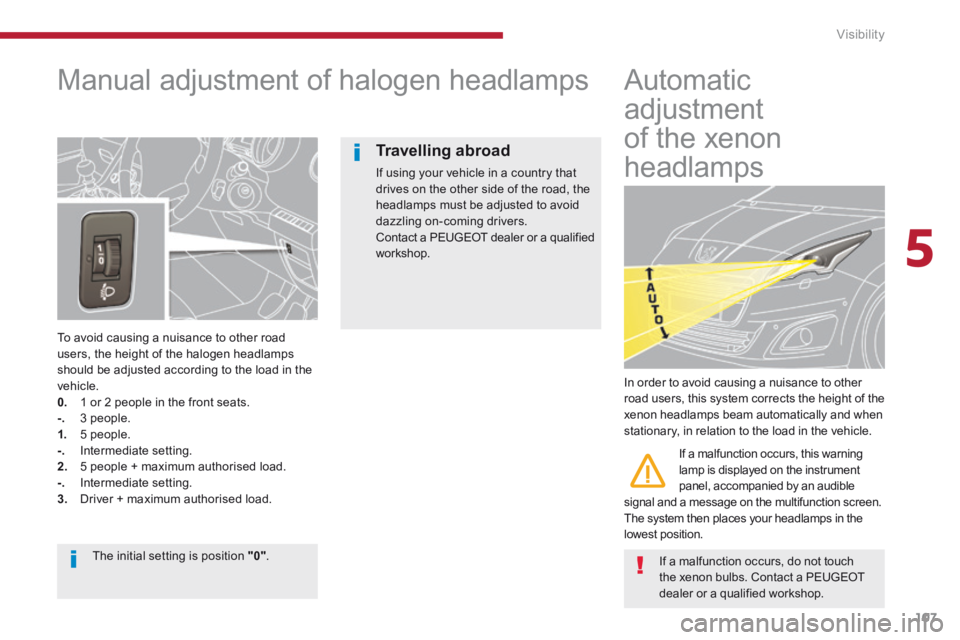

Manual adjustment of halogen headlamps
To avoid causing a nuisance to other road users, the height of the halogen headlamps should be adjusted according to the load in the vehicle. 0. 1 or 2 people in the front seats. -. 3 people. 1. 5 people. -. Intermediate setting. 2. 5 people + maximum authorised load. -. Intermediate setting. 3. Driver + maximum authorised load.
Automatic
adjustment
of the xenon
headlamps
In order to avoid causing a nuisance to other road users, this system corrects the height of the xenon headlamps beam automatically and when stationary, in relation to the load in the vehicle.
If a malfunction occurs, this warning lamp is displayed on the instrument panel, accompanied by an audible signal and a message on the multifunction screen. The system then places your headlamps in the
lowest position.
If a malfunction occurs, do not touch the xenon bulbs. Contact a PEUGEOT
dealer or a qualified workshop.
Travelling abroad
If using your vehicle in a country that drives on the other side of the road, the headlamps must be adjusted to avoid dazzling on-coming drivers. Contact a PEUGEOT dealer or a qualified workshop.
The initial setting is position "0" .
