2013.5 PEUGEOT 5008 height adjustment

Safety
158
Front seat belts not fastened /
unfastened warning lamp
Fastening
 Pull the strap, then insert the tongue in the buckle.  Check that the seat belt is fastened correctly by pulling the strap.
Height adjustment
 To adjust the anchorage point, squeeze the control A and slide it until you find a notch.
When the ignition is switched on, this warning lamp comes on on the seat belt and passenger's front airbag warning lamps display, if the driver and/or the front passenger has not fastened their seat belt. From approximately 12 mph (20 km/h) this warning
lamp flashes for two minutes accompanied by an audible signal. Once these two minutes have elapsed, this warning lamp remains on until the driver and/or the front passenger fastens their seat belt.
Unfastening
 Press the red button on the buckle.  Guide the seat belt as it reels in.

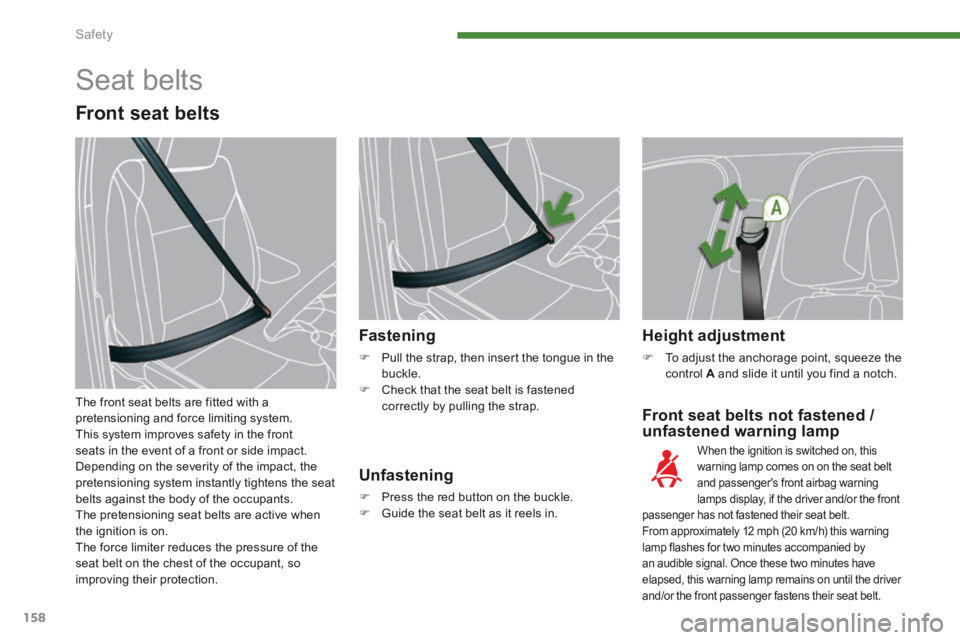

Seat belts
Front seat belts
The front seat belts are fitted with a pretensioning and force limiting system. This system improves safety in the front seats in the event of a front or side impact. Depending on the severity of the impact, the pretensioning system instantly tightens the seat belts against the body of the occupants. The pretensioning seat belts are active when the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so improving their protection.

9
Driving173
System which projects various information onto a transparent strip in the field of vision of the driver so that they do not have to take their eyes off the road. This system operates when the engine is running and the settings are stored when the ignition is switched off.

Head-up display
1. Head-up display on/off. 2. Brightness adjustment. 3. Display height adjustment. The strip is activated by pressing one of the buttons.
Once the system has been activated, the following information is grouped together in the head-up display: A. The speed of your vehicle. B. Cruise control/speed limiter information.
Buttons Displays during operation
C. "Distance alert" information (depending on ve r s i o n).

Driving
174

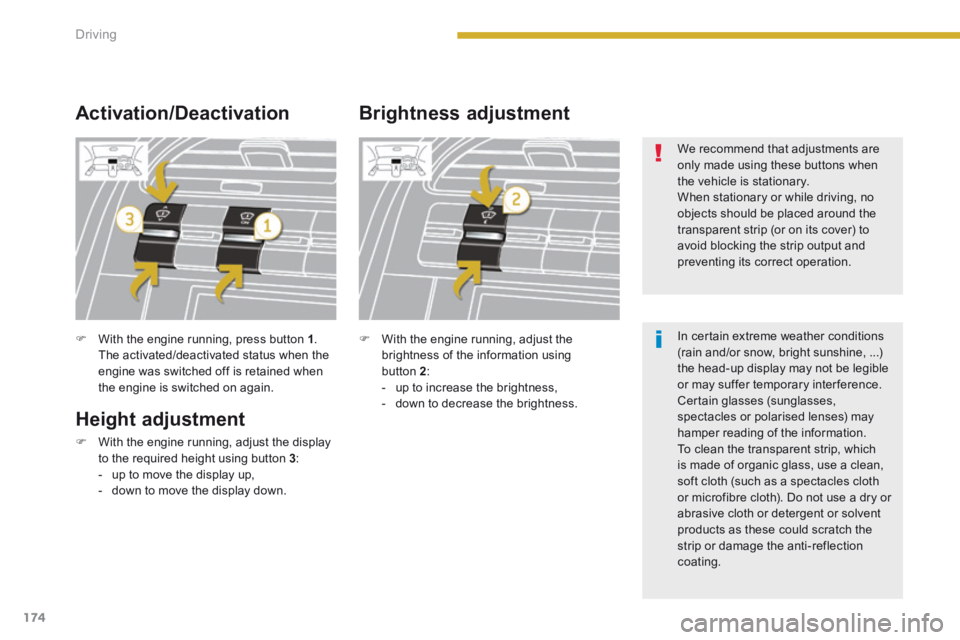

 With the engine running, press button 1 . The activated/deactivated status when the engine was switched off is retained when the engine is switched on again.
Height adjustment
 With the engine running, adjust the display to the required height using button 3 : - up to move the display up, - down to move the display down.
Activation/Deactivation Brightness adjustment
 With the engine running, adjust the brightness of the information using button 2 : - up to increase the brightness, - down to decrease the brightness.
We recommend that adjustments are only made using these buttons when the vehicle is stationary. When stationary or while driving, no objects should be placed around the
transparent strip (or on its cover) to avoid blocking the strip output and preventing its correct operation.
In certain extreme weather conditions (rain and/or snow, bright sunshine, ...) the head-up display may not be legible or may suffer temporary interference. Certain glasses (sunglasses, spectacles or polarised lenses) may
hamper reading of the information. To clean the transparent strip, which is made of organic glass, use a clean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not use a dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.

11
Practical information241
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery. Fuse N° Rating (A) Functions
F215 Horn.
F310 Front / rear wash-wipe.
F410 Daytime running lamps.
F515 Purge canister, turbine discharge and Turbo pressure regulation electrovalves (1.6 litre THP), oil vapour heater (1.6 litre THP), diesel heater (1.6 litre HDI).
F610 Diagnostic socket, directional headlamps, particle emission filter pump (Diesel), Distance alert, mirror adjustment control.
F710 Power steering control unit, automatic gearbox, directional headlamps height adjustment motor.
F820 Starter motor control.
F910 Clutch and brake pedal switches.
F1140 Air conditioning fan.
Access to the fuses
 Unclip the cover.  Change the fuse (see corresponding paragraph).  When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
Fuse table

.
Alphabetical index389
Eco-driving .....................................................25Eco-driving (advice) ........................................25Economical driving ........................................25Economy mode .............................................247Electric window controls .................................89Electronic engine immobiliser...................84, 86Electronic gearbox system ................25, 27, 32, 166, 169, 170, 186, 195, 212, 246Electronic stability control (ESC) ..........................................................155Emergency boot release .................................95Emergency call .....................................265 -267Emergency warning lamps ...........................152Energy economy mode .................................247Engine compartment ............................206, 207Engine compartment fusebox .......................................................237Engine, Diesel ........98, 205, 207, 258, 259, 262Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator42, 208Engine, petrol .........................98, 206, 256, 257Engines ................................................256, 258Environment ..............................................25, 86Equipment settings ................28, 44, 46, 48, 51ESC/ASR .......................................................155
Filling with fuel ...................................96, 98, 99Fitting a wheel ...............................................227Fitting roof bars .............................................252Fittings, boot .........................................125, 126Flashing indicators ........................................152Foglamps, rear ..............................................Foglamps, rear ..............................................Foglamps, rear102Folding the rear seats .........................72, 74, 75Folding/unfolding the door mirrors .................78Front foglamps ..............................102, 231, 233Front seats ..........................................66, 67, 70Fuel.....................................................25, 96, 98Fuel consumption ............................................25Fuel filler cap ...................................................96Fuel filler flap .............................................96, 99Fuel gauge ......................................................96Fuel tank....................................................96, 99Fusebox, dashboard .....................................237Fuses .............................................................237
Gearbox, automatic .........................27, 32, 166, 169, 170, 191, 212, 246Gearbox, manual .........................166, 169, 170, 184, 185, 195, 212Gear lever .......................................................Gear lever .......................................................Gear lever25Gear lever, automatic gearbox .....................191Gear lever, manual gearbox .........................18 4Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator185Glove box ...............................................117, 118G . P. S . ....................................................280, 322Grab handles ................................................117Guidance ......................................280, 320, 327Guide-me-home ............................................10 6
Identification plates .......................................264Indicator lamps, status ....................................31Indicators, direction ......................................152Inflating accessories (using the kit) ..............................................213Inflating tyres ..................................................25Inputs for audio system .................................296, 353, 374, 376Instrument panel lighting ................................43Instrument panels .....................................27, 28Instrument panel screen .........................27, 185Intelligent Traction Control ............................155Interior fittings ...............................................117
E
F
GI
Direction indicators ...............152, 231, 232, 234Distance alert ................................................175Doors ...............................................................91Doors emergency control ...............................93Door trays ......................................................117Dynamic emergency braking ........................169Dynamic stability control (DSC) ......36, 156, 169
H
Halogen headlamps ..............................231, 232Hands-free kit .......................................336, 377Hazard warning lamps ..................................152Headlamp adjustment ...................................107Headlamps, directional .........................108, 231Headlamp wash ............................................111Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir210Head restraints, front ......................................68Head restraints, rear .......................................Head restraints, rear .......................................Head restraints, rear71Head-up display ............................173, 178, 181Heated seats ...................................................69Heating ................................................25, 59, 60Height and reach adjustment, steering wheel ..............................................80High load retaining net ..................................128Hill start assist ...............................................170Hooks ....................................................126, 130Horn...............................................................152

.
Visual search393
Exterior
Remote control key 81- 86 - opening / closing - anti-theft protection - starting - battery
Fuel tank 96 -98 Misfuel prevention 99
W i p e r 1 0 9 - 1 1 3 Changing a wiper blade 113, 248 Demisting-defrosting the rear screen 62
B o o t 9 4 - 9 5 - opening / closing - emergency release Temporary puncture repair kit 213 -222 Changing a wheel 223 -229 - tools - removing
Parking sensors 198 -199 Reversing camera 200 Parking space sensors 201-202 Towing 248 -249 T o w b a r 2 5 0 - 2 5 1
Accessories 254-255 Roof bars, finishers 252 Panoramic sunroof 124
Door mirrors 78
Exterior welcome lighting 105 Door mirror spotlamps 115 Exterior lighting (automatic, directional) 106-108 Headlamp height adjustment 107 Changing bulbs 231-233 - front lamps - foglamps - direction indicator repeaters Very cold climate screen 253
D o o r s 9 1 - 9 3 - opening / closing - central locking - emergency control Alarm 87- 88 Electric windows 89 -90
ESC: ABS, EBFD, EBA, ASR, DSC 155 -157 CTI (traction on snow) 155 Tyre under-inflation detection 153 -154 Tyre pressures 153, 218, 264 Snow chains 230
Changing rear bulbs 234-236 - rear lamps - 3rd brake lamp - number plate lamps - foglamps

Visual search
396
Instruments and controls (continued)
Head-up display 173 -174 Distance alert 175 -177
Lighting controls 100 -106 Direction indicators 152
Speed limiter 178 -180 Cruise control 181-183
Headlamp height adjustment 107
Instrument panels, screens 27-29 Warning lamps 30 -38 Indicators 39 - 42 Gear shift indicator 185 Buttons 41, 43 - check / service indicator / trip distance recorder - lighting dimmer
Steering wheel adjustment 80 H o r n 1 5 2
Multifunction screens 44-52 - Screen A - Screen C - 16/9 colour screen Retractable screen 53 Screen A (setting the date/time) 44- 47
Hazard warning lamps 152 Head-up display 173 -174 Distance alert 175 -177
Wiper controls 109 -113 Trip computer 54-57
P a n o r a m i c s u n r o o f 1 2 4
Ignition switch 84
Switch panel 16 Stop & Start 195 -197
Door mirrors 78 Electric windows, deactivating 89 -90
