Practical information
220
 Switch on the compressor by tilting the switch A to position "1" until the tyre pressure reaches 2.0 bars.
 Remove the compressor and store the bottle in the plastic bag, supplied in the kit, to avoid staining your vehicle with traces of fluid.  Drive immediately for approximately two miles (three kilometres), at reduced speed (between 10 and 35 mph [20 and 60 km/h]), to plug the puncture.  Stop to check the repair and the pressure.
 Connect the compressor's electric plug to the vehicle's 12 V socket.  Start the vehicle and leave the engine running.

11
Practical information221
 Connect the compressor pipe directly to the valve of the repaired wheel.
If this pressure has not been reached after approximately five to ten minutes, the tyre cannot be repaired; contact a PEUGEOT or a qualified workshop to have your vehicle repaired.
 Connect the compressor's electric plug to the vehicle's 12 V socket again.  Start the vehicle again and leave the engine running.
 Adjust the pressure using the compressor (to inflate: switch A in position "1" ; to deflate: switch A in position "0" and press button B ), in accordance with the vehicle's tyre pressure label (located on the door aperture on the driver's side), then remember to check that the leak is plugged correctly (no further loss of pressure after several miles [kilometres]).
 Remove the compressor, then store the whole kit.  Drive at reduced speed (50 mph [80 km/h] max) for no more than approximately 125 miles (200 km).  Visit a PEUGEOT dealer or a qualified workshop as soon as possible to have the tyre repaired or replaced by a technician.

11
Practical information245
Starting using another
battery
When your vehicle's battery is discharged, the engine can be started using a slave battery (external or on another vehicle) and jump lead cables.
 Remove the plastic cover from the (+) terminal, if your vehicle has one.  Connect the red cable to the positive terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B .  Connect one end of the green or black cable to the negative terminal (-) of the slave battery B (or earth point on the other
vehicle).
 Connect the other end of the green or black Connect the other end of the green or black Connect the othercable to the earth point C on the broken down vehicle (or on the engine mounting).  Start the engine of the vehicle with the good battery and leave it running for a few minutes.  Operate the starter on the broken down vehicle and let the engine run If the engine does not start straight away, switch off the ignition and wait a few moments before trying again.  Wait until the engine returns to idle then disconnect the jump lead cables in the reverse order.  Refit the plastic cover to the (+) terminal, if your vehicle has one.
Do not try to start the engine by connecting a battery charger. Do not disconnect the (+) terminal when the engine is running.
First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery.

Practical information
246
Charging the battery using
a battery charger
 Disconnect the battery from the vehicle.  Follow the instructions for use provided by the manufacturer of the charger.  Connect the battery starting with the negative terminal (-).  Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove them and clean them.
The batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries and vehicle batteries to a special collection point.
It is advisable to disconnect the battery if the vehicle is to be left unused for
more than one month.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before starting to permit initialisation of the electronic systems. However, if problems remain following this operation, contact a PEUGEOT dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise (depending on version): - the remote control key, - the electric blind(s), - ...
Protect your eyes and face before handling the battery. All operations on the battery must be carried out in a well ventilated area and away from naked flames and sources of sparks, so as to avoid the risk of explosion or fire. Do not try to charge a frozen battery; the battery must first be thawed out to avoid the risk of explosion. If the battery has been frozen, before charging have it checked by a PEUGEOT dealer or a qualified workshop who will check that the internal components have not been damaged and the casing is not cracked, which could cause a leak of toxic and corrosive acid. Do not reverse the polarity and use only a 12 V charger. Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Wash your hands after wards.
Do not push the vehicle to start the engine if you have an electronic or automatic gearbox.
Some functions are not available if the battery is not sufficiently charged.

11
Practical information251
Braking
Towing a trailer increases the braking distance. To avoid overheating of the brakes on a long mountain type of descent, the use of engine braking is recommended.
Ty r e s
 Check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off the engine as soon as possible.
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.  To lower the engine speed, reduce your speed. The maximum towed load on a long incline depends on the gradient and the ambient temperature. In all cases, keep a check on the coolant temperature.
The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.

308

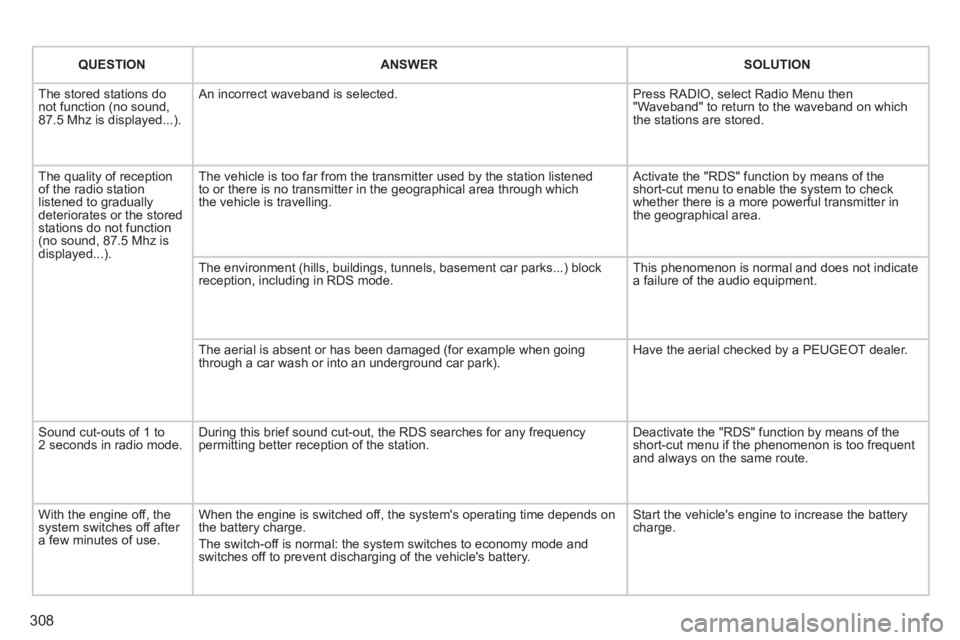

QUESTION ANSWER SOLUTION
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press RADIO, select Radio Menu then "Waveband" to return to the waveband on which the stations are stored.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.

Alphabetical index
388
Accessories ..................................................254Accessory socket, 12V ...............................117, 120, 125, 126, 130Access to the 3rd row .....................................74Adjusting headlamps ....................................107Adjusting head restraints ..........................68, 71Adjusting seat belt height .............................15 8Adjusting the steering wheel ..........................80Airbags ............................................................38Airbags, curtain .....................................16 4, 165Airbags, front.........................................162, 165Airbags, lateral ......................................16 4, 165Air conditioning ...............................................25Air conditioning, automatic .............................59Air conditioning, digital ...................................63Air conditioning, manual ...........................59, 60Air filter ..........................................................Air filter ..........................................................Air filter2 11Air flow ............................................................25Air vents ..........................................................58Alarm ...............................................................87Anti-pinch ................................................89, 124Anti-theft .........................................................84Armrest, rear .................................................Armrest, rear .................................................Armrest, rear126Assistance call .....................................265, 266Audible warning ............................................152Audio streaming (Bluetooth) .................352, 379Audio systems .................................................53Audio/video sockets ......................................296Automatic illumination of headlamps ......................................101, 10 6Automatic operation of hazard warning lamps ............................................152Automatic rain sensitive windscreen wipers ..............................109, 112Auxiliary socket .....................................353, 376Auxiliary sockets ...................................296, 374
A
D
Checks ..................................206, 207, 211, 212Child lock .......................................................151Children .........................................140, 145, 146Child seats ...........................132, 133, 137, 150Child seats, conventional ......................139, 140Closing the boot ........................................82, 94Closing the doors ......................................82, 91Cold climate screen ......................................253Colour screen, retractable ........................51, 53Concertina boards ..........................75, 125, 126Connectors, audio ..................118, 119, 374, 376Control for panoramic sunroof blind .............124Coolant level ...........................................39, 210Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator39Courtesy lamps .............................................114Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror118Cruise control ................................................181Cup holder ......................................Cup holder ......................................Cup holder117, 125, 126
Date (setting) ......................................44, 46, 48Deactivating ESP ..........................................157Deactivating the passenger airbag ...............162Deadlocking ....................................................82Defrosting ............................................60, 62, 78Demisting ........................................................60Dials and gauges ............................................27Diesel additive level ......................................210Dimensions ...................................................263Dipped beam .................................100, 231-233Dipstick ....................................................42, 208Directional lighting ........................................108
Backup starting .............................................245Battery ............................................211, 244-246Battery, charging ...........................................246Battery, remote control .............................85, 86Blind for panoramic sunroof ..........................Blind for panoramic sunroof ..........................Blind for panoramic sunroof124Blinds.............................................................131Bluetooth (hands-free) ..........297-299, 336, 377Bluetooth (telephone) ....................297-299, 336Bonnet ...........................................................204Bonnet stay ...................................................204Boot .................................................................94Boot lamp ..............................................116, 131Brake discs ....................................................212Brake lamps ..................................................234Brake pads ....................................................212Brakes ...........................................................212
Capacity, fuel tank ..........................................96CD MP3 .........................................................373Central locking ..........................................82, 92Centre console ..............................................11 9Changing a bulb ............................231, 234-236Changing a fuse ............................................237Changing a wheel ................................223, 225Changing a wiper blade ........................113, 248Changing the date ..............................44, 46, 48Changing the remote control battery ..............85Changing the time ..............................44, 46, 48Checking levels .....................................208 -210Checking the engine oil level ..........................42Checking tyre pressures (using the kit) ........213
B
C

.
Visual search397
Maintenance - Technical data
Checking components 211-212 - air filter - passenger compartment filter - oil filter - brake pads / discs
Running out of fuel, Diesel 205
Checking levels 208 -210 - oil - brake fluid - power steering fluid - coolant - screenwash/headlamp wash fluid
Changing bulbs 231-236 - front - rear
Petrol weights 257 Diesel weights 259 -261 Diesel weights - LCV 262
Opening the bonnet 204 Under the bonnet, petrol 206 Under the bonnet, Diesel 207 Petrol engines 256 Diesel engines 258
12 V battery 244-246 Load reduction, economy mode 247 Engine compartment fuses 237, 241-243
Identification markings 264
D i m e n s i o n s 2 6 3
