2013.5 PEUGEOT 5008 child lock

7
Child safety151

Manual child lock
 Turn the red control one eighth of a turn using the ignition key as shown in the label on the door. Check that the lock is on .

Electric child lock
 With the ignition on, press this button. The indicator lamp in the button comes on, accompanied by a message to confirm that the child lock is on. This indicator lamp remains on until the child lock is switched off. It is still possible to open the doors from the outside and operate the rear electric windows from the driver's control panel.
Locking
Unlocking
 Turn the red control one eighth of a turn using the ignition key.
Switching on
Switching off
 With the ignition on, press this button again. The indicator lamp in the button goes off, accompanied by a message to confirm that the child lock is off. This indicator lamp remains off while the child lock is switched off.
Any other status of the indicator lamp indicates a fault with the electric child lock. Have it checked by a PEUGEOT dealer or a qualified workshop.
This system is independent and in no circumstances does it take the place of the central locking control. Check the status of the child lock each time you switch on the ignition. Always remove the key from the ignition when leaving the vehicle, even for a short time. In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of the rear passengers.
Remote control system to prevent opening of the rear doors using their interior controls and use of the rear electric windows.
Mechanical system to prevent opening of the rear door using its interior control. The control is located on the edge of each rear d o o r.

8

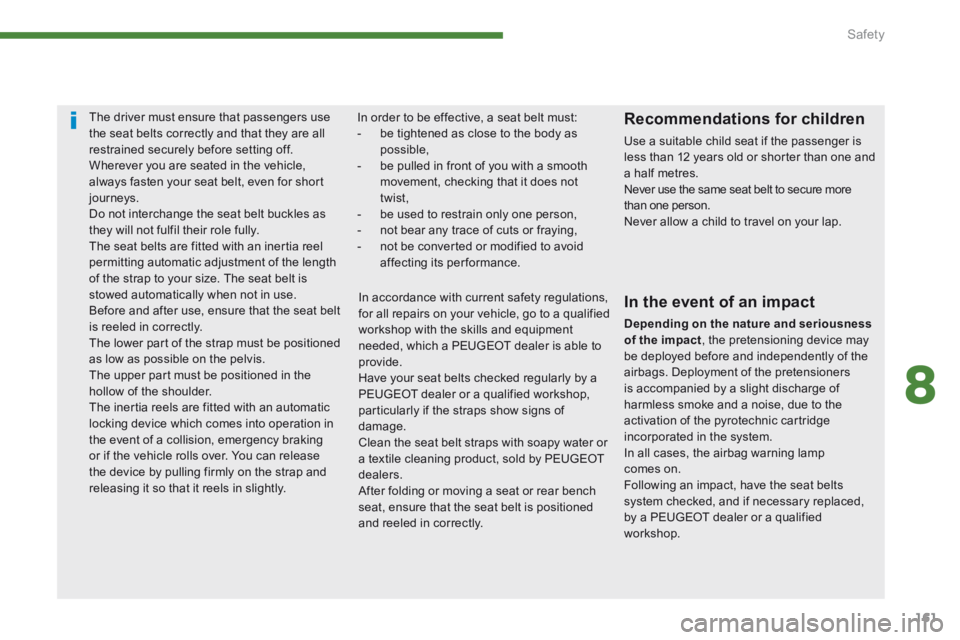

Safety161
The driver must ensure that passengers use the seat belts correctly and that they are all restrained securely before setting off. Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys. Do not interchange the seat belt buckles as they will not fulfil their role fully. The seat belts are fitted with an inertia reel permitting automatic adjustment of the length of the strap to your size. The seat belt is stowed automatically when not in use. Before and after use, ensure that the seat belt is reeled in correctly. The lower part of the strap must be positioned as low as possible on the pelvis. The upper part must be positioned in the hollow of the shoulder. The inertia reels are fitted with an automatic locking device which comes into operation in the event of a collision, emergency braking or if the vehicle rolls over. You can release the device by pulling firmly on the strap and releasing it so that it reels in slightly.
In order to be effective, a seat belt must: - be tightened as close to the body as possible, - be pulled in front of you with a smooth movement, checking that it does not twist, - be used to restrain only one person, - not bear any trace of cuts or fraying, - not be converted or modified to avoid affecting its performance.
In the event of an impact
Depending on the nature and seriousness of the impact , the pretensioning device may be deployed before and independently of the airbags. Deployment of the pretensioners is accompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system. In all cases, the airbag warning lamp comes on. Following an impact, have the seat belts system checked, and if necessary replaced, by a PEUGEOT dealer or a qualified workshop.
Recommendations for children
Use a suitable child seat if the passenger is less than 12 years old or shorter than one and a half metres. Never use the same seat belt to secure more than one person. Never allow a child to travel on your lap.
In accordance with current safety regulations, for all repairs on your vehicle, go to a qualified workshop with the skills and equipment needed, which a PEUGEOT dealer is able to provide. Have your seat belts checked regularly by a PEUGEOT dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapy water or a textile cleaning product, sold by PEUGEOT dealers. After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.

Alphabetical index
388
Accessories ..................................................254Accessory socket, 12V ...............................117, 120, 125, 126, 130Access to the 3rd row .....................................74Adjusting headlamps ....................................107Adjusting head restraints ..........................68, 71Adjusting seat belt height .............................15 8Adjusting the steering wheel ..........................80Airbags ............................................................38Airbags, curtain .....................................16 4, 165Airbags, front.........................................162, 165Airbags, lateral ......................................16 4, 165Air conditioning ...............................................25Air conditioning, automatic .............................59Air conditioning, digital ...................................63Air conditioning, manual ...........................59, 60Air filter ..........................................................Air filter ..........................................................Air filter2 11Air flow ............................................................25Air vents ..........................................................58Alarm ...............................................................87Anti-pinch ................................................89, 124Anti-theft .........................................................84Armrest, rear .................................................Armrest, rear .................................................Armrest, rear126Assistance call .....................................265, 266Audible warning ............................................152Audio streaming (Bluetooth) .................352, 379Audio systems .................................................53Audio/video sockets ......................................296Automatic illumination of headlamps ......................................101, 10 6Automatic operation of hazard warning lamps ............................................152Automatic rain sensitive windscreen wipers ..............................109, 112Auxiliary socket .....................................353, 376Auxiliary sockets ...................................296, 374
A
D
Checks ..................................206, 207, 211, 212Child lock .......................................................151Children .........................................140, 145, 146Child seats ...........................132, 133, 137, 150Child seats, conventional ......................139, 140Closing the boot ........................................82, 94Closing the doors ......................................82, 91Cold climate screen ......................................253Colour screen, retractable ........................51, 53Concertina boards ..........................75, 125, 126Connectors, audio ..................118, 119, 374, 376Control for panoramic sunroof blind .............124Coolant level ...........................................39, 210Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator39Courtesy lamps .............................................114Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror118Cruise control ................................................181Cup holder ......................................Cup holder ......................................Cup holder117, 125, 126
Date (setting) ......................................44, 46, 48Deactivating ESP ..........................................157Deactivating the passenger airbag ...............162Deadlocking ....................................................82Defrosting ............................................60, 62, 78Demisting ........................................................60Dials and gauges ............................................27Diesel additive level ......................................210Dimensions ...................................................263Dipped beam .................................100, 231-233Dipstick ....................................................42, 208Directional lighting ........................................108
Backup starting .............................................245Battery ............................................211, 244-246Battery, charging ...........................................246Battery, remote control .............................85, 86Blind for panoramic sunroof ..........................Blind for panoramic sunroof ..........................Blind for panoramic sunroof124Blinds.............................................................131Bluetooth (hands-free) ..........297-299, 336, 377Bluetooth (telephone) ....................297-299, 336Bonnet ...........................................................204Bonnet stay ...................................................204Boot .................................................................94Boot lamp ..............................................116, 131Brake discs ....................................................212Brake lamps ..................................................234Brake pads ....................................................212Brakes ...........................................................212
Capacity, fuel tank ..........................................96CD MP3 .........................................................373Central locking ..........................................82, 92Centre console ..............................................11 9Changing a bulb ............................231, 234-236Changing a fuse ............................................237Changing a wheel ................................223, 225Changing a wiper blade ........................113, 248Changing the date ..............................44, 46, 48Changing the remote control battery ..............85Changing the time ..............................44, 46, 48Checking levels .....................................208 -210Checking the engine oil level ..........................42Checking tyre pressures (using the kit) ........213
B
C

Alphabetical index
390
Jack ......................................................223, 225JACK socket ..........................119, 353, 374, 376Jukebox (c opy) ..............................................294Jukebox (playing) ..........................................295
Labels, identification .....................................264Lamps, warning and indicator ...........Lamps, warning and indicator ...........Lamps, warning and indicator30, 33, 34LED daytime running lamps .........104, 231, 232LEDs - light-emitting diodes .................231, 232Level, brake fluid ...........................................209Level, headlamp wash ...........................111, 2 1 0
Keeping children safe ...................132, 133, 137, 145, 146, 150, 162Key with remote control ................81, 82, 84, 86Main beam ....................................100, 231-233Maintenance ...................................................25Map reading lamps .......................................114Markings, identification .................................264Mat ................................................................120Menu, main ...................................................370Mini fuel level ..................................................96Mirror, rear view ..............................................79Mirrors, door....................................................78Misfuel prevention ...........................................99Modularity, seats .............................................77Motorway function (direction indicators) ......152Mountings for ISOFIX seats .........................14 4
K
J
L
M
MP3 CD .........................................................373Multimedia, rear ....................................Multimedia, rear ....................................Multimedia, rear119, 122Music media players ............................292, 348
Navigation .....................................280, 319, 320Net .................................................................127Number plate lamps .............................235, 236
N
Oil filter ..........................................................Oil filter ..........................................................Oil filter2 11Oil level....................................................42, 208Opening the bonnet ......................................204Opening the boot ......................................81, 94Opening the doors ....................................81, 91Opening the panoramic sunroof blind ..........124Opening the retractable screen ......................53Operation indicator lamps ........................30-33
Paint colour code ..........................................264Panoramic glass sunroof ..............................Panoramic glass sunroof ..............................Panoramic glass sunroof124Parking brake ................................................212Parking brake, electric ....................35, 166, 169
O
P
Interior mood lighting ....................................115ISOFIX ..........................................................145ISOFIX child seats .................................14 4 -146ISOFIX mountings.........................................14 4
Level, power steering fluid ............................209Levels and checks ................................20 6 -210Light-emitting diodes - LEDs ................231, 232Lighting ..........................................................11 6Lighting bulbs (replacement) ........231, 234-236Lighting control stalk .....................................10 0Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer43Lighting, guide-me home ......................104, 10 6Lighting, interior ....................................Lighting, interior ....................................Lighting, interior114 , 115Loading .............................................25, 77, 252Load reduction mode ....................................247Load space cover ...................................Load space cover ...................................Load space cover125 -127Locating your vehicle ......................................83Locking from the inside ...................................92Long objects, transporting ........................70, 77Luggage retaining net ...................................129

.
Alphabetical index391
Screen, monochrome ..................370, 380, 382Screen, monochrome C ..................................55Screen, multifunction (with audio equipment) ...............46, 48, 51, 53Screen, multifunction (without audio equipment) ............................44Screenwash fluid level ...........................111, 2 1 0Screenwash, front .........................................111Screen-wash reservoir .................................Screen-wash reservoir .................................Screen-wash reservoir210Seat adjustment ..................................66, 67, 72Seat belts ..............................126, 158, 160, 161Seat configurations .........................................77Seats, electric .................................................67Seats, rear ...........................................Seats, rear ...........................................Seats, rear72, 74, 75Serial number, vehicle ..................................264Service indicator .............................................Service indicator .............................................Service indicator40Service warning light ......................................34Servicing .........................................................25Setting the clock ................................44, 46, 48Short-cut menus ...................................276, 318Sidelamps .............................100, 231, 232, 234Side repeater ................................................Side repeater ................................................Side repeater233SIM card ................................................118, 300Snow chains ..................................................230Spare wheel .................................223, 225, 226Spectacles storage .......................................117Speed limiter .................................................Speed limiter .................................................Speed limiter178Speedometer ..................................................Speedometer ..................................................Speedometer27Spotlamps, side ............................................115Start ...............................................................245Starting the vehicle .........................84, 186, 191Steering mounted controls, audio ........274, 369Stopping the vehicle .......................84, 186, 191Stop & Start ...57, 61, 65, 97, 195, 204, 211, 244Storage ...........................117, 119, 121, 125, 126Storage box ...................................................118
Radio ....................................291, 345, 346, 371RCA sockets .................................................296Reading lamps, rear ......................................Reading lamps, rear ......................................Reading lamps, rear114Rear foglamp........................................234, 235Rear screen (demisting) ............................62, 78Recharging the battery .................................246
Safety for children ...........................89, 140, 151Screen, colour 16/9 ...............................275, 302Screen, colour and mapping.................317, 356Screen menu map ................302, 356, 380, 382
Reduction of electrical load ..........................247Regeneration of the particle emissions filter ...Regeneration of the particle emissions filter ...Regeneration of the particle emissions filter2 11Reinitialising the electric windows ..................89Reinitialising the remote control .....................85Remote control ....................................81, 82, 86Removable screen (snow shield)..................253Removing a wheel ........................................227Removing the mat .........................................120Repair kit, puncture ...............................213, 219Replacing bulbs ............................231, 234-236Replacing fuses ............................................237Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter2 11Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter2 11Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter2 11Replacing wiper blades.........................113, 248Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator41Resetting the trip recorder ..............................Resetting the trip recorder ..............................Resetting the trip recorder43Rev counter .....................................................Rev counter .....................................................Rev counter27Reversing camera .........................................200Reversing lamp .............................................234Rigid panel ......................................................74Risk areas (update) ...............................287, 324Roof bars .......................................................252Routine checks .....................................211, 212Running out of fuel (Diesel) ..........................205
R
S
Parking sensors, audible and visual .............198Parking sensors, front ...................................198Parking sensors, rear....................................198Parking space sensor ..................................201Particle emission filter ..................Particle emission filter ..................Particle emission filter204, 210, 211Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter2 11PEUGEOT call button ...................................267PEUGEOT Connect Assistance ..........266, 267PEUGEOT Connect Media Navigation (NG4 3D) ............................269, 272, 275, 302PEUGEOT Connect Navigation (RT6) ....51, 313PEUGEOT Connect SOS ....................266, 267PEUGEOT CONNECT SOS .........................267PEUGEOT Connect Sound (RD5) ...................................48, 367, 380, 382PEUGEOT services ......................................267PIN code .......................................................300Player, CD MP3 .............................................373POIs (updating) .............................................287Port, USB ..............................119, 353, 374, 376Priming the fuel system ................................205Protecting children ........................132, 133, 137, 140, 145, 146, 150, 162Puncture ................................................213, 219

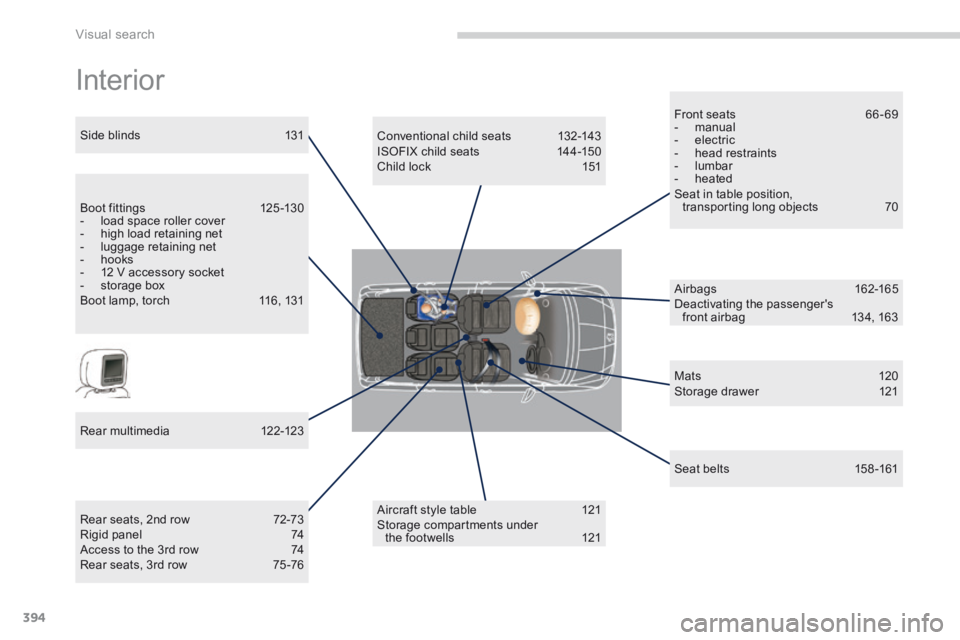

Visual search
394
Interior
Rear seats, 2nd row 72-73 Rigid panel 74 Access to the 3rd row 74 Rear seats, 3rd row 75 -76
Aircraft style table 121 Storage compartments under the footwells 121
Side blinds 131
Boot fittings 125 -130 - load space roller cover - high load retaining net - luggage retaining net - hooks - 12 V accessory socket - storage box Boot lamp, torch 116, 131
Rear multimedia 122-123
Conventional child seats 132-143 ISOFIX child seats 144-150 Child lock 151
Seat belts 158 -161
M a t s 1 2 0 Storage drawer 121
A i r b a g s 1 6 2 - 1 6 5 Deactivating the passenger's front airbag 134, 163
Front seats 66 - 69 - manual - electric - head restraints - lumbar - heated Seat in table position, transporting long objects 70
