2013.5 PEUGEOT 2008 child restraint

139
6
Safety
Deactivating the passenger's front airbag
Never install a rear ward facing child restraint system on a seat protected by an active front airbag. This could cause the death of the child or serious injury.
Passenger airbag OFF
The warning label present on both sides of the passenger's sun visor repeats this advice. In line with current legislation, the following tables contain this warning in all of the languages required.
For information on deactivating the passenger's front airbag, refer to the "Airbags" section.

140
AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦ А. Това можеда причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.
DABrug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DEVer wenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahr trichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE
VERLETZUNGEN können die Folge sein.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rear ward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ESNO INSTALAR NUNCA EL SISTEMA DE RETENCIÓN PAR A NIÑOS DE ESPALDAS AL SENTIDO DE LA CIRCULACIÓN SOBRE UN
ASIENTO PROTEGIDO CON UN COJÍN INFLABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR LA MUERTE DEL BEBE
O HERIRLO GRAVEMENTE.
ETÄrge kasutage kunagi lapse tur vatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib
põhjustada lapsele R ASKEID VIGASTUSI või SURMA.
FIÄLÄ KOSK A AN aseta lapsen tur vaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVAT Y YNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAK AVAN LOUKK A ANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GR AVEMENT
HRNIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést olyan ülésen, amely AKTIVÁLT ÁLLAPOTÚ (BEK APCSOLT)
FRONTLÉGZSÁKK AL van védve. Ez a gyermek halálát vagy súlyos sérülését okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GR AVI al bambino.
LTNIEK ADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
LVNAV PIEĻAUJAMS uzstādīt uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera vietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS
GAISA SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
Safety

144
Safety
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt. (b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat. (c) Consult the legislation in force in your country before installing your child on this seat. (d) To install a child seat on a rear seat, "rear ward facing" or "for ward facing", move the front seat for ward, then straighten the backrest to allow enough space for the child seat and the child's legs. U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rearward facing" and/or "forward facing". U(R) : as for U , the vehicle seat must be adjusted to the highest position and the intermediate longitudinal position. X : seating position not suitable for the installation of a child seat of the weight group indicated.
Remove and stow the head restraint before installing a child seat on a passenger seat. Refit the head restraint once the child seat has been removed.

145
6
Safety
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Ensure that there is no seat belt or seat belt buckle under the child seat, as this could destabilise it. Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightened correctly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary. At rear seating positions, always leave sufficient space between the front seat and: - a "rear ward facing" child seat,
- the child's feet for a child seat fitted "forward facing". To do this, move the front seat for wards and, if necessary, move its backrest into the upright position.

Advice on child seats
Installing a booster seat For optimum installation of the "forward-facing" child seat, ensure that the back of the child seat is as close as possible to the backrest of the vehicle's seat , in contact if possible. You mst remove the head restraint before installing a child seat with backrest to a passenger seat. Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit the head restraint when the child seat is removed.
Children at the front
The legislation on carrying children on the front passenger seat is specific to each country. Refer to the legislation in force in your country. Deactivate the passenger airbag when a "rear ward-facing" child seat is installed on the front seat. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate.
The chest part of the seat belt must be positioned on the child's shoulder without touching the neck. Ensure that the lap part of the seat belt passes correctly over the child's thighs. PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level. As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows by more than one third. To protect young children from the rays of the sun, fit side blinds on the rear windows.

146
Safety

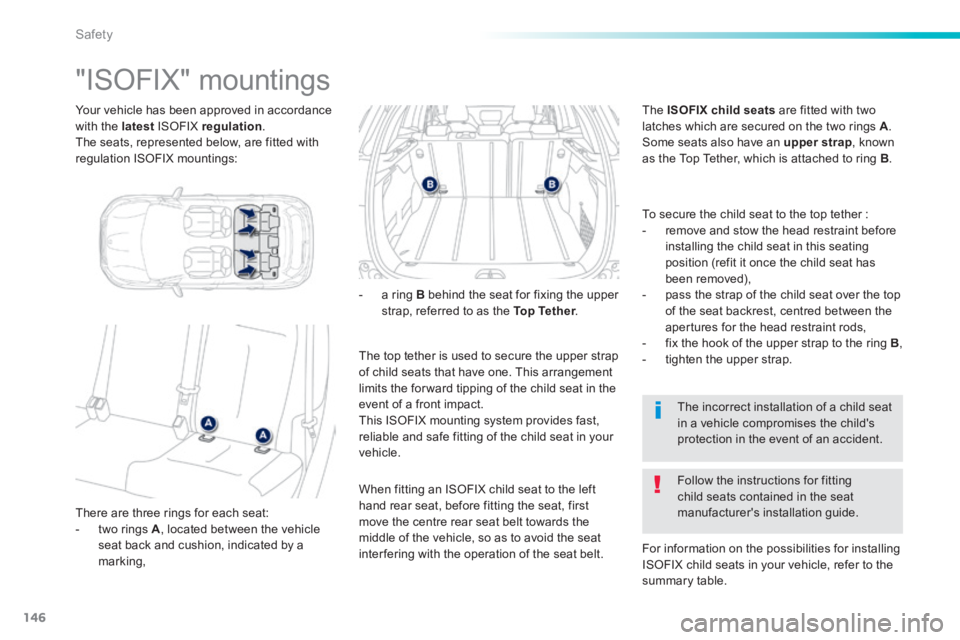

Your vehicle has been approved in accordance with the latest ISOFIX regulation . The seats, represented below, are fitted with regulation ISOFIX mountings:
"ISOFIX" mountings
There are three rings for each seat: - two rings A , located between the vehicle seat back and cushion, indicated by a marking,
When fitting an ISOFIX child seat to the left hand rear seat, before fitting the seat, first move the centre rear seat belt towards the middle of the vehicle, so as to avoid the seat inter fering with the operation of the seat belt.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
For information on the possibilities for installing ISOFIX child seats in your vehicle, refer to the summary table.
- a ring B behind the seat for fixing the upper strap, referred to as the Top Tether . Top Tether . Top Tether
The top tether is used to secure the upper strap of child seats that have one. This arrangement limits the for ward tipping of the child seat in the event of a front impact. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your vehicle.
To secure the child seat to the top tether : - remove and stow the head restraint before installing the child seat in this seating position (refit it once the child seat has been removed), - pass the strap of the child seat over the top of the seat backrest, centred between the apertures for the head restraint rods, - fix the hook of the upper strap to the ring B , - tighten the upper strap.
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.
The ISOFIX child seats are fitted with two latches which are secured on the two rings A . Some seats also have an upper strap , known as the Top Tether, which is attached to ring B .

149
6
Safety
Locations for ISOFIX child seats
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings. In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0) Up to approx. 6 months
Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatInfant car seat"rearward facing""rearward facing""forward facing"
ISOFIX size categor yFGCDECDABB1
Front passenger seat Not ISOFIX
Outer rear seats XIL- SU * IL- SUIL- SU * IL- SUIUF IL- SU
Centre rear seat Not ISOFIX
I UF: seat suitable for the installation of an I sofix U niversal seat, " F or ward facing" secured using the upper strap. IL- SU: seat suitable for the installation of an I sofix S emi- U niversal seat either: - "rear facing" fitted with an upper strap or a support leg, - "for ward facing" fitted with a support leg, - an infant car seat fitted with an upper strap or a support leg. For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings". X: seat not suitable for the installation of a child seat for the weight group indicated.
* Vehicle seat in a particular position: move the passenger seat for ward.
Remove and stow the head restraint before installing a child seat on a passenger seat. Refit the head restraint once the child seat has been removed.

188
Practical information
Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
Conversion kits
You can obtain an "Enterprise" kit to convert a private car into a trade vehicle.
"Comfort":
door deflectors, side blinds and rear blind,
cigarette lighter, boot dividers, coat hanger fixed to head restraint, front and rear parking sensors...
"Transport solutions":
boot liner, luggage net, roof bars, bicycle carrier on roof bars, ski carrier, roof box, towbars...
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
"Styling":
gear lever knob, spoiler, styling strips, alloy
wheels, trims, chromed mirror shells...
"Security and safety":
anti-theft alarm, window engraving, wheel security bolts, child seats and booster cushions, breathalyzer, first aid kit, warning triangle, high visibility jacket, stolen vehicle tracking system, temporary puncture repair kit, snow chains, non-slip covers, front foglamps kit, dog guard...
"Protection":
mats * , seat covers compatible with lateral airbags, mud flaps, door sill protectors, stainless steel boot sill protector, bumper protection strips, aluminium foot rest...
Tow bar, which mst be fitted by PEUGEOT dealer or a qualified workshop.

324
Alphabetical index
Accessories ..................................................188Accessory socket, 12V ...................................72Adjusting headlamps ....................................115Adjusting head restraints ................................58Adjusting seat belt height .............................13 0Adjusting the steering wheel ..........................60Advice on care and maintenance .................187Airbags ....................................................32, 13 3Airbags, curtain .....................................13 5, 13 6Airbags, front.........................................13 3, 13 6Airbags, lateral ......................................13 5, 13 6Air conditioning .........................................14, 19Air conditioning, automatic .................14, 64, 67Air conditioning, digital .................14, 64, 67, 70Air conditioning, manual ...............14, 64, 65, 70Air distribution adjustment ........................66, 69Air filter ..........................................................Air filter ..........................................................Air filter202Air flow ............................................................19Air flow adjustment ...................................66, 69Air intake ...................................................66, 69Air recirculation .........................................66, 69Air vents ..........................................................63Alarm ...............................................................51Anti-lock braking system (A BS) ..........................................................125Anti-theft .........................................................47Assistance call ..............................124, 213, 214Assistance, emergency braking ...................125Audible warning ............................................124Audio cable ...................................252, 287, 312Audio streaming (Bluetooth) ..........................................2 51, 2 8 8Audio system .................................215, 277, 303Automatic illumination of headlamps ......................................1 0 9 , 114Automatic operation of hazard warning lamps ............................124Automatic rain sensitive windscreen wipers ...............................117, 11 9Auxiliary sockets .............73, 248, 252, 287, 312
Battery ............................................178 -18 0, 2 0 2Battery, charging ...........................................180Battery, remote control .............................49, 50Bluetooth (hands-free) .........................258, 289Bluetooth (telephone) ...........................258, 289Bonnet ...........................................................191Bonnet stay ...................................................191Boot .................................................................55Brake discs ....................................................203Brake lamps ..........................................16 9, 170Brake pads ....................................................203Braking assistance system ...........................125
Capacity, fuel tank ........................................19 4CD ................................................248, 283, 309CD MP3 .........................................248, 284, 310Central locking ..........................................44, 45Changing a bulb .....................................16 5 -171Changing a fuse .....................................172-17 7Changing a wheel ..................................157-16 3Changing a wiper blade ........................120, 182Changing the date ...........................................43Changing the remote control battery ..............49Changing the time ...........................................43Checking levels .....................................19 9 -201Checking the engine oil level ..................3 7, 1 9 9Checking tyre pressures (using the kit) ........15 6Checks ..................................................198 -203Children ..................................132, 13 4, 137-15 0Child seats ............................................137-14 9Child seats, conventional ..............................142Cleaning (advice) ..........................................187Closing the boot ..............................................55Closing the doors ............................................45Colour screen ................................................216Connectors, audio ...................73, 248, 252, 312
DAB (Digital Audio Broadcasting) ........246, 247Date (setting) ...................................................43Daytime running lamps .................................112Deactivating the passenger airbag ...............13 4Deadlocking ....................................................46Defrosting ........................................................70Demisting ........................................................70Dials and gauges ......................................21, 2 2Diesel additive level ......................................201Dimensions ...................................................2 11Dipped beam .........................................108, 166Dipstick ....................................................3 7, 1 9 9Directional lighting ........................................11 6Direction indicators .......113, 123, 166, 169, 170Door pockets ...................................................71Driving economically ......................................19Dynamic stability control (DSC) ....................................29, 125, 127, 128
EBA (Emergency braking assistance) ..........125Eco-driving .....................................................19Economy mode .............................................181Electric window controls .................................53Electronic brake force distribution (EBFD) ........................................................125Electronic engine immobiliser...................4 7, 5 0
AB
C
D
E
Coolant level ..........................................33, 200Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator33Courtesy lamps .............................................121Cruise control ..........................................99, 101Cup holder .......................................................Cup holder .......................................................Cup holder71
