2013.5 Citroen C4 RHD ESP

04
286
RDS, if displayed, enables you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station during a journey.


AUDIO


RDS






Receiving TA messages


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.

Press TA INFO
to activate or deactivate
the reception of traffi c messages.


When the radio is displayed on the
screen, press OK
to display the
contextual menu.

Select " RDS
" and confi rm to save.
" RDS
" is displayed in the screen.


Make a long press on TA INFO
to
display the list of categories.

Receiving INFO messages

The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB, ...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.

04
288
AUDIO


Change band (FM1, FM2, DAB, ...)






DAB (Digital Audio Broadcasting)
Digital radio

Digital radio provides a superior audio quality and also additional
categories of traffi c announcements (TA INFO).
The different "multiplex services" offer a choice of radio stations in
alphabetical order.

Change of station within the same "multiplex service".

Start a search for the next "multiplex service".







Digital radio - DAB / FM tracking


"DAB" does not have 100% coverage of the country.
When the digital signal is weak, "DAB / FM auto tracking" allows you
to continue listening to the same station, by automatically switching
to the corresponding analogue "FM" station (if it exists).

Long press: select the desired categories of
announcements from Transport, News, Entertainment
and Flash special (availability according to the station).

When the radio station is displayed in the screen, press on " OK
" to
display the contextual menu.
(Frequency hopping (RDS), DAB / FM auto tracking, RadioText
(TXT) display, Information on the station, ...)

Press the " Menu
" button.

Select " Multimedia
" and confi rm.

Select " DAB / FM auto tracking
" and confi rm

If "DAB / FM auto tracking" is on, there will be a difference of a few
seconds in the programme when the system changes to analogue
"FM" radio, with sometimes a variation in volume.
When the strength of the digital signal is good again, the system
automatically switches back to "DAB"

If the "DAB" station you are listening to is not available on "FM"
(" DAB/FM
" option barred), or if "DAB / FM auto tracking" is not on,
the sound will be cut when the digital signal is too weak.

05
302
In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).
Combined mode
(to leave the vehicle without ending the call)

USING THE TELEPHONE

From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu,
select " Switch
" and conform to return
to a call left on hold.

Interactive voice response

Consultation call

06
305
Press 
to display the audio settings
menu.

The settings available are:


- Ambience,

- Bass,

- Treble,

- Loudness,

- Distribution: Personalised or Driver,

- Left / right balance,

- Fader (front / rear balance),

- Auto. volume.



Screen C


The distribution (or spatialisation using the Arkamys© system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.

AUDIO SETTINGS


Select and confi rm " Other settings…
"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.



On-board audio: Arkamys
©
Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
© software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.

07
306

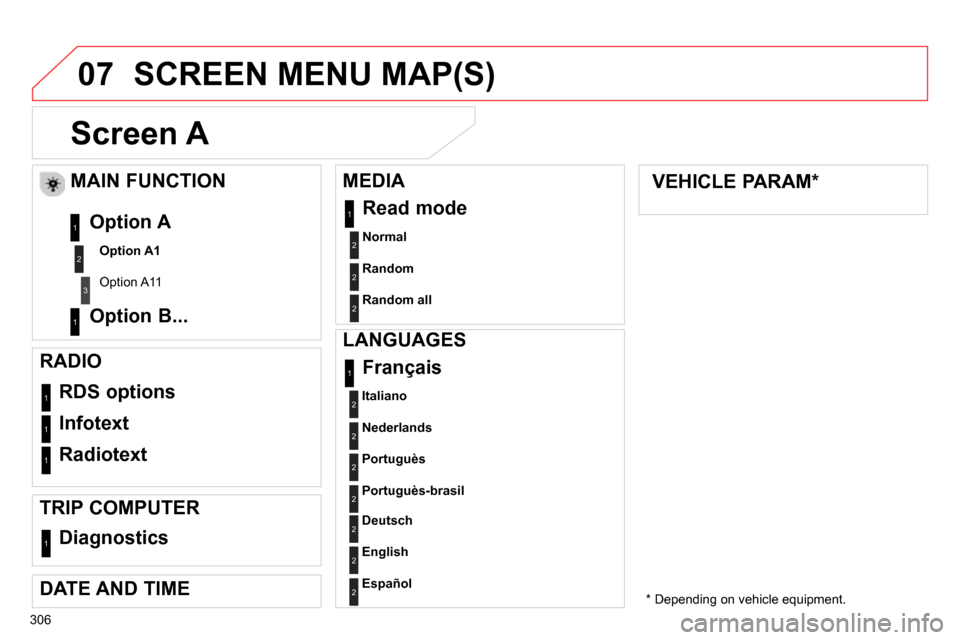

Screen A



Normal
2

RDS options 1

Infotext 1

Radiotext 1

Français 1








MAIN FUNCTION



Option A1

Option A11


Option A

Option B... 1
2
3
1


RADIO

TRIP COMPUTER
Diagnostics
1


DATE AND TIME
MEDIA
Read mode
1

Random 2

Random all
2






VEHICLE PARAM *


SCREEN MENU MAP(S)


LANGUAGES



Italiano
2


Nederlands
2


Portuguès
2


Portuguès-brasil
2


Deutsch
2


English
2


Español


2

* Depending on vehicle equipment.

320
ALPHABETICAL INDEX
EDoor pockets ............................. 109
Driving economically ................... 26
Dynamic emergency
braking .................................... 148EBA
(Emergency braking assistance) ..... 135
Eco-driving .................................. 26
Economy mode.......................... 210
Electric window controls .............. 89
Electronic brake force distribution
(EBFD) .................................... 135
Electronic engine immobiliser ..... 80, 82
Electronic gearbox ..... 153, 163, 186
Electronic stability control (ESC) ..... 136
Emergency boot release.............. 88
Emergency braking system ....... 135
Emergency call .......... 137, 225, 226
Emergency starting.................... 207
Emergency warning lamps ........ 134
eMyWay ............................... 55, 227
Energy economy mode.............. 210
Engine compartment ......... 181, 182
Engine compartment fusebox .... 206
Engine, Diesel ..... 93, 180, 182, 220
Engine oil level indicator ...... 43, 183
Engine, petrol .............. 93, 181, 218
Engines.............................. 218, 220
Environment ..... 26, 62, 69, 82, 158,
160, 184
Equipment settings .......... 50, 52, 56
ESC/ASR ................................... 136
ESP ........................................... 136Fitting roof bars........................... 211
Fittings, boot ............................... 117
Fitting speakers ......................... 215
Flashing indicators.............. 98, 134,
198, 200
Foglamps, front.... 97, 103, 197, 200
Foglamps, rear ............ 97, 201, 202
Front seats............................. 70, 71
Fuel........................................ 26, 93
Fuel consumption ........................ 26
Fuel fi ller fl ap ......................... 92, 94
Fuel gauge............................. 28, 92
Fuel tank ................................ 92, 94
Fusebox, dashboard .................. 204
Fuses ......................................... 203Heated seats ............................... 72
Heating .................................. 63, 65
Height and reach adjustment,
steering wheel .......................... 77
Hill start assist ........................... 159
Hooks ......................................... 118
Gearbox, automatic .... 156, 186, 209
Gearbox, electronic ... 153, 186, 209
Gearbox, manual ....... 152, 163, 186
Gear effi ciency indicator ............ 160
Gear lever, automatic gearbox ..... 156
Gear lever, electronic gearbox... 153
Gear lever, manual gearbox ...... 152
Glove box ................................... 110
G.P.S. ........................................ 236
Grab handles ............................. 109
Guidance ................................... 233
FG
HI
JIgnition ......................................... 80
Indicator lamps, status............ 32-42
Indicators, direction ........... 134, 198
Infl ating accessories
(using the kit) .......................... 191
Infl ating tyres ............................... 26
Inputs for audio
system ..................... 111, 268, 294
Installing speakers ..................... 215
Instrument panel lighting ............. 47
Instrument panels ............. 28-30, 48
Instrument panel screen ..... 28-30, 160
Intelligent Traction Control ......... 136
Interior fi ttings .....................109, 110
Interior mood lighting ................. 108
ISOFIX ....................................... 129
ISOFIX child seats .............. 129-131
ISOFIX mountings ..................... 129
Keeping children
safe .................. 120-133, 140, 142
Key in ignition warning................. 80
Key with remote control .... 78-80, 82 K Halogen headlamps................... 197
Hands-free kit .................... 250, 296
Hazard warning lamps ............... 134
Headlamp adjustment................ 101
Headlamps,
directional ............... 101, 102, 197
Headlamp wash ......................... 105
Head restraints, front ................... 72
Head restraints, rear .................... 74Jack ........................................... 192
JACK socket ............... 111, 268, 294
Filling with fuel ........................ 92-94
Fitting a wheel ........................... 195
