DRIVING
170
The programmed information is
grouped together in the instrument
panel screen.

6.
Speed limiter on / off indication.

7.
Speed limiter mode selection indi-
cation.

8.
Programmed speed value.

9.
Selection of a memorised speed.
(see "Memorising speeds")


Displays in the instrument panel





SPEED LIMITER
System which prevents the vehicle
from exceeding the speed programmed
by the driver.
When the programmed speed limit is
reached, pressing the accelerator ped-
al no longer has any effect.
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. The functions of this system are
grouped together on the steering
mounted controls.


1.
Speed limiter mode selection wheel.

2.
Programmed value decrease but-
ton.

3.
Programmed value increase button.

4.
Speed limiter on / off button.

5.
List of memorised speeds display
button.
(see the "Memorising speeds" sec-
tion)



Steering mounted controls

Operation

The speed limiter is switched on
man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off
by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the
accelerator fi rmly beyond the point of
resistance.
To return to the programmed speed,
simply release the accelerator pedal.
The programmed speed remains in the
memory when the ignition is switched
off.

9
DRIVING
171

Programming




Turn dial 1
to the "LIMIT"
posi-
tion: the speed limiter mode is
selected but is not switched on
(Pause).
You do not have to switch the speed
limiter on in order to set the speed.



Set the speed value by pressing button 2
or 3
(e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your
vehicle, the programmed speed will stop at the closest
memorised speed; refer to the corresponding paragraph.



Switch the speed limiter on by pressing button 4
.


Switch the speed limiter off by pressing button 4
: the
display confi rms that it has been switched off (Pause).


Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of inten-
tional or unintentional deceleration of the vehicle, automati-
cally cancels the fl ashing of the programmed speed.


Exiting the speed limiter mode




Turn dial 1
to the "0"
position: the
speed limiter mode is deselected. It
disappears from the screen.



Operating fault

In the event of a fault with the speed
limiter, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
On a steep descent or in the
event of sharp acceleration, the
speed limiter will not be able to
prevent the vehicle from exceed-
ing the programmed speed.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- do not fi t one mat on top of
another.


Switch the speed limiter back on by pressing button 4

again.

9
DRIVING
172
The cruise control system can-
not, in any circumstances, re-
place the need to respect speed
limits, nor can it replace the need
for vigilance and responsibility
on the part of the driver.
You are advised to keep your
feet near the pedals at all times.






CRUISE CONTROL

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The functions of this system are grouped
together on the steering mounted con-
trols.


1.
Cruise control mode selection dial.

2.
Speed programming/value decrease
button.

3.
Speed programming/value increase
button.

4.
Cruise control off/resume button.

5.
Memorised speeds display button.
(see "Memorising speeds")


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

6.
Cruise control off/resume indica-
tion.

7.
Cruise control mode selection indi-
cation.

8.
Programmed speed value.

9.
Selecting a stored speed.
(see "Storing speeds")


Displays in the instrument panel

Operation

The cruise control is switched on

manually: it requires a minimum ve-
hicle speed of 25 mph (40 km/h) and
engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gear-
box system or automatic gearbox,
in sequential driving mode,

- position A
on the electronic gearbox
system or D
on an automatic gear-
box.
The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

9
DRIVING
173
When the cruise control is
switched on, be careful if you
maintain the pressure on one of
the programmed speed changing
buttons: this may result in a very
rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the
programmed speed.
On steep climbs or when towing,
the programmed speed may not
be reached or maintained.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- never fi t one mat on top of
another.

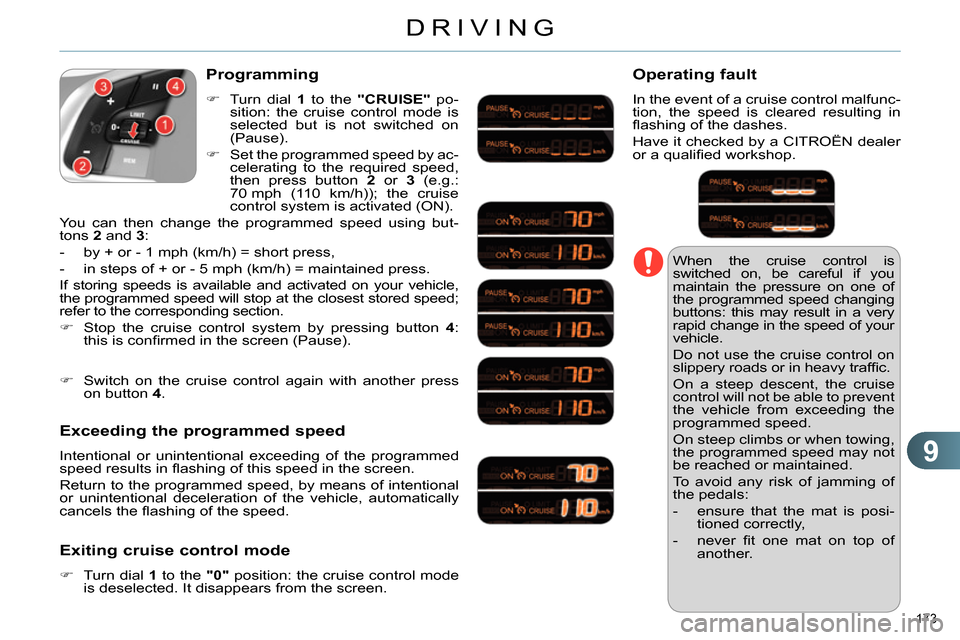

Programming




Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(Pause).


Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)); the cruise
control system is activated (ON).
You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle,
the programmed speed will stop at the closest stored speed;
refer to the corresponding section.



Stop the cruise control system by pressing button 4
:
this is confi rmed in the screen (Pause).


Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the speed.


Exiting cruise control mode




Turn dial 1
to the "0"
position: the cruise control mode
is deselected. It disappears from the screen.


Switch on the cruise control again with another press
on button 4
.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

9
DRIVING
176





PARKING SENSORS

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.

This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.

Rear parking sensors


Audible assistance
The proximity information is given by an
intermittent audible signal, the frequen-
cy of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.


Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is displayed
in the screen.

10
CHECKS
180










RUNNING OUT OF FUEL
(DIESEL)
1.6 litre HDi engine




Fill the fuel tank with at least fi ve
litres of diesel.


Open the bonnet.


If necessary, unclip the styling cover
for access to the priming pump.


Squeeze and release the priming
pump repeatedly until resistance is
felt (there may be resistance at the
fi rst press).


Operate the starter until the engine
starts (if the engine does not start
at the fi rst attempt, wait around
15 seconds before trying again).


If the engine does not start after a
few attempts, operate the priming
pump again then start the engine.


Clip the styling cover back in place.


Close the bonnet.








2 litre HDi engine




Fill the fuel tank with at least fi ve litres
of Diesel.


Open the bonnet.


If necessary, unclip the style cover
for access to the priming pump.


Slacken the bleed screw.


Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe.


Tighten the bleed screw.


Operate the starter until the engine
starts (if the engine fails to start
at the fi rst attempt, wait around
15 seconds before trying again).


If the engine fails to start after a few
attempts, operate the priming pump
again, then the starter.


Put the style cover back in position
and clip it in place, ensuring that it
has clipped correctly.


Close the bonnet.

If the engine does not start fi rst
time, don't keep trying but start
the procedure again from the be-
ginning.

On vehicle fi tted with HDi engines, the
fuel system must be primed if you run
out of fuel; refer to the corresponding
engine compartment view.

If the tank on your vehicle is fi tted with
a misfuel prevention device, refer to the
"Misfuel prevention (Diesel)" section.

10
CHECKS
183






CHECKING LEVELS


Take care when working under
the bonnet, as certain areas of
the engine may be extremely hot
(risk of burns) and the cooling
fan could start at any time (even
with the ignition off).


The check is carried out either
when the ignition is switched
on using the oil level indicator
in the instrument panel, or us-
ing the dipstick.
It will only be correct if the vehicle is on
level ground and the engine has been
off for more than 30 minutes.
It is normal to top up the oil level be-
tween two services (or oil changes).
CITROËN recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
After topping up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.


















Oil level


Engine oil change
Refer to the maintenance and warranty
guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.











Brake fluid level


Changing the fl uid
Refer to the maintenance and warranty
guide for details of the interval for this
operation.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations.












Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold, un-
screw the cap to check the level.











Coolant level


The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Check all of these levels regularly, in
line with the maintenance and warranty
guide. Top them up if necessary, unless
otherwise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer or a qualifi ed work-
shop.

Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.








The cooling fan may start after
switching off the engine: take
care with articles and clothing
that might become caught by the
fan blades.
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

11
PRACTICAL INFORMATION
201



























Rear lamps



1.
Brake/

sidelamp
(P21/5W).


2.
Direction
indicator

(PY21W amber)
.

3.
Reversing lamp (P21W).


4.
Rear
foglamp
(P21W).


Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from in-
side the boot:



open the boot,


remove the access fl ap from the
corresponding side trim panel,


unclip the lamp unit connector,


As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,


slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,


remove the two bulb holder fi xing
screws,


extract the lamp unit carefully pull-
ing in its middle towards the outside,


spread the four tabs and remove
the bulb holder,


turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.
