2-18
CABLE ROUTING DIAGRAM
CABLE ROUTING DIAGRAM
1. Fuel tank breather hose
2. Radiator hose 1
3. Cylinder head breather hose
4. Radiator hose 3
5. Clutch cable
6. Throttle position sensor lead
7. Hot starter cable
8. Fuel hose
9. Carburetor breather hose10. Carburetor overflow hose
11. Throttle position sensor lead
protector
12. Throttle position sensor coverA. Insert the end of the fuel tank
breather hose into the hole in
the steering stem.
B. Aligh the paint mark on the cylin-
der head breather hose with the
front end of the hose guide.
A
B
AC
B
C

2-19
CABLE ROUTING DIAGRAM
C. Pass the cylinder head breather
hose on the outside of front en-
gine bracket.
D. Pass the cylinder head breather
hose between the radiator and
radiator hose 3.
E. Pass the fuel hose on the out-
side of throttle position sensor
lead.
F. Pass the carburetor breather
hoses and overflow hose so that
all there hoses do not contact
the rear shock absorber.
G. Insert the throttle position sen-
sor lead protector into the throt-
tle position sensor cover.

2-20
CABLE ROUTING DIAGRAM
1. Sub-wire harness
2. Hot starter cable
3. Oil hose
4. Neutral switch lead
5. Radiator hose 2
6. Clamp
7. Ignition coil lead
8. CDI magneto lead
9. Neutral switch lead coupler
10. CDI unit lead coupler11. Radiator breather hose
12. Hot starter cable protector
13. Rubber cap
14. Throttle position sensor lead
15. Cylinder head breather hose
16. Throttle position sensor lead
coupler
17. Tension pipe
18. Radiator mounting boss
19. Cylinder head breather hose20. Throttle position sensor tube
clamp
E K
E F GHH
F IJ A
AB
D
D CJ
C
G
B
K
E
M
M
H-H
K-K
E-E
D-D
M-M
F-F
A-A
I
L
L

2-21
CABLE ROUTING DIAGRAM
A. Pass the hot starter cable over
the radiator mounting boss.
B. Pass the throttle position sensor
lead under the hot starter cable.
C. Fasten the throttle position sen-
sor lead and the hot starter ca-
ble.
D. Locate the clamp between the
hot starter cable protector and
rubber cap.
E. Fasten the neutral switch lead
below the oil hose. and pass the
neutral switch lead on the inside
of the oil hose.
F. Pass the neutral switch lead on
the inside of the oil hose.
G. Fasten the neutral switch lead,
CDI magneto lead, and radiator
breather hose onto the frame.
They should all be clamped
above the engine bracket to the
left of the downtube of the
frame. The clamp ends should
face backward and the rest out-
side of the frame.
H. Pass the clutch cable through
the cable guide.
I. Pass the neutral switch lead and
CDI magneto lead behind the
frame.
J. Pass the hot starter cable on the
inside of the cylinder head
breather hose.
K. Fit the coupler projection into the
hole in the cover.
L. Fasten the sub-wire harness on
the CDI unit bracket.
M. Fasten the sub-wire harness at
the position-taped portion.
N. Pass each lead under the
clamp. Locate the CDI magneto
lead on the outside of the igni-
tion coil lead. Locate the throttle
position sensor lead, neutral
switch lead, CDI magneto lead
and ignition coil lead so that they
do not lie one on another.
O. Fasten the sub-wire harness to
the CDI unit bracket with the
clamp ends located under the
bracket.
P. Fasten the neutral switch lead,
throttle position sensor lead,
CDI magneto lead and ignition
coil lead. Fasten them around
the periphery of the recess be-
tween the tension pipe and radi-
ator mounting boss on the
frame.
Q. Locate the clamp ends within
the arrowed range. Assure that
the clamp end does not contact
the cylinder head breather hose.R. Pass the radiator breather hose
on the outside of the CDI mag-
neto lead and neutral switch
lead.
S. Fasten the throttle position sen-
sor lead and hot starter cable.
Fasten them between the cylin-
der head breather hose and
throttle position sensor tube
clamp. Fasten the clamp with its
ends toward the right-side of the
frame and cut off the other end
with 3 to 5 clamp holes left in it.
T. Locate the radiator breather
hose end above the down tube
and between the oil hose and
engine guard.
U. Fasten the neutral switch lead
above the oil hose, and pass the
neutral switch lead on the inside
of the oil hose.

4-9
CARBURETOR
CARBURETOR

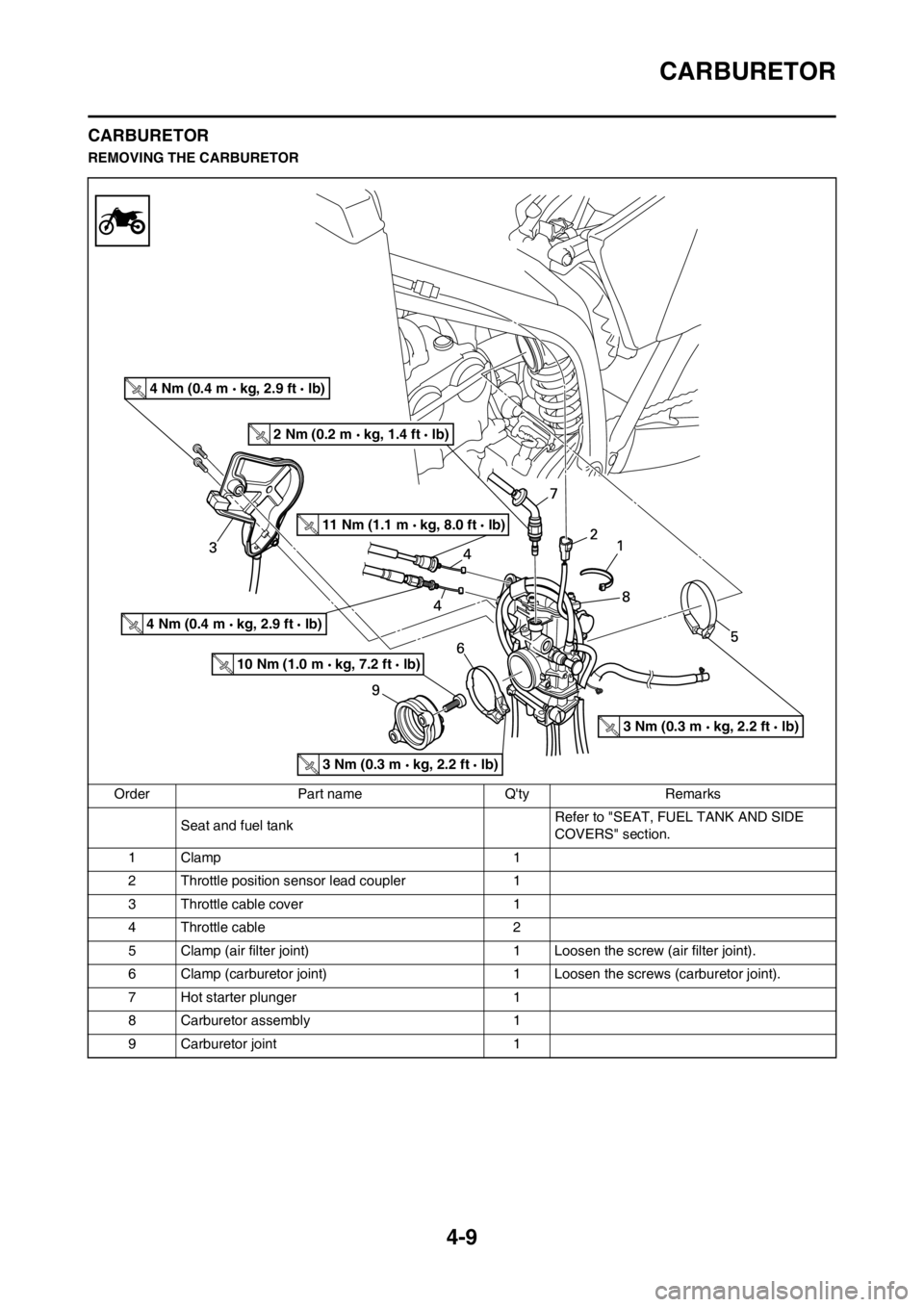

REMOVING THE CARBURETOR
Order Part name Q'ty Remarks
Seat and fuel tank Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
1Clamp 1
2 Throttle position sensor lead coupler 1
3 Throttle cable cover 1
4 Throttle cable 2
5 Clamp (air filter joint) 1 Loosen the screw (air filter joint).
6 Clamp (carburetor joint) 1 Loosen the screws (carburetor joint).
7 Hot starter plunger 1
8 Carburetor assembly 1
9 Carburetor joint 1
4 Nm (0.4 m kg, 2.9 ft lb)
4 Nm (0.4 m kg, 2.9 ft lb)
2 Nm (0.2 m kg, 1.4 ft lb)
3 Nm (0.3 m kg, 2.2 ft lb)
3 Nm (0.3 m kg, 2.2 ft lb)
11 Nm (1.1 m kg, 8.0 ft lb)
10 Nm (1.0 m kg, 7.2 ft lb)

4-12
CARBURETOR
HANDLING NOTE
Do not loosen the screw (throttle
position sensor) "1" except when
changing the throttle position sen-
sor due to failure because it will
cause a drop in engine perfor-
mance.
REMOVING THE PILOT SCREW
1. Remove:
• Pilot screw "1"
To optimize the fuel flow at a small
throttle opening, each machine's pilot
screw has been individually set at the
factory. Before removing the pilot
screw, turn it in fully and count the
number of turns. Record this number
as the factory-set number of turns
out.
CHECKING THE CARBURETOR
1. Inspect:
• Carburetor body
Contamination→Clean.
• Use a petroleum based solvent for
cleaning. Blow out all passages and
jets with compressed air.
• Never use a wire.
2. Inspect:
•Main jet "1"
• Pilot jet "2"
• Needle jet "3"
• Starter jet "4"
•Pilot air jet "5"
• Leak jet "6"
Damage→Replace.
Contamination→Clean.
• Use a petroleum based solvent for
cleaning. Blow out all passages and
jets with compressed air.
• Never use a wire.
CHECKING THE NEEDLE VALVE
1. Inspect:
• Needle valve "1"
• Valve seat "2"
Grooved wear "a" →Replace.
Dust "b" →Clean.
• Filter "c"
Clogged→Clean.
CHECKING THE THROTTLE
VALVE
1. Check:
• Free movement
Stick→Repair or replace.
Insert the throttle valve "1" into the
carburetor body, and check for free
movement.
CHECKING THE JET NEEDLE
1. Inspect:
• Jet needle "1"
Bends/wear→Replace.
• Clip groove
Free play exists/wear→Replace.
• Clip position
MEASURING AND ADJUSTING
THE FLOAT HEIGHT
1. Measure:
• Float height "a"
Out of specification→Adjust.
Measurement and adjustment
steps:
a. Hold the carburetor in an upside
down position.
• Slowly tilt the carburetor in the op-
posite direction, then take the mea-
surement when the needle valve
aligns with the float arm.
• If the carburetor is level, the weight
of the float will push in the needle
valve, resulting in an incorrect mea-
surement.
b. Measure the distance between
the mating surface of the float
chamber and top of the float using
a vernier calipers.
The float arm should be resting on the
needle valve, but not compressing
the needle valve.
Standard clip position:
No.5 Groove
Float height:
6.0 mm (0.24 in)

4-14
CARBURETOR
• Apply the fluorochemical grease on
the bearings.
• Fit the projection "a" on the throttle
shaft assembly into the slot "b" in
the throttle position sensor.
• Make sure the stopper "c" of the
spring fits into the recess in the car-
buretor.
• Turn the throttle shaft assembly left
while holding down the lever 1 "5"
and fit the throttle stop screw tip "d"
to the stopper "e" of the throttle
shaft assembly pulley.
9. Install:
• Push rod "1"
While holding down the lever 1 "2", in-
sert the push rod farthest into the car-
buretor.
10. Install:
• Starter jet "1"
• Pilot jet "2"
• Spacer "3"
• Needle jet "4"
•Main jet "5"11. Install:
• Needle valve "1"
•Float "2"
• Float pin "3"
• After installing the needle valve to
the float, install them to the carbure-
tor.
• Check the float for smooth move-
ment.
12. Install:
• Pilot screw "1"
• Spring "2"
• Washer "3"
• O-ring "4"
Note the following installation
points:
a. Turn in the pilot screw until it is
lightly seated.
b. Turn out the pilot screw by the
number of turns recorded before
removing.
13. Install:
• O-ring
• Leak jet "1"
• Float chamber "2"
• Bolt (float chamber) "3"
• Cable holder (throttle stop screw
cable) "4"
• Hose holder (carburetor breather hose) "5"
14. Install:
• Diaphragm (accelerator pump)
"1"
• Spring "2"
• O-ring "3"
• Accelerator pump cover "4"
• Hose holder (drain hose) "5"
• Screw (accelerator pump cover)
"6"
Install the diaphragm (accelerator
pump) with its mark "a" facing the
spring.
15. Install:
• Jet needle "1"
•Collar "2"
• Spring "3"
• Needle holder "4"
• Throttle valve plate "5"
To throttle valve "6".
16. Install:
• Throttle valve assembly "1"
• Screw (throttle shaft) "2"
Install the valve lever rollers "3" into
the slits "a" of the throttle valve.
Pilot screw (example):
2 turns out
*2-1/4 turns out
* For EUROPE
