2012 YAMAHA XENTER 150 key

IMPORTANT MANUAL INFORMATION
EAU10133
Particularly important information is distinguished in this manual by the following notations:QThis is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
WARNING
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
NOTICE
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
TIP
A TIP provides key information to make procedures easier or clearer.
*Product and specifi cations are subject to change without notice.
52S-F8199-E0_CS.indd 452S-F8199-E0_CS.indd 4
2011/11/16 13:06:592011/11/16 13:06:59
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-1
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lock
ON
OFFLOCKThe main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The vari-
ous positions are described below.
EAU10550
ON
All electrical circuits are supplied with
power, the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF”,
even if the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is mov-
ing. Otherwise the electrical sys-
tems will be switched off, which
may result in loss of control or an
accident.
EAU10683
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
To lock the steering
1
2
1. Push.
2. Turn.1. Turn the handlebars all the way
to the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
52S-F8199-E0_CS.indd 3-152S-F8199-E0_CS.indd 3-1
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-2
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
EAU49391
Indicator lights and warning
lights
SELECT
RESET
ODOOIL
TRI P 1 BE
L
T TRIP 2
OIL CHANGECLOOK
OUT TEM
P
3
24
1 1
1. Turn signal indicator lights “4” and “6”
2. Coolant temperature warning light “
”
3. High beam indicator light “&”
4. Engine trouble warning light “
”
EAU11030
Turn signal indicator lights “4”
and “6”
The corresponding indicator light
fl ashes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “&”
This indicator light comes on when the
high beam of the headlight is switched
on. To unlock the steering
2
1
1. Turn.
2. Release.Push the key in, and then turn it to
“OFF” while still pushing it.
EAU11446
Coolant temperature warning light
“
”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
ECA10021
NOTICEDo not continue to operate the en-
gine if it is overheating.TIP● For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according
52S-F8199-E0_CS.indd 3-252S-F8199-E0_CS.indd 3-2
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-3
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
to the coolant temperature in the
radiator.
● If the engine overheats, see page
6-34 for further instructions.
EAUT1934
Engine trouble warning light “
”
This warning light fl ashes or stays on
if an electrical circuit monitoring the
engine is not working correctly. If this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
EAUT3721
Multi-function display
SELECT
RESET
ODOOIL
TRI P 1 BE
L
T TRIP 2
OIL CHANGECLOOK
OUT TEM
P
12
34
56
789
1012 111. V-belt replacement indicator “V-BELT”
2. Clock
3. Oil change indicator “OIL CHANGE”
4. “SELECT” button
5. Fuel level warning indicator “
”
6. Fuel meter
7. Speedometer
8. Odometer
9. “RESET” button
10. Tripmeter 1
11. Ambient temperature display
12. Tripmeter 2
EWA14431
WARNING
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
The multi-function display is equipped
with the following:● an odometer● a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-
cator started fl ashing)● two tripmeters (which show the
distance traveled since they were
last set to zero)● an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)● an oil change indicator (which dis-
plays when the engine oil should
be changed)● a V-belt replacement tripmeter
(which shows the distance trav-
eled since the V-belt was last re-
placed)● a V-belt replacement indicator● an ambient temperature display● a clock● a fuel meter
52S-F8199-E0_CS.indd 3-352S-F8199-E0_CS.indd 3-3
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-4
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS● a brightness control mode
TIP● When the key is turned to “ON”,
all segments and indicators of the
display come on for a few sec-
onds. During this time, the multi-
function display is performing a
self-test.● Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons except when
setting the brightness mode.
Odometer, fuel tripmeter, tripme-
ters, oil change tripmeter and V-belt
tripmeter modes
Pushing the “SELECT” button switch-
es the display among the odometer
mode “ODO”, the fuel tripmeter mode
“F”, the tripmeter modes “TRIP 1”
and “TRIP 2”, the oil change tripme-
ter mode “OIL TRIP” and the V-belt
change mode “BELT TRIP” in the fol-
lowing order:
ODO → F → TRIP 1 → TRIP 2 → OIL
TRIP → BELT TRIP → ODO
When approximately 1.6 L (0.42 US
gal, 0.35 Imp.gal) of fuel remains in
the fuel tank, the bottom segment of
the fuel meter and fuel level warn-
ing indicator will start flashing, and
the display will automatically change
to the fuel reserve tripmeter mode
“ F” and start counting the distance
traveled from that point. In that case,
pushing the “RESET” button switches
the display to the previous mode.
To reset a tripmeter, select it by push-
ing the “SELECT” button until “Trip” or
“Trip F” begins fl ashing (“Trip” or “Trip
F” will only flash for five seconds).
While “Trip” or “Trip F” is flashing,
push the “RESET” button for at least
one second. If you do not reset the
fuel reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).TIPThe display cannot be changed back
to fuel reserve tripmeter “ F” after
pushing the “RESET” button.
OdometerTIP● For the U.K.: For any mode, the
odometer units can be switched
from kilometers to miles by push-
ing the “SELECT” button for 1
second.● If the odometer indicates “-----”,
have a Yamaha dealer check the
multi-function display, as it may
be faulty.
Tripmeters
To reset a tripmeter, select it by push-
ing the “SELECT” button until “TRIP
1” or “TRIP 2” is displayed, and then
push the “RESET” button for at least 1
second.
TIPIf the tripmeter indicates “-----”, have
a Yamaha dealer check the multi-
function display, as it may be faulty.
52S-F8199-E0_CS.indd 3-452S-F8199-E0_CS.indd 3-4
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-6
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
below -10 °C, a lower tempera-
ture than -10 °C will not be dis-
played.
● If the ambient temperature climbs
above 40 °C, a higher tempera-
ture than 40 °C will not be dis-
played.● The accuracy of the temperature
reading may be affected when
riding slowly (approximately un-
der 20 km/h (12 mi/h)) or when
stopped at traffi c signals, railroad
crossings, etc.
Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flash-
ing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and
the minute digits will start flash-
ing.
4. Push the “RESET” button to set
the minute digits.
5. Push the “SELECT” button and
then release it to start the clock.
Fuel meter
The fuel meter indicates the amount
of fuel in the fuel tank. The display
segments of the fuel meter disappear
towards “E” (Empty) as the fuel level
decreases. When the bottom segment
of the fuel meter and fuel level warn-
ing indicator “
” starts fl ashing, refuel
as soon as possible. When the key is
turned to “ON”, all of the display seg-
ments of the fuel meter will appear for
a few seconds, and then shows the
actual fuel level.
Brightness control mode
This function allows you to adjust the
brightness of the speedometer panel
to suit the outside lighting conditions.
To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then re-lease the “SELECT” button after
fi ve seconds.
4. Push the “RESET” button to se-
lect the desired brightness level,
and then turn the key to “OFF”.
52S-F8199-E0_CS.indd 3-652S-F8199-E0_CS.indd 3-6
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

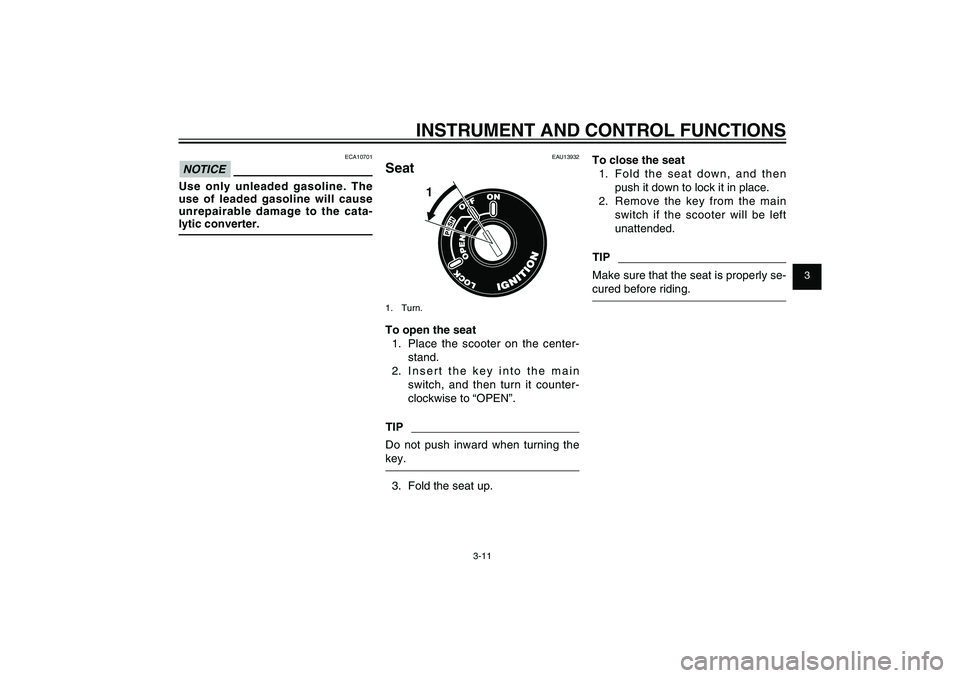

3-11
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
ECA10701
NOTICEUse only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cata-
lytic converter.
EAU13932
Seat
1
1. Turn.To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise to “OPEN”.TIPDo not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.TIPMake sure that the seat is properly se-
cured before riding.
52S-F8199-E0_CS.indd 3-1152S-F8199-E0_CS.indd 3-11
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
5-1
EAU15943
OPERATION AND IMPORTANT RIDING POINTS
EAU15943
OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully
to become familiar with all controls.
If there is a control or function you
do not understand, ask your Yamaha
dealer.
EWA10271
WARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an ac-
cident or injury.
EAU45310
TIPThis model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. To start the en-
gine after a turnover, be sure to turn
the main switch to “OFF” and then to
“ON”. Failing to do so will prevent the
engine from starting even though the
engine will crank when pushing the
start switch.
EAUT3680
Starting the engine
ECA10250
NOTICESee page 5-3 for engine break-in
instructions prior to operating the
vehicle for the rst time.
1. Turn the key to “ON”.
The engine trouble warning light
and coolant temperature warning
light should come on for a few
seconds, then go off.
NOTICE:
If
a warning light does not go off,
have a Yamaha dealer check its
electrical circuit.
[ECAT1170]
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
NOTICE:
For
maximum engine life, never ac-
celerate hard when the engine
is cold!
[ECA11041]
If the engine does not start, re-
lease the start switch, wait a few
seconds, and then try again.
Each starting attempt should be
as short as possible to preserve the battery. Do not crank the en-
gine more than 10 seconds on
any one attempt.
52S-F8199-E0_CS.indd 5-152S-F8199-E0_CS.indd 5-1
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black
