2012 YAMAHA XENTER 150 display

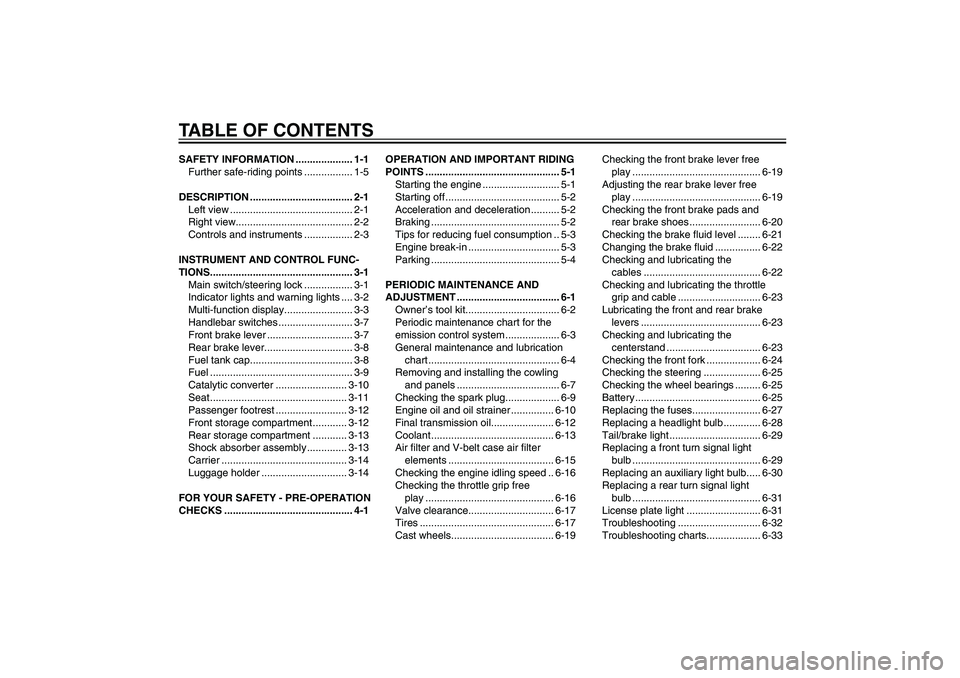

TABLE OF CONTENTSSAFETY INFORMATION .................... 1-1
Further safe-riding points ................. 1-5
DESCRIPTION .................................... 2-1
Left view ........................................... 2-1
Right view ......................................... 2-2
Controls and instruments ................. 2-3
INSTRUMENT AND CONTROL FUNC-
TIONS .................................................. 3-1
Main switch/steering lock ................. 3-1
Indicator lights and warning lights .... 3-2
Multi-function display ........................ 3-3
Handlebar switches .......................... 3-7
Front brake lever .............................. 3-7
Rear brake lever ............................... 3-8
Fuel tank cap .................................... 3-8
Fuel .................................................. 3-9
Catalytic converter ......................... 3-10
Seat ................................................ 3-11
Passenger footrest ......................... 3-12
Front storage compartment ............ 3-12
Rear storage compartment ............ 3-13
Shock absorber assembly .............. 3-13
Carrier ............................................ 3-14
Luggage holder .............................. 3-14
FOR YOUR SAFETY - PRE-OPERATION
CHECKS ............................................. 4-1OPERATION AND IMPORTANT RIDING
POINTS ............................................... 5-1
Starting the engine ........................... 5-1
Starting off ........................................ 5-2
Acceleration and deceleration .......... 5-2
Braking ............................................. 5-2
Tips for reducing fuel consumption .. 5-3
Engine break-in ................................ 5-3
Parking ............................................. 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT .................................... 6-1
Owner’s tool kit ................................. 6-2
Periodic maintenance chart for the
emission control system ................... 6-3
General maintenance and lubrication
chart .............................................. 6-4
Removing and installing the cowling
and panels .................................... 6-7
Checking the spark plug ................... 6-9
Engine oil and oil strainer ............... 6-10
Final transmission oil ...................... 6-12
Coolant ........................................... 6-13
Air fi lter and V-belt case air fi lter
elements ..................................... 6-15
Checking the engine idling speed .. 6-16
Checking the throttle grip free
play ............................................. 6-16
Valve clearance .............................. 6-17
Tires ............................................... 6-17
Cast wheels .................................... 6-19Checking the front brake lever free
play ............................................. 6-19
Adjusting the rear brake lever free
play ............................................. 6-19
Checking the front brake pads and
rear brake shoes ......................... 6-20
Checking the brake fl uid level ........ 6-21
Changing the brake fl uid ................ 6-22
Checking and lubricating the
cables ......................................... 6-22
Checking and lubricating the throttle
grip and cable ............................. 6-23
Lubricating the front and rear brake
levers .......................................... 6-23
Checking and lubricating the
centerstand ................................. 6-23
Checking the front fork ................... 6-24
Checking the steering .................... 6-25
Checking the wheel bearings ......... 6-25
Battery ............................................ 6-25
Replacing the fuses ........................ 6-27
Replacing a headlight bulb ............. 6-28
Tail/brake light ................................ 6-29
Replacing a front turn signal light
bulb ............................................. 6-29
Replacing an auxiliary light bulb ..... 6-30
Replacing a rear turn signal light
bulb ............................................. 6-31
License plate light .......................... 6-31
Troubleshooting ............................. 6-32
Troubleshooting charts ................... 6-33
52S-F8199-E0_CS.indd 652S-F8199-E0_CS.indd 6
2011/11/16 13:06:592011/11/16 13:06:59
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
2-3
EAU10401
DESCRIPTION
EAU10430
Controls and instruments1. Rear brake lever (page 3-8)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-1)
4. Multi-function display (page 3-3)
5. Front storage compartment (page 3-12)
6. Luggage holder (page 3-14)
7. Right handlebar switch (page 3-7)8. Front brake lever (page 3-7)
9. Throttle grip (page 5-2)
1 2 3 4 5 6 7 8 9
52S-F8199-E0_CS.indd 2-352S-F8199-E0_CS.indd 2-3
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-3
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
to the coolant temperature in the
radiator.
● If the engine overheats, see page
6-34 for further instructions.
EAUT1934
Engine trouble warning light “
”
This warning light fl ashes or stays on
if an electrical circuit monitoring the
engine is not working correctly. If this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
EAUT3721
Multi-function display
SELECT
RESET
ODOOIL
TRI P 1 BE
L
T TRIP 2
OIL CHANGECLOOK
OUT TEM
P
12
34
56
789
1012 111. V-belt replacement indicator “V-BELT”
2. Clock
3. Oil change indicator “OIL CHANGE”
4. “SELECT” button
5. Fuel level warning indicator “
”
6. Fuel meter
7. Speedometer
8. Odometer
9. “RESET” button
10. Tripmeter 1
11. Ambient temperature display
12. Tripmeter 2
EWA14431
WARNING
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
The multi-function display is equipped
with the following:● an odometer● a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-
cator started fl ashing)● two tripmeters (which show the
distance traveled since they were
last set to zero)● an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)● an oil change indicator (which dis-
plays when the engine oil should
be changed)● a V-belt replacement tripmeter
(which shows the distance trav-
eled since the V-belt was last re-
placed)● a V-belt replacement indicator● an ambient temperature display● a clock● a fuel meter
52S-F8199-E0_CS.indd 3-352S-F8199-E0_CS.indd 3-3
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-4
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS● a brightness control mode
TIP● When the key is turned to “ON”,
all segments and indicators of the
display come on for a few sec-
onds. During this time, the multi-
function display is performing a
self-test.● Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons except when
setting the brightness mode.
Odometer, fuel tripmeter, tripme-
ters, oil change tripmeter and V-belt
tripmeter modes
Pushing the “SELECT” button switch-
es the display among the odometer
mode “ODO”, the fuel tripmeter mode
“F”, the tripmeter modes “TRIP 1”
and “TRIP 2”, the oil change tripme-
ter mode “OIL TRIP” and the V-belt
change mode “BELT TRIP” in the fol-
lowing order:
ODO → F → TRIP 1 → TRIP 2 → OIL
TRIP → BELT TRIP → ODO
When approximately 1.6 L (0.42 US
gal, 0.35 Imp.gal) of fuel remains in
the fuel tank, the bottom segment of
the fuel meter and fuel level warn-
ing indicator will start flashing, and
the display will automatically change
to the fuel reserve tripmeter mode
“ F” and start counting the distance
traveled from that point. In that case,
pushing the “RESET” button switches
the display to the previous mode.
To reset a tripmeter, select it by push-
ing the “SELECT” button until “Trip” or
“Trip F” begins fl ashing (“Trip” or “Trip
F” will only flash for five seconds).
While “Trip” or “Trip F” is flashing,
push the “RESET” button for at least
one second. If you do not reset the
fuel reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).TIPThe display cannot be changed back
to fuel reserve tripmeter “ F” after
pushing the “RESET” button.
OdometerTIP● For the U.K.: For any mode, the
odometer units can be switched
from kilometers to miles by push-
ing the “SELECT” button for 1
second.● If the odometer indicates “-----”,
have a Yamaha dealer check the
multi-function display, as it may
be faulty.
Tripmeters
To reset a tripmeter, select it by push-
ing the “SELECT” button until “TRIP
1” or “TRIP 2” is displayed, and then
push the “RESET” button for at least 1
second.
TIPIf the tripmeter indicates “-----”, have
a Yamaha dealer check the multi-
function display, as it may be faulty.
52S-F8199-E0_CS.indd 3-452S-F8199-E0_CS.indd 3-4
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-5
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
Oil change tripmeter
To reset the oil change tripmeter, se-
lect it by pushing the “SELECT” button
until “OIL CHANGE” and “OIL TRIP”
are displayed, and then push the “RE-
SET” button for at least 3 seconds.
After resetting, “OIL CHANGE” will
disappear.
Push the “SELECT” button again to
start the oil change tripmeter; the
display changes to V-belt tripmeter
mode.
Oil change indicator “OIL CHANGE”
This indicator will display at the initial
1000 km (625 mi), then at every 6000
km (3750 mi) thereafter to indicate
that the engine oil should be changed.
After changing the engine oil, reset
the oil change tripmeter.
If the engine oil is changed before
the oil change indicator displays
(i.e., before the periodic oil change
interval has been reached), the oil
change tripmeter must be reset after
the oil change for the next periodic oil
change to be indicated at the correct
time.
TIP● If the oil change tripmeter is reset
before the initial 1000 km (625
mi), the next periodic oil change
interval will be at every 6000 km
(3750 mi) thereafter.● If the oil change tripmeter in-
dicates “-----”, have a Yamaha
dealer check the multi-function
display, as it may be faulty.
V-belt replacement tripmeter
To reset the V-belt tripmeter, select it
by pushing the “SELECT” button until
“V-BELT” and “BELT TRIP” are dis-
played, and then push the “RESET”
button for at least 3 seconds. After
resetting, “V-BELT” will disappear.
Push the “SELECT” button again to
start the V-belt tripmeter; the display
changes to ODO mode.
V-belt change indicator “V-BELT”
This indicator comes on at every
20000 km (12500 mi) to indicate that
the V-belt should be replaced.
After replacing the V-belt, reset the V-
belt tripmeter.
If the V-belt is replaced before the
V-belt indicator comes on (i.e., be-
fore the periodic V-belt replacement
interval has been reached), the V-belt
tripmeter must be reset after replacing
the V-belt for the next periodic V-belt
replacement to be indicated at the cor-
rect time.TIPIf the V-belt change indicator displays
“-----”, have a Yamaha dealer check
the multi-function display, as it may be
faulty.
Ambient temperature display “OUT
TEMP”
This display shows the ambient tem-
perature from -10 °C to 40 °C in 1
°C increments. The temperature dis-
played may vary from the ambient
temperature.TIP● If the ambient temperature falls
52S-F8199-E0_CS.indd 3-552S-F8199-E0_CS.indd 3-5
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
3-6
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
below -10 °C, a lower tempera-
ture than -10 °C will not be dis-
played.
● If the ambient temperature climbs
above 40 °C, a higher tempera-
ture than 40 °C will not be dis-
played.● The accuracy of the temperature
reading may be affected when
riding slowly (approximately un-
der 20 km/h (12 mi/h)) or when
stopped at traffi c signals, railroad
crossings, etc.
Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flash-
ing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and
the minute digits will start flash-
ing.
4. Push the “RESET” button to set
the minute digits.
5. Push the “SELECT” button and
then release it to start the clock.
Fuel meter
The fuel meter indicates the amount
of fuel in the fuel tank. The display
segments of the fuel meter disappear
towards “E” (Empty) as the fuel level
decreases. When the bottom segment
of the fuel meter and fuel level warn-
ing indicator “
” starts fl ashing, refuel
as soon as possible. When the key is
turned to “ON”, all of the display seg-
ments of the fuel meter will appear for
a few seconds, and then shows the
actual fuel level.
Brightness control mode
This function allows you to adjust the
brightness of the speedometer panel
to suit the outside lighting conditions.
To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then re-lease the “SELECT” button after
fi ve seconds.
4. Push the “RESET” button to se-
lect the desired brightness level,
and then turn the key to “OFF”.
52S-F8199-E0_CS.indd 3-652S-F8199-E0_CS.indd 3-6
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-12
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1. Final transmission oil fi ller cap4. Remove the fi nal transmission oil
filler cap and its O-ring from the
fi nal transmission case.
5. Remove the fi nal transmission oil
drain bolt and its gasket to drain
the oil from the fi nal transmission
case.
EAU20065
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the fi nal transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the fi -
nal transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
9. Start the engine, and then let
it idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the en-
gine off and check for the cause.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
To reset the oil change indicator
and oil change tripmeterTIPThe oil change indicator and oil
change tripmeter can be reset when
“OIL CHANGE” and “OIL TRIP” ap-
pear in the multi-function display. (see
page 3-3.)
52S-F8199-E0_CS.indd 6-1252S-F8199-E0_CS.indd 6-12
2011/11/16 13:07:012011/11/16 13:07:01
Process BlackProcess Black

INDEXAAcceleration and deceleration ................... 5-2
Air fi lter and V-belt case air fi lter
elements ............................................... 6-15
Auxiliary light bulb, replacing .................. 6-30BBattery ..................................................... 6-25
Brake fl uid, changing .............................. 6-22
Brake fl uid level, checking ...................... 6-21
Brake lever, front ....................................... 3-7
Brake lever, rear ....................................... 3-8
Brake levers, lubricating .......................... 6-23
Brake pads and shoes, checking ............ 6-20
Braking ...................................................... 5-2CCables, checking and lubricating ............ 6-22
Care .......................................................... 7-1
Carrier ..................................................... 3-14
Catalytic converter .................................. 3-10
Centerstand, checking and lubricating .... 6-23
Coolant .................................................... 6-13
Coolant temperature warning light ............ 3-2
Cowling and panels, removing and
installing .................................................. 6-7DDimmer switch .......................................... 3-7EEngine break-in ......................................... 5-3
Engine idling speed, checking ................ 6-16
Engine oil ................................................ 6-10
Engine trouble warning light ...................... 3-3FFinal transmission oil .............................. 6-12
Front brake lever free play, checking ...... 6-19Front fork, checking ................................ 6-24
Fuel ........................................................... 3-9
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ............................................ 3-8
Fuses, replacing ...................................... 6-27
HHandlebar switches ................................... 3-7
Headlight bulb, replacing ........................ 6-28
High beam indicator light .......................... 3-2
Horn switch ............................................... 3-7IIdentifi cation numbers ............................... 9-1
Indicator lights and warning lights ............. 3-2LLicense plate light ................................... 6-31
Luggage holder ....................................... 3-14MMaintenance, emission control system ..... 6-3
Maintenance and lubrication, periodic ...... 6-4
Main switch/steering lock .......................... 3-1
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display ................................ 3-3PParking ...................................................... 5-4
Part locations ............................................ 2-1
Passenger footrest .................................. 3-12RRear brake lever free play, adjusting ...... 6-19SSafe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-11
Shock absorber assembly ....................... 3-13Spark plug, checking ................................. 6-9
Specifi cations ............................................ 8-1
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch ............................................... 3-7
Steering, checking .................................. 6-25
Storage ..................................................... 7-3
Storage compartment (front) ................... 3-12
Storage compartment (rear) .................... 3-13
TTail/brake light ......................................... 6-29
Throttle grip and cable, checking and
lubricating ............................................. 6-23
Throttle grip free play, checking .............. 6-16
Tires ........................................................ 6-17
Tool kit ...................................................... 6-2
Troubleshooting ...................................... 6-32
Troubleshooting charts ........................... 6-33
Turn signal indicator lights ........................ 3-2
Turn signal light bulb (front), replacing .... 6-29
Turn signal light bulb (rear), replacing .... 6-31
Turn signal switch ..................................... 3-7VValve clearance ...................................... 6-17
Vehicle identifi cation number .................... 9-1WWheels .................................................... 6-19
Wheel bearings, checking ....................... 6-25
52S-F8199-E0_CS.indd 9-252S-F8199-E0_CS.indd 9-2
2011/11/16 13:07:022011/11/16 13:07:02
Process BlackProcess Black
