Page 97 of 106
MOTORCYCLE CARE AND STORAGE
7-4
7
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam- age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine over.
[EWA10951]
e. Remove the spark plug caps from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
TIPMake any necessary repairs before
storing the motorcycle.
U1CAE1E0.book Page 4 Tuesday, September 13, 2011 5:02 PM
Page 98 of 106
SPECIFICATIONS
8-1
8
Dimensions:Overall length:2140 mm (84.3 in)
Overall width:
770 mm (30.3 in)
Overall height: 1205 mm (47.4 in)
Seat height: 815 mm (32.1 in)
Wheelbase:
1460 mm (57.5 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 3000 mm (118.1 in)Weight:Curb weight:FZ1-S 220 kg (485 lb)
FZ1-SA 226 kg (498 lb)Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Inline 4-cylinder
Displacement: 998 cm³
Bore × stroke:
77.0 × 53.6 mm (3.03 × 2.11 in)
Compression ratio:
11.50 : 1
Starting system: Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement: 2.90 L (3.07 US qt, 2.55 Imp.qt)
With oil filter cartridge replacement:
3.10 L (3.28 US qt, 2.73 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 2.25 L (2.38 US qt, 1.98 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount: 3.4 L (0.90 US gal, 0.75 Imp.gal)Fuel injection:Throttle body:
ID mark: 2D11 20Spark plug(s):Manufacturer/model:NGK/CR9E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
1.512 (65/43)
Final drive: Chain
Secondary reduction ratio: 2.647 (45/17)
Transmission type:
Constant mesh 6-speed
Operation: Left foot operation
Gear ratio: 1st: 2.533 (38/15)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U1CAE1E0.book Page 1 Tuesday, September 13, 2011 5:02 PM
Page 99 of 106
SPECIFICATIONS
8-2
8
2nd:2.063 (33/16)
3rd: 1.762 (37/21)
4th:
1.522 (35/23)
5th: 1.350 (27/20)
6th: 1.208 (29/24)
Chassis:Frame type:Diamond
Caster angle: 25.00 °
Trail:
109 mm (4.3 in)Front tire:Type:Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model: DUNLOP/D221FARear tire:Type:
Tubeless
Size: 190/50 ZR17M/C (73W)
Manufacturer/model: DUNLOP/D221G
Loading:Maximum load: FZ1-S 190 kg (419 lb)
FZ1-SA 184 kg (406 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Loading condition: FZ1-S 90–190 kg (198–419 lb)
FZ1-SA 90–184 kg (198–406 lb)
Front:250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding: Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheel
Rim size: 17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel Rim size:
17M/C x MT6.00
Front brake:Type:
Dual disc brake
Operation: Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:Single disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 130.0 mm (5.12 in)Electrical system:Ignition system:TCI
U1CAE1E0.book Page 2 Tuesday, September 13, 2011 5:02 PM
Page 100 of 106
SPECIFICATIONS
8-3
8
Charging system:AC magnetoBattery:Model:
YTZ14S
Voltage, capacity: 12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light: 12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light: 12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Oil level warning light: LED
Turn signal indicator light:
LED Coolant temperature warning light:
LED
Engine trouble warning light: LED
ABS warning light:
FZ1-SA LED
Immobilizer system indicator light: LED
Fuses:Main fuse:
50.0 A
Headlight fuse: 25.0 A
Taillight fuse: 10.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 15.0 A
Radiator fan fuse: 10.0 A × 2
Fuel injection system fuse:
15.0 A
ABS control unit fuse: FZ1-SA 10.0 A
ABS motor fuse: FZ1-SA 30.0 A
Backup fuse:
10.0 A
U1CAE1E0.book Page 3 Tuesday, September 13, 2011 5:02 PM
Page 101 of 106
CONSUMER INFORMATION
9-1
9
EAU48612

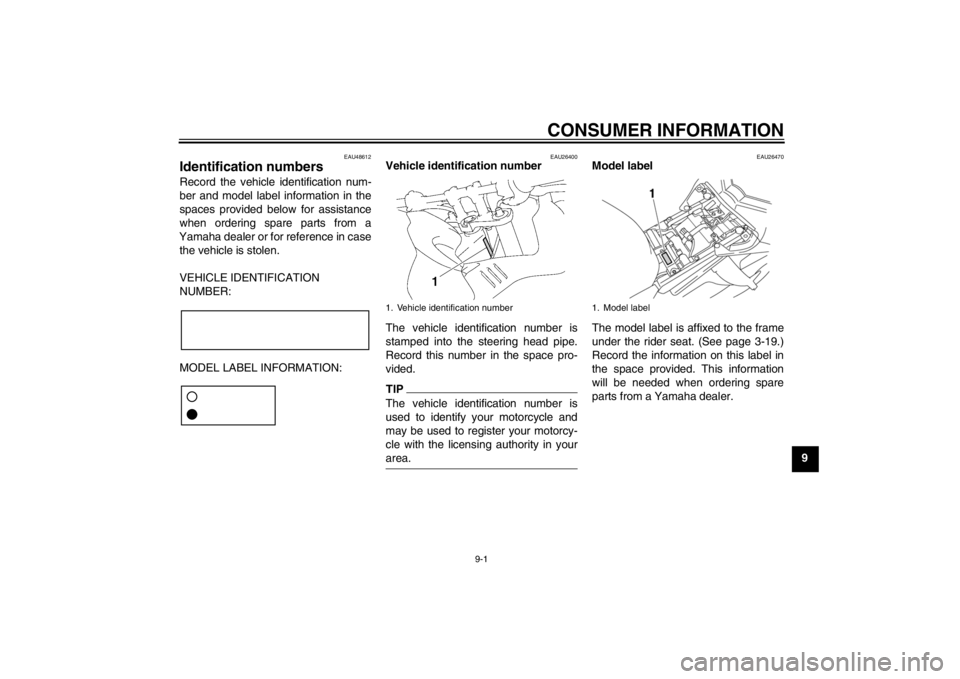

Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-19.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1CAE1E0.book Page 1 Tuesday, September 13, 2011 5:02 PM
Page 102 of 106
INDEXAABS (for ABS models) .......................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-14
Anti-theft alarm (optional)...................... 3-12
Auxiliary light bulb, replacing ................ 6-37BBattery................................................... 6-31
Brake and clutch levers, checking and lubricating ..................... 6-28
Brake and shift pedals, checking and lubricating ..................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-23
Brake lever ............................................ 3-15
Brake lever free play, checking ............. 6-21
Brake light switches (for ABS models) ................................ 6-22
Brake light switches (for non-ABS models) ......................... 6-22
Brake pedal ........................................... 3-15CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Centerstand and sidestand,
checking and lubricating ..................... 6-29
Clutch lever ........................................... 3-14
Clutch lever free play, adjusting ............ 6-21
Coolant.................................................. 6-13
Coolant temperature warning light .......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-26 Drive chain slack .................................. 6-25
EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-17
Engine oil and oil filter cartridge ........... 6-10
Engine stop switch................................ 3-13
Engine trouble warning light ................... 3-7
EXUP system ....................................... 3-26FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-22
Front fork, checking .............................. 6-30
Fuel....................................................... 3-17
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose and
overflow hose ..................................... 3-18
Fuel tank cap ........................................ 3-16
Fuses, replacing ................................... 6-32HHandlebar switches .............................. 3-13
Hazard switch ....................................... 3-14
Headlight bulb, replacing ...................... 6-35
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-36
Luggage strap holders .......................... 3-25
MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution ................................. 7-1
Model label .............................................. 9-1
Multi-function meter unit .......................... 3-8NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13RRear view mirrors .................................. 3-21SSafety information ................................... 1-1
Seats ..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-24
Sidestand .............................................. 3-26
Spark plugs, checking ............................. 6-9
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-13
Steering, checking................................. 6-30
Storage.................................................... 7-3
Storage compartment............................ 3-21TTail/brake light bulb, replacing .............. 6-36
U1CAE1E0.book Page 1 Tuesday, September 13, 2011 5:02 PM
Page 103 of 106
INDEX
Throttle grip and cable, checking and lubricating ..................... 6-27
Throttle grip free play, checking ........... 6-17
Tires...................................................... 6-18
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-36
Turn signal switch ................................. 3-13VValve clearance .................................... 6-18
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-31
Wheel, front (for non-ABS models)....... 6-38
Wheel, rear (for non-ABS models) ....... 6-39
Wheels.................................................. 6-20
U1CAE1E0.book Page 2 Tuesday, September 13, 2011 5:02 PM
Page 104 of 106
A5-yoko_Blank.fm Page 1 Monday, July 11, 2011 4:13 PM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
