INSTRUMENT AND CONTROL FUNCTIONS
4-12
2
345
6
7
8
9
EAUT3170
Seat To open the seat1. Place the vehicle on the center- stand.
2. Insert the key in the lock, and then turn it clockwise.
3. Fold the seat up. To close the seat
1. Fold the seat down, and then push it down to lock it in place.
2. Remove the key.
TIPMake sure that the seat is properly se-cured before riding.
EAU50060
Helmet holder The helmet holder is located under the
seat. A helmet holding cable is provid-
ed under the seat to secure a helmet to
the helmet holder.
To secure a helmet to the helmet
holder 1. Open the seat. (See page 4-12.)
2. Pass the helmet holding cable through the buckle on the helmet
strap as shown, and then hook the
end of the helmet holding cable
over the helmet holder.
3. Securely close the seat. WARN- ING! Never ride with a helmet at-
1. Unlock.
1
1. Helmet holding cable
2. Helmet holder
1
2
1CB-9-EA.book 12 ページ ２０１２年４月１１日　水曜日　午前９時３４分

CHARGING THE BATTERY
6-4
1
2
3
4
56
7
8
9dow.

Do not pull or apply excessive
force to the charging cord.

Do not drop the charging cord
or charging plug or expose it to
strong impact.

Do not secure the charging cord
or charging plug in a place with
sharp objects such as a nail.

Do not step on the charging
cord or charging plug or place
any object on them.

Do not leave the charging cord
or charging plug near a heater
or other source of heat.

Do not modify the charging cord
or charging plug.

Park the vehicle carefully so the
charging cord cannot be
pinched, stepped on, or pulled
accidentally. Also be sure the
vehicle cannot be knocked over
which could stretch or damage
the charging cord or charging
plug.

Do not pull the charging cord to
unplug the charging plug from
the electrical outlet. Pull only
the charging plug.
Starting charging 1. Place the vehicle on the center- stand.
2. Turn the key to “OFF”.
3. Open the seat. (See page 4-12 for more information.)
4. Grasp the charging plug, and then unwrap the charging cord from its storing place as shown.
5. Place the charging cord in one of the grooves. NOTICE: The charg-
ing cord may be damaged if not
placed into a groove before
closing the seat.
[ECA17460]

1. Charging plug
2. Charging cord
1. Groove
1 21
1CB-9-EA.book 4 ページ ２０１２年４月１１日　水曜日　午前９時３４分

CHARGING THE BATTERY
6-5
2
3
4
567
8
9
6. Close the seat and push down on
the back to lock it in position.
TIPBefore closing the seat, make sure thatnothing is left under it.
7. Remove the key. To help prevent theft, be sure to lock the steering,
and then remove the key when
charging the battery.
8. Inspect the charging plug for any damage. Remove any dust, soil,
oil or water with a dry cloth if nec-
essary. Plug the charging plug into
a grounded electrical outlet with
residual-current device (RCD) pro-
tection.
WARNING
EWA15891
To avoid serious injury or death
from electric shock or fire:
Do not use the charging plug if it
has a damaged or loose prong.
Have a Yamaha dealer check the
vehicle.

Check the charging plug for any
foreign objects such as dust,
soil, oil or water before charg-
ing. If necessary, wipe the plug
clean with a dry cloth.

Do not use an ungrounded ex-
tension cord or a multi-outlet
plug between the charging cord
and the outlet.

Do not use the electrical outlet along with other electrical
equipment which may exceed
the outlet’s amperage and over-
heat the outlet.

Be sure to plug in the chargingplug firmly.
9. When the charging plug is plugged into an electrical outlet, charging
starts automatically. The battery
1. Charging plug
1
1CB-9-EA.book 5 ページ ２０１２年４月１１日　水曜日　午前９時３４分

CHARGING THE BATTERY
6-7
2
3
4
567
8
9
pears in the display during charg-
ing. The display goes off if the
charging plug is unplugged during
charging.

Even if the key is turned to “ON”,
the vehicle does not enter thestandby mode during charging.
Completing charging
When the battery is fully charged, the
display goes off automatically after a
few minutes. 1. Grasp the charging plug, and then unplug it from the electrical outlet.
NOTICE: Do not pull the charg-
ing cord to unplug the charging
plug from the electrical outlet.
This could damage the charging
cord.
[ECA17470]
2. Open the seat. (See page 4-12 for
more information.)

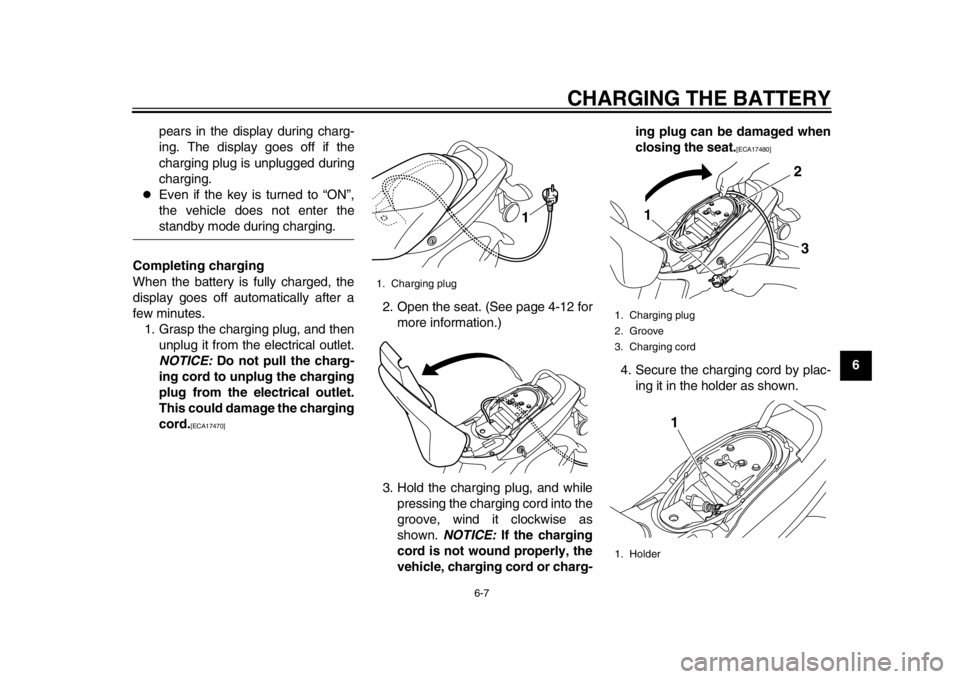

3. Hold the charging plug, and while pressing the charging cord into the
groove, wind it clockwise as
shown. NOTICE: If the charging
cord is not wound properly, the
vehicle, charging cord or charg- ing plug can be damaged when
closing the seat.
[ECA17480]

4. Secure the charging cord by plac- ing it in the holder as shown.
1. Charging plug
1
1. Charging plug
2. Groove
3. Charging cord
1. Holder
1 2
3
1
1CB-9-EA.book 7 ページ ２０１２年４月１１日　水曜日　午前９時３４分

CHARGING THE BATTERY
6-8
1
2
3
4
56
7
8
95. Close the seat, and push down on
the back to lock it in position.
TIP
Before closing the seat, make sure
that nothing is left under the seat.

Make sure that the seat is securelylocked before riding.
6. Remove the key.WARNING
EWA15900
When not in use, do not leave the
charging plug plugged into an out-
let. Dust or foreign objects could
build up and cause a fire. Be sure to
unplug the charging plug from theoutlet after use.
EAU50402
Charging time Normal charging
Charging time varies depending on the
riding conditions before charging, re-
maining battery level, and ambient tem-
perature. It takes approximately seven
hours to charge the battery from a 0%
charged level in the optimum ambient
temperature range of 15 C – 25 C.TIPWhen the charging process is complet-
ed, the power from the built-in batterycharger is cut off automatically.
Waiting mode for charging
The vehicle enters a waiting mode if the temperature is not suitable for charging
as follows:

The battery may be above the
maximum 50
C immediately after
riding. In this case, the charger en-
ters a waiting mode and “HEAT”
flashes until the battery and bat-
tery charger reach the specified
temperature.

If ambient temperature is below –5
 C, “COOL” flashes until the bat-
tery and battery charger reach the
specified temperature.
When the temperature is suitable for
charging, charging starts automatically.
100
50
0 2.0 4.0 7.0
Charging time (hours)
Battery
level (%)
1CB-9-EA.book 8 ページ ２０１２年４月１１日　水曜日　午前９時３４分
