2012 VOLVO XC60 Owner´s Manual

03 Your driving environment
Instruments and controls
03
81
3.
Turn TUNE to set the correct hour and
press OK to confirm the setting and deac-
tivate this box.
4.
Turn TUNE to select the minute box (A) and
press OK to activate this box (B).
5.
Turn TUNE to set the correct minute and
press OK to confirm the setting and deac-
tivate this box.
6.
Turn TUNE to select
OK and press OK to
complete the procedure.
Use the menu selection Settings
System
options
Time format to display the time in
the 24-hour format or the 12-hour format (AM/
PM).

03 Your driving environment
Ignition modes
03
82* Option/accessory, for more information, see Introduction.
Inserting and removing the remote key
Ignition slot with remote key and START/STOP
ENGINE button.
Inserting the remote key1
Holding the end of the remote key with the
base of the key blade, insert the remote key
into the ignition slot as shown in the illustration
and press it in as far as possible (past the
detent).
CAUTION
Foreign objects in the ignition slot can
impair function or cause damage.
Removing the remote keyThe remote key can be removed from the igni-
tion slot by pulling it out.
Ignition modes
Ignition mode 0
Insert the remote key in the ignition slot and
press it in as far as possible1.
Ignition mode I
NOTE
To access ignition modes I or II without star-
ting the engine, the brake pedal must not be
depressed.

With the remote key fully pressed into the
ignition slot1, press START/STOP
ENGINE briefly.
Ignition mode II
With the remote key fully pressed into the
ignition slot1, press START/STOP
ENGINE for approximately 2 seconds.
Returning to mode I from mode IIWith the remote key fully pressed into the igni-
tion slot1, press START/STOP ENGINE briefly.
Returning to mode 0 from mode IOpen the driver's door.
Ignition mode functions
The various ignition modes are accessed with
the remote key in the ignition slot1.
Posi-
tionFunction
0Odometer, clock and tempera-
ture gauge are illuminated. The
infotainment system can be
used.
ILaminated panoramic roof,
power windows,12-volt sockets,
navigation system*, climate sys-
tem blower, ECC, windshield
wipers can be used.
IIThe headlights/taillights come
on. Warning/indicator lights
come on for 5 seconds. All equip-
ment operates apart from heated
seats* and rear window
defroster, which only work when
the engine is running.
1Not necessary in vehicles with the optional keyless drive.

03 Your driving environment
Ignition modes
03
83 Starting and stopping the engine
See page 112 for information on starting the
engine and switching it off.
Emergency towing
See page 282 for more information.

03 Your driving environment
Seats
03
84* Option/accessory, for more information, see Introduction.

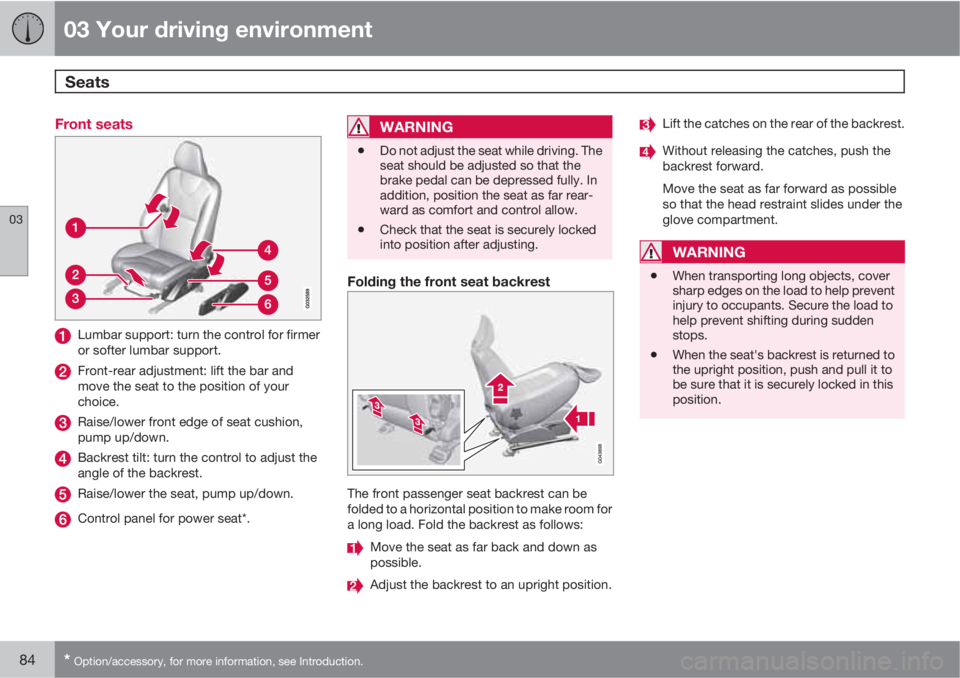

Front seats
Lumbar support: turn the control for firmer
or softer lumbar support.
Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
Raise/lower front edge of seat cushion,
pump up/down.
Backrest tilt: turn the control to adjust the
angle of the backrest.
Raise/lower the seat, pump up/down.
Control panel for power seat*.
WARNING
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•Check that the seat is securely locked
into position after adjusting.
Folding the front seat backrest
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:
Move the seat as far back and down as
possible.
Adjust the backrest to an upright position.
Lift the catches on the rear of the backrest.
Without releasing the catches, push the
backrest forward.
Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.
WARNING
•When transporting long objects, cover
sharp edges on the load to help prevent
injury to occupants. Secure the load to
help prevent shifting during sudden
stops.
•When the seat's backrest is returned to
the upright position, push and pull it to
be sure that it is securely locked in this
position.

03 Your driving environment
Seats
03

* Option/accessory, for more information, see Introduction.85
Power seat*
Front edge of seat cushion up/down
Seat forward/rearward and up/down
Backrest tilt
OperationThe seats can be adjusted for a short period
after unlocking the door with the remote con-
trol without the key in the ignition slot. Seat
adjustment is normally made when the ignition
is on and can always be made when the engine
is running.
NOTE
•Only one of the power seat's controls
can be used at the same time.
•The power seats have an overload pro-
tector that activates if a seat is blocked
by any object. If this occurs, switch off
the ignition (key in position 0) and wait
for a short period before operating the
seat again.
Seat with memory function
Stored seat position
Stored seat position
Stored seat position
Memory button
Programming the memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button (1)
can be programmed. Buttons (2) and (3) are
programmed in the same way.
To program (store) a seat position and door
mirror position in button (1):
1. Move the seat (and door mirrors) to the
desired position using the seat and mirror
adjustment controls.
2. Press and hold down the memory button
(4).
3. With the memory button depressed, press
button (1) briefly to store the current posi-
tion for the seat/mirrors.
To move the seat and mirrors to the position
that they were in when a button was pro-
grammed:

Press and hold down button (1) until the
seat and mirrors stop moving.
NOTE
As a safety precaution, the seat will stop
automatically if the button is released before
the seat has reached the preset position.

03 Your driving environment
Seats
03
86* Option/accessory, for more information, see Introduction.
Remote keyless entry system and the
driver's seat and door mirrors1
The remote control transmitter also controls
the position of the power driver's seat and door
mirrors in the following way:
1. Adjust the seat to your preferences.
2. When you leave your vehicle, lock it using
the remote control.
The position of the driver's seat and door mir-
rors is now stored in the remote control's mem-
ory.
Automatic seat/mirror adjustmentTo move the seat and door mirrors to the posi-
tion in which you left them:1. Unlock the driver's door with the same
remote control (the one used to lock the
doors).
2. Open the driver's door within 2 minutes.
The driver's seat and door mirrors will auto-
matically move to the position in which you left
them.
NOTE
•The key memory is independent of the
seat memory.
•The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote control.
•This feature will work in the same way
with all of the remote control transmit-
ters that you use with your vehicle.
The function can be activated/deactivated
under MY CAR under Settings
Car
settings
Car key memoryPosition of
door mirrors and driver's seat in key. See
page 133 for a description of the menu sys-
tem.
Emergency stopIf the seat accidentally begins to move, press
one of the buttons to stop the seat.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
Heated seats*See page 143.
1See page 64 for information regarding vehicles with the optional keyless drive.

03 Your driving environment
Seats
03

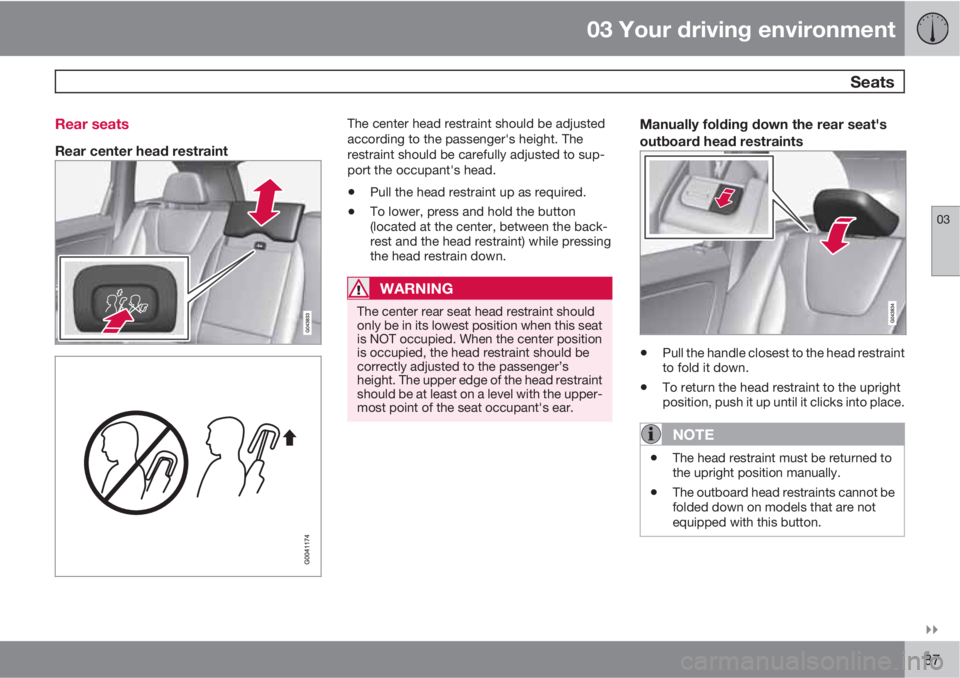

87 Rear seats
Rear center head restraint
The center head restraint should be adjusted
according to the passenger's height. The
restraint should be carefully adjusted to sup-
port the occupant's head.
•Pull the head restraint up as required.
•To lower, press and hold the button
(located at the center, between the back-
rest and the head restraint) while pressing
the head restrain down.
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height. The upper edge of the head restraint
should be at least on a level with the upper-
most point of the seat occupant's ear.
Manually folding down the rear seat's
outboard head restraints
•Pull the handle closest to the head restraint
to fold it down.
•To return the head restraint to the upright
position, push it up until it clicks into place.
NOTE
•The head restraint must be returned to
the upright position manually.
•The outboard head restraints cannot be
folded down on models that are not
equipped with this button.

03 Your driving environment
Seats
03
88

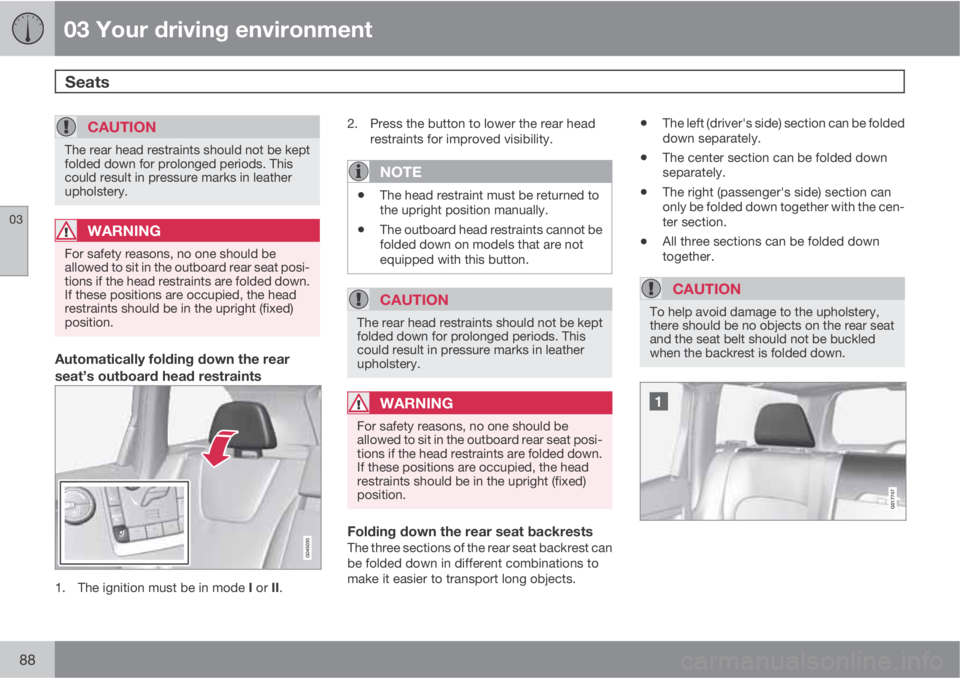

CAUTION
The rear head restraints should not be kept
folded down for prolonged periods. This
could result in pressure marks in leather
upholstery.
WARNING
For safety reasons, no one should be
allowed to sit in the outboard rear seat posi-
tions if the head restraints are folded down.
If these positions are occupied, the head
restraints should be in the upright (fixed)
position.
Automatically folding down the rear
seat’s outboard head restraints
1.
The ignition must be in mode I or II.2. Press the button to lower the rear head
restraints for improved visibility.
NOTE
•The head restraint must be returned to
the upright position manually.
•The outboard head restraints cannot be
folded down on models that are not
equipped with this button.
CAUTION
The rear head restraints should not be kept
folded down for prolonged periods. This
could result in pressure marks in leather
upholstery.
WARNING
For safety reasons, no one should be
allowed to sit in the outboard rear seat posi-
tions if the head restraints are folded down.
If these positions are occupied, the head
restraints should be in the upright (fixed)
position.
Folding down the rear seat backrestsThe three sections of the rear seat backrest can
be folded down in different combinations to
make it easier to transport long objects.
•The left (driver's side) section can be folded
down separately.
•The center section can be folded down
separately.
•The right (passenger's side) section can
only be folded down together with the cen-
ter section.
•All three sections can be folded down
together.
CAUTION
To help avoid damage to the upholstery,
there should be no objects on the rear seat
and the seat belt should not be buckled
when the backrest is folded down.
