2012 VOLVO V60 dimensions

350
Type designations................................................................................. 352
Dimensions and weights....................................................................... 354
Engine specifications............................................................................ 358
Engine oil............................................................................................... 359
Fluids and lubricants............................................................................. 361
Fuel....................................................................................................... 363
Wheel and tyres, dimensions and pressure ......................................... 366
Electrical system................................................................................... 369
Type approval....................................................................................... 370
Symbols in the display.......................................................................... 382
ProCarManuals.com

09 Specifications
Dimensions and weights 09
354
Dimensions
Dimensionsmm
AWheelbase2776
BLength4628
CLoad length, floor, folded rear
seat1749
DLoad length, floor978
EHeight1484
FLoad height658
Dimensionsmm
GFront track1588A
1578B
HRear track1585A
1575B
ILoad width, floor1082
JWidth1865
Dimensionsmm
KWidth including door mirrors2097
LWidth including folded-in door
mirrors1899
Awith 16" wheelBwith 17" wheel
ProCarManuals.com

09 Specifications
Dimensions and weights09
355 Weights
Kerb weight includes the driver, the fuel tank
90% full and all fluids.
The weight of passengers and accessories,
and towball load (when a trailer is hitched, see
table page 356) influences the payload and is
not included in the kerb weight.
Permitted max. load = Gross vehicle weight -
Kerb weight.
NOTE
The documented kerb weight applies to
cars in the standard version - i.e. a car with-
out extra equipment or accessories. This
means that for every accessory added the
loading capacity of the car is reduced cor-
respondingly by the weight of the acces-
sory.
Examples of accessories that reduce load-
ing capacity are the Kinetic/Momentum/
Summum equipment levels, as well as other
accessories such as Towbar, Load carriers,
Space box, Audio system, Auxiliary lamps,
GPS, Fuel-driven heater, Safety grille, Car-
pets, Cargo cover, Power seats, etc.
Weighing the car is a certain way of ascer-
taining the kerb weight of your own partic-
ular car.
WARNING
The car's driving characteristics change
depending on how heavily it is loaded and
how the load is distributed.
For information on decal location, see page 352.
Max. gross vehicle weight
Max. train weight (car+trailer)
Max. front axle load
Max. rear axle load
Equipment level
Max. load: See registration document.
Max. roof load: 75 kg.
ProCarManuals.com

09 Specifications
Dimensions and weights 09
356
Towing capacity and towball load
EngineGearboxMax. weight braked trailer (kg)Max. towball load (kg)
T3AManual, MMT6160075
T4AManual, MMT6160075
T4AAutomatic, MPS6160075
T4FManual, MMT6160075
T4FAutomatic, MPS6160075
T5Manual, MMT6180090
T5Automatic, MPS6180090
T6 AWDAutomatic, TF-80SC180090
DRIVeManual, MMT6130075
D3Manual, M66160075
D3Automatic, TF-80SCB160075
D3Automatic, TF-80SDC160075
D5Manual, M66160075
D5Automatic, TF-80SC180090
D5 AWDAutomatic, TF-80SC180090
ADRIVe for certain markets.BWithout Start/Stop.CWith Start/Stop.
ProCarManuals.com

09 Specifications
Dimensions and weights09
357
Max. weight unbraked trailer (kg)Max. towball load (kg)
75050
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure 09
366

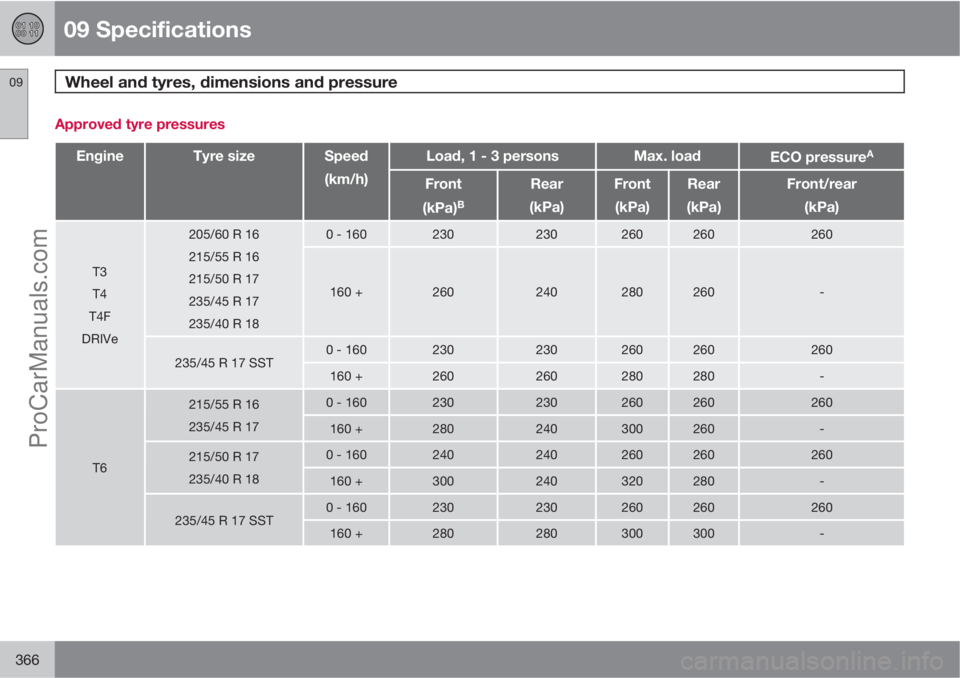

Approved tyre pressures
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T3
T4
T4F
DRIVe
205/60 R 16
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
T6
215/55 R 16
235/45 R 170 - 160230230260260260
160 +280240300260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +300240320280-
235/45 R 17 SST0 - 160230230260260260
160 +280280300300-
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure09

367
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T5
D3
D5 FWD
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
D5 AWD
215/55 R 16
235/45 R 170 - 160230230260260260
160 +260240280260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +280240300260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
Temporary Spare Tyremax. 80420420420420-
AEconomical driving.BIn certain countries there is the "bar" unit beside the SI unit "Pascal": 1 bar = 100 kPa.
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure 09
368
NOTE
All engines, tyres or combinations of these
are not always available in all markets.
