HomeLink® Wireless Control System*
03

* Option/accessory, for more information, see Introduction.111 Introduction
The HomeLink1 Wireless Control System pro-
vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters
used to activate devices such as gate opera-
tors, garage door openers, entry door locks,
security systems, even home lighting. Addi-
tional HomeLink information can be found on
the Internet at www.homelink.com.
WARNING
•If you use HomeLink to open a garage
door or gate, be sure no one is near the
gate or door while it is in motion.
•When programming a garage door
opener, it is advised to park outside of
the garage.
•Do not use HomeLink with any garage
door opener that lacks safety stop and
reverse features as required by U.S.
federal safety standards (this includes
any garage door opener model manu-
factured before April 1, 1982). A garage
door that cannot detect an object - sig-
naling the door to stop and reverse -
does not meet current U.S. federal
safety standards. For more information,
contact HomeLink at:
www.homelink.com.
Retain the original transmitter of the RF device
you are programming for use in other vehicles
as well as for future HomeLink programming. It
is also suggested that upon the sale of the
vehicle, the programmed HomeLink buttons be
erased for security purposes. Refer to “Erasing
HomeLink Buttons”.
Programming HomeLink
NOTE
Some vehicles may require the ignition
switch to be turned on or to the second
(“accessories”) position for programming
and/or operation of HomeLink. It is also rec-
ommended that a new battery be placed in
the hand-held transmitter of the device
being programmed to HomeLink for quicker
training and accurate transmission of the
radio-frequency signal.
1. Position the end of your hand-held trans-
mitter 1–3 inches (5–14 cm) away from the
HomeLink button you wish to program
while keeping the indicator light in view.
2. Simultaneously press and hold both the
chosen HomeLink and hand-held transmit-
ter buttons until the HomeLink indicator
light changes from a slow to a rapidly blink-
ing light. Now you may release both the
HomeLink and hand-held transmitter but-
tons.
1HomeLink and the HomeLink house are registered trademarks of Johnson Controls, Inc.

03 Your driving environment
HomeLink® Wireless Control System*
03
112* Option/accessory, for more information, see Introduction.
NOTE
Some devices may require you to replace
this Programming Step 2 with procedures
noted in the “Gate Operator / Canadian Pro-
gramming” section. If the HomeLink indica-
tor light does not change to a rapidly blink-
ing light after performing these steps, con-
tact HomeLink at www.homelink.com.
3.
Firmly press, hold for five seconds and
release the programmed HomeLink but-
ton up to two separate times to activate the
door. If the door does not activate, press
and hold the just-trained HomeLink button
and observe the indicator light.
•If the indicator light stays on con-
stantly, programming is complete
and your device should activate when
the HomeLink button is pressed and
released.
•If the indicator light blinks rapidly for
two seconds and then turns to a con-
stant light continue with “Program-
ming” steps 4-6 to complete the pro-
gramming of a rolling code equipped
device (most commonly a garage door
opener).
4. At the garage door opener receiver (motor-
head unit) in the garage, locate the “learn”
or “smart” button. This can usually befound where the hanging antenna wire is
attached to the motor-head unit.
5. Firmly press and release the “learn” or
“smart” button. (The name and color of the
button may vary by manufacturer.) There
are 30 seconds to initiate step 6.
6. Return to the vehicle and firmly press, hold
for two seconds and release the pro-
grammed HomeLink button. Repeat the
“press/hold/release” sequence a second
time, and, depending on the brand of the
garage door opener (or other rolling code
equipped device), repeat this sequence a
third time to complete the programming
process.
HomeLink should now activate your rolling
code equipped device.
Gate Operator/Canadian ProgrammingCanadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after sev-
eral seconds of transmission – which may not
be long enough for HomeLink to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators are
designed to “time-out” in the same manner.
If you live in Canada or you are having difficul-
ties programming a gate operator or garage
door opener by using the “Programming” pro-cedures, replace “Programming HomeLink”
step 2 with the following:
•Continue to press and hold the HomeLink
button while you press and release -
every two seconds (“cycle”) your hand-
held transmitter until the HomeLink indica-
tor light changes from a slow to a rapidly
blinking light. Now you may release both
the HomeLink and hand-held transmitter
buttons.
Proceed with “Programming” step 3 to com-
plete.
Using HomeLink
To operate, simply press and release the pro-
grammed HomeLink button. Activation will
now occur for the trained device (i.e., garage
door opener, gate operator, security system,
entry door lock, home/office lighting, etc.). For
convenience, the hand-held transmitter of the
device may also be used at any time. In the
event that there are still programming difficul-
ties or questions, contact HomeLink at:
www.homelink.com.

03 Your driving environment
HomeLink® Wireless Control System*
03
* Option/accessory, for more information, see Introduction.113 Erasing HomeLink Buttons
To erase programming from the three Home-
Link buttons (individual buttons cannot be
erased but can be “reprogrammed” as outlined
below), follow the step noted:
1. Press and hold the two outer HomeLink
buttons until the indicator light begins to
flash-after 10 seconds.
2. Release both buttons. Do not hold for
longer that 20 seconds.
HomeLink is now in the train (or learning) mode
and can be programmed at any time beginning
with “Programming” - step 1.
Reprogramming a Single HomeLink
Button
To program a device to HomeLink using a
HomeLink button previously trained, follow
these steps:
1. Press and hold the desired HomeLink but-
ton. DO NOT release the button.
2. The indicator light will begin to flash after
20 seconds. Without releasing the Home-
Link button, proceed with “Programming”
- step 1.For questions or comments, contact HomeLink
at: www.homelink.com or 1–800–355–3515.
This device complies with FCC rules part 15
and Industry Canada (IC) RSS-210. Operation
is subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference that may be received including
interference that may cause undesired opera-
tion.
NOTE
The transmitter has been tested and com-
plies with FCC and IC rules. Changes or
modifications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate the
device.
2
2The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.

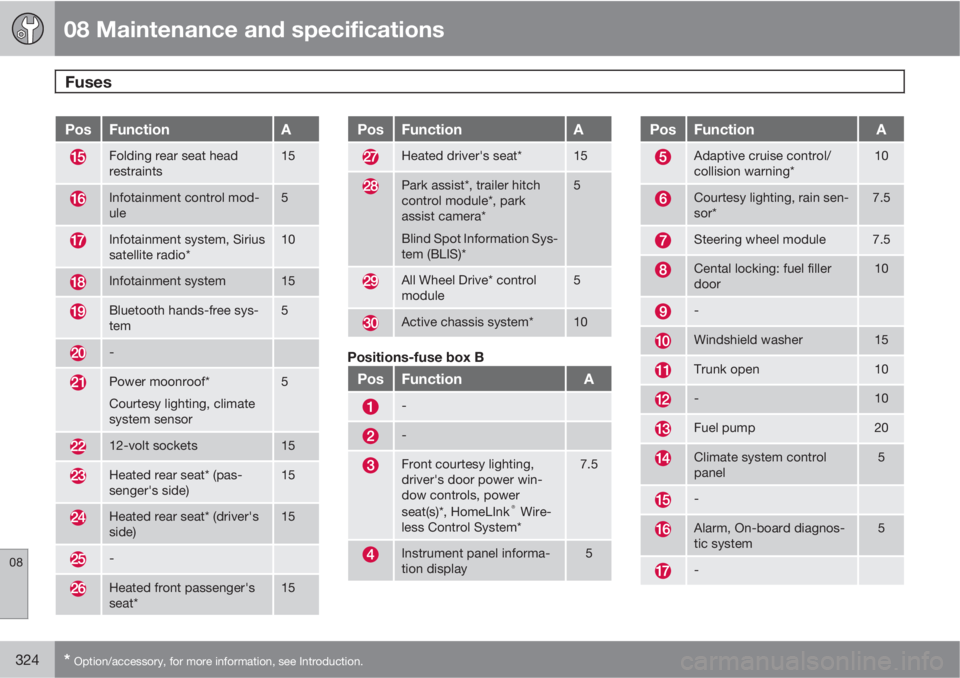

08 Maintenance and specifications
Fuses
08
324* Option/accessory, for more information, see Introduction.
PosFunctionA
Folding rear seat head
restraints15
Infotainment control mod-
ule5
Infotainment system, Sirius
satellite radio*10
Infotainment system15
Bluetooth hands-free sys-
tem5
-
Power moonroof*
Courtesy lighting, climate
system sensor5
12-volt sockets15
Heated rear seat* (pas-
senger's side)15
Heated rear seat* (driver's
side)15
-
Heated front passenger's
seat*15
PosFunctionA
Heated driver's seat*15
Park assist*, trailer hitch
control module*, park
assist camera*
Blind Spot Information Sys-
tem (BLIS)*5
All Wheel Drive* control
module5
Active chassis system*10
Positions-fuse box B
PosFunctionA
-
-
Front courtesy lighting,
driver's door power win-
dow controls, power
seat(s)*, HomeLInk
® Wire-
less Control System*
7.5
Instrument panel informa-
tion display5
PosFunctionA
Adaptive cruise control/
collision warning*10
Courtesy lighting, rain sen-
sor*7.5
Steering wheel module7.5
Cental locking: fuel filler
door10
-
Windshield washer15
Trunk open10
-10
Fuel pump20
Climate system control
panel5
-
Alarm, On-board diagnos-
tic system5
-

10 Index
10
350
E
ECC.................................................144, 145
Economical driving.................................. 250
Electric parking brake.............................. 124
Electronic Climate Control.......142, 144, 145
air distribution table............................ 146
Interior Air Quality System.................. 145
Emergency locking retractor...................... 40
Emergency starting.................................. 116
Emergency towing...........................265, 266
Emission inspection readiness................ 299
Engine
overheating........................................... 83
specifications...................................... 338
starting................................................ 114
switching off....................................... 116
Engine compartment overview................301
Engine Drag Control (EDC)......................149
Engine oil
checking............................................. 302
low pressure warning light.............. 81, 82
specifications...................................... 339
volumes.............................................. 340
Environment............................................... 13Eyelets for anchoring loads..................... 259
F
Federal Clean Air Act............................... 298
Floor mats
cleaning.............................................. 329
placing correctly................................. 114
Fluid specifications.................................. 341
Fog lights
front/rear............................................... 98
Four C (active chassis system)................152
Front airbags.............................................. 25
disconnecting passenger’s side air-
bag.................................................. 29, 30
Front park assist.............................. 187, 189
Front seats...........................................88, 90
Fuel filler cap........................................... 257
Fuel filler door, opening........................... 256
Fuel level warning light.............................. 81
Fuel requirements............................ 254, 255
Fuel tank volume.....................................341
Fuses............................... 319, 320, 323, 326
G
Garage door opener
HomeLink® Wireless Control System. 111
Gasoline requirements............................. 255
Gas tank volume...................................... 341
Gauges...................................................... 79
Geartronic................................................ 119
Geartronic automatic transmission.. 118, 119
Generator warning light............................. 82
Glossary of tire terminology..................... 278
Grocery bag holder.................................. 260
Gross vehicle weight...............................279
H
Hazard warning flashers............................ 98
HD digital radio........................................ 215
Headlights
Active Bending Lights........................... 97
changing bulbs................................... 308
high/low beams.................................... 96
high beam flash.................................... 96
Headlight washers................................... 103

10 Index
10
351
Head restraints, rear seat.......................... 91
Heated oxygen sensors........................... 258
Heated rear seats.................................... 143
High beams................................................ 96
indicator light........................................ 81
Hoisting the vehicle.................................299
HomeLink
® Wireless Control System...... 111
Home safe lighting................................... 100
Hood, opening/closing............................301
Horn........................................................... 95
I
Ignition modes........................................... 86
Immobilizer................................................ 55
Important information.................................. 8
Indicator lights.........................79, 80, 81, 82
Infant seats................................................ 44
Inflatable Curtain........................................ 35
Inflation pressure..................................... 273
Inflation pressure table............................275
Information and warning symbols, table
of.............................................................. 343Information lights.....................79, 80, 81, 82
Information symbol.................................... 81
Infotainment system................................ 204
AUX/USB sockets............................... 226
Bluetooth
Ÿ devices............................. 229
Bluetooth® hands-free system........... 232
general functions................................ 210
getting started.................................... 206
media player....................................... 222
menus................................................. 244
radio functions.................................... 213
sound settings.................................... 211
voice control....................................... 240
Inspection readiness................................ 299
Instrument lighting..................................... 96
Instrument overview............................78, 79
Instrument panel...................................... 131
Interior Air Quality System....................... 140
Interior lighting................................... 99, 100
iPodŸ connector (audio system)............. 226
ISOFIX/LATCH anchors............................. 49
J
Jack
attaching.............................................290
location of........................................... 290
Jump starting........................................... 116
K
Key blade.................................54, 59, 62, 63
private locking...................................... 62
valet locking.......................................... 62
Keyless drive
general description............................... 63
starting the vehicle.............................114
L
Labels
list of................................................... 335
location of........................................... 334
LATCH anchors......................................... 49
Leather care............................................. 329
Lighting panel............................................ 96
Load anchoring eyelets...........................259
