04 Comfort and driving pleasure
Park assist*
04

* Option/accessory, for more information, see Introduction.187 Introduction
The park assist system is designed to assist
you when driving into parking spaces, garages,
etc. It utilizes ultrasound sensors in the front
bumper and rear bumper(s) to measure the dis-
tance to a vehicle or an object that may be
close to the front or rear of your vehicle. An
audible signal and symbols in the audio sys-
tem’s display indicate the distance to the
object.
WARNING
Park Assist is an information system, NOT a
safety system. This system is designed to
be a supplementary aid when parking the
vehicle. It is not, however, intended to
replace the driver's attention and judge-
ment.
Function
Park assist button
The system is activated automatically when the
vehicle is started. The indicator light in the but-
ton in the center console illuminates when the
system is on.
•The front park assist system is active from
the time the engine is started until the vehi-
cle exceeds a speed of approximately
10 mph (15 km/h). It is also active when the
vehicle is backing up.
•Rear park assist is active when the engine
is running and reverse gear has been
selected.
Activating/deactivatingThe system is activated automatically when the
vehicle is started.

Press the Park assist button on the center
console to temporarily deactivate the sys-
tem(s).
> The indicator light in the button will go
out when the system has been deacti-
vated.
Park assist will be automatically reactivated the
next time the engine is started, or if the button
is pressed (the indicator light in the button will
illuminate).
NOTE
Park assist is disengaged automatically
when the parking brake is applied.

04 Comfort and driving pleasure
Park assist*
04

* Option/accessory, for more information, see Introduction.189
Front park assist
The distance monitored in front of the vehicle
is approximately 2.5 ft (0.8 m). The audible sig-
nal comes from the audio system's front
speakers.
It may not be possible to combine auxiliary
headlights and front park assist since these
lights could trigger the system's sensors.
NOTE
Front park assist is deactivated when the
parking brake is applied and or when the
gear selector is in the P position.
Faults in the system
If the information symbol illuminates and Park
assist syst Service required is shown on the
information display, this indicates that the sys-
tem is not functioning properly and has been
disengaged. Consult a trained and qualified
Volvo service technician.
CAUTION
In certain circumstances, the park assist
system may give unexpected warning sig-
nals that can be caused by external sound
sources that use the same ultrasound fre-
quencies as the system. This may include
such things as the horns of other vehicles,
wet tires on asphalt, pneumatic brakes,
motorcycle exhaust pipes, etc. This does
not indicate a fault in the system.
Cleaning the sensors
Location of the front sensors
Location of the rear sensors
The sensors must be cleaned regularly to
ensure that they work properly. Clean them

08 Maintenance and specifications
Fuses
08

* Option/accessory, for more information, see Introduction.325
PosFunctionA
Airbag system, occupant
weight sensor10
Collision warning system*5
Accelerator pedal, auto-
dim mirror function, heated
rear seats*7.5
-
Brake lights5
Power moonroof*20
Immobilizer5

08 Maintenance and specifications
Vehicle care
08
328
not have facilities for washing the under-
body.
CAUTION
•Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.
•Make sure that side view mirrors, auxil-
iary lamps, etc, are secure, and that any
antenna(s) are retracted or removed.
Otherwise there is risk of the machine
dislodging them.
•Chromed wheels: Clean chrome-
plated wheels using the same deter-
gents used for the body of the vehicle.
Aggressive wheel-cleaning agents can
permanently stain chrome-plated
wheels.
WARNING
•When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several
times in order to remove any moisture
from the brake linings.
•Engine cleaning agents should not be
used when the engine is warm. This
constitutes a fire risk.
Exterior lightingCondensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights, fog lights, or taillights. This is nor-
mal and the lights are designed to withstand
moisture. Normally, condensation will dissi-
pate after the lights have been on for a short
time.
Polishing and waxing
•Normally, polishing is not required during
the first year after delivery, however, wax-
ing may be beneficial.
•Before applying polish or wax the vehicle
must be washed and dried. Tar spots can
be removed with kerosene or tar remover.
Difficult spots may require a fine rubbing
compound.
•After polishing use liquid or paste wax.
•Several commercially available products
contain both polish and wax.
•Waxing alone does not substitute for pol-
ishing a dull surface.
•A wide range of polymer-based waxes can
be purchased today. These waxes are easy
to use and produce a long-lasting, high-
gloss finish that protects the bodywork
against oxidation, road dirt and fading.
•Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).
CAUTION
Volvo does not recommend the use of long-
life or durable paint protection coatings,
some of which may claim to prevent pitting,
fading, oxidation, etc. These coatings have
not been tested by Volvo for compatibility
with your vehicle's clear coat. Some of them
may cause the clear coat to soften, crack,
or cloud. Damage caused by application of
paint protection coatings may not be cov-
ered under your vehicle's paint warranty.
Cleaning the interior
Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly
and follow the instructions included with the
car care product.
Upholstery care
Fabric
Clean with soapy water or a detergent. For
more difficult spots caused by oil, ice cream,
shoe polish, grease, etc., use a clothing/fabric
stain remover. Consult your Volvo retailer.
AlcanteraTM suede-like materialSuede-like upholstery can be cleaned with a
soft cloth and mild soap solution.

09 Specifications
Overview of information and warning symbols09

* Option/accessory, for more information, see Introduction.343 Introduction

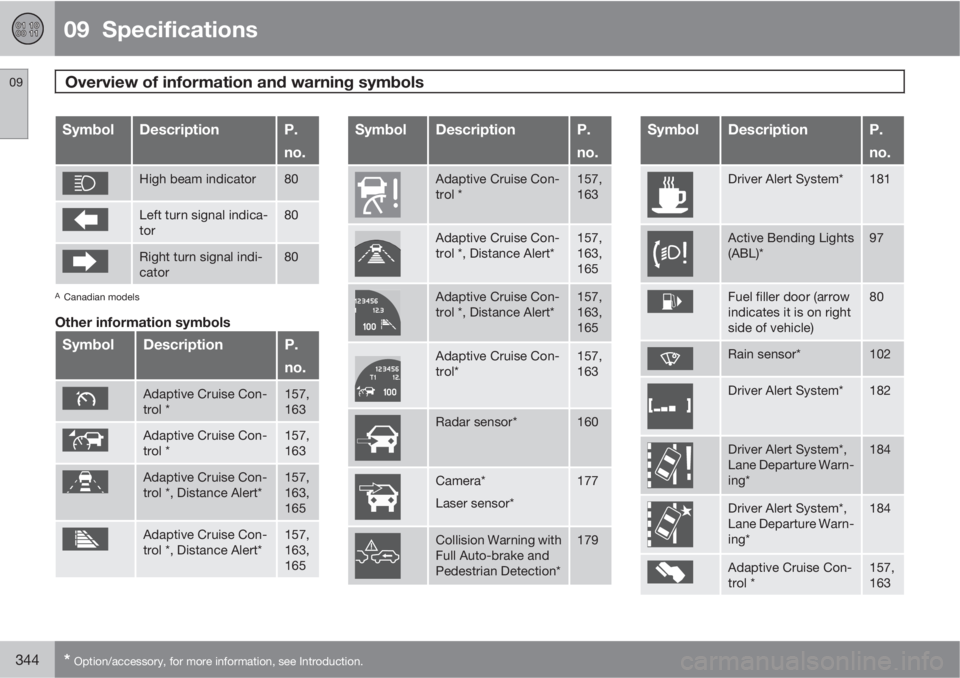

The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their meaning and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to
indicate a problem related to safety and/or
drivability. A message will also appear in the
main instruments panel's display.
Information symbol
The information symbol lights up and a
text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.
Symbols in the main instrument panel
Warning symbols
SymbolDescriptionP.
no.
Low oil pressure82
A
Parking brake82
SRS airbags82
Seat belt reminder83
Generator not charg-
ing83
A
Fault in the brake sys-
tem83
Warning symbol83
ACanadian models
Indicator symbols
SymbolDescriptionP.
no.
Fault in the Active
Bending Light
(ABL)*system81
A
Malfunction indicator
light81
A
Anti-lock brake sys-
tem (ABS)81
Rear fog light on81
Stability system
(DSTC), Trailer Stabil-
ity Assist*81
Tire pressure monitor-
ing sensor (TPMS)81
Low fuel level81
Information symbol,
see text in information
display81

09 Specifications
Overview of information and warning symbols 09
344* Option/accessory, for more information, see Introduction.
SymbolDescriptionP.
no.
High beam indicator80
Left turn signal indica-
tor80
Right turn signal indi-
cator80
ACanadian models
Other information symbols
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *157,
163
Adaptive Cruise Con-
trol *157,
163
Adaptive Cruise Con-
trol *, Distance Alert*157,
163,
165
Adaptive Cruise Con-
trol *, Distance Alert*157,
163,
165
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *157,
163
Adaptive Cruise Con-
trol *, Distance Alert*157,
163,
165
Adaptive Cruise Con-
trol *, Distance Alert*157,
163,
165
Adaptive Cruise Con-
trol*157,
163
Radar sensor*160
Camera*
Laser sensor*177
Collision Warning with
Full Auto-brake and
Pedestrian Detection*179
SymbolDescriptionP.
no.
Driver Alert System*181
Active Bending Lights
(ABL)*97
Fuel filler door (arrow
indicates it is on right
side of vehicle)80
Rain sensor*102
Driver Alert System*182
Driver Alert System*,
Lane Departure Warn-
ing*184
Driver Alert System*,
Lane Departure Warn-
ing*184
Adaptive Cruise Con-
trol *157,
163

10 Index
10
352
Loading the vehicle.......................... 259, 279
roof loads............................................ 261
Locking...................................................... 67
Locking the vehicle.................................... 57
Locks, child safety..................................... 51
Low beams................................................ 96
Low fuel level warning light........................ 81
Low oil pressure warning light................... 82
M
Main instrument panel............................. 131
Maintenance............................................ 298
hoisting the vehicle............................. 299
performed by the owner.....................299
Malfunction indicator light......................... 80
Media player (infotainment system)......... 222
Menu........................................................ 133
Messages in the instrument panel........... 131
Mirrors
defroster............................................. 107
power door......................................... 106
rearview, auto-dim function................ 107retractable........................................... 106
vanity.................................................. 201
Moonroof................................................. 109
Motor oil
checking............................................. 302
specifications...................................... 339
volumes.............................................. 340
MY CAR................................................... 133
O
Occupant safety........................................ 18
Occupant weight sensor...................... 29, 30
Octane recommendations.......................255
Odometer, trip........................................... 84
Oil
checking............................................. 302
specifications...................................... 339
volumes.............................................. 340
On Call Roadside Assistance.................. 346
Overhead courtesy lighting................ 99, 100
Overheating, engine................................... 83
Oxygen sensors, heated.......................... 258
P
Paint, touching up.................................... 330
Park assist.......................................187, 189
Park Assist Camera................................. 191
Parking brake
electric, applying/releasing................. 124
warning light......................................... 82
Parking lights............................................. 98
Personal Car Communicator, unique func-
tions........................................................... 58
Polishing.................................................. 328
Power front seat
memory function................................... 89
with keyless drive................................. 90
Power mirrors.......................................... 106
defroster............................................. 107
Power moonroof...................................... 109
Power steering
fluid..................................................... 305
speed-dependent............................... 152
Power steering fluid................................. 341
Power windows....................................... 104
Pregnancy, using seat belts during........... 22
Private locking........................................... 62
