60 1-1. Hybrid system (hybrid vehicle)
YARIS_F (including HV)_WE_52C79E
Trip information screen
Press “CAR”. (P. 58)
If the “Energy monitor” or “Past record” screen is displayed, touch “Trip
information”.
Average vehicle speed
Elapsed time
Cruising range
Fuel consumption in the past
15 minutes
Current fuel consumption
Reset the trip information data
“Past record” screen appears
“Energy monitor” screen
appears
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual conditions.

61 1-1. Hybrid system (hybrid vehicle)
1
Before driving
YARIS_F (including HV)_WE_52C79E
Past record screen
Press “CAR”. (P. 58)
If the “Energy monitor” or “Trip information” screen is displayed, touch
“Past record”.
Previous fuel economy record
Current fuel economy
Best recorded fuel economy
Update the past record data
Reset the past record data
“Trip information” screen
appears
“Energy monitor” screen
appears
The image is example only, and may vary slightly from actual conditions.
Resetting the consumption data
Selecting “Clear” on the “Trip information” screen will reset the fuel con-
sumption and the regenerated energy for the past 15 minutes. Selecting
“Clear” on the “Past record” screen will reset the past records and best past
fuel consumption. Selecting “Yes” on the following screen will confirm reset-
ting of all the data.

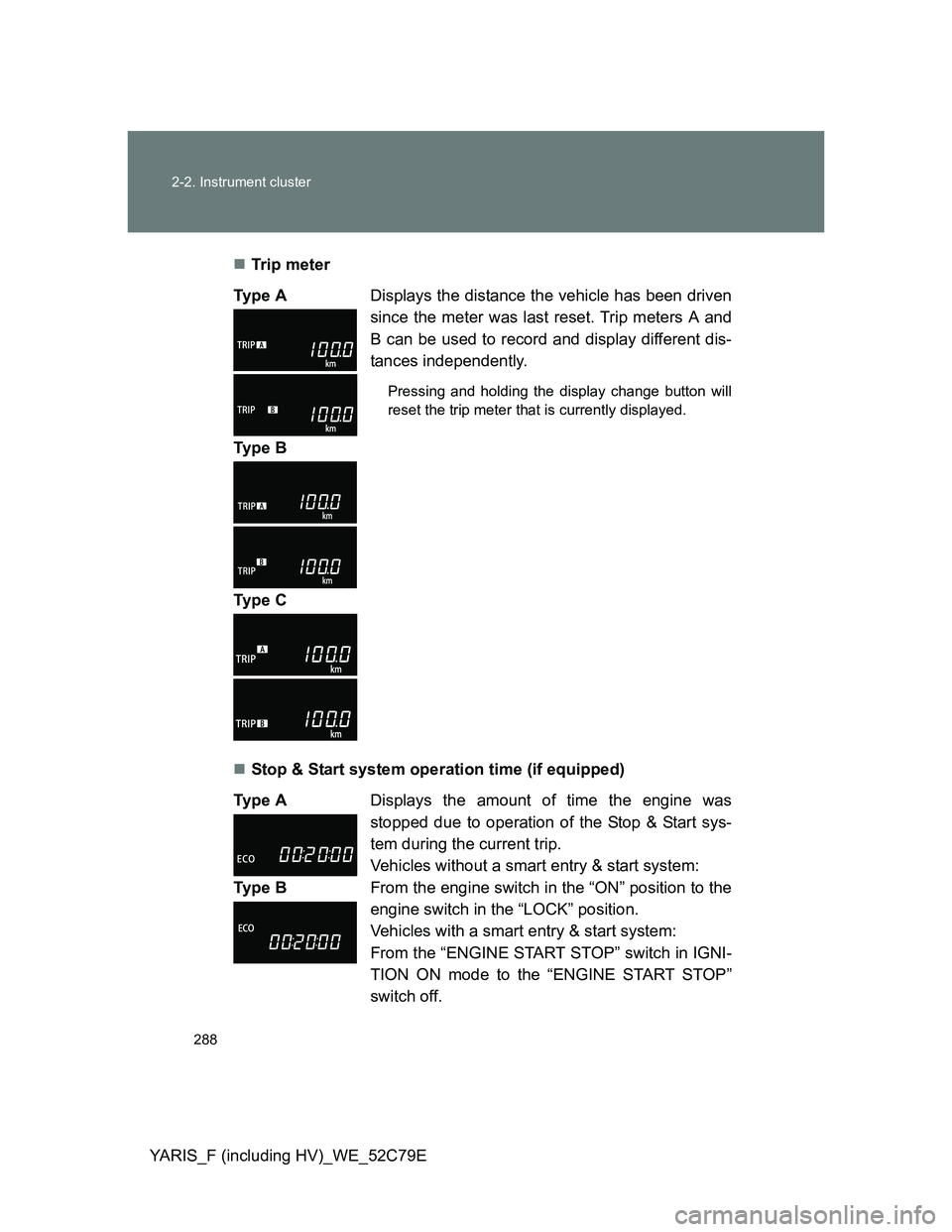

288 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79ETr ip m eter
Stop & Start system operation time (if equipped) Ty p e ADisplays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Ty p e B
Ty p e C
Ty p e ADisplays the amount of time the engine was
stopped due to operation of the Stop & Start sys-
tem during the current trip.
Vehicles without a smart entry & start system:
From the engine switch in the “ON” position to the
engine switch in the “LOCK” position.
Vehicles with a smart entry & start system:
From the “ENGINE START STOP” switch in IGNI-
TION ON mode to the “ENGINE START STOP”
switch off. Ty p e B

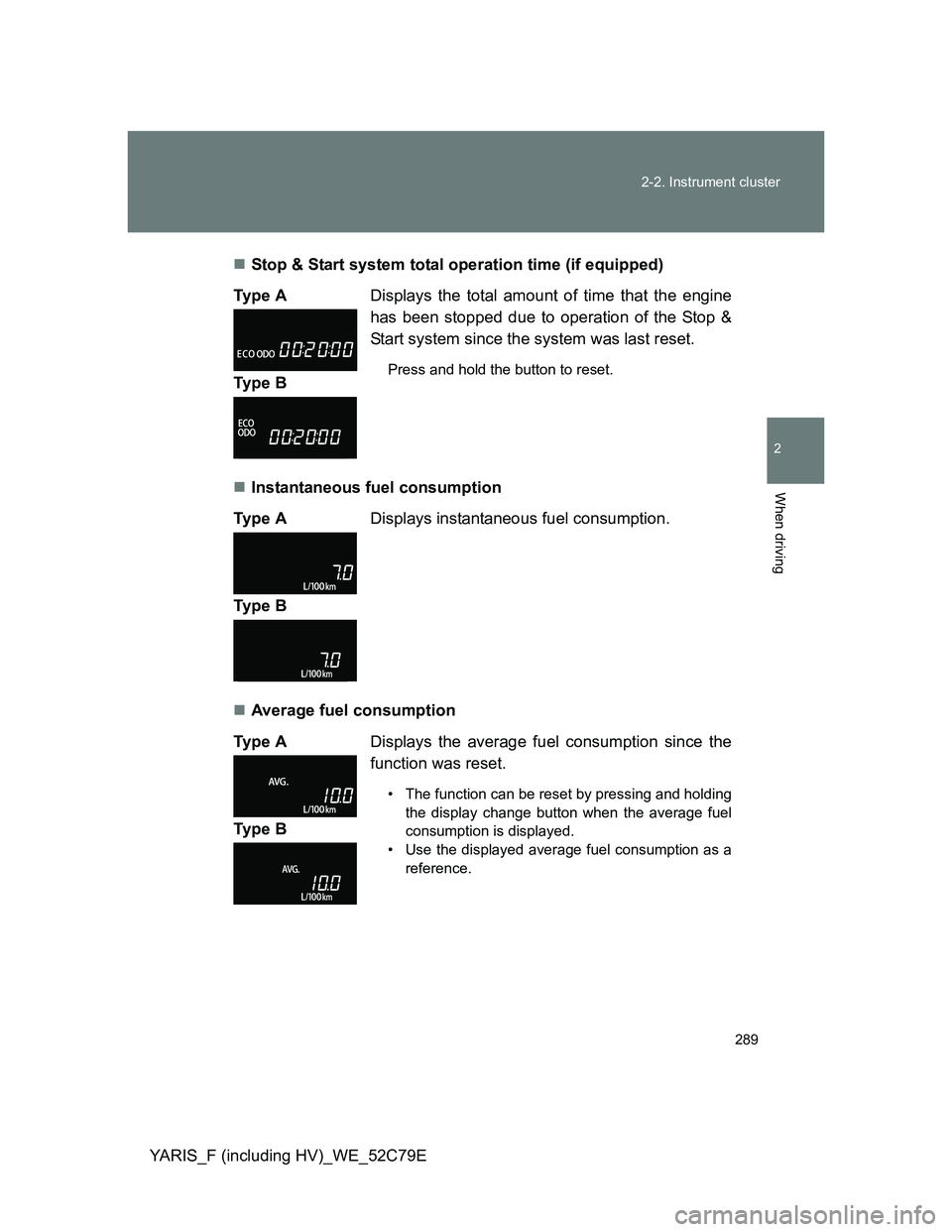

289 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79EStop & Start system total operation time (if equipped)
Instantaneous fuel consumption
Average fuel consumption Ty p e ADisplays the total amount of time that the engine
has been stopped due to operation of the Stop &
Start system since the system was last reset.
Press and hold the button to reset.Ty p e B
Ty p e ADisplays instantaneous fuel consumption.
Ty p e B
Ty p e ADisplays the average fuel consumption since the
function was reset.
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Ty p e B

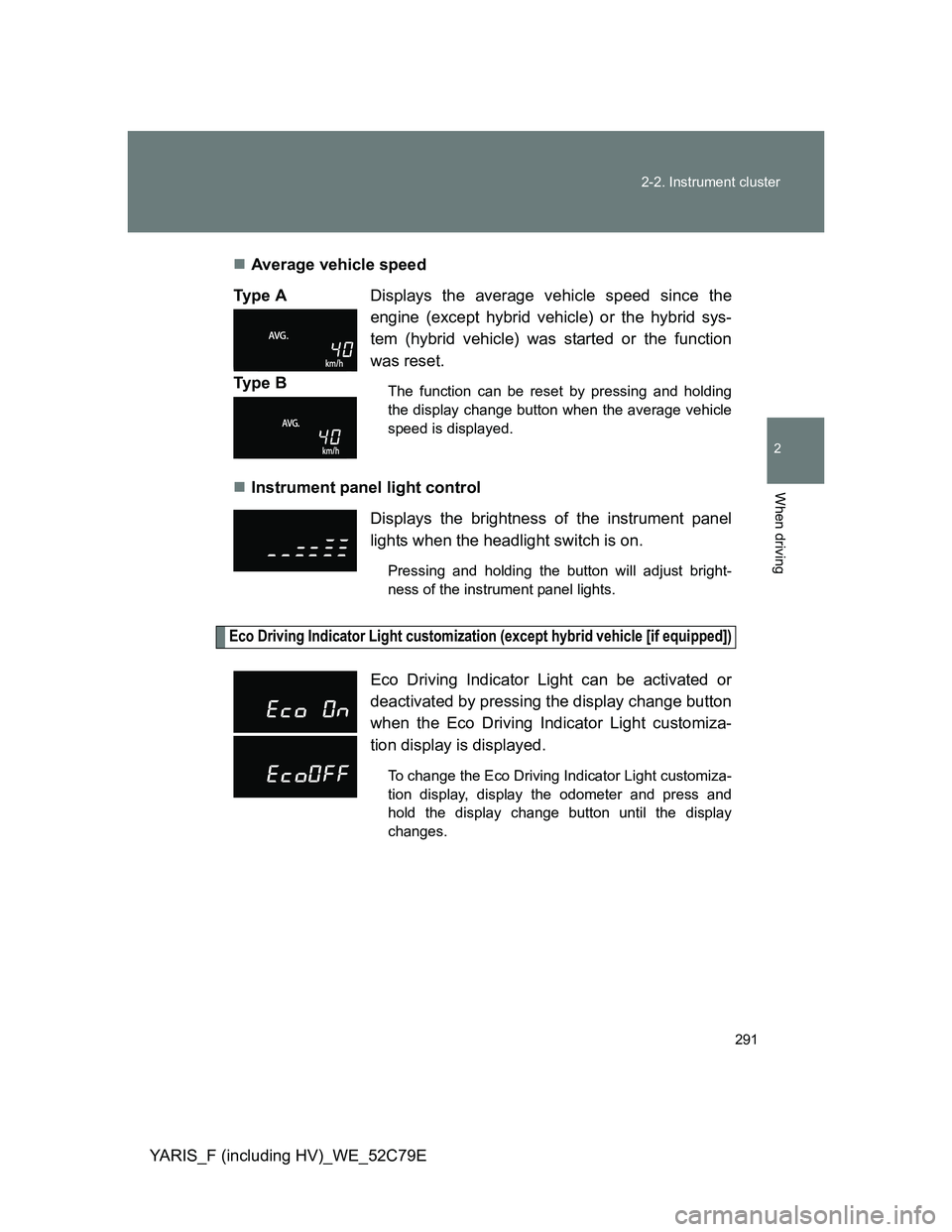

291 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79EAverage vehicle speed
Instrument panel light control
Eco Driving Indicator Light customization (except hybrid vehicle [if equipped])
Ty p e ADisplays the average vehicle speed since the
engine (except hybrid vehicle) or the hybrid sys-
tem (hybrid vehicle) was started or the function
was reset.
The function can be reset by pressing and holding
the display change button when the average vehicle
speed is displayed.Ty p e B
Displays the brightness of the instrument panel
lights when the headlight switch is on.
Pressing and holding the button will adjust bright-
ness of the instrument panel lights.
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change button
when the Eco Driving Indicator Light customiza-
tion display is displayed.
To change the Eco Driving Indicator Light customiza-
tion display, display the odometer and press and
hold the display change button until the display
changes.

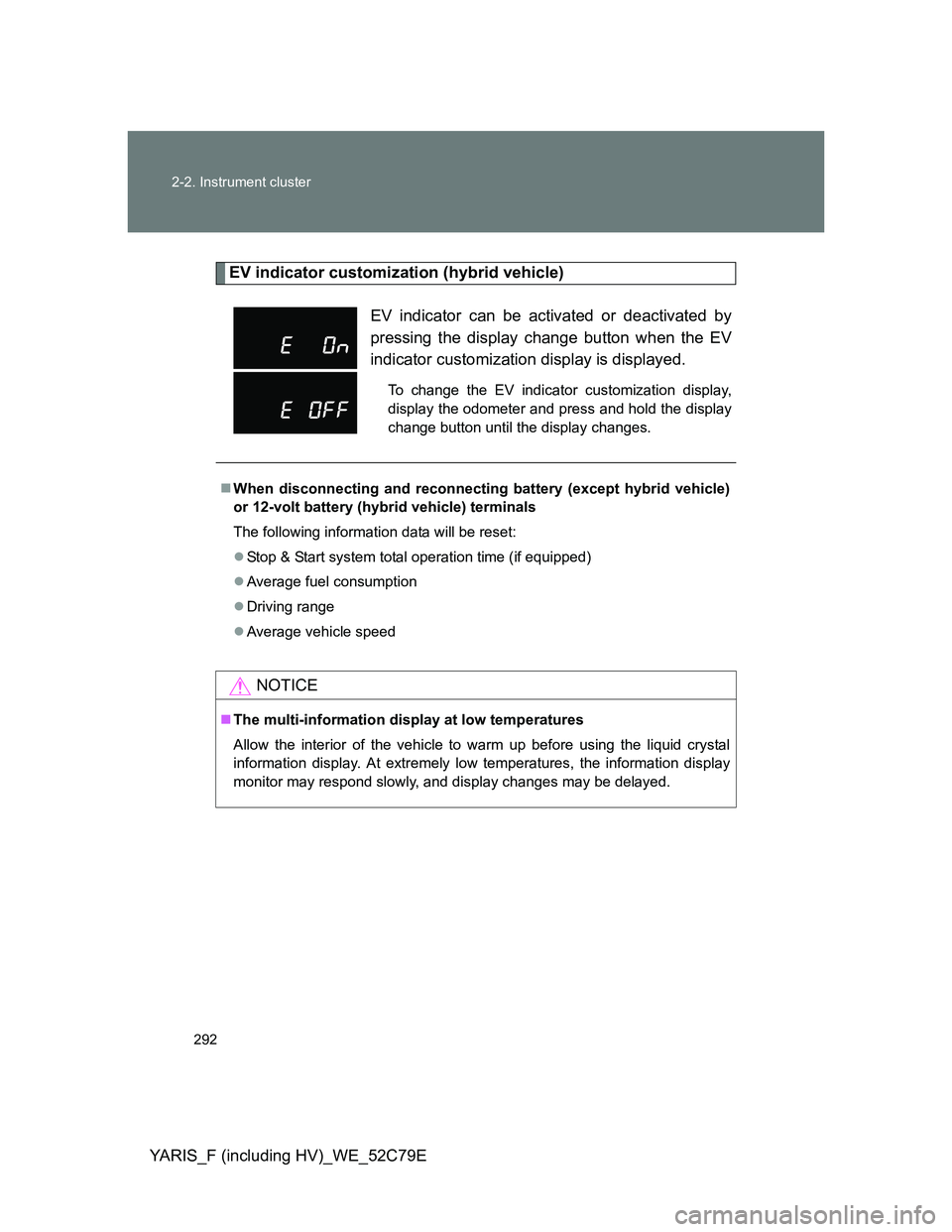

292 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79E
EV indicator customization (hybrid vehicle)
EV indicator can be activated or deactivated by
pressing the display change button when the EV
indicator customization display is displayed.
To change the EV indicator customization display,
display the odometer and press and hold the display
change button until the display changes.
When disconnecting and reconnecting battery (except hybrid vehicle)
or 12-volt battery (hybrid vehicle) terminals
The following information data will be reset:
Stop & Start system total operation time (if equipped)
Average fuel consumption
Driving range
Average vehicle speed
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

313 2-4. Using other driving systems
2
When driving
YARIS_F (including HV)_WE_52C79E
Cruise control can be set when
Vehicles with a hybrid transmission: The shift lever is in D.
Vehicles with a Multidrive: The shift lever is in the D or range 4 or higher
of M has been selected.
Vehicles with a paddle shift switch: Range 4 or higher has been selected
by using the paddle shift.
Vehicle speed is above approximately 40 km/h (25 mph).
Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below approximately 40 km/h (25 mph).
VSC is activated (if equipped).
Speed limiter is activated (if equipped).
If the cruise control indicator light flashes (except hybrid vehicle)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

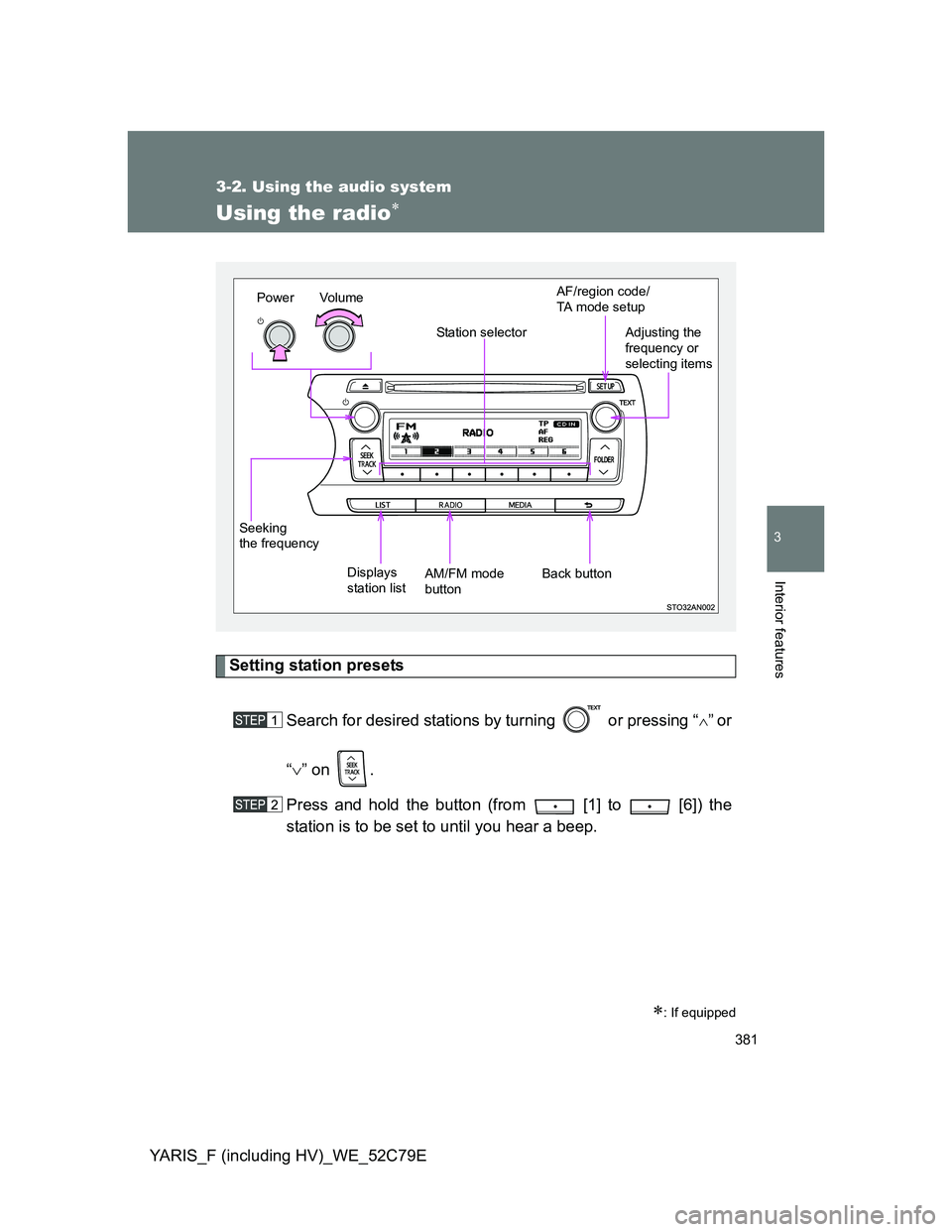

381
3-2. Using the audio system
3
Interior features
YARIS_F (including HV)_WE_52C79E
Using the radio
Setting station presets
Search for desired stations by turning or pressing “
”or
“” on .
Press and hold the button (from [1] to [6]) the
station is to be set to until you hear a beep.
: If equipped
Vo l u m e
Displays
station listStation selector
Seeking
the frequencyAdjusting the
frequency or
selecting items
AM/FM mode
buttonPowerAF/region code/
TA mode setup
Back button
