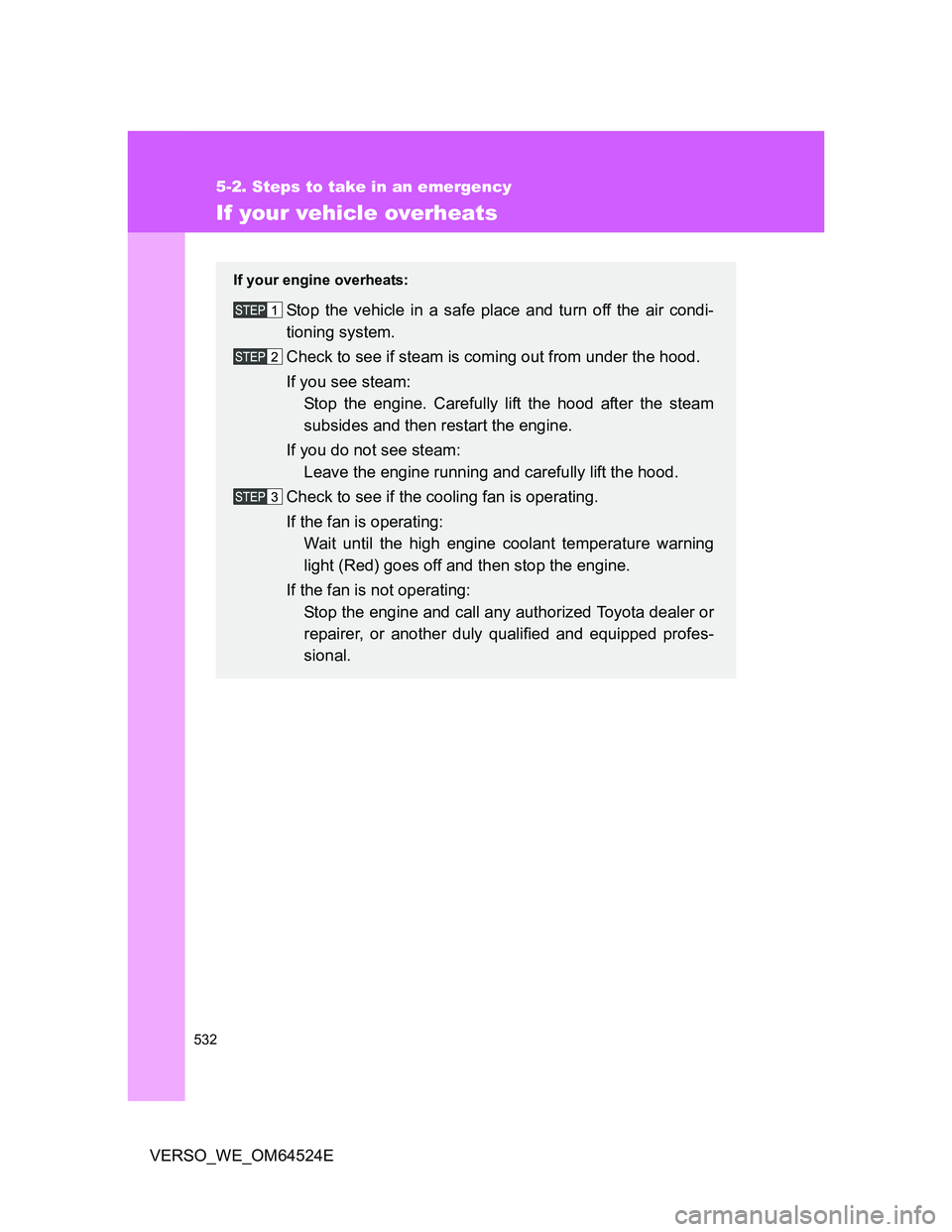

5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam
subsides and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the high engine coolant temperature warning
light (Red) goes off and then stop the engine.
If the fan is not operating:
Stop the engine and call any authorized Toyota dealer or
repairer, or another duly qualified and equipped profes-
sional.

5

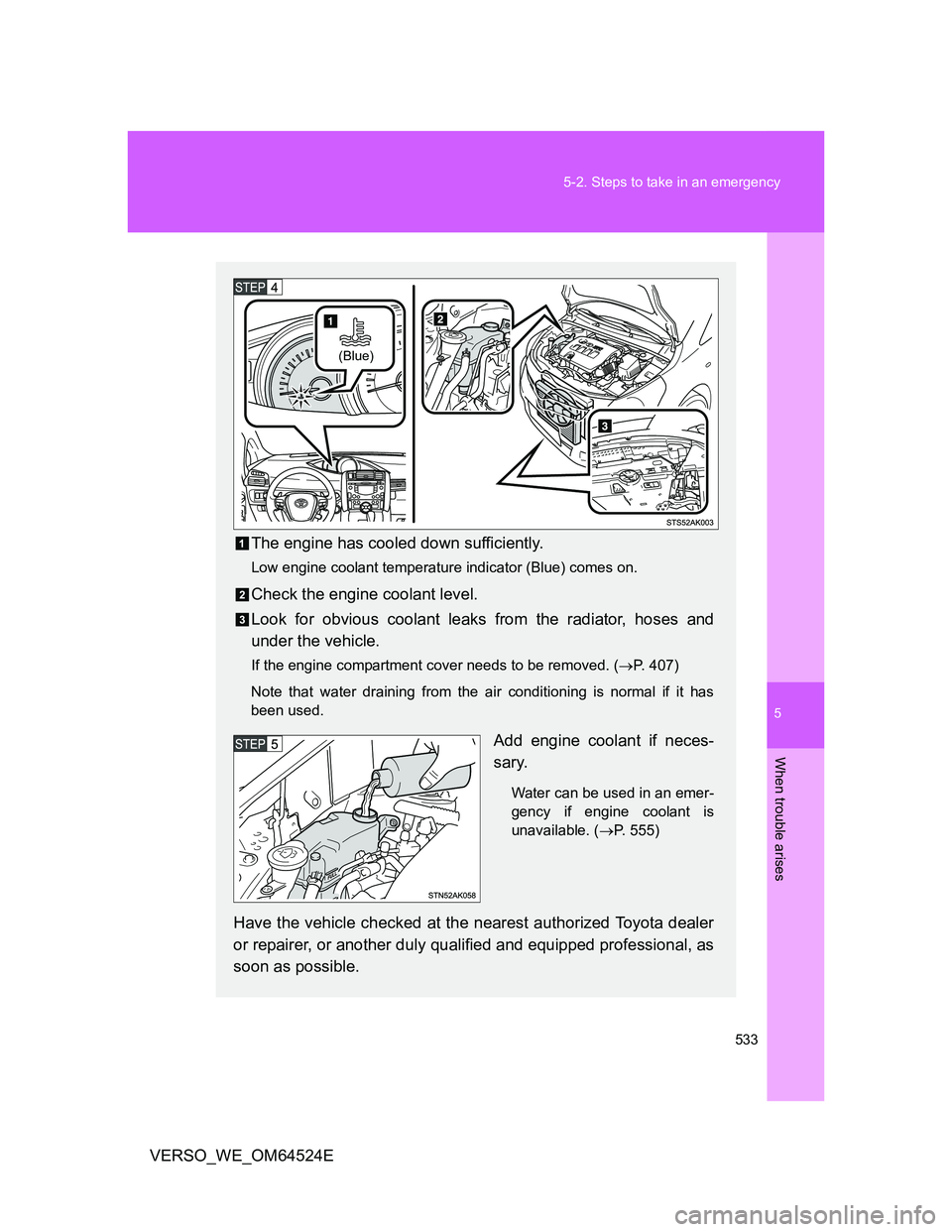

533 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
The engine has cooled down sufficiently.
Low engine coolant temperature indicator (Blue) comes on.
Check the engine coolant level.
Look for obvious coolant leaks from the radiator, hoses and
under the vehicle.
If the engine compartment cover needs to be removed. (P. 407)
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. (P. 555)
Have the vehicle checked at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional, as
soon as possible.
(Blue)

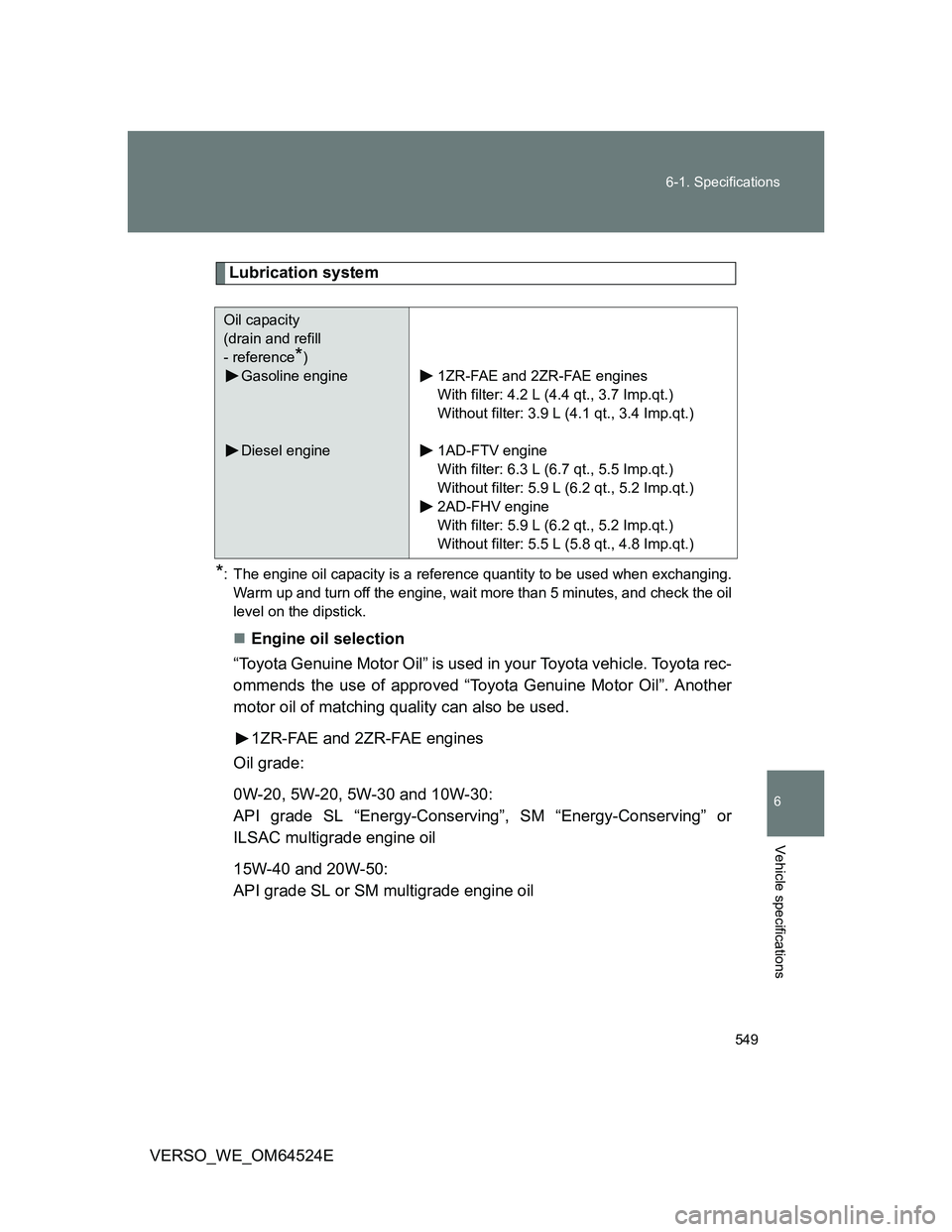

549 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
1ZR-FAE and 2ZR-FAE engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(drain and refill
- reference
*)
Gasoline engine
Diesel engine1ZR-FAE and 2ZR-FAE engines
With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV engine
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
2AD-FHV engine
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)

556 6-1. Specifications
VERSO_WE_OM64524E
Ignition system (gasoline engine only)
Electrical system
Multidrive (2ZR-FAE engine)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at 20C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Fluid capacity
(reference)7.7 L (8.1 qt., 6.8 Imp.qt.)
Fluid typeToyota Genuine CVT FLUID TC

578 Alphabetical index
VERSO_WE_OM64524E
Engine
Accessory mode ................... 190
Compartment ........................ 405
Engine switch ................ 186, 190
Hood ..................................... 401
How to start the
engine ......................... 186, 190
Identification number............. 544
If the engine will not start ...... 519
If you run out of fuel and
the engine stalls.................. 535
Ignition switch ............... 186, 190
Overheating .......................... 532
Engine compartment cover .... 407
Engine coolant
Capacity ................................ 555
Checking ............................... 413
Preparing and checking
before winter ....................... 278
Engine coolant temperature
indicator (Blue) ...................... 224
Engine coolant temperature
warning light (Red) ................ 475
Engine immobilizer system .... 112
Engine oil
Capacity ................................ 549
Checking ............................... 408
Preparing and checking
before winter ....................... 278
Engine oil maintenance
data ......................................... 411
Engine switch................... 186, 190
Engine switch lights ................ 349
EPS............................................ 267Floor mat .................................. 377
Fluid
Washer ................................. 418
Fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Foot light .................................. 349
Front fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Front passenger’s seat belt
reminder light ........................ 478
Front position lights
Replacing light bulbs............. 450
Switch ................................... 239
Wattage ................................ 563
Front seats
Adjustment .............................. 77
Front turn signal lights
Replacing light bulbs............. 450
Switch ................................... 213
Wattage ................................ 563
Fuel
Capacity ................................ 547
Fuel gauge ............................ 217
Fuel pump shut off system.... 474
Gas station information ......... 588
If you run out of fuel and
the engine stalls ................. 535
Information ............................ 564
Refueling............................... 105
Type ...................................... 547
Fuel door .................................. 105
Fuel filler door.......................... 105
Fuel filter .................................. 419
Fuel pump shut off system ..... 474
Fuses ........................................ 436F

583 Alphabetical index
VERSO_WE_OM64524E
Sunshade
Panoramic roof...................... 373
Rear side............................... 376
Switch
Airbag manual on/off ............. 167
Emergency flasher switch ..... 464
Engine switch ................ 186, 190
Fog light switch ..................... 244
Hazard light switch ................ 464
Ignition switch ............... 186, 190
Light switches ....................... 239
Power window switch ............ 102
Rear window wiper and
washer switch ..................... 251
“SPORT” switch ............ 197, 203
Window lock switch ............... 102
Wipers and washer
switch.......................... 246, 251
Tachometer .............................. 217
Tail lights
Switch ................................... 239
Theft deterrent system
Alarm..................................... 122
Double locking system .......... 120
Engine immobilizer system ... 112
Intrusion sensor .................... 124
Tire inflation pressure ............. 424Tires
Chains................................... 280
Checking ............................... 421
Emergency tire puncture
repair kit.............................. 506
If you have a flat
tire .............................. 490, 506
Inflation pressure .................. 424
Replacing .............................. 490
Rotating tires......................... 421
Size ....................................... 560
Snow tires ............................. 278
Spare tire .............................. 490
Tools................................. 490, 506
Toyota parking
assist-sensor ......................... 259
Towing
Emergency towing ................ 466
Trailer towing ........................ 282
Traction control ....................... 267
Transmission shift
switches ......................... 196, 202
Trailer towing ........................... 282
TRC ........................................... 267
Trip information display.......... 227
Trip meter ................................. 217
Turn signal lights
Replacing light bulbs............. 450
Switch ................................... 213
Wattage ................................ 563
T

584 Alphabetical index
VERSO_WE_OM64524E
Vanity lights
Vanity lights........................... 362
Wattage................................. 563
Vanity mirrors .......................... 362
Vehicle identification
number ................................... 544
Vehicle stability control+ ........ 267
VSC+ ......................................... 267
Warning buzzers
Brake system ........................ 475
Electric power steering
buzzer ................................. 476
Open door ............................. 482
Seat belt reminder................. 477
Warning lights
Anti-lock brake system .......... 476
Brake assist system .............. 476
Brake system ........................ 475
Charging system ................... 475
Electric power steering
warning light ....................... 476
Low fuel level ........................ 477
Malfunction indicator lamp .... 476
Master warning light .............. 477
Pretensioner.......................... 476
Seat belt reminder light ......... 477
SRS airbags .......................... 476Warning messages
Back door.............................. 482
Clutch start system............... 480
Engine oil level...................... 482
Engine oil maintenance ........ 482
Engine oil pressure ............... 479
Fuel filter ............................... 480
Light reminder ....................... 482
Open door ............................. 482
Parking brake........................ 482
Smart entry & start system ... 484
Speed limiter system ............ 480
Steering lock ......................... 480
Traction control ..................... 480
Transmission fluid
temperature ........................ 482
Vehicle stability control ......... 480
Washer
Checking ............................... 418
Preparing and checking
before winter....................... 278
Switch ........................... 246, 251
Washing and waxing ............... 388
Weight....................................... 542
Wheels ...................................... 426
Window glasses....................... 102
Window lock switch ................ 102
Windows
Power windows ..................... 102
Rear window defogger .......... 306
Washer ......................... 246, 251
Windshield wipers ................... 246
Wireless remote control key
Replacing the battery ............ 432
Wireless remote control .......... 58
WMA disc ................................. 324V
W
