2012 TOYOTA VERSO light

28
VERSO_WE_OM64524E
Outside rear view mirror
switches
P. 100
Headlight leveling
dial
 P. 240
VSC/TRC off switch P. 268
Tilt and telescopic steering lock release lever P. 96
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 190
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 186
Instrument panel
(right-hand drive vehicles)Pictorial index
Toyota parking assist-sensor
switch
 P. 259
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 246
P. 251

31
VERSO_WE_OM64524E
: If equipped
Luggage compartment light P. 73
Cargo hooks P. 379
Power outlet P. 366
Cargo hooks P. 379

34
VERSO_WE_OM64524E
CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precautions regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).

40 1-1. Key information
VERSO_WE_OM64524E
NOTICE
To prevent key damage (vehicles without smart entry & start system)
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the key.
To prevent key damage (vehicles with smart entry & start system)
The electronic key is a precision instrument. Be sure to observe the follow-
ing.
Do not drop the keys, subject them to strong shocks or bend them.
Do not expose the keys to high temperatures for a long period of time.
Do not get the keys wet or wash them in an ultrasonic washer etc.
Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
Do not disassemble the electronic key.
Do not put a sticker or equivalent on the key surface.
Do not place the key near objects that produce magnetic fields, such as
TVs, audio systems, glass top ranges, or medical electrical equipment,
such as low-frequency therapy equipment.
When carrying the keys (vehicles with smart entry & start system)
Do not place the key within 0.1 m (0.33 ft.) of any other electric appliances
when their power is on. Otherwise, the key may not operate properly due to
radio wave interference from the appliances.
When bringing the vehicle to your Toyota dealer or repairer, or another
duly qualified and equipped professional due to problems with the
smart entry & start system (vehicles with smart entry & start system)
Bring in all electronic keys of the vehicle.
When the key is lost
If a key is lost, there is a high risk of the vehicle being stolen. Bring all
remaining electric keys and immediately consult your Toyota dealer or
repairer, or another duly qualified and equipped professional.

46 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E
Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the
engine stops. (P. 49)
Since the electronic key receives radio waves all the time, the key battery
will be depleted even when the electronic key is not being used. If any of
the following problems occurs, it is assumed that the key battery has
been depleted. Replace it with a new battery.
• The smart entry & start system or wireless remote control does not
work
• The operating range has narrowed
• The electronic key LED light does not come on
To prevent the electronic key battery from being depleted significantly, do
not place the key within 1 m (3 ft.) of the following electrical appliances,
which produce magnetism.
•TVs
• Personal computers
• Mobile and cordless phones, and their battery chargers
• Lamps
• Induction cookers
To operate the system properly
Make sure to carry the electronic key when operating the system.
Note for electronic key operation
Do not get the electronic key too close to the vehicle when operating the
system from the outside of the vehicle. Depending on the position and
holding conditions of the electronic key, the key may not be detected cor-
rectly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention may not function.)
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• When locking or unlocking the doors, the electronic key is too close to
a door window or door handle, near the ground, or in a high place.
• The electronic key is on the instrument panel, interior floor, or in a door
pocket, or inside the glove box.

73
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_WE_OM64524E
Back door
Luggage compartment light
The luggage compartment light turns on when the back door is opened.
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Door lock switch
P. 6 7
Smart entry & start system (if equipped)
P. 4 1
Wireless remote control
P. 5 8
Key
P. 6 7
Opening the back door
Raise the back door while
pushing up the back door
opener switch.
On
Off

75 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64524E

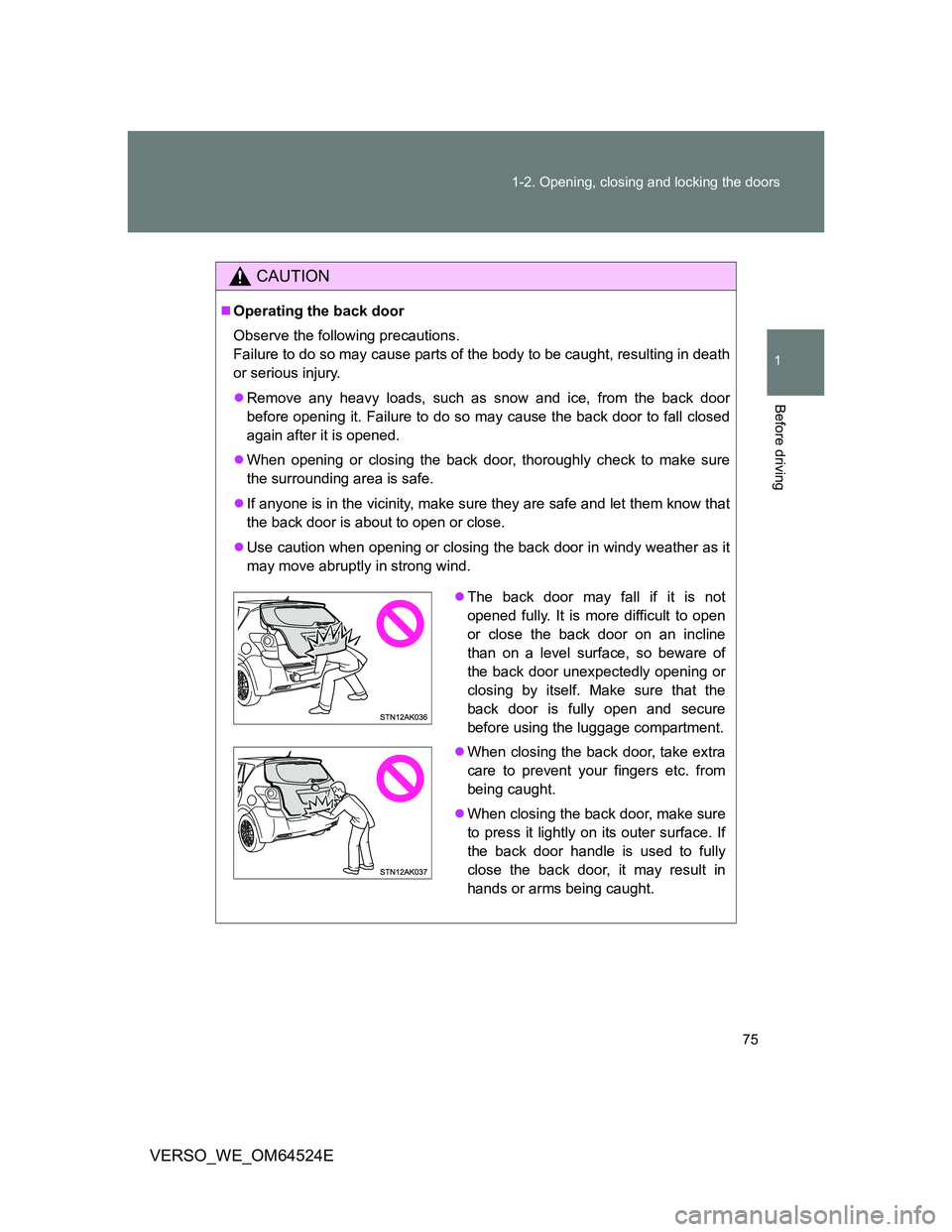

CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to fall closed
again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

77
1
Before driving
VERSO_WE_OM64524E
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Active head restraint
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
Seat position adjustment lever
Seatback angle adjustment lever
Vertical height adjustment lever (driver’s seat only)
Passenger’s seat Driver’s seat
