2012 TOYOTA VERSO engine coolant

5
533 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
The engine has cooled down sufficiently.
Low engine coolant temperature indicator (Blue) comes on.
Check the engine coolant level.
Look for obvious coolant leaks from the radiator, hoses and
under the vehicle.
If the engine compartment cover needs to be removed. (P. 407)
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. (P. 555)
Have the vehicle checked at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional, as
soon as possible.
(Blue)

534 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Overheating
If you observe the following, your vehicle may be overheating.
The engine coolant temperature warning light (Red) flashes or comes on
or a loss of power is experienced.
Steam is coming from under the hood.
CAUTION
To prevent an accident or injury when inspecting under the hood of
your vehicle
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
Keep hands and clothing away from the fan and other belts while the
engine is running.
Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

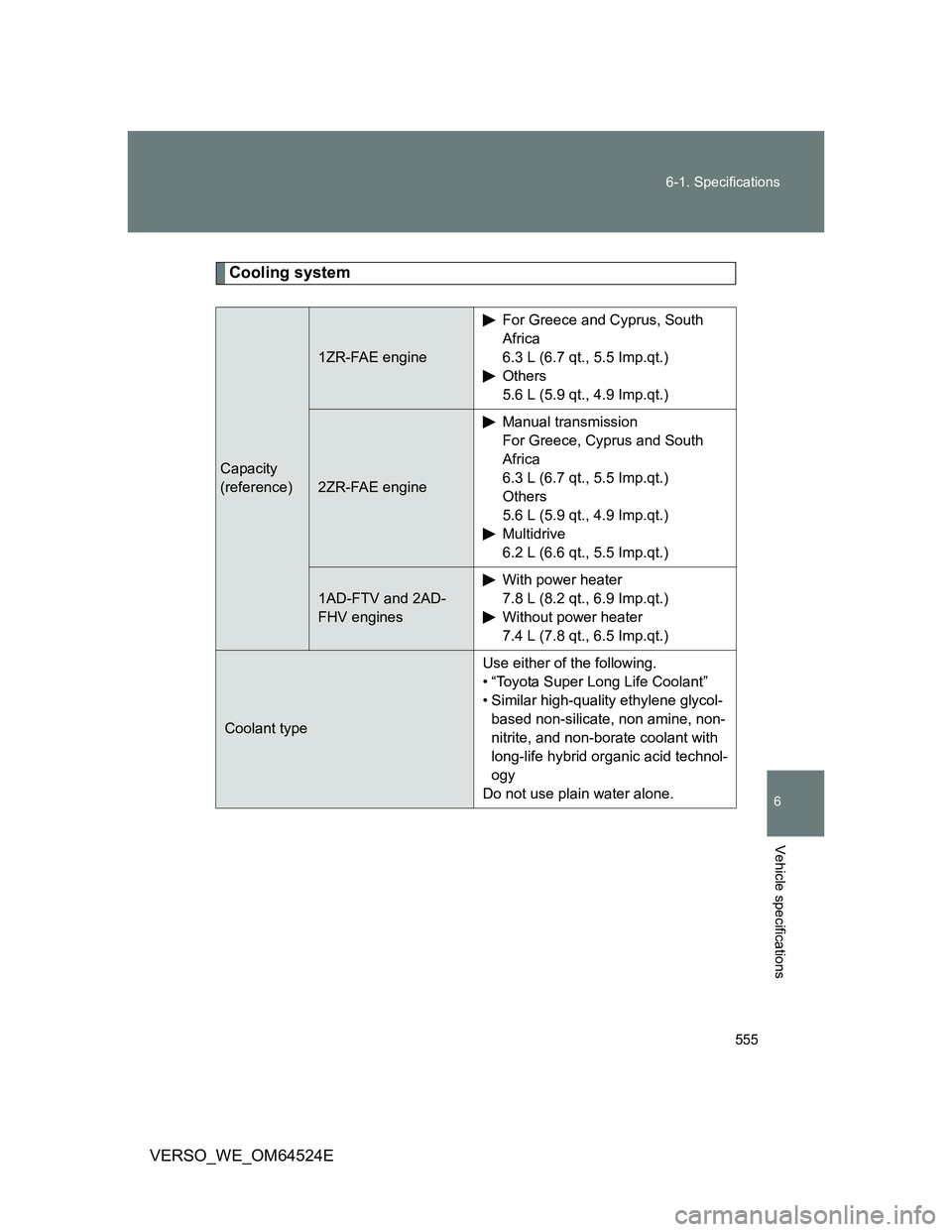

555 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Cooling system
Capacity
(reference)
1ZR-FAE engine
For Greece and Cyprus, South
Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
2ZR-FAE engine
Manual transmission
For Greece, Cyprus and South
Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
Multidrive
6.2 L (6.6 qt., 5.5 Imp.qt.)
1AD-FTV and 2AD-
FHV engines
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

578 Alphabetical index
VERSO_WE_OM64524E
Engine
Accessory mode ................... 190
Compartment ........................ 405
Engine switch ................ 186, 190
Hood ..................................... 401
How to start the
engine ......................... 186, 190
Identification number............. 544
If the engine will not start ...... 519
If you run out of fuel and
the engine stalls.................. 535
Ignition switch ............... 186, 190
Overheating .......................... 532
Engine compartment cover .... 407
Engine coolant
Capacity ................................ 555
Checking ............................... 413
Preparing and checking
before winter ....................... 278
Engine coolant temperature
indicator (Blue) ...................... 224
Engine coolant temperature
warning light (Red) ................ 475
Engine immobilizer system .... 112
Engine oil
Capacity ................................ 549
Checking ............................... 408
Preparing and checking
before winter ....................... 278
Engine oil maintenance
data ......................................... 411
Engine switch................... 186, 190
Engine switch lights ................ 349
EPS............................................ 267Floor mat .................................. 377
Fluid
Washer ................................. 418
Fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Foot light .................................. 349
Front fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Front passenger’s seat belt
reminder light ........................ 478
Front position lights
Replacing light bulbs............. 450
Switch ................................... 239
Wattage ................................ 563
Front seats
Adjustment .............................. 77
Front turn signal lights
Replacing light bulbs............. 450
Switch ................................... 213
Wattage ................................ 563
Fuel
Capacity ................................ 547
Fuel gauge ............................ 217
Fuel pump shut off system.... 474
Gas station information ......... 588
If you run out of fuel and
the engine stalls ................. 535
Information ............................ 564
Refueling............................... 105
Type ...................................... 547
Fuel door .................................. 105
Fuel filler door.......................... 105
Fuel filter .................................. 419
Fuel pump shut off system ..... 474
Fuses ........................................ 436F

585
VERSO_WE_OM64524E
What to do if...
What to do if...
A tire puncturesP. 490,
506If you have a flat tire
The engine does not start
P. 519If the engine will not start
P. 535If you run out of fuel and the engine stalls
P. 1 1 2Engine immobilizer system
P. 528If the vehicle battery is discharged
The shift lever cannot be
moved outP. 522If the shift lever cannot be shifted
from P
The high engine coolant
temperature warning light (Red)
flashes or comes on
Steam can be seen coming
from under the hood
P. 532If your vehicle overheats
The key is lostP. 523If you lose your keys
The battery runs outP. 528If the vehicle battery is discharged
The doors cannot be lockedP. 6 7Side doors
P. 7 3Back door
The horn begins to soundP. 122Alarm
The vehicle is stuck in
mud or sandP. 536If the vehicle becomes stuck

587 What to do if...
VERSO_WE_OM64524E
Warning lights
P. 4 7 5P. 476
(Flashing)
P. 4 7 5P. 476
P. 4 7 5P. 477
(Red)
P. 4 7 6P. 478
P. 4 7 6
P. 478
P. 4 7 6
P. 4 7 6P. 478
Brake system warning
lightCruise control warning
light
Automatic headlight
leveling system warning
lightCharging system warn-
ing light
High engine coolant
temperature warning
lightLow fuel level warning
light
Malfunction indicator
lampDriver’s seat belt
reminder light
(On the
instrument
cluster)
SRS warning light
Front passenger’s
seat belt reminder
light
ABS warning light
(On the
center
panel)
Electric power steering
warning lightMaster warning light
The warning message is
displayedP. 479If a warning message is displayed
