2-1. Driving procedures
2
When driving
VERSO_WE_OM64524E
Turn signal lever
Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.

450
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

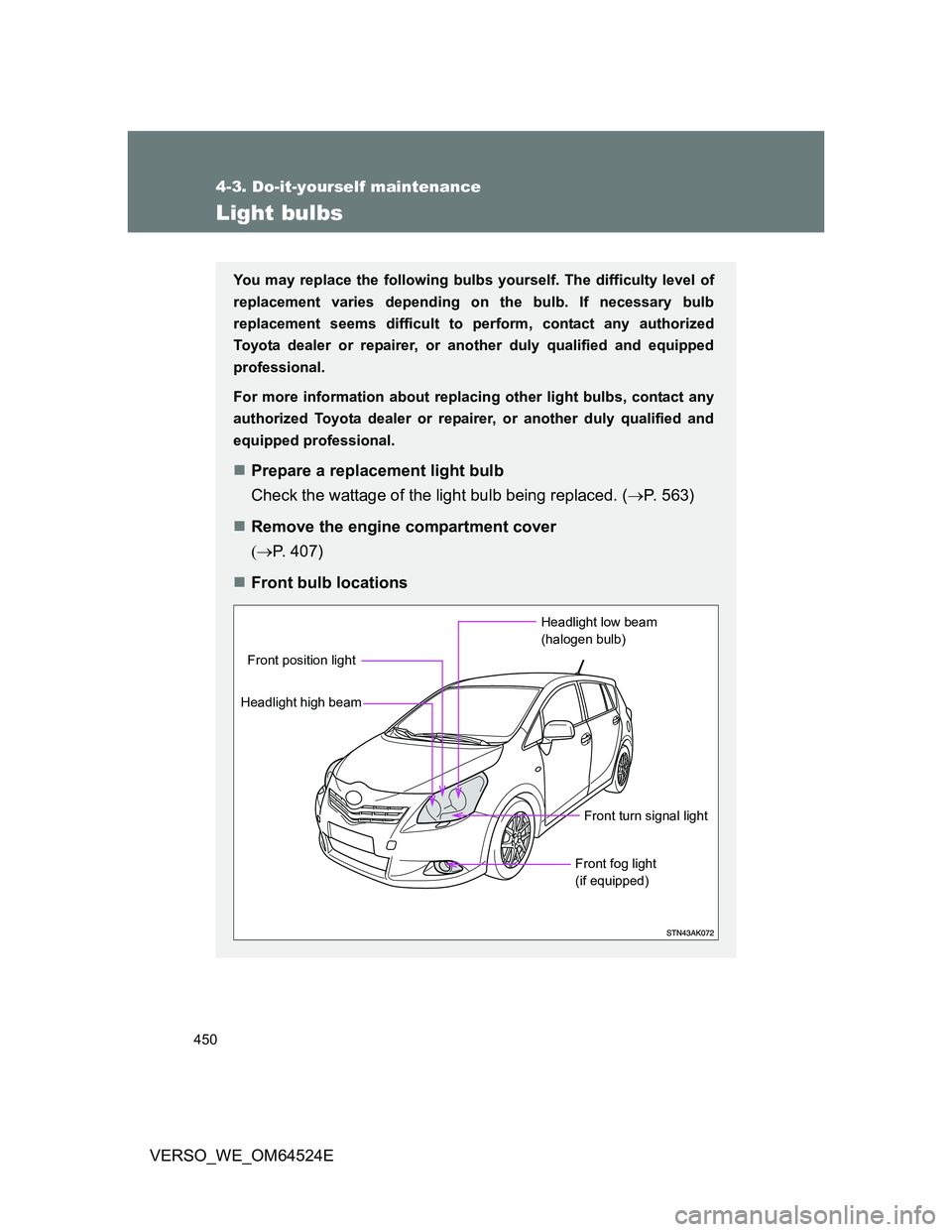

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 563)
Remove the engine compartment cover
P. 407)
Front bulb locations
Front position light
Headlight high beam
Headlight low beam
(halogen bulb)
Front turn signal light
Front fog light
(if equipped)

451 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

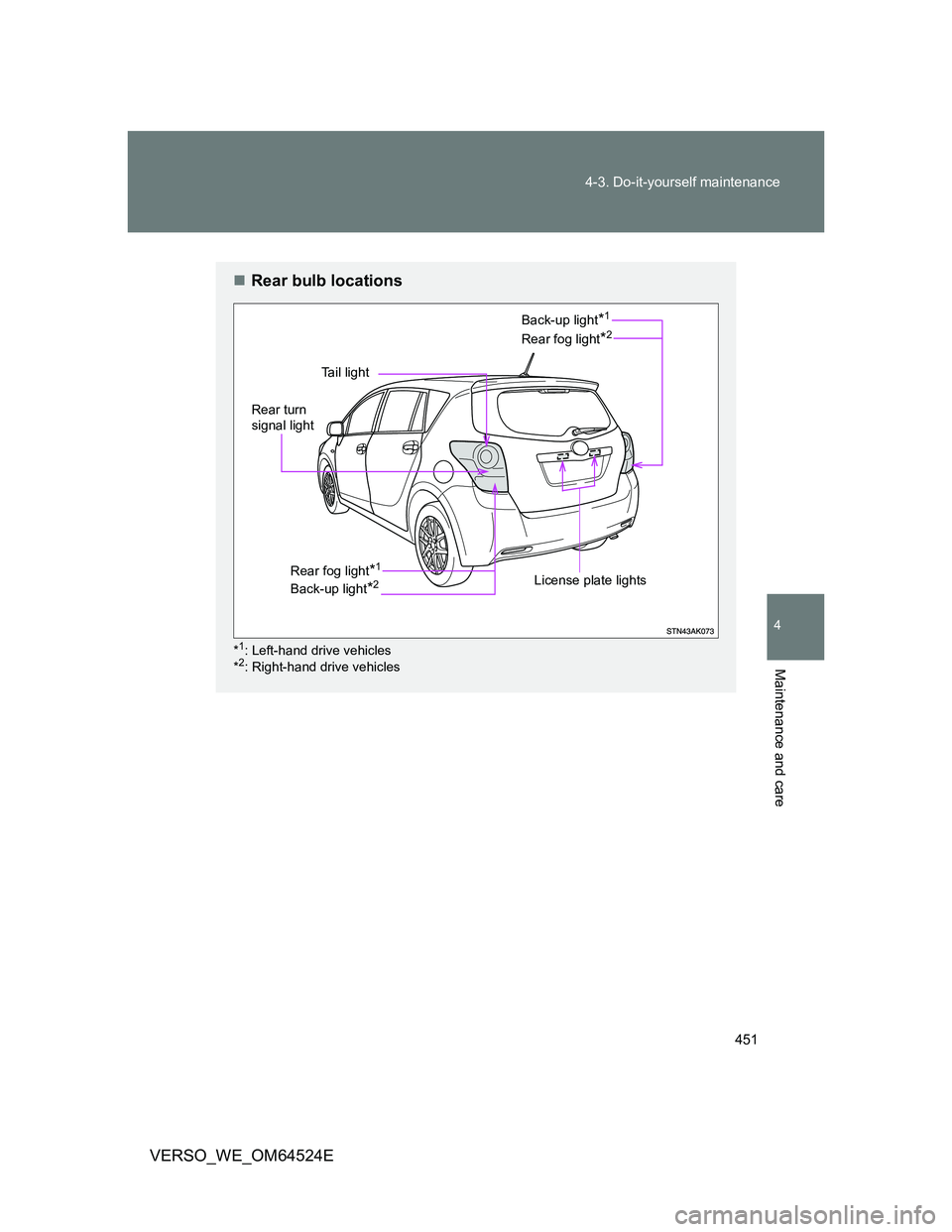

Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Tail light
Rear fog light*2
License plate lights Rear turn
signal light
Back-up light*1
Rear fog light*1
Back-up light*2

452 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

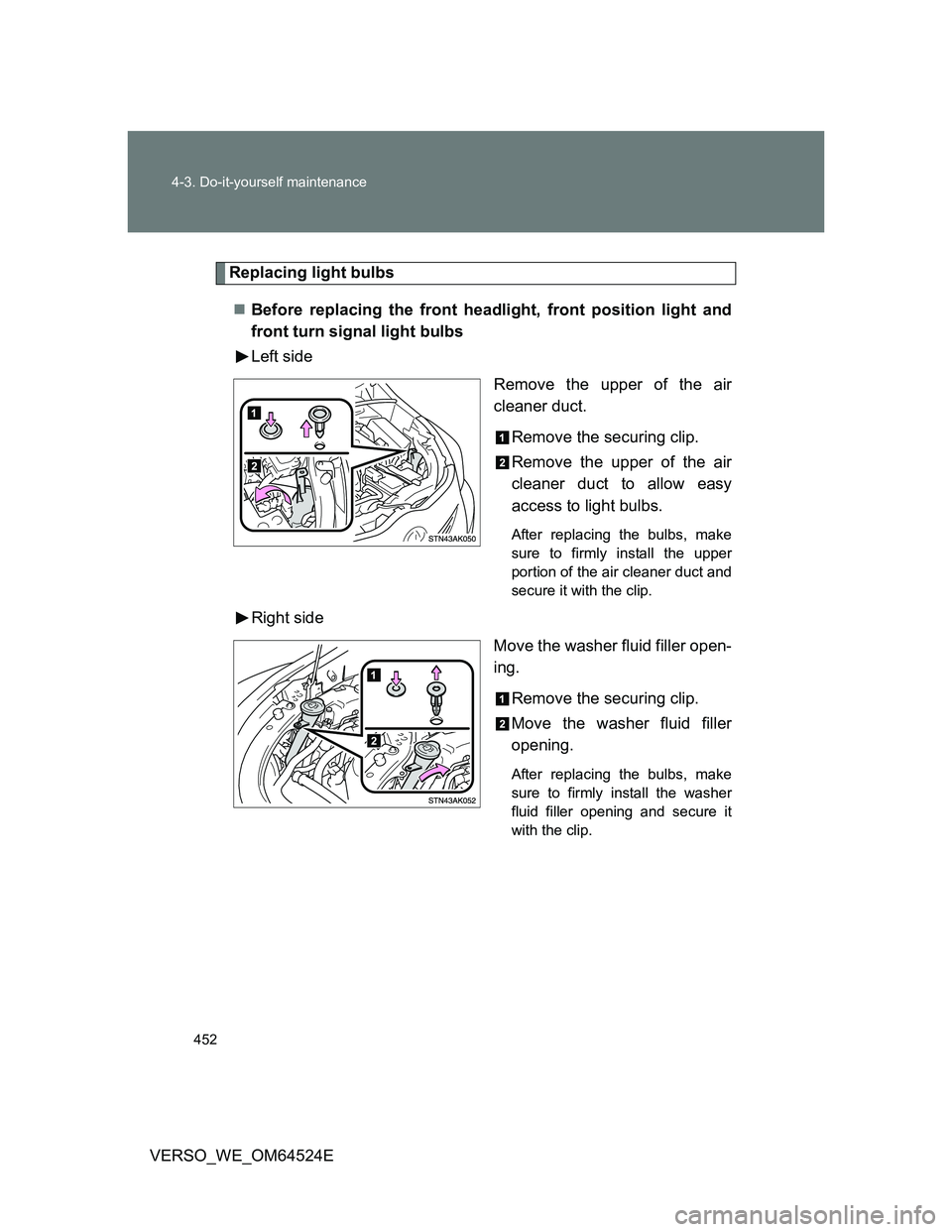

Replacing light bulbs
Before replacing the front headlight, front position light and
front turn signal light bulbs
Left side
Remove the upper of the air
cleaner duct.
Remove the securing clip.
Remove the upper of the air
cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make
sure to firmly install the upper
portion of the air cleaner duct and
secure it with the clip.
Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.

457 4-3. Do-it-yourself maintenance
4
Maintenance and care

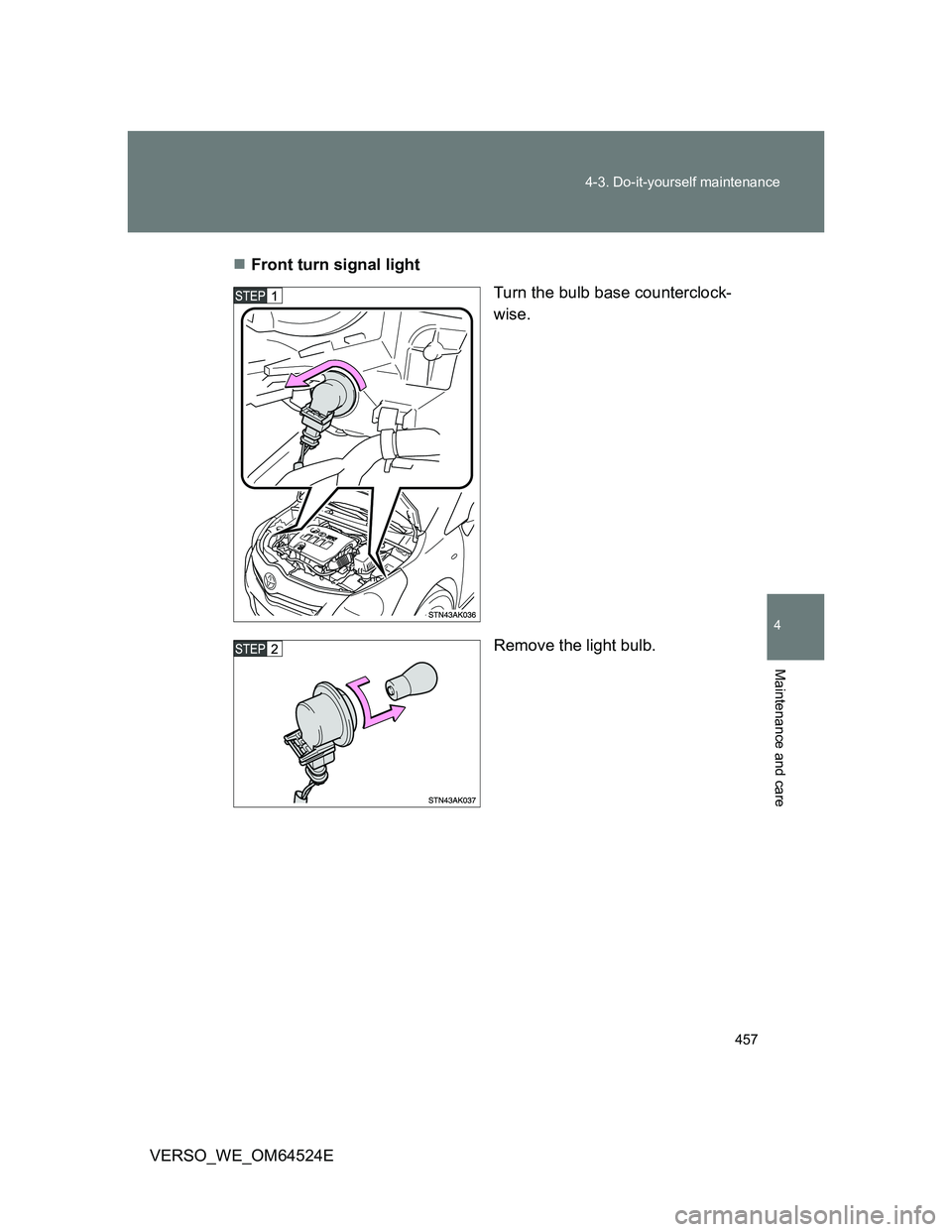

VERSO_WE_OM64524EFront turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.

458 4-3. Do-it-yourself maintenance

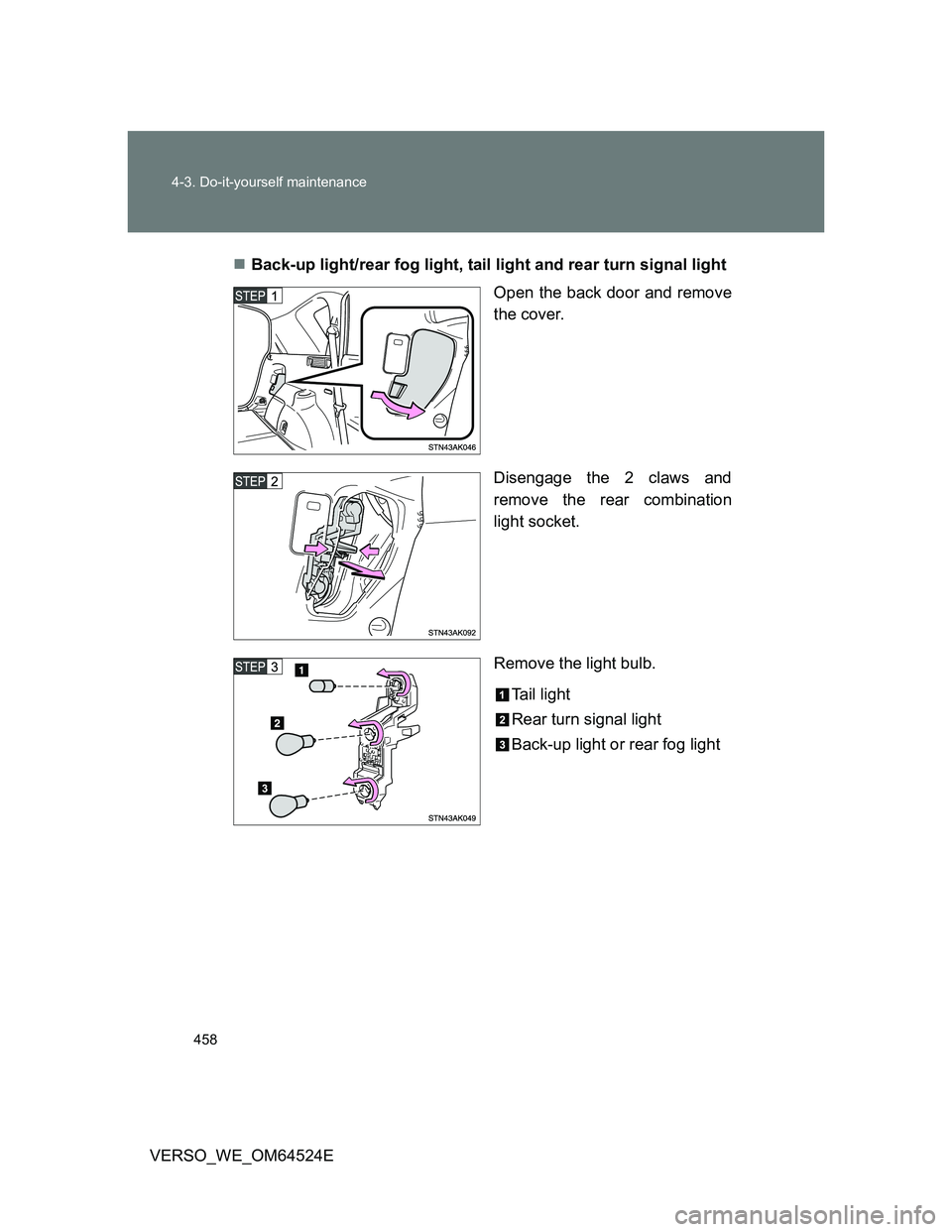

VERSO_WE_OM64524EBack-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light

459 4-3. Do-it-yourself maintenance
4
Maintenance and care

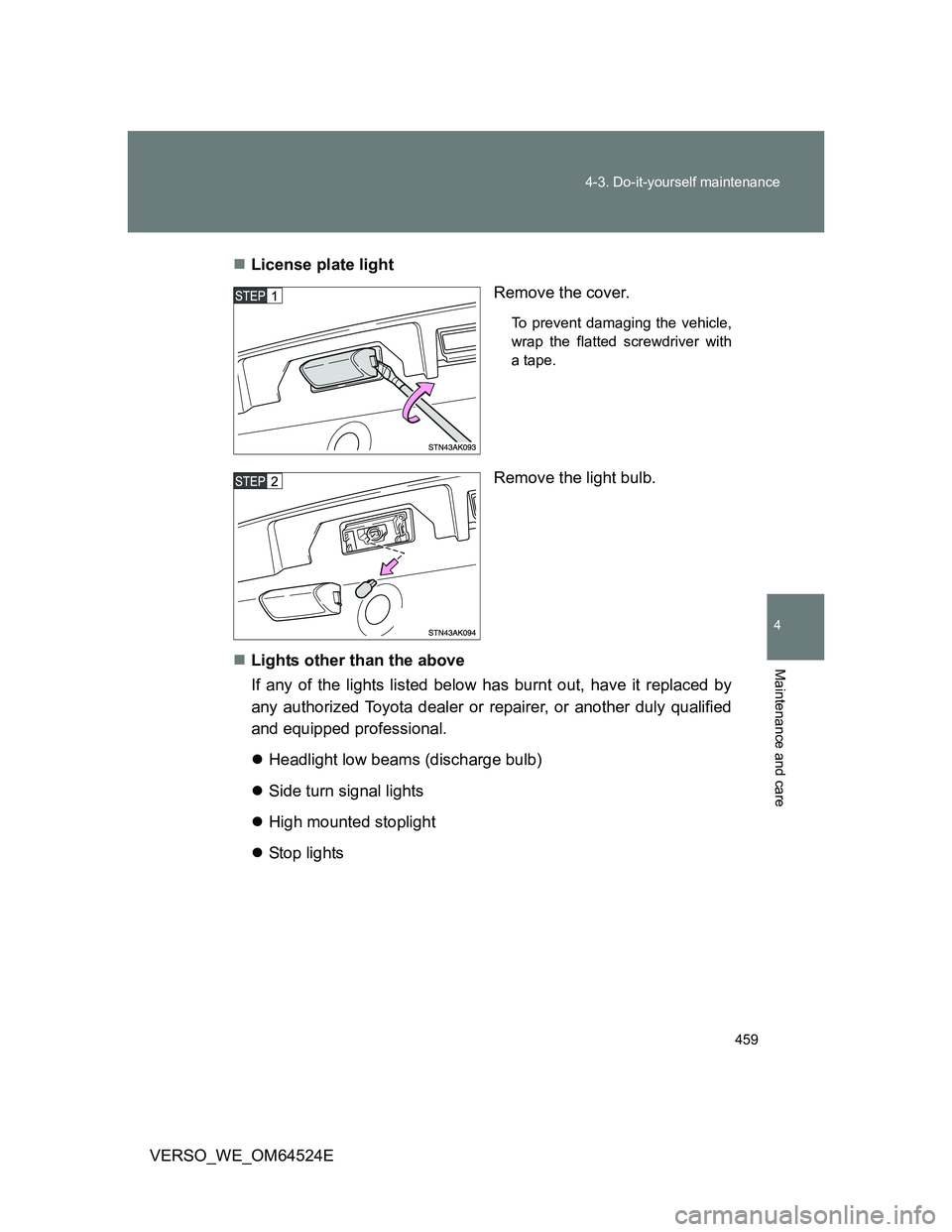

VERSO_WE_OM64524ELicense plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flatted screwdriver with
a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low beams (discharge bulb)
Side turn signal lights
High mounted stoplight
Stop lights

460 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

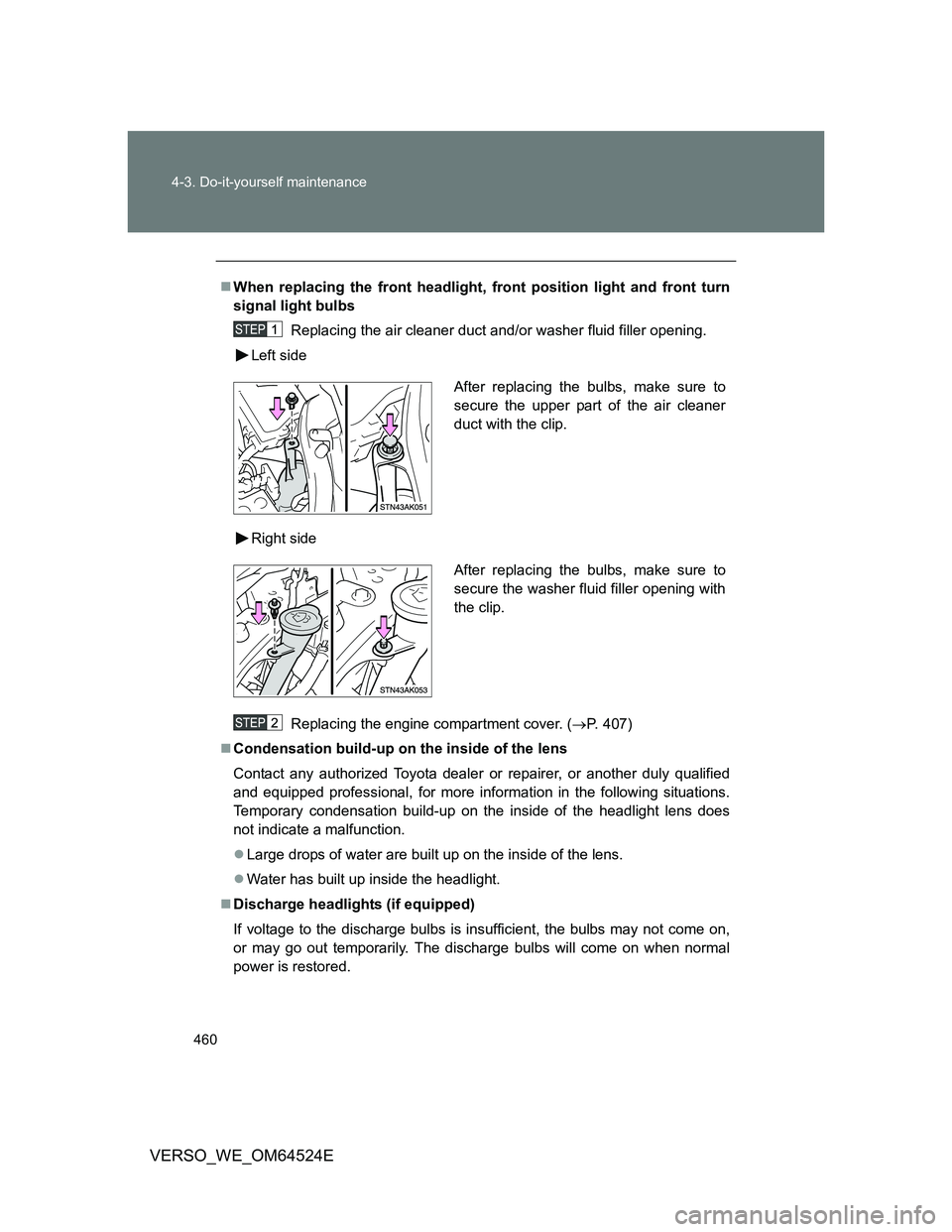

When replacing the front headlight, front position light and front turn
signal light bulbs
Replacing the air cleaner duct and/or washer fluid filler opening.
Left side
Right side
Replacing the engine compartment cover. (P. 407)
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
After replacing the bulbs, make sure to
secure the upper part of the air cleaner
duct with the clip.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with
the clip.
