2012 TOYOTA URBAN CRUISER Owners Manual

305 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

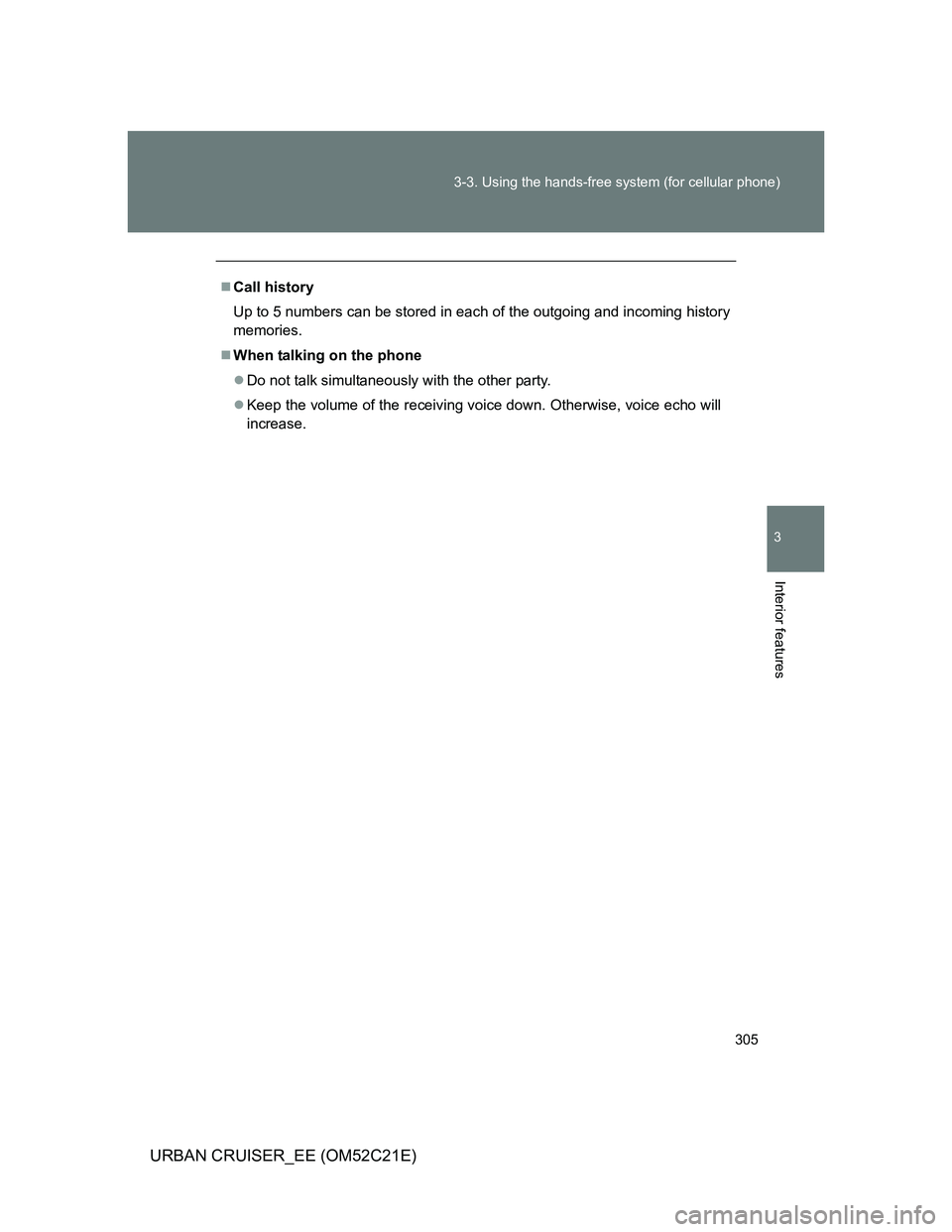

Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
When talking on the phone
Do not talk simultaneously with the other party.
Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.

306
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

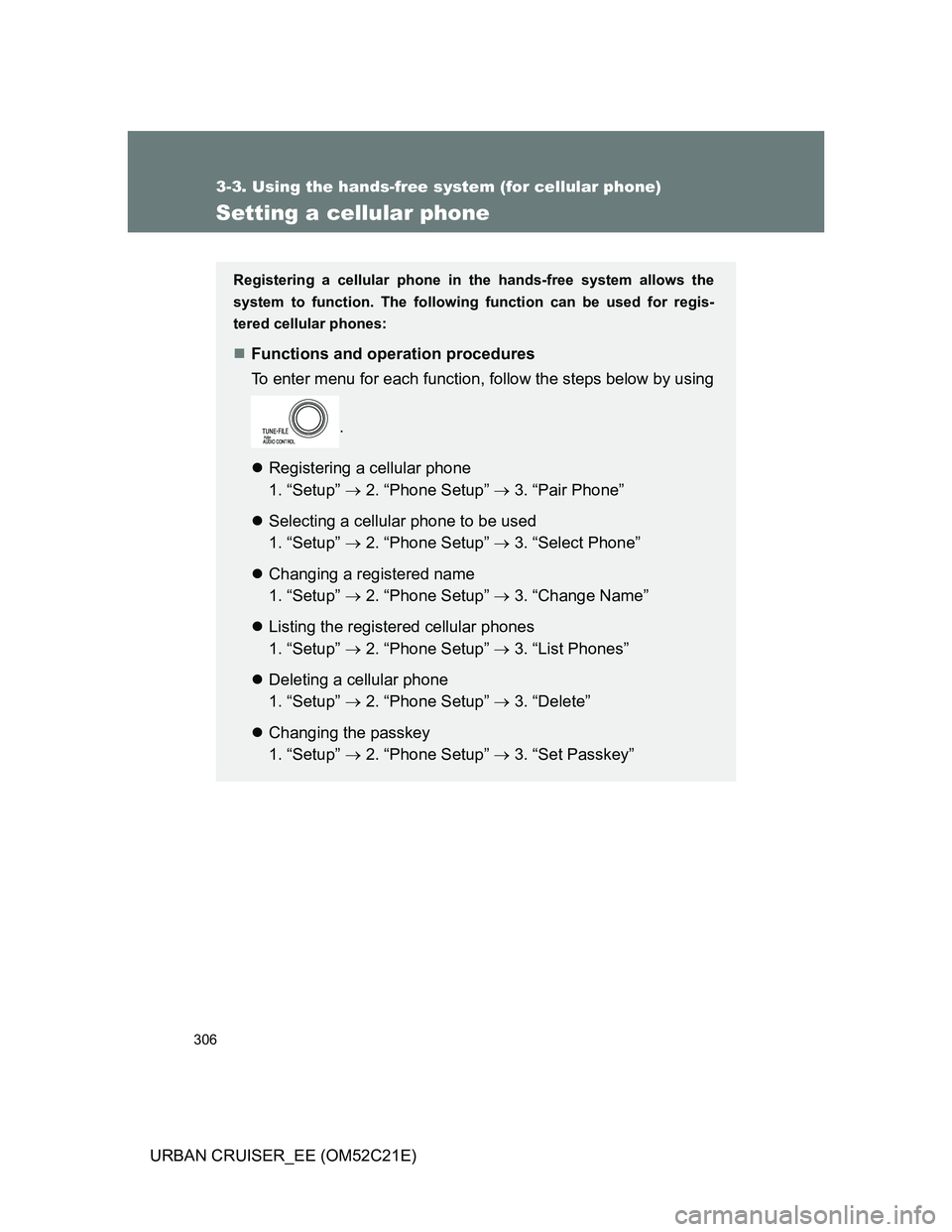

Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following function can be used for regis-
tered cellular phones:
Functions and operation procedures
To enter menu for each function, follow the steps below by using
.
Registering a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Pair Phone”
Selecting a cellular phone to be used
1. “Setup”  2. “Phone Setup”  3. “Select Phone”
Changing a registered name
1. “Setup”  2. “Phone Setup”  3. “Change Name”
Listing the registered cellular phones
1. “Setup”  2. “Phone Setup”  3. “List Phones”
Deleting a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Delete”
Changing the passkey
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”

307 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

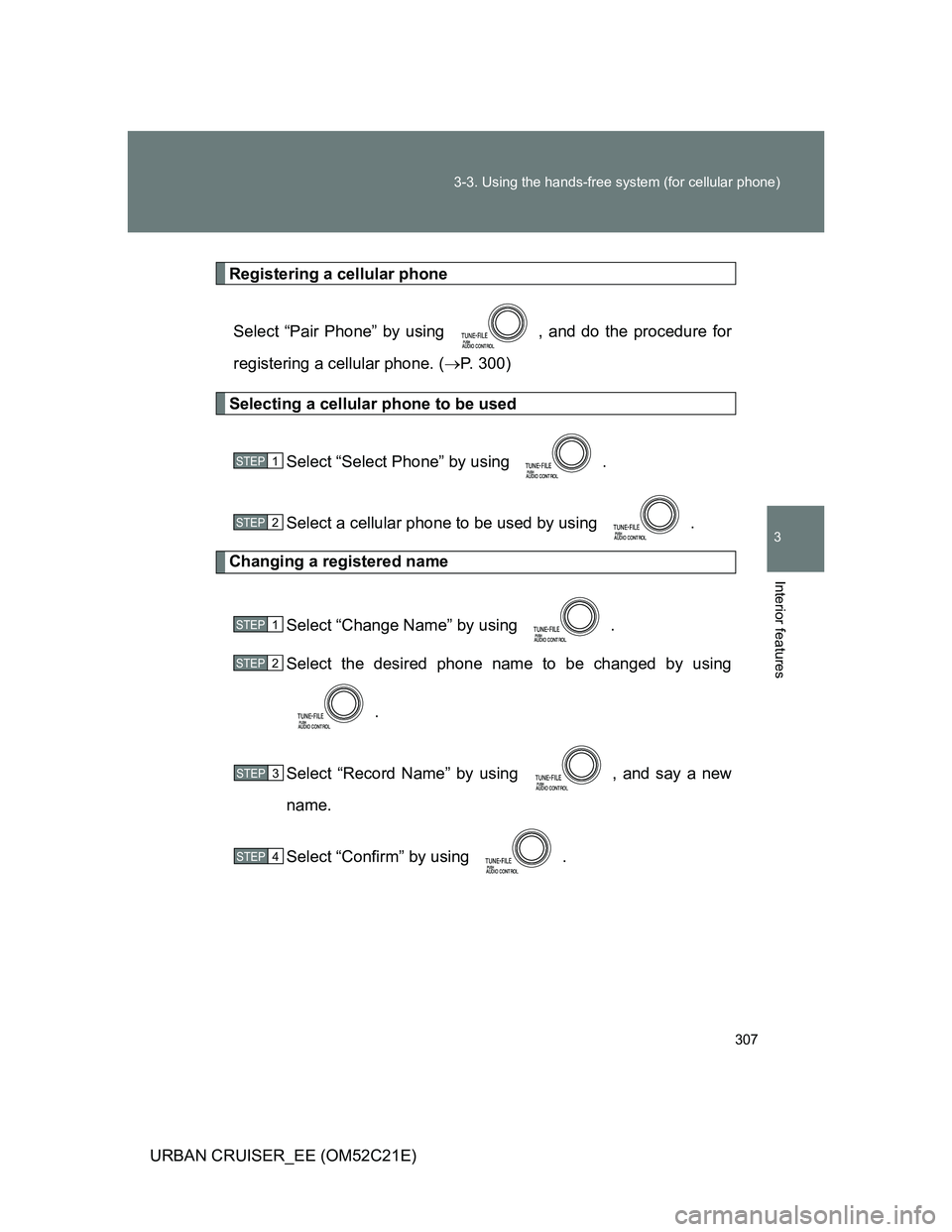

Registering a cellular phone
Select “Pair Phone” by using , and do the procedure for
registering a cellular phone. (P. 300)
Selecting a cellular phone to be used
Select “Select Phone” by using .
Select a cellular phone to be used by using .
Changing a registered name
Select “Change Name” by using .
Select the desired phone name to be changed by using
.
Select “Record Name” by using , and say a new
name.
Select “Confirm” by using .
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4

308 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

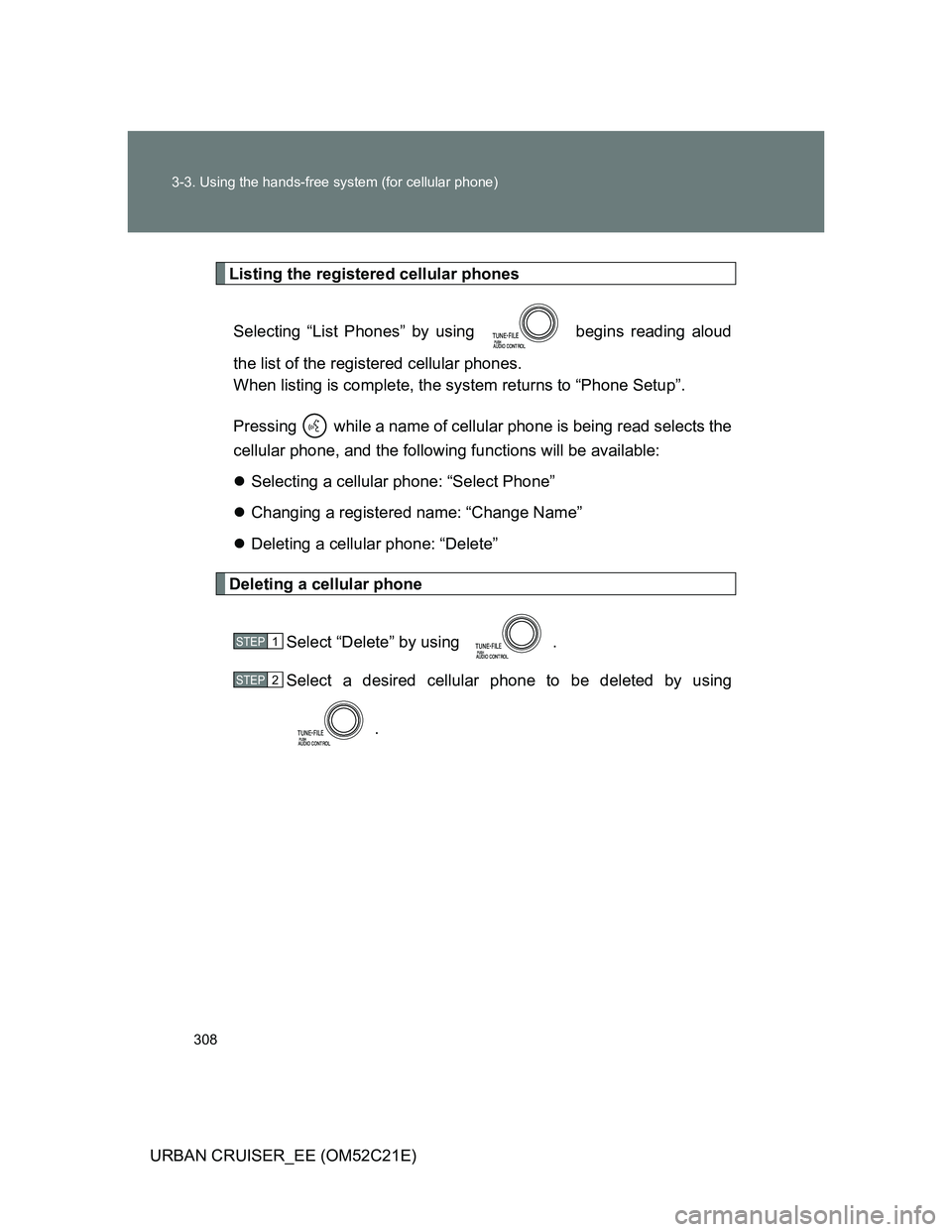

Listing the registered cellular phones
Selecting “List Phones” by using begins reading aloud
the list of the registered cellular phones.
When listing is complete, the system returns to “Phone Setup”.
Pressing while a name of cellular phone is being read selects the
cellular phone, and the following functions will be available:
Selecting a cellular phone: “Select Phone”
Changing a registered name: “Change Name”
Deleting a cellular phone: “Delete”
Deleting a cellular phone
Select “Delete” by using .
Select a desired cellular phone to be deleted by using
.
STEP1
STEP2

309 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

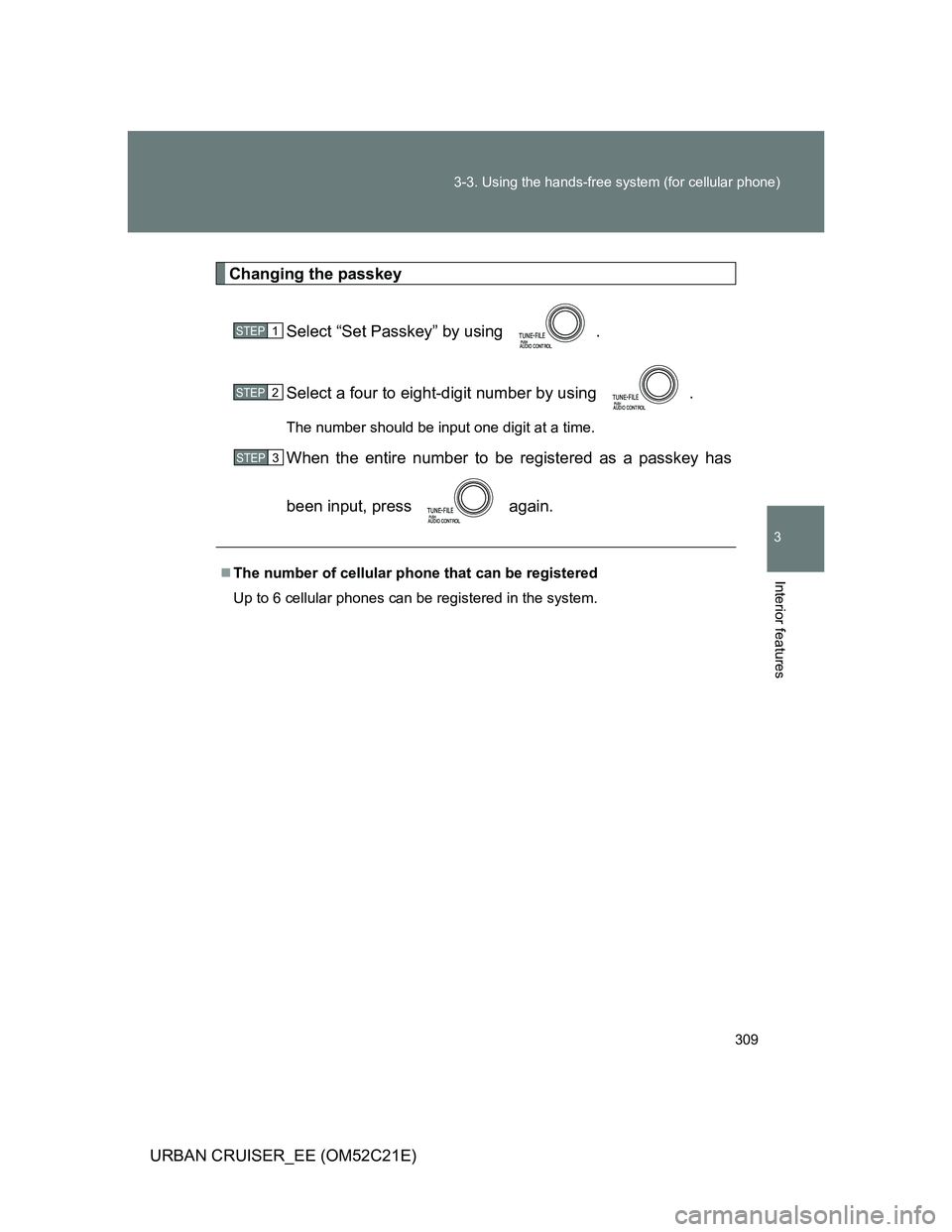

Changing the passkey
Select “Set Passkey” by using .
Select a four to eight-digit number by using .
The number should be input one digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP3

310
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

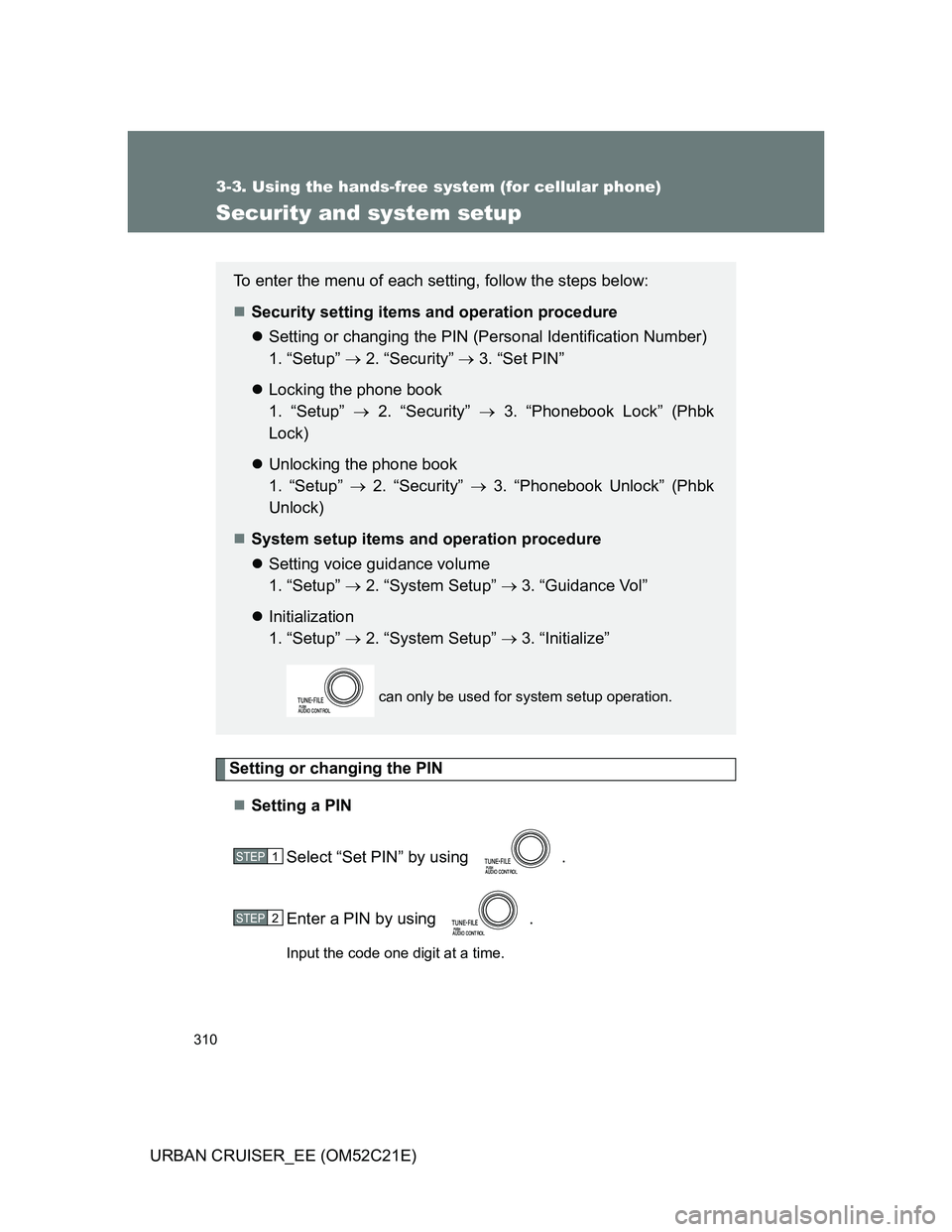

Security and system setup
Setting or changing the PIN
Setting a PIN
Select “Set PIN” by using .
Enter a PIN by using .
Input the code one digit at a time.
To enter the menu of each setting, follow the steps below:
Security setting items and operation procedure
Setting or changing the PIN (Personal Identification Number)
1. “Setup”  2. “Security”  3. “Set PIN”
Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock” (Phbk
Lock)
Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock” (Phbk
Unlock)
System setup items and operation procedure
Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Vol”
Initialization
1. “Setup”  2. “System Setup”  3. “Initialize”
can only be used for system setup operation.
STEP1
STEP2

311 3-3. Using the hands-free system (for cellular phone)
3
Interior features

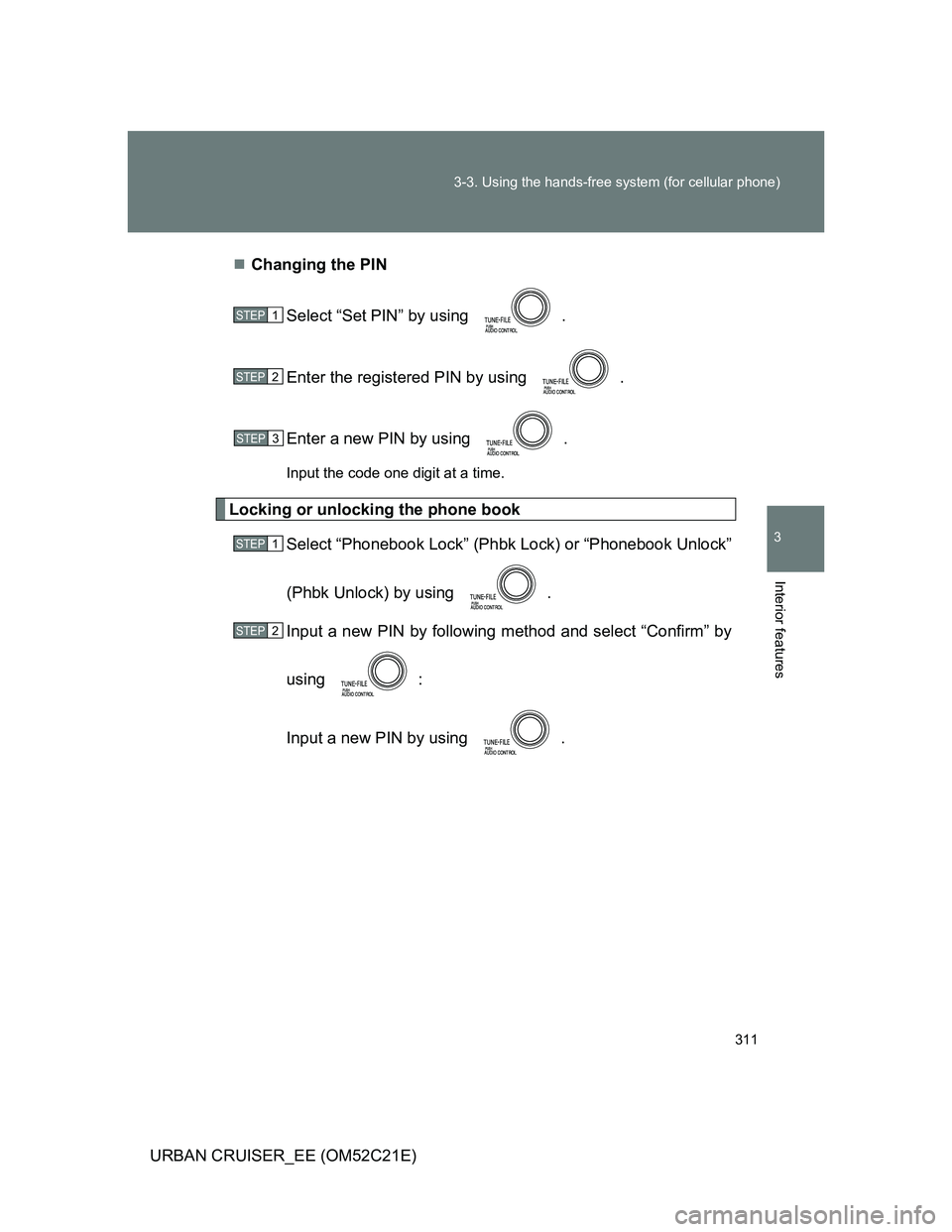

URBAN CRUISER_EE (OM52C21E)Changing the PIN
Select “Set PIN” by using .
Enter the registered PIN by using .
Enter a new PIN by using .
Input the code one digit at a time.
Locking or unlocking the phone book
Select “Phonebook Lock” (Phbk Lock) or “Phonebook Unlock”
(Phbk Unlock) by using .
Input a new PIN by following method and select “Confirm” by
using :
Input a new PIN by using .
STEP1
STEP2
STEP3
STEP1
STEP2

312 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

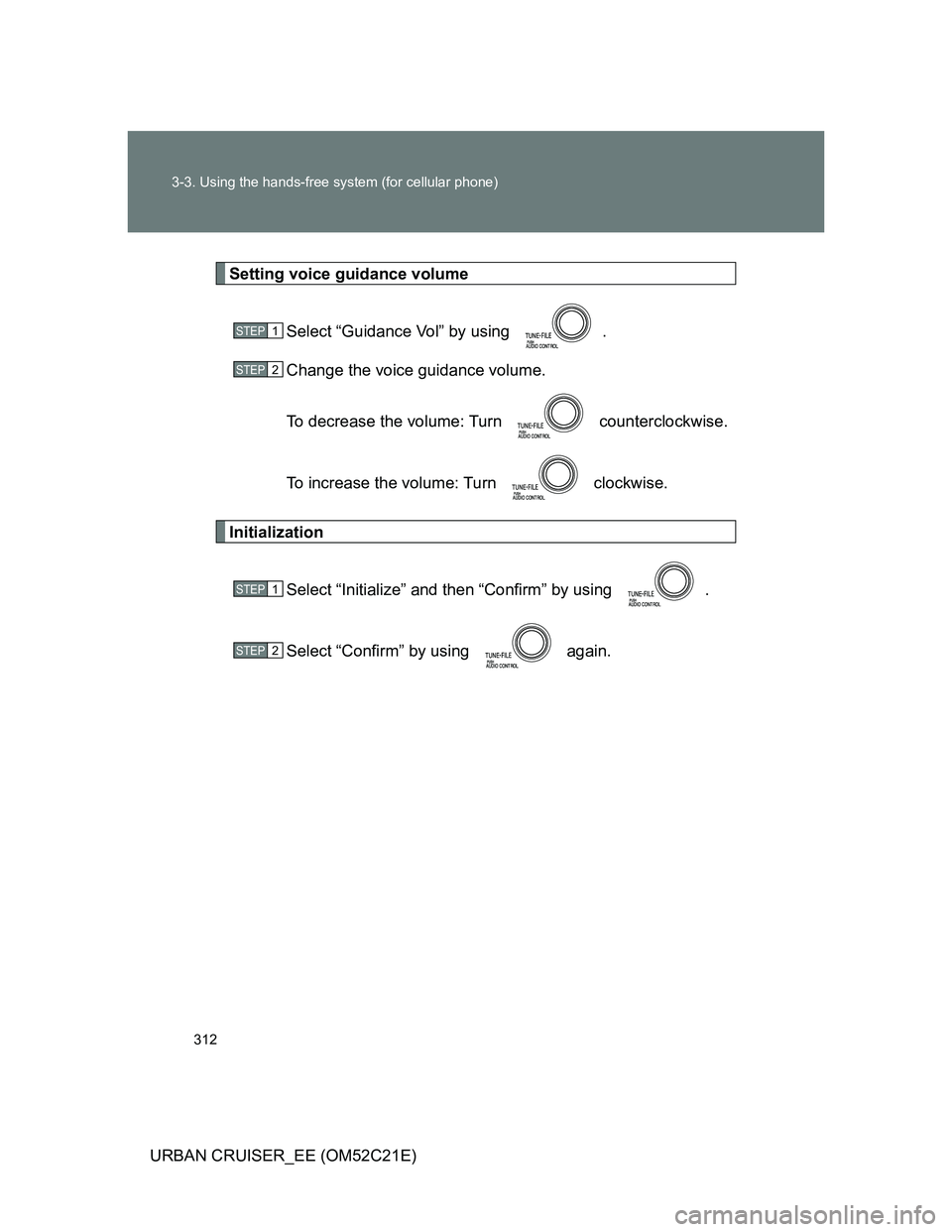

Setting voice guidance volume
Select “Guidance Vol” by using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Initialization
Select “Initialize” and then “Confirm” by using .
Select “Confirm” by using again.
STEP1
STEP2
STEP1
STEP2
