2012 TOYOTA TUNDRA setting

SETUP
303

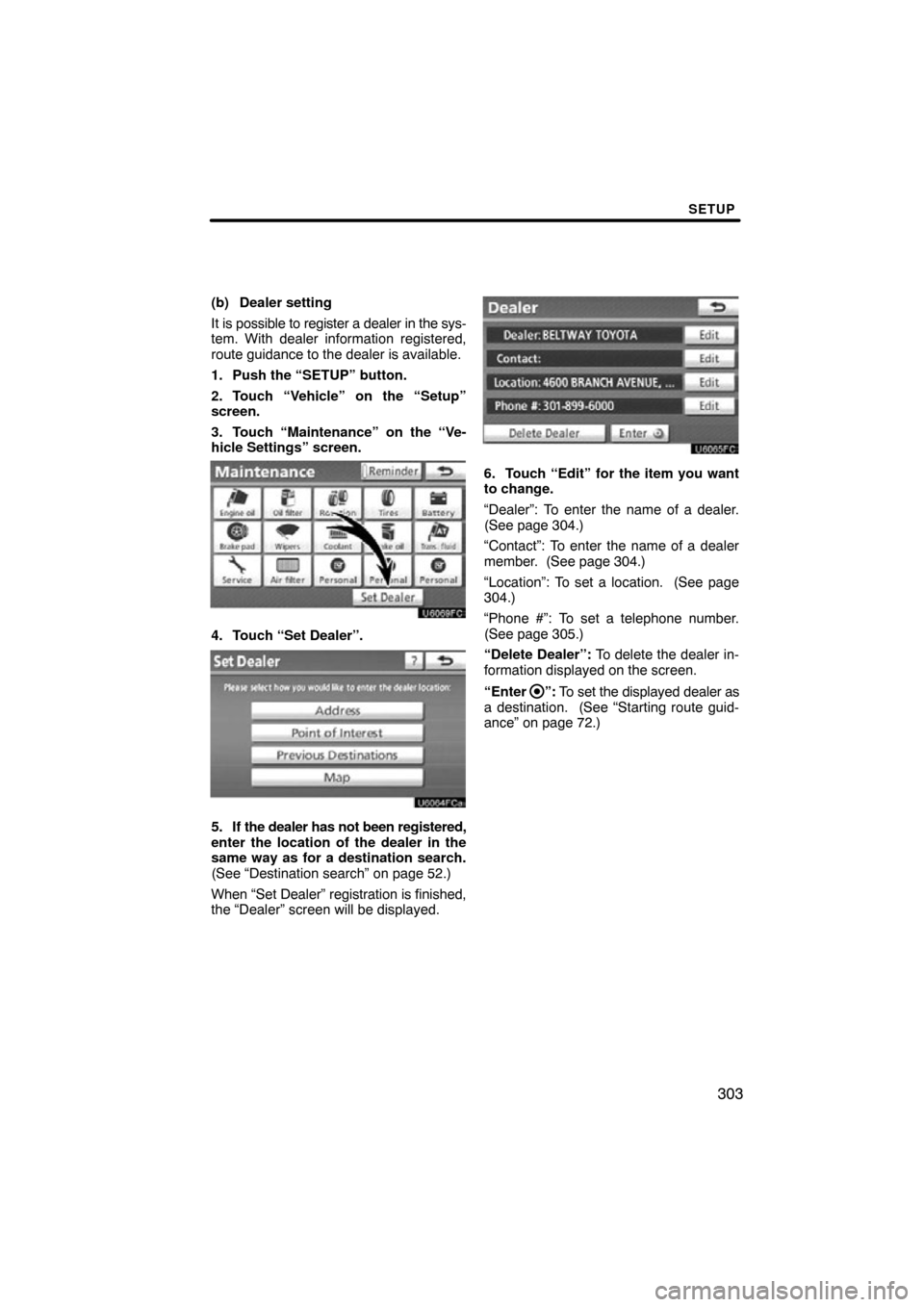

(b) Dealer setting
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch “Set Dealer”.
5. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 52.)
When “Set Dealer” registration is finished,
the “Dealer” screen will be displayed.
6. Touch “Edit” for the item you want
to change.
“Dealer”: To enter the name of a dealer.
(See page 304.)
“Contact”: To enter the name of a dealer
member. (See page 304.)
“Location”: To set a location. (See page
304.)
“Phone #”: To set a telephone number.
(See page 305.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route guid-
ance” on page 72.)

APPENDIX
309
(a) Accurate current vehicle position
may not be shown in the following
cases:
When driving on a small angled Y−
shaped road.
When driving on a winding road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets
run in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cal-
ibration, see page 251.
(b) Inappropriate route guidance may
occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for
which there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guid-
ance may not be available for the next
turn to the right or left.
It may take a long time to operate auto
reroute during high speed driving. In
auto reroute, a detour route may be
shown.
After auto reroute, the route may not be
changed.
An unnecessary U −turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other
reasons.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest version.

INDEX
324
Numbers/Symbols
? button
20, 33
. . . . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 74
. . . . . . . . . . . . . . . . . .
A
A2DP (Advanced Audio
Distribution Profile) 176
. . . . . . . . . . . . . . .
Adding destinations 84
. . . . . . . . . . . . . . . . .
Address Book button 20, 66
. . . . . . . . . . . . .
Address book entry information 37 . . . . . . .
Address button 20, 55
. . . . . . . . . . . . . . . . . .
Alphabet key 28
. . . . . . . . . . . . . . . . . . . . . . .
AM button 144, 147, 153
. . . . . . . . . . . . . . . .
AM tab 147, 153
. . . . . . . . . . . . . . . . . . . . . . .
Angle mark 201
. . . . . . . . . . . . . . . . . . . . . . .
Areas to avoid 115
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 39, 80
. . . . . . . . . . . . . . . . . . . .
ASL 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO button 144, 147
. . . . . . . . . . . . . . . . .
Audio button 22, 293
. . . . . . . . . . . . . . . . . . .
Audio language 201
. . . . . . . . . . . . . . . . . . . .
Audio settings 293
. . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 218
. . . . . . . . .
Audio/video system 143
. . . . . . . . . . . . . . . .
Audio/video system operating hints 220 . . .
Auto avoid traffic 98, 246, 248
. . . . . . . . . . . .
Auto complete text 246
. . . . . . . . . . . . . . . . .
Auto screen change 236
. . . . . . . . . . . . . . . .
Auto voice guidance 243
. . . . . . . . . . . . . . . .
Automatic recognition 243
. . . . . . . . . . . . . .
Automatic sound levelizer 150
. . . . . . . . . . .
AUX button 144, 147, 182
. . . . . . . . . . . . . . .
AUX port 153
. . . . . . . . . . . . . . . . . . . . . . . . .
AUX tab 147
. . . . . . . . . . . . . . . . . . . . . . . . . .
AVRCP(Audio/Video Remote Control Profile) 176
. . . . . . . . . . .
B
Balance 150
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic function 25
. . . . . . . . . . . . . . . . . . . . . .
Bass 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  122, 176, 285, 293
. . . . . . . . . . . .
Bluetooth  audio operation 176
. . . . . . . . . .
Bluetooth  audio player 176, 293
. . . . . . . . .
Bluetooth  connection status
at start up 291
. . . . . . . . . . . . . . . . . . . . . .
Bluetooth  information 294
. . . . . . . . . . . . . .
Brightness 31
. . . . . . . . . . . . . . . . . . . . . . . . .
BT tab 147, 182
. . . . . . . . . . . . . . . . . . . . . . .
Building information 43
. . . . . . . . . . . . . . . . .
C
Calendar 142
. . . . . . . . . . . . . . . . . . . . . . . . .
Calendar button 23, 142
. . . . . . . . . . . . . . . .
Calibration 246, 251
. . . . . . . . . . . . . . . . . . . .
Call by call history 135
. . . . . . . . . . . . . . . . .
Call by dial 132
. . . . . . . . . . . . . . . . . . . . . . . .
Call by phonebook 133
. . . . . . . . . . . . . . . . .
Call by POI call 138
. . . . . . . . . . . . . . . . . . . .
Call by speed dial 134
. . . . . . . . . . . . . . . . . .
Call by voice recognition 136
. . . . . . . . . . . .
Call history 135
. . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone 132
. . . . . . . .
Categories 61
. . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 26
. . . . . . . . . . . . . . . . . . .
CD changer operation 164
. . . . . . . . . . . . . .
CD tab 147, 167
. . . . . . . . . . . . . . . . . . . . . . .
Cellular p hone 122
. . . . . . . . . . . . . . . . . . . . .
TUNDRA_Navi_U_34527U
2012 T UNDRA Navigation from Jul. ’11 Prod. (OM 34527U)

INDEX
325
Change “Icon”111
. . . . . . . . . . . . . . . . . . . . . .
Change “Location” 113, 118
. . . . . . . . . . . . .
Change “Name” 112, 117
. . . . . . . . . . . . . . .
Change “Phone #” 113
. . . . . . . . . . . . . . . . . .
Change “Size” 118
. . . . . . . . . . . . . . . . . . . . . .
Changing a device name 294
. . . . . . . . . . . .
Changing the angle 200
. . . . . . . . . . . . . . . .
Changing the audio language 200
. . . . . . . .
Changing the Bluetooth settings 286. . . . .
Changing the device name 299
. . . . . . . . . .
Changing the handsfree power 286 . . . . . . .
Changing the map DVD −ROM 319 . . . . . . .
Changing the passcode 299
. . . . . . . . . . . . .
Changing the subtitle language 199 . . . . . . .
Chapter 210
. . . . . . . . . . . . . . . . . . . . . . . . . .
City center 62
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 55, 60
. . . . . . . . . . . . . . . . . . . . . .
City to search 55, 60
. . . . . . . . . . . . . . . . . . .
Clock button 22, 241
. . . . . . . . . . . . . . . . . . .
Clock settings 241
. . . . . . . . . . . . . . . . . . . . .
Color 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . .
Compass mode 41
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 39, 41
. . . . . . . . . . .
Connecting a Bluetooth
audio player 180, 298
. . . . . . . . . . . . . . . .
Connecting a Bluetooth  phone 129 . . . . . .
Contacts 133, 268
. . . . . . . . . . . . . . . . . . . . .
Contrast 31
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 20, 71
. . . . . . . . . . . . . . .
Current position display 33
. . . . . . . . . . . . . .
Current position/tire change calibration 251
. . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 34 . . . . . . .
Cursor position as an address book entry
35
. . . . . . . . . . . . .
Customize POI icons 246
. . . . . . . . . . . . . . .
D
Database version 320
. . . . . . . . . . . . . . . . . .
Daylight saving time 242
. . . . . . . . . . . . . . . .
Dealer setting 303
. . . . . . . . . . . . . . . . . . . . .
Default
201, 247, 251, 256, 289, 292, 300
. . . . . .
Del. Dest. button 20, 71
. . . . . . . . . . . . . . . . .
Delete personal data 236, 240
. . . . . . . . . . .
Deleting a Bluetooth  phone 263
. . . . . . . . .
Deleting address book entries 114 . . . . . . . .
Deleting areas to avoid 119
. . . . . . . . . . . . . .
Deleting call history 280
. . . . . . . . . . . . . . . .
Deleting destinations 85
. . . . . . . . . . . . . . . .
Deleting home 105
. . . . . . . . . . . . . . . . . . . . .
Deleting preset destinations 108
. . . . . . . . .
Deleting previous destinations 119 . . . . . . . .
Deleting set destinations 71, 85
. . . . . . . . . .
Deleting the phonebook data 271
. . . . . . . .
Deleting th e speed dial 279
. . . . . . . . . . . . .
Deleting the voice tag 285
. . . . . . . . . . . . . .
Description of DVD controls 198
. . . . . . . . .
Description of settings 197
. . . . . . . . . . . . . .
Description of video CD controls 207 . . . . .
Description of video CD settings 206 . . . . .
DEST button 10 , 12, 14, 16, 17, 20, 52
. . . .
Destination information 38
. . . . . . . . . . . . . .
Destination screen 20, 52
. . . . . . . . . . . . . . .
Destination search 51, 52
. . . . . . . . . . . . . . .
Destination search by “Address” 55. . . . . .
Destination search by
“Address Book” 66
. . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 71 . . .
Destination search by “Emergency” 66 . . . .
Destination search by “Intersection & Freeway” 67
. . . . . . . . . . .
Destination search by “Map” 70
. . . . . . . . . .
Destination search by
“Point of Interest” 59
. . . . . . . . . . . . . . . . .
Destination search by “Previous Destinations” 65
. . . . . . . . . . . .
Destination search by Home 54
. . . . . . . . . .
Destination search by Preset destinations
54
. . . . . . . . . . . . . . .
Detailed navigation settings 245
. . . . . . . . .
Details 290
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 86
. . . . . . . . . . . . . . . . . . . . . .
Dialing by name 137
. . . . . . . . . . . . . . . . . . .
TUNDRA_Navi_U_34527U
2012 T UNDRA Navigation from Jul. ’11 Prod. (OM 34527U)

INDEX
326
DISC button 144 , 147, 167, 187
. . . . . . . . . . .
Disc coverage area 320
. . . . . . . . . . . . . . . .
Disc slot 164, 185, 319 . . . . . . . . . . . . . . . . . .
DISP button 10 , 31
. . . . . . . . . . . . . . . . . . . . .
Display phone status 291
. . . . . . . . . . . . . . .
Display POI icons 92
. . . . . . . . . . . . . . . . . . .
Displaying DVD controls 197
. . . . . . . . . . . .
Displaying the title and name 161
. . . . . . . .
Displaying video CD controls 207
. . . . . . . .
Displaying video CD settings 206
. . . . . . . .
Distance and time to destination 10, 83 . . .
Driving speeds 246, 247
. . . . . . . . . . . . . . . .
DSP control 150
. . . . . . . . . . . . . . . . . . . . . . .
Dual map 41
. . . . . . . . . . . . . . . . . . . . . . . . . .
Dual map screen 39, 41
. . . . . . . . . . . . . . . .
DVD controls 197
. . . . . . . . . . . . . . . . . . . . . .
DVD language 201
. . . . . . . . . . . . . . . . . . . . .
DVD player and DVD video disc information 209 . . . . . . . .
DVD player operation 185
. . . . . . . . . . . . . . .
DVD settings 196
. . . . . . . . . . . . . . . . . . . . . .
DVD tab 147, 187
. . . . . . . . . . . . . . . . . . . . . .
DVD video disc glossary 210
. . . . . . . . . . . .
DVD video discs 209
. . . . . . . . . . . . . . . . . . .
E
Edit “Dealer” or ”Contact” 304
. . . . . . . . . . .
Edit “Location” 304
. . . . . . . . . . . . . . . . . . . . .
Edit “Phone #” 305
. . . . . . . . . . . . . . . . . . . . .
Edit route 75
. . . . . . . . . . . . . . . . . . . . . . . . . .
Editing address book entries 110
. . . . . . . . . .
Editing area to avoid 116
. . . . . . . . . . . . . . . .
Editing home 104
. . . . . . . . . . . . . . . . . . . . . .
Editing preset destinations 107
. . . . . . . . . .
Editing the Bluetooth phone261
. . . . . . . .
Editing the device name 288
. . . . . . . . . . . .
Editing the passcode 288
. . . . . . . . . . . . . . .
Editing the phonebook data 269
. . . . . . . . . .
Editing the speed dial 278
. . . . . . . . . . . . . . .
Editing the voice tag 284
. . . . . . . . . . . . . . . .
Eject button 165, 186
. . . . . . . . . . . . . . . . . . .
Ejecting a disc 186
. . . . . . . . . . . . . . . . . . . .
Ejecting discs 165
. . . . . . . . . . . . . . . . . . . . .
Emergency button 20, 66
. . . . . . . . . . . . . . .
Enter a Bluetooth  phone 127
. . . . . . . . . . .
Enter audio language code 202
. . . . . . . . . .
Estimated arrival time 83
. . . . . . . . . . . . . . .
Estimated travel time 83
. . . . . . . . . . . . . . . .
F
FM button 144, 147, 153
. . . . . . . . . . . . . . . .
FM tab 147, 153
. . . . . . . . . . . . . . . . . . . . . . .
Foot print map 42
. . . . . . . . . . . . . . . . . . . . .
Foot print map button 10, 42
. . . . . . . . . . . . .
Freeway exit information screen 78 . . . . . . .
Freeway screen 39
. . . . . . . . . . . . . . . . . . . .
Function help 33
. . . . . . . . . . . . . . . . . . . . . .
Function menu display screen 144 . . . . . . .
Function menu tab 144
. . . . . . . . . . . . . . . . .
G
General button 22, 236
. . . . . . . . . . . . . . . . .
General settings 236
. . . . . . . . . . . . . . . . . . .
Go Home button 20, 54
. . . . . . . . . . . . . . . . .
GPS 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS mark 10, 308
. . . . . . . . . . . . . . . . . . . . .
Guidance screen for the freeway 79 . . . . . .
Guidance with street names 246
. . . . . . . . .
Guiding the route 16
. . . . . . . . . . . . . . . . . . .
H
Hands −free system 122
. . . . . . . . . . . . . . . .
Hands −free system for cellular phone
122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heading −up 10, 43
. . . . . . . . . . . . . . . . . . . . .
Heading −up symbol 43
. . . . . . . . . . . . . . . . .
Help 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFP (Hands Free Profile) 122
. . . . . . . . . . .
Home 12, 103
. . . . . . . . . . . . . . . . . . . . . . . . .
TUNDRA_Navi_U_34527U
2012 T UNDRA Navigation from Jul. ’11 Prod. (OM 34527U)

INDEX
327
I
If the player malfunctions 176, 208
. . . . . . .
Important information
about this manual 3 . . . . . . . . . . . . . . . . . .
Incoming call display 290 . . . . . . . . . . . . . . .
INFO/PHONE button
10, 23, 127, 142, 319, 320
. . . . . . . . . . . .
Information about the icon 36
. . . . . . . . . . . .
Information items 302
. . . . . . . . . . . . . . . . . .
Information screen 23
. . . . . . . . . . . . . . . . . .
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
audio settings 300
. . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
phone settings 289
. . . . . . . . . . . . . . . . . .
Initializing the detailed phone
settings 292
. . . . . . . . . . . . . . . . . . . . . . . .
Initializing the phone volume
settings 255
. . . . . . . . . . . . . . . . . . . . . . . .
Input numbers 28
. . . . . . . . . . . . . . . . . . . . . .
Input symbols 29
. . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers/
List screen operation 28
. . . . . . . . . . . . . .
Inserting discs 164
. . . . . . . . . . . . . . . . . . . . .
Interrupt call 141
. . . . . . . . . . . . . . . . . . . . . .
Intersection & Freeway button 20, 67 . . . . .
Intersection guidance screen 39 , 79
. . . . . .
iPod compatibility 220
. . . . . . . . . . . . . . . . . .
iPod operation 211
. . . . . . . . . . . . . . . . . . . . . .
K
Keyboard layout 236
. . . . . . . . . . . . . . . . . . .
L
Language 236
. . . . . . . . . . . . . . . . . . . . . . . . .
Last 5 cities 57, 63 . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system 308
. . . . . . . . . . . . . . .
Line color 236
. . . . . . . . . . . . . . . . . . . . . . . . .
List 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List All Categories button
61, 64, 93, 250
. . . . . . . . . . . . . . . . . . . . . .
List scre en operation 28
. . . . . . . . . . . . . . . .
Listening to satellite radio 159
. . . . . . . . . . .
Listening to the radio 153
. . . . . . . . . . . . . . .
LOAD button 144, 164, 165, 319
. . . . . . . . . .
Local POI list 94
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance 300
. . . . . . . . . . . . . . . . . . . . . .
Maintenance information 27
. . . . . . . . . . . . .
Maintenance information setting 301 . . . . . .
Manage phone 256
. . . . . . . . . . . . . . . . . . . .
Map button 20, 70
. . . . . . . . . . . . . . . . . . . . .
Map data 320
. . . . . . . . . . . . . . . . . . . . . . . . .
Map Data button 23, 320
. . . . . . . . . . . . . . . .
Map database information
and updates 310
. . . . . . . . . . . . . . . . . . . .
Map DVD 320
. . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 44
. . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . .
MAP/VOICE button 10 , 33, 34, 82
. . . . . . . .
Mark button 10, 35
. . . . . . . . . . . . . . . . . . . . .
Marks shown on DVD video discs 209 . . . .
Memory point names 112
. . . . . . . . . . . . . . . .
Message button 157
. . . . . . . . . . . . . . . . . . .
Microphone 46, 124
. . . . . . . . . . . . . . . . . . . .
Mid 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3 171, 190
. . . . . . . . . . . . . . . . . . . . . . . . .
My places 101
. . . . . . . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 117 . . . . . . . .
Navi. button 22 , 102, 245
. . . . . . . . . . . . . . . .
Navigation settings 102, 245 . . . . . . . . . . . . .
Navigation settings screen 102, 245 . . . . . .
Navigation system function index 18. . . . . .
North−up 10, 43
. . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 43
. . . . . . . . . . . . . . . . . . .
TUNDRA_Navi_U_34527U
2012 T UNDRA Navigation from Jul. ’11 Prod. (OM 34527U)

INDEX
328
O
Off function
10, 246, 251
. . . . . . . . . . . . . . . .
One−touch scroll 34
. . . . . . . . . . . . . . . . . . .
Operating a Bluetooth
audio player 176
. . . . . . . . . . . . . . . . . . . .
Operating a DVD video disc 194
. . . . . . . . .
Operating a MP3 disc 190
. . . . . . . . . . . . . .
Operating a MP3/WMA disc 171
. . . . . . . . .
Operating a video CD 205
. . . . . . . . . . . . . .
Operating an audio CD 168, 187
. . . . . . . . .
Operating by voice recognition 141, 264 . . .
OPP (Object Push Profile) 122
. . . . . . . . . .
Orientation of the map 43
. . . . . . . . . . . . . . .
Overview buttons
and guidance screen 10
. . . . . . . . . . . . . .
P
Parental lock 201
. . . . . . . . . . . . . . . . . . . . . .
Pause guidance 91
. . . . . . . . . . . . . . . . . . . .
Pausing and resuming guidance 91 . . . . . . .
PBAP (Phone Book Access Profile) 122 . . .
Phone button 22, 23, 254
. . . . . . . . . . . . . . . .
Phonebook 133, 264
. . . . . . . . . . . . . . . . . . .
Playing a Bluetooth  audio 182
. . . . . . . . . .
Playing a disc 167, 187
. . . . . . . . . . . . . . . . .
Playing a DVD disc 196
. . . . . . . . . . . . . . . .
Playing a MP3 disc 190
. . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 171
. . . . . . . . . . .
Playing a USB memory or
iPod 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing a video CD 205
. . . . . . . . . . . . . . . . .
Playing an audio CD 168, 187
. . . . . . . . . . .
POI as a destination 95
. . . . . . . . . . . . . . . . .
POI category change 250
. . . . . . . . . . . . . . .
POI information 36
. . . . . . . . . . . . . . . . . . . . .
Point of Interest button 20, 59
. . . . . . . . . . . .
POIs near the search point 64
. . . . . . . . . . .
POIs to be displayed 93
. . . . . . . . . . . . . . . .
Pop−up information 246, 253
. . . . . . . . . . . .
Portable audio players 153, 176
. . . . . . . . . .
Position/direction calibration 252
. . . . . . . . .
Preset destination 14, 54
. . . . . . . . . . . . . . . .
Preset destination touch screen
buttons 20, 54
. . . . . . . . . . . . . . . . . . . . . . .
Presetting a satellite radio channel 160 . . .
Presetting a station 154
. . . . . . . . . . . . . . . .
Previous Destinations button 20 , 65
. . . . . .
PWR·VOL knob 144, 147
. . . . . . . . . . . . . . .
Q
Quick g uide 10. . . . . . . . . . . . . . . . . . . . . . . .
Quick r eference 20, 22 , 23, 144
. . . . . . . . . .
R
Radio data system 155
. . . . . . . . . . . . . . . . .
Radio ID 158
. . . . . . . . . . . . . . . . . . . . . . . . . .
Radio op eration 153, 158
. . . . . . . . . . . . . . .
RAND button 170 , 175, 184, 189, 193
. . . . .
RDS 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment
system 185, 236, 238
. . . . . . . . . . . . . . . . .
Rear system lock 236, 238
. . . . . . . . . . . . . .
Rear view monitor system 229
. . . . . . . . . . .
Receive on the Bluetooth
phone 139
. . . . . . . . . . . . . . . . . . . . . . . . . .
Reconnecting the Bluetooth
audio 182
. . . . . . . . . . . . . . . . . . . . . . . . . .
Reconnecting the Bluetooth
phone 131
. . . . . . . . . . . . . . . . . . . . . . . . . .
Region code 209
. . . . . . . . . . . . . . . . . . . . . .
Registering a Bluetooth  phone 257 . . . . . .
Registering address book entries 109 . . . . .
Registering areas to avoid 115
. . . . . . . . . . . .
Registering home 12, 103
. . . . . . . . . . . . . . .
Registering preset destinations 14, 106 . . .
Registering the phonebook data 268 . . . . . .
Registering t he speed dial 274
. . . . . . . . . . .
Registering the voice tag 282
. . . . . . . . . . . .
Removing a Bluetooth  audio 297 . . . . . . . .
Reordering destinations 84
. . . . . . . . . . . . . .
Resume guidance 92
. . . . . . . . . . . . . . . . . . .
Ring volume setting 255
. . . . . . . . . . . . . . . .
Route button 10 , 84, 85, 86, 87, 89, 91
. . . .
Route guidance 77
. . . . . . . . . . . . . . . . . . . . .
Route guidance screen 78
. . . . . . . . . . . . . .
Route overview 87
. . . . . . . . . . . . . . . . . . . . .
Route preference 89
. . . . . . . . . . . . . . . . . . .
Route preview 88
. . . . . . . . . . . . . . . . . . . . . .
Route trace 96
.
. . . . . . . . . . . . . . . . . . . . . . .
RPT button 170, 175, 184, 189, 193 . . . . . .
TUNDRA_Navi_U_34527U
2012 TUNDRA Navigation from Jul. ’11 Prod. (OM 34527U)

INDEX
329
S
Safety instruction
3
. . . . . . . . . . . . . . . . . . . .
SAT button 144, 147, 153, 159
. . . . . . . . . . . .
SAT tab 147, 159
. . . . . . . . . . . . . . . . . . . . . .
Satellite radio channel category 159. . . . . .
Satellite radio tuner malfunctions 162 . . . . .
Satellite tuner 158
. . . . . . . . . . . . . . . . . . . . .
Scale indicator 10, 42
. . . . . . . . . . . . . . . . . .
SCAN button 169 , 174, 189, 192, 193
. . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . .
Screen configuration button 10 , 39
. . . . . . .
Screen for navigation settings 246 . . . . . . .
Screen for voice settings 243
. . . . . . . . . . . .
Screen layout function 251
. . . . . . . . . . . . . .
Screen off 31
. . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 34
. . . . . . . . . . . . . .
Screen size 151
. . . . . . . . . . . . . . . . . . . . . . .
Screens for clock settings 242
. . . . . . . . . . .
Screens for general settings 236
. . . . . . . . .
Search area 52
. . . . . . . . . . . . . . . . . . . . . . . .
Search by “Address” 55
. . . . . . . . . . . . . . . .
Search by “Address Book” 66
. . . . . . . . . . .
Search by “Category” 61
. . . . . . . . . . . . . . . .
Search by “Coordinates” 71
. . . . . . . . . . . . .
Search by “Emergency” 66
. . . . . . . . . . . . . .
Search by “Intersection & Freeway” 67 . . . .
Search by “Map” 70
. . . . . . . . . . . . . . . . . . . .
Search by “Name” 59
. . . . . . . . . . . . . . . . . .
Search by “Phone #” 64
. . . . . . . . . . . . . . . .
Search by “Point of Interest” 59
. . . . . . . . . .
Search by “Previous Destinations” 65 . . . . .
Search by Freeway Entrance/Exit 69 . . . . .
Search by Home 54
. . . . . . . . . . . . . . . . . . . .
Search by Intersection 68
. . . . . . . . . . . . . . .
Search by Preset destinations 54
. . . . . . . .
Search by street address 57
. . . . . . . . . . . .
Search point from along my route 62 . . . . .
Search point from near a destination 63 . . .
Search point from near city center 62 .
. . . .
Search point from near here 62
. . . . . . . . . .
Searching by title 199
. . . . . . . . . . . . . . . . . .
Searching by track 208
. . . . . . . . . . . . . . . . .
Searching for a desired disc 169
. . . . . . . . .
Searching for a desired file 174, 192 . . . . . .
Searching for a desired folder 174, 193 . . . .
Searching for a desired track 169, 189 . . . . SEEK/TRACK
button
144, 155, 160, 168, 172,
. . . . . . . . . . . . . .
183, 188, 191, 199, 208 ,
. . . . . . . . . . . . . .
Select POI icons 250
. . . . . . . . . . . . . . . . . . .
Select portable player 293
. . . . . . . . . . . . . .
Select route features 90
. . . . . . . . . . . . . . . .
Select route type 89
. . . . . . . . . . . . . . . . . . .
Selecting a Bluetooth  phone 259 . . . . . . . .
Selecting a city to search 55, 60
. . . . . . . . .
Selecting a desired album 184
. . . . . . . . . . .
Selecting a desired disc 167
. . . . . . . . . . . . .
Selecting a desired file 172, 191
. . . . . . . . . .
Selecting a desired folder 171, 190 . . . . . . .
Selecting a desired track 168, 183, 188 . . . .
Selecting a keyboard layout 239
. . . . . . . . .
Selecting a language 237
. . . . . . . . . . . . . . .
Selecting a menu item 198
. . . . . . . . . . . . . .
Selecting a satellite radio channel 160 . . . .
Selecting a station 155
. . . . . . . . . . . . . . . . .
Selecting connection method 295
. . . . . . . .
Selecting from the categories 61
. . . . . . . . .
Selecting from the last 5 cities 63
. . . . . . . .
Selecting the desired mode 147, 218
. . . . . .
Selecting the line color 238
. . . . . . . . . . . . . .
Selecting the search area 52
. . . . . . . . . . . .
Setting an d deleting destinations 84 . . . . . .
Setting Bluetooth  audio 295
. . . . . . . . . . . .
Setting home as the destination 17
. . . . . . .
Setting

route 86
. . . . . . . . . . . . . . . . . . . . . . .
Setting the phonebook 265
. . . . . . . . . . . . . .
Setting the voice tag 281
. . . . . . . . . . . . . . .
Setting up the “Address Book” 108 . . . . . . .
Setting up the “Areas to A void” 114. . . . . . . .
Setting up the “Home” 103
. . . . . . . . . . . . . .
Setting up the “Preset Destinations” 105
. . . . . . . . . . . . .
Setup 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SETUP button
10, 22, 102, 236, 241, 243,
. . . . . . . . . . . .
245, 254, 293, 300 00, 00,
. . . . . . . . . . . .
Setup menu 201
. . . . . . . . . . . . . . . . . . . . . . .
Setup operation from the rear seat 205 . . . .
Setup screen 22
. . . . . . . . . . . . . . . . . . . . . . .
TUNDRA_Navi_U_34527U
2012 T UNDRA Navigation from Jul. ’11 Prod. (OM 34527U)
