2012 TOYOTA SIENNA glove box

471
3-3. Using the Bluetooth
® audio system
3
Interior features
SIENNA_U (OM45477U)
■
Conditions under which th e system will not operate
● If using a portable player that does not support Bluetooth
®
●If the portable player is switched off
● If the portable player is not connected
● If the portable player’s battery is low
● If the portable player is behind the seat or in the glove box or console box
● If metal is covering or touching the portable player
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 557)
■ About Bluetooth
®
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

531
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)
■Conditions under which th e system will not operate
● If using a mobile phone that does not support Bluetooth
®
●If the mobile phone is switched off
● If you are outside service range
● If the mobile phone is not connected
● If the mobile phone’s battery is low
● If the mobile phone is behind the seat or in the glove box or console box
● If metal is covering or touching the phone
■ When using the hands-free system
● The audio system and voice guidance are muted when making a call.
● If both parties speak at the same time, it may be difficult to hear.
● If the incoming call volume is overly loud, an echo may be heard.
● Try to face toward the microphone as much as possible when speaking.
● In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed.

572
SIENNA_U (OM45477U)

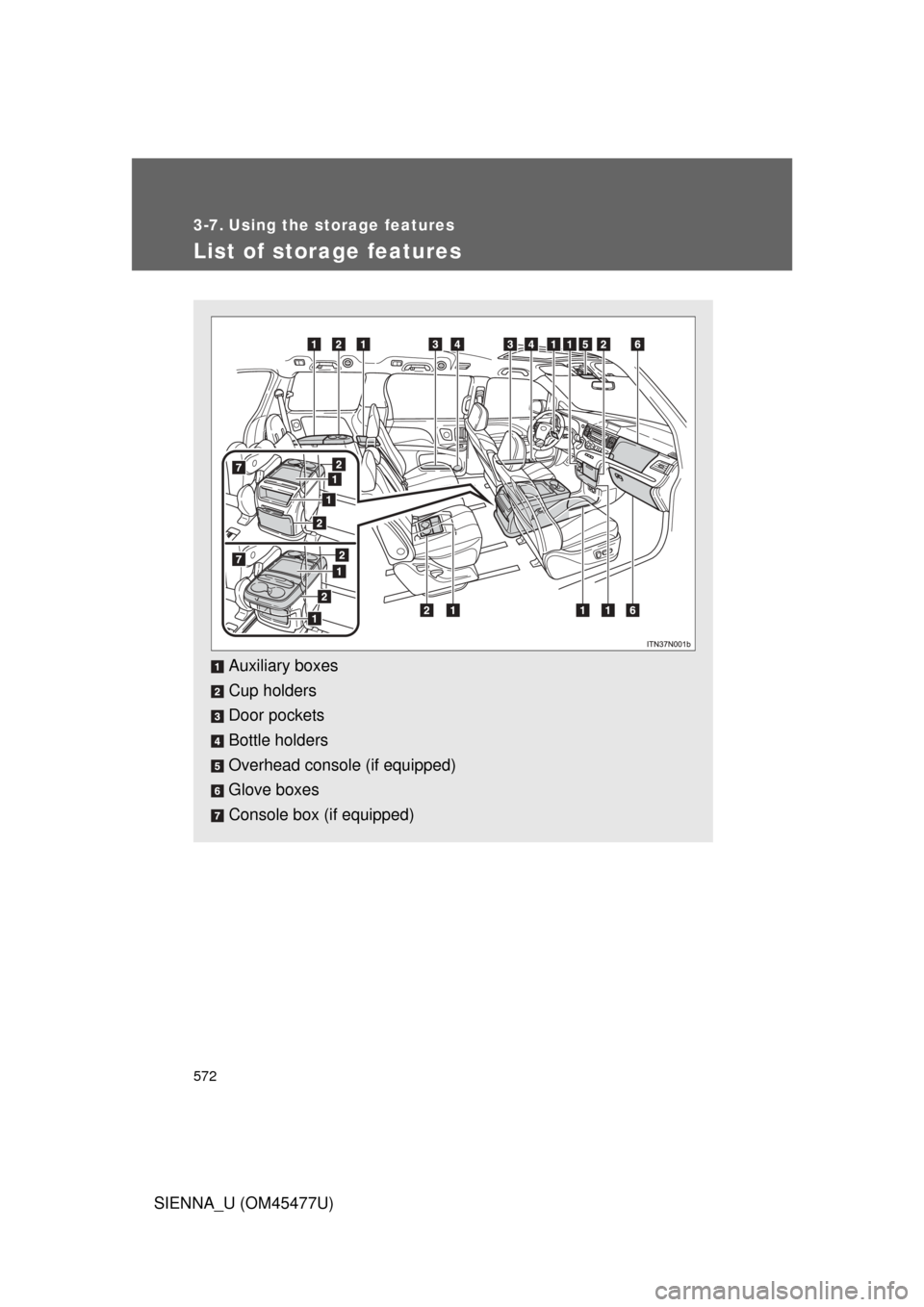

3-7. Using the storage features
List of storage features
Auxiliary boxes
Cup holders
Door pockets
Bottle holders
Overhead console (if equipped)
Glove boxes
Console box (if equipped)

573
3-7. Using the
storage features
3
Interior features
SIENNA_U (OM45477U)
Glove boxes
Upper glove box Push the button.
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove boxes

574 3-7. Using the storage features
SIENNA_U (OM45477U)Lower glove box
The lower glove box can be opened by pulling the lever and can be
locked and unlocked by using the
master key (vehicles without a
smart key) or the mechanical key (vehicles with a smart key system).
Unlock
Lock
Open
■Removing the separate tray (upper glove box)
CAUTION
■Caution while driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Pull out the separate tray.
Glove boxes

690
4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)

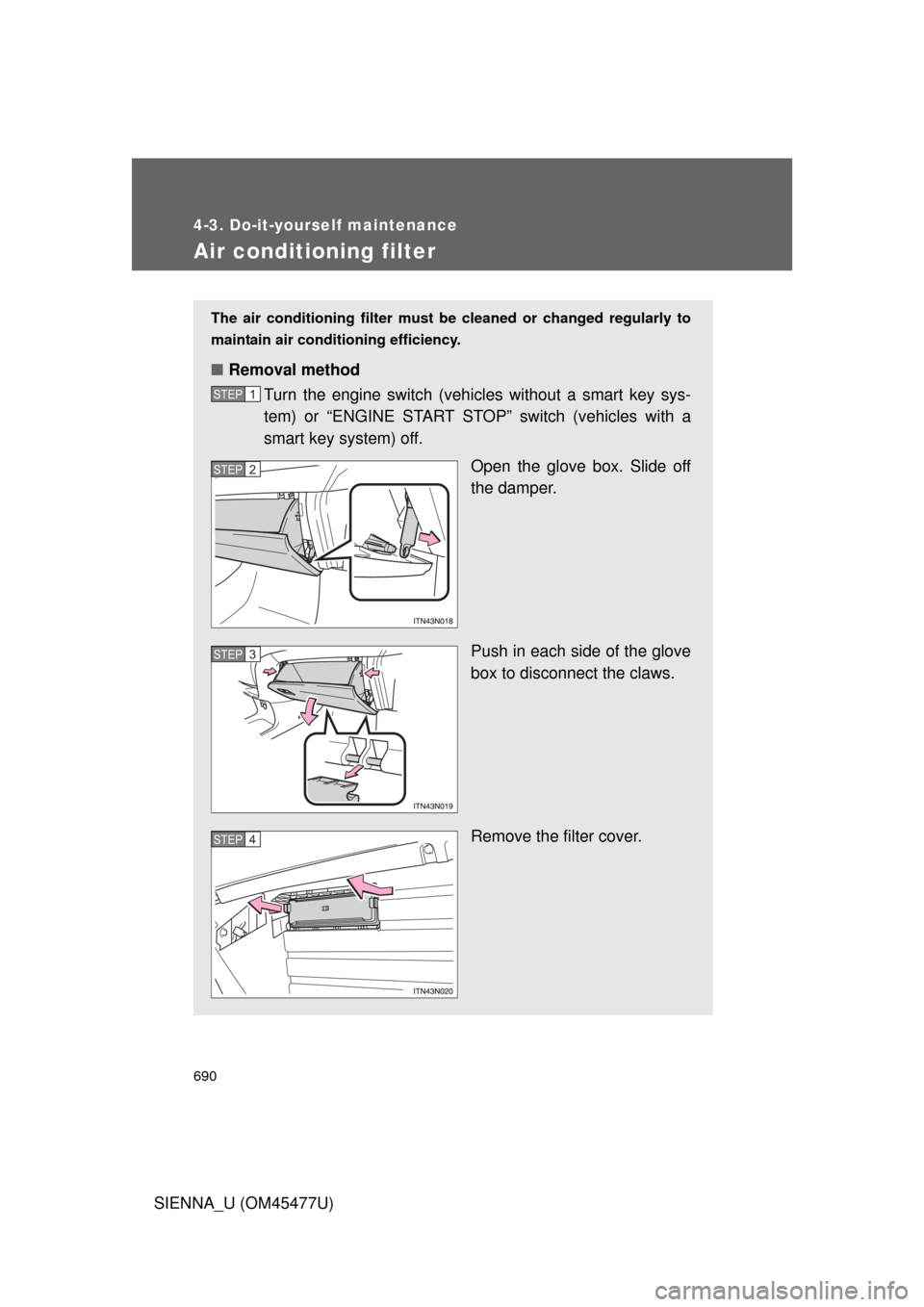

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
■ Removal method
Turn the engine switch (vehicles without a smart key sys-
tem) or “ENGINE START STOP” switch (vehicles with a
smart key system) off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
STEP1
STEP2
STEP3
STEP4

848 Alphabetical index
SIENNA_U (OM45477U)
Floor mat...................................605
FluidBrake .....................................665
Washer .................................. 671
Fog lights Replacing light bulbs ............. 709
Switch.................................... 280
Wattage .................................796
Front fog lights
Replacing light bulbs ............. 709
Switch.................................... 280
Wattage .................................796
Front passenger occupant classification system ............183
Front passenger’s seat belt
reminder light.........................733
Front seats Adjustment .............................. 95
Driver’s seat position
memory ............................... 120
Front side marker lights Replacing light bulbs ............. 709
Switch.................................... 266
Wattage .................................796
Front turn signal lights
Replacing light bulbs ............. 709
Switch.................................... 241
Wattage .................................796
Fuel Capacity ................................787
Fuel gauge ............................ 244
Fuel pump shut off system ....728
Gas station information .........860
Information ............................ 797
Refueling ............................... 155
Type ......................................787
Fuel door...................................155
Fuel filler door .......................... 155
Fuel pump shut off system ..... 728
Fuses......................................... 696 Garage door opener ................ 609
Gauges...................................... 244
Glove box ................................. 573
Grocery bag hooks .................. 603
Hands-free system
(for cellular phone) ................ 529
Head restraints
Adjusting .............................. 125
Headlights Manual headlight leveling
dial ...................................... 269
Replacing light bulbs ............. 709
Switch ................................... 266
Wattage................................. 796
Heaters Seat heaters.......................... 598
Side mirror ............................ 405
Hill-start assist control ............ 333
Hood.......................................... 651
Hooks Cargo .................................... 607
Grocery bag .......................... 603
Horn .......................................... 243FG
H
