2012 TOYOTA PRIUS C Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

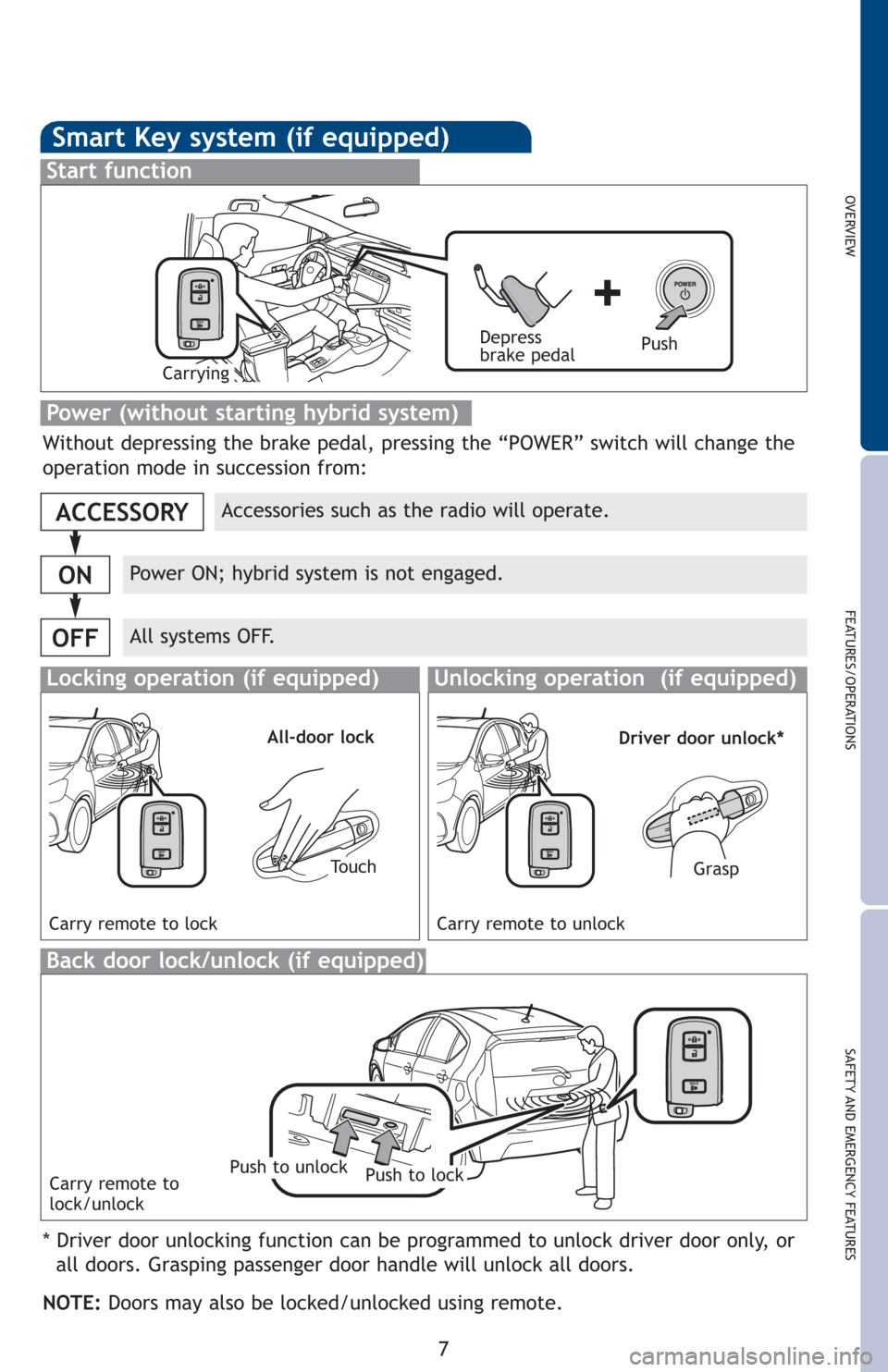

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; hybrid system is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting hybrid system)
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Locking operation (if equipped)Unlocking operation (if equipped)
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/unlock (if equipped)
Carry remote to
lock/unlock
To u c hGrasp
Push to lockPush to unlock

8
OVERVIEW
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Tu r n t o o p e n
Store
Engage support rod
Pull

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9 Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS
Starting the hybrid system
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the hybrid system are
shown on the multi-information display or the Display Audio System.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
(1) Put the selector lever in “P.”
(2) Vehicles with Smart Key system:
Depress the brake pedal, and press the “POWER” switch briefly and firmly.
Vehicles without Smart Key system:
Depress the brake pedal, and turn the key to the “START” position.
(3) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Transmission
1 The “POWER”/ignition switch must be “ON” and the brake pedal depressed to
shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push

Eco Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
Refer to the Owner’s Manualfor more details.
Park1
Reverse
Neutral
Drive
Engine brake2
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manualfor more details.

12
FEATURES/OPERATIONS
Seats-Head restraints
Rear outboard
Front (adjustable type)/Rear center
Lock release button
Lock release buttons

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side; if equipped)
Seatback angle
Seat-Folding down rear seat
Non-split rear seat
Split rear seats
(1) Pull up
(2) Fold down
(1) Pull up
(2) Fold down

14
FEATURES/OPERATIONS
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash and wipe
Front
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Windows-Power
Up
Down
Window lock switch
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop window midway, push
the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Intermittent windshield
wiper frequency
(if equipped)
Increase
Decrease Driver side
