2012 TOYOTA LAND CRUISER gas type

117 1-5. Refueling
1
Before driving
L/C200_EE (OM60G38E)
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
EU area:
Diesel fuel conforming to European standard EN590
Except EU area (except for Russia):
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane num-
ber of 48 or higher
Except EU area (for Russia):
Diesel fuel cetane number of 48 or higher
Your vehicle must use only diesel fuel conforming to GOST R52368-
2005 (Sulfur max 50 ppm).
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10 %. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.

647 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)
Engine
Gasoline engine
Diesel engine
Model 1UR-FE
Type 8-cylinder V type, 4-cycle, gasoline
Bore and stroke 94.0  83.0 mm (3.70  3.27 in.)
Displacement 4608 cm3 (281.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Model 1VD-FTV
Ty p e8-cylinder V type, 4-cycle, diesel
(with turbocharger)
Bore and stroke 86.0  96.0 mm (3.39  3.78 in.)
Displacement 4461 cm3 (272.2 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment

648 6-1. Specifications
L/C200_EE (OM60G38E)
Fuel
Gasoline engine
Diesel engine
Fuel typeEU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)93 L (24.5 gal., 20.4 Imp.gal.)
Fuel typeEU area:
Diesel fuel conforming to European
standard EN590
Except EU area (expect Russia):
Diesel fuel that contains 50 ppm or less of
sulfur
Except EU area (Russia):
Diesel fuel confirming to GOST R52368-
2005 (Sulfur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference)93 L (24.5 gal., 20.4 Imp.gal.)

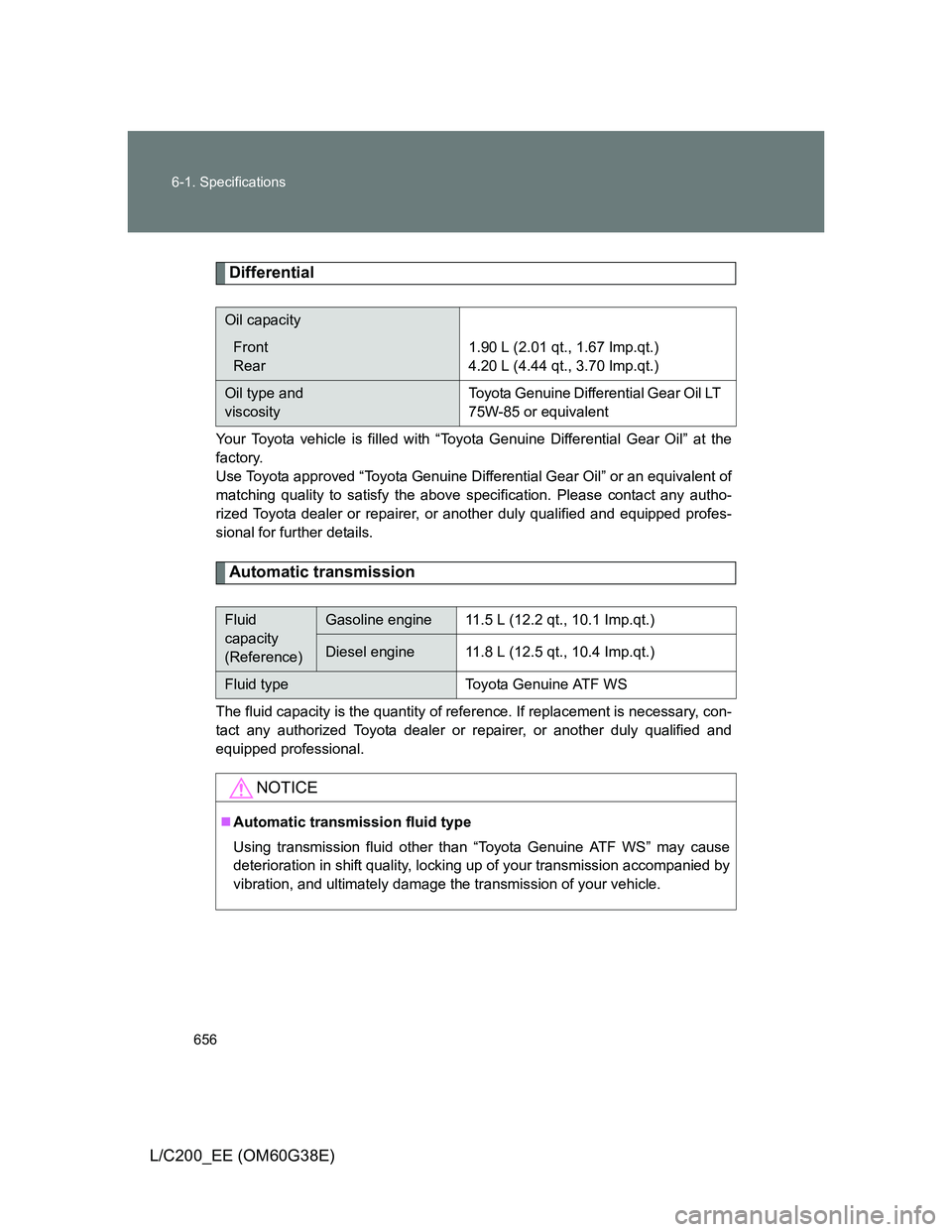

656 6-1. Specifications
L/C200_EE (OM60G38E)
Differential
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional for further details.
Automatic transmission
The fluid capacity is the quantity of reference. If replacement is necessary, con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Oil capacity
Front
Rear1.90 L (2.01 qt., 1.67 Imp.qt.)
4.20 L (4.44 qt., 3.70 Imp.qt.)
Oil type and
viscosityToyota Genuine Differential Gear Oil LT
75W-85 or equivalent
Fluid
capacity
(Reference)Gasoline engine11.5 L (12.2 qt., 10.1 Imp.qt.)
Diesel engine11.8 L (12.5 qt., 10.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

682 Alphabetical index
L/C200_EE (OM60G38E)
First-aid kit holder ................... 484
Floor mats ................................ 482
Fluid
Brake..................................... 657
Power steering ...................... 658
Suspension ........................... 658
Washer.................................. 515
Fog lights
Replacing light bulbs ............. 546
Switch ................................... 222
Wattage................................. 661
Four-wheel drive system......... 259
Front fog lights
Replacing light bulbs ............. 546
Switch ................................... 222
Wattage................................. 661
Front passenger’s seat belt
reminder light ........................ 576
Front position lights
Switch ................................... 218
Front seats
Adjustment .............................. 75
Driving position memory ......... 86
Front turn signal lights
Replacing light bulbs ............. 546
Wattage................................. 661
Fuel
Capacity ................................ 648
Fuel gauge ............................ 203
Fuel pump shut off system .... 572
Gas station information ......... 692
If you run out of fuel and
the engine stalls.................. 637
Information ............................ 662
Refueling ............................... 116
Type ...................................... 648Fuel door .................................. 116
Fuel filler door.......................... 116
Fuel pump shut off system ..... 572
Fuses ........................................ 531
Gas station information .......... 692
Gauges ..................................... 203
Glove box ................................. 453
Glove box light......................... 453
Hands-free system
(for cellular phone)
*............. 418
Hazard lights
Switch ................................... 564
Head restraints
Adjusting ................................ 91
Headlight cleaner..................... 232
Headlights
Daytime running light ............ 219
Replacing light bulbs............. 546
Switch ................................... 218
Wattage ................................ 661
Heaters
Heated steering .................... 474
Seat heater ........................... 476
Side mirror ............................ 356
Height select ............................ 248
Hill-start assist control............ 300
Hood ......................................... 501
F
G
H

692
L/C200_EE (OM60G38E)
GAS STATION INFORMATION
Fuel filler door
P. 1 1 6Auxiliary catch lever
P. 501
Tire inflation pressure
P. 6 5 9
Fuel filler door opener
P. 1 1 6
Hood lock release lever
P. 501
Fuel tank capacity (Reference) 93 L (24.5 gal., 20.4 Imp.gal.)
Fuel type P. 648
Cold tire inflation
pressureP. 6 5 9
Engine oil capacity
(Drain and refill —
reference)
Gasoline engine L (qt., Imp.qt.)
With filter 7.5 (7.9, 6,6)
Without filter 7.1 (7.5, 6.2)
Diesel engine L (qt., Imp.qt.)
With filter 9.2 (9.7, 8.1)
Without filter 8.2 (8.7, 7.2)
Engine oil type P. 649
