2012 TOYOTA FJ CRUISER Owners Manual

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the fuse with the pull-
out tool.

418 4-3. Do-it-yourself maintenance
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid

419
4-3. Do-it-yourself maintenance
4
Maintenance and care

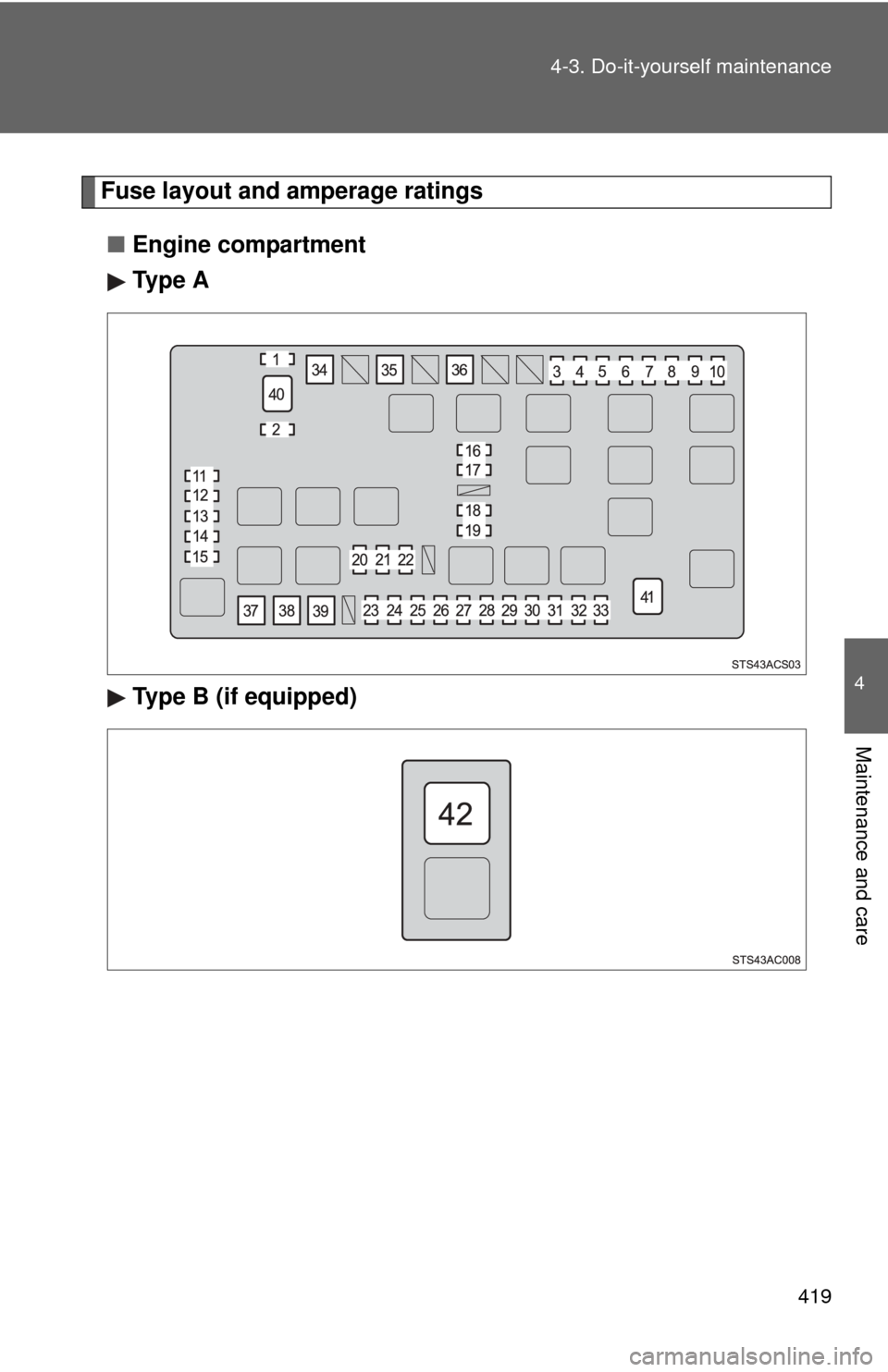

Fuse layout and amperage ratings
■ Engine compartment
Ty p e A
Type B (if equipped)

420 4-3. Do-it-yourself maintenance
FuseAmpereCircuit
1 SPARE 10 A Spare fuse
2 SPARE 15 A Spare fuse
3 TOWING TAIL 15 A Trailer lights
4 RR FOG 10 A No circuit
5 OFFROAD LP 15 A Offroad lamp
6 STOP 10 A Stop lights, high mounted stop-
light, anti-lock brake system, trac-
tion control system, active traction
control system, vehicle stability
control system, AUTO LSD system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock system
7 DEICER 20 A No circuit
8 AUX LP 15 A Driving lamp
9 TOWING BRK 30 A No circuit
10 OBD 7.5 A On-board diagnosis system
11 HEAD (LO RH) 10 A Right-hand headlight (low beam)
*1
Right-hand headlight*2
12 HEAD (LO LH) 10 A Left-hand headlight (low beam)
*1
Left-hand headlight*2
13 HEAD (HI RH) 10 A Right-hand headlight (high beam)*1
14 HEAD (HI LH) 10 A Left-hand headlight (high beam)*1
15 EFI NO.2
10 AMultiport fuel injection system/
sequential multiport fuel injection
system
16 INJ 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
17 DRL 7.5 A Daytime running light system

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
18 DEFOG
30 A Rear window defogger
19 DEFOG NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
20 DOME 10 AInterior light, personal lights,
engine switch light, clock, acces-
sory meter, meter and gauge
21 RADIO NO.1 20 A Audio system
22 ECU-B 10 AAir conditioning system, multiplex
communication system, SRS air-
bag system, front passenger occu-
pant classification system
23 ALT-S 7.5 A Charging system
24 AI-VSV 10 A No circuit
25 HORN 10 A Horn
26 A/F HEATER 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
27 TRN-HAZ 15 ATurn signal lights, emergency
flashers
28 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
29 EFI 20 AEFI NO.2, multiport fuel injection
system/sequential multiport fuel
injection system
30 TOWING NO.2 30 A No circuit
31 DR/LCK 20 ADoor lock system, multiplex com-
munication system
32 TOWING 15 A Towing converter
33 RADIO NO.2 20 A Audio system
FuseAmpereCircuit

422 4-3. Do-it-yourself maintenance
*1: Vehicles with daytime running light
*2: Vehicles without daytime running light34 AIR PMP
50 A No circuit
35 AM1 50 AACC, ECU-IG, IG1, RR WSH, FR
WIP-WSH, 4WD/DIFF and STA
36 J/B 50 A TAIL, PWR OUTLET, POWER
37 ABS MTR 40 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
38 AM2 30 AIGN and GAUGE, multiport fuel
injection system/sequential multi-
port fuel injection system, starting
system
39 ABS SOL 30 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
40 ALT 120 AAM1, 400W INV, DEFOG, DEFOG
NO.2, STOP, OBD, J/B, TOWING
TAIL, AUX LP and OFFROAD LP
41 HEATER 60 A Air conditioning system
42 400W INV 80 A Power outlet
FuseAmpereCircuit

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Under the instrument panel
FuseAmpereCircuit
1 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, anti-lock brake system,
vehicle stability control system,
traction control system, active trac-
tion control system, AUTO LSD
system, SRS airbag system, front
passenger occupant classification
system
2 GAUGE 7.5 A Meter and gauge
3 FR WIP-WSH 30 A Windshield wipers and washer
4 4WD/DIFF 20 A Four-wheel drive system, rear dif-
ferential lock system
5 PWR OUTLET 15 A Power outlet
6 RR WSH 15 A Rear window wiper and washer,
multiplex communication system
1
5678
91011
12
23 4

424 4-3. Do-it-yourself maintenance
7 ECU-IG10 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system, cruise
control system, back door lock sys-
tem, shift lock system, multiplex
communication system, tire pres-
sure warning system
8 IG1 15 ATurn signal lights, air conditioning
system, charging system, clutch
start cancel switch, anti-lock brake
system, traction control system,
active traction control system, vehi-
cle stability control system, AUTO
LSD system, back-up lights, intui-
tive parking assist, rear differential
lock system, power outlet, acces-
sory meter, meter and gauge, rear
view monitor system
9 STA 7.5 AStarting system, clutch start cancel
switch, power outlet
10 TAIL 10 ATail lights, license plate lights, park-
ing lights, instrument panel light
control, illuminations
11 A C C 7 . 5 AShift lock system, outside rear view
mirrors, audio system, power out-
let, clock, accessory meter, multi-
plex communication system
12 POWER 30 A Power windows
FuseAmpereCircuit
