Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 527)
■ Remove the engine compartment cover
P. 407
■ Front bulb locations
Front side marker light
Front turn signal/parking light
Front fog light
Headlight high beam and
daytime running light
Auxiliary light
Headlight low beam

456 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams (vehicle s with halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.

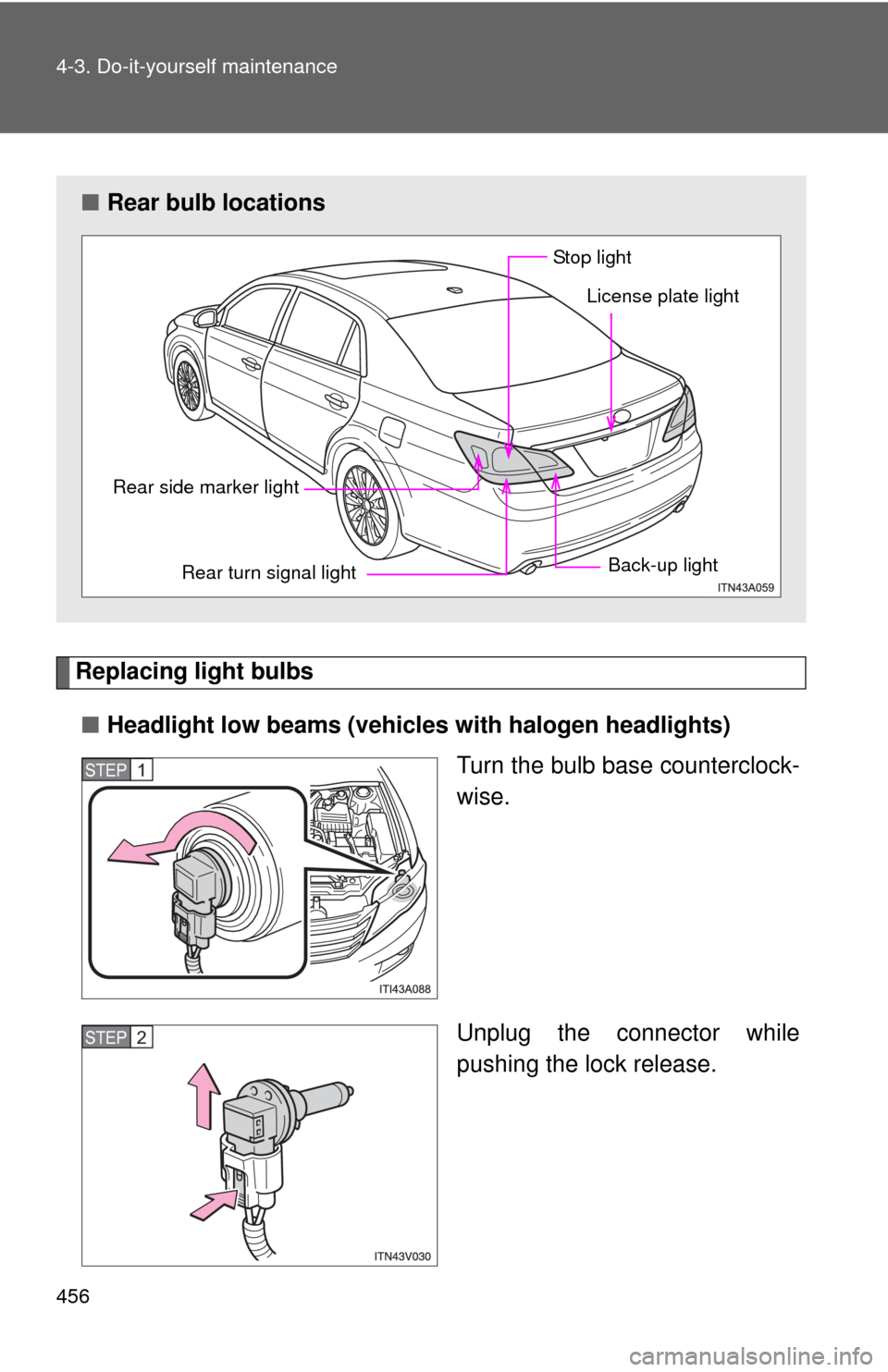

■ Rear bulb locations
Rear side marker light
Rear turn signal light Back-up light
License plate light
St o p li gh t
STEP1
STEP2

4
Maintenance and care
457
4-3. Do-it-yourself maintenance
Exchange the light bulb, and
install the socket.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the socket.
After installing the socket, turn the
headlight low beams on once and
visually confirm that no light is
leaking through the mounting.
■
Headlight high beams and d aytime running lights (vehicles
with halogen headlights)
Turn the bulb base counterclock-
wise.
STEP3
STEP4

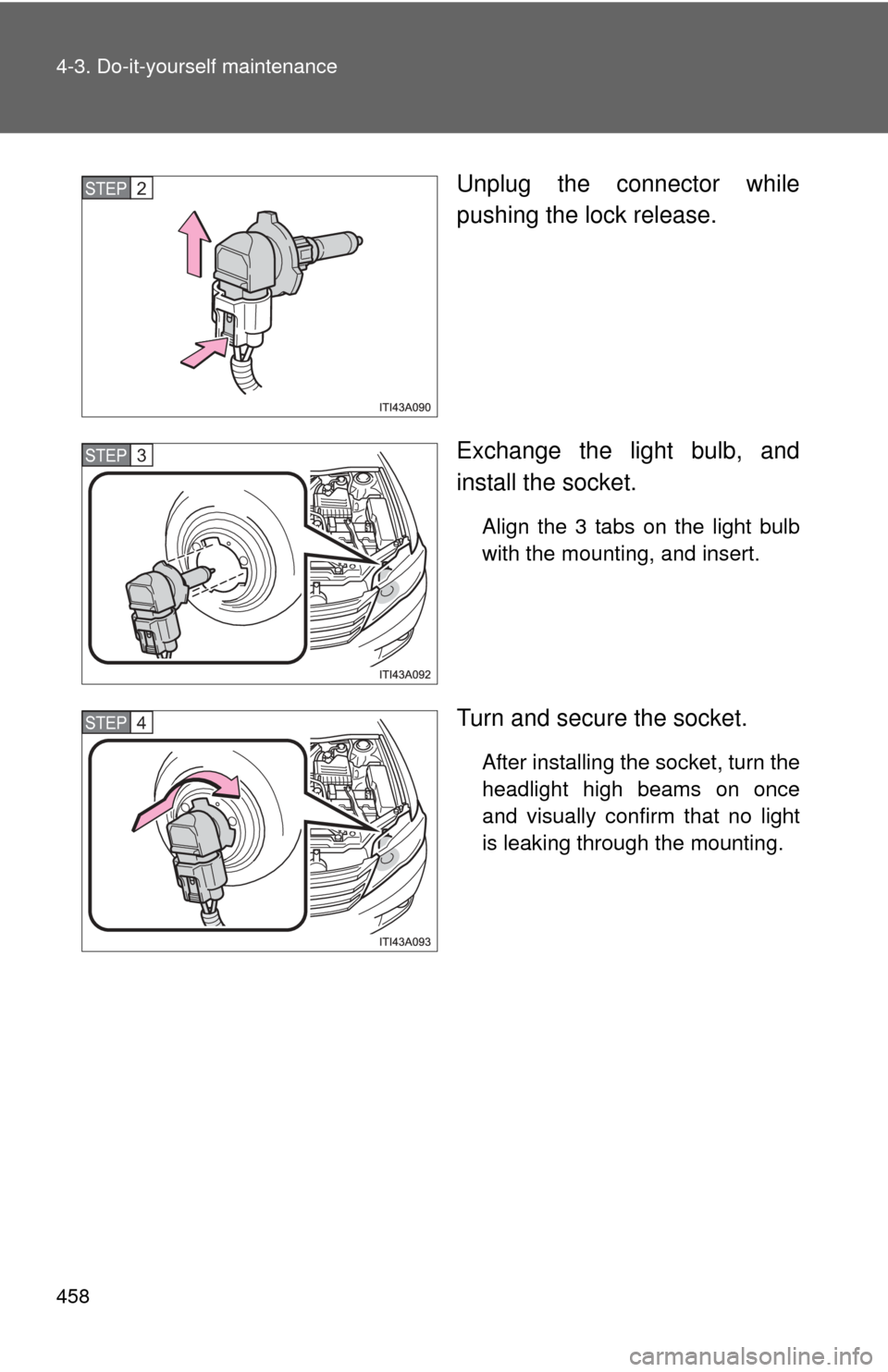

STEP1

458 4-3. Do-it-yourself maintenance
Unplug the connector while
pushing the lock release.
Exchange the light bulb, and
install the socket.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the socket.
After installing the socket, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.

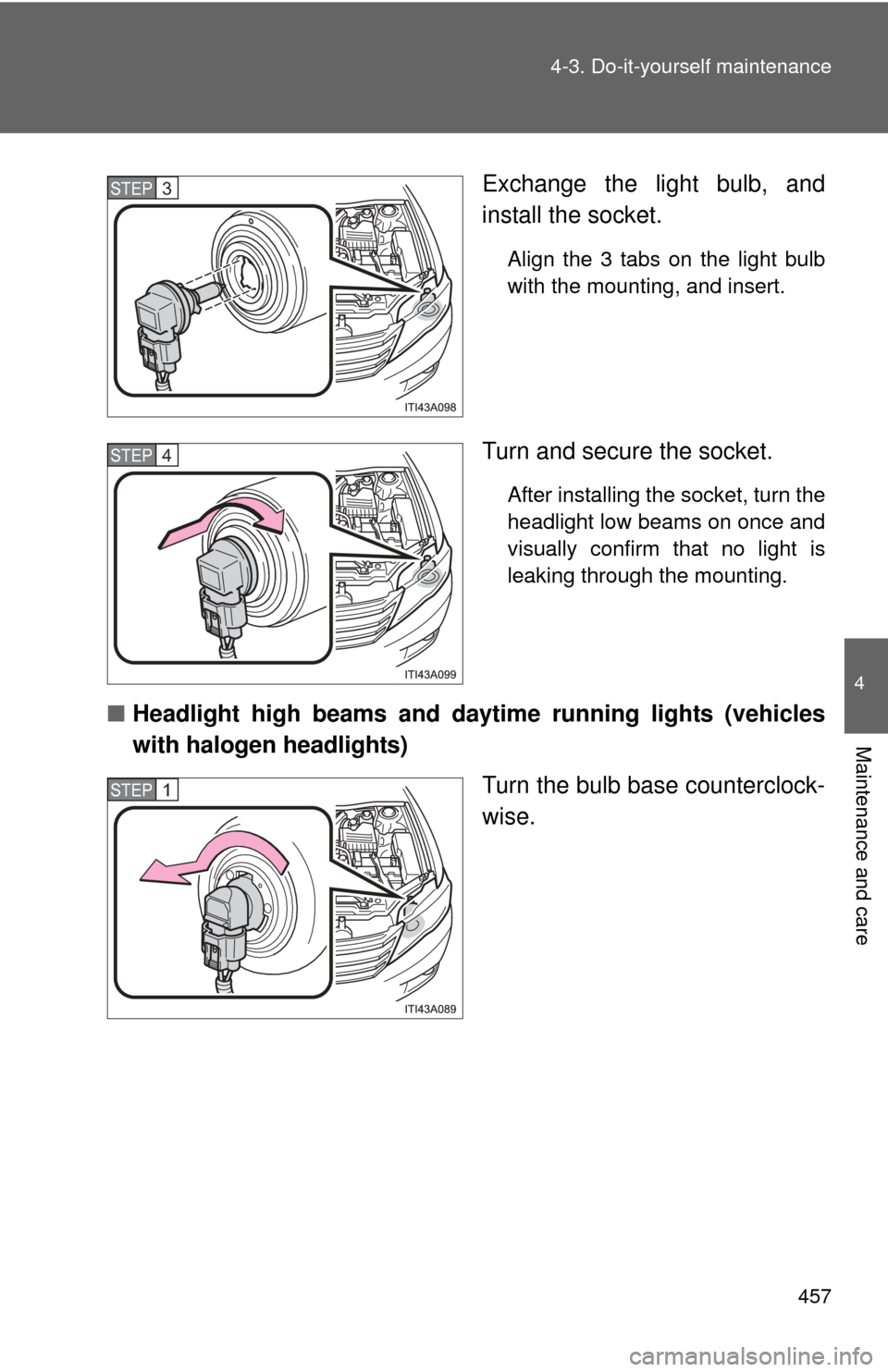

STEP2
STEP3
STEP4

4
Maintenance and care
459
4-3. Do-it-yourself maintenance
■

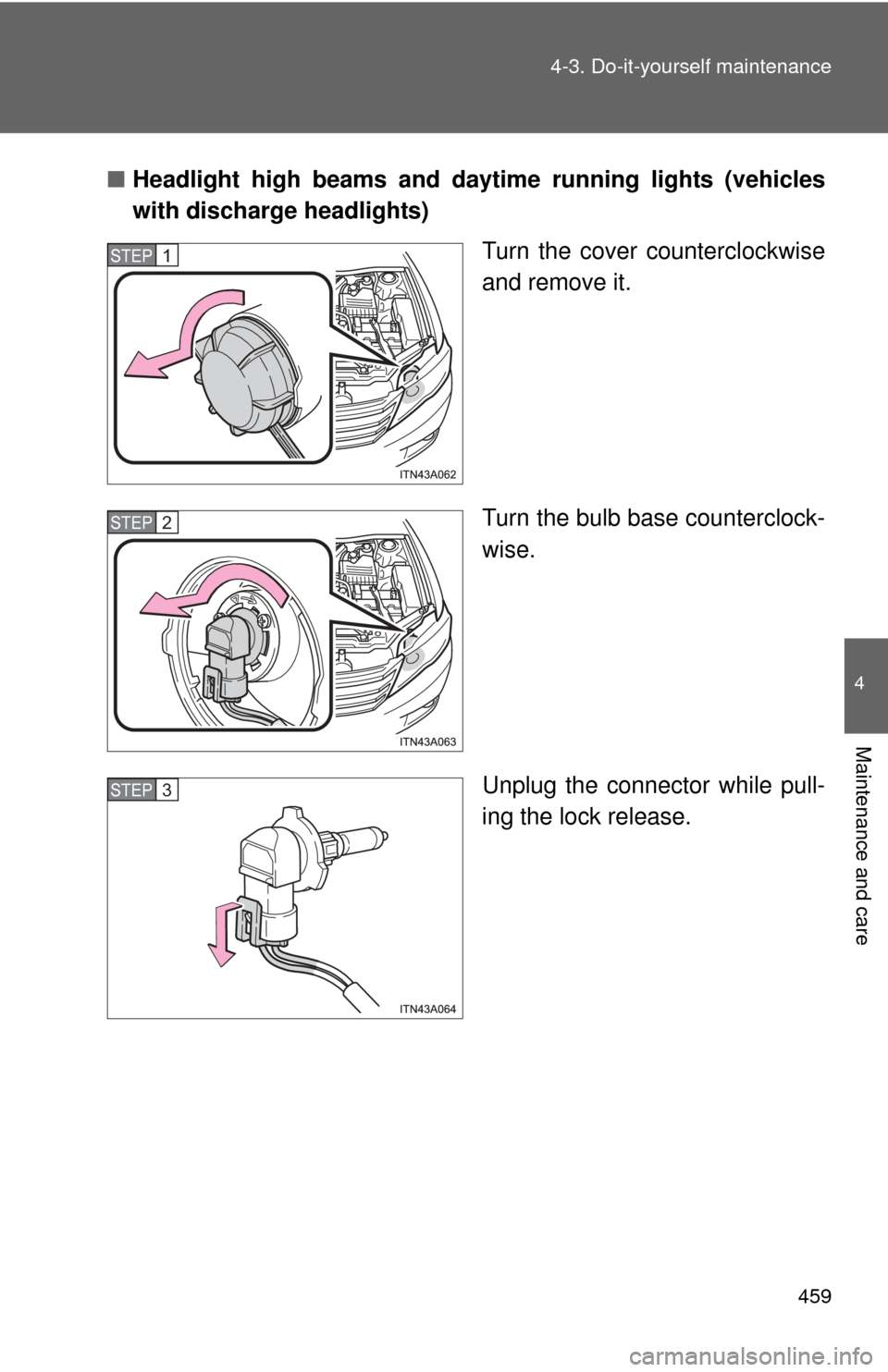

Headlight high beams and d aytime running lights (vehicles
with discharge headlights)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
STEP2
STEP3

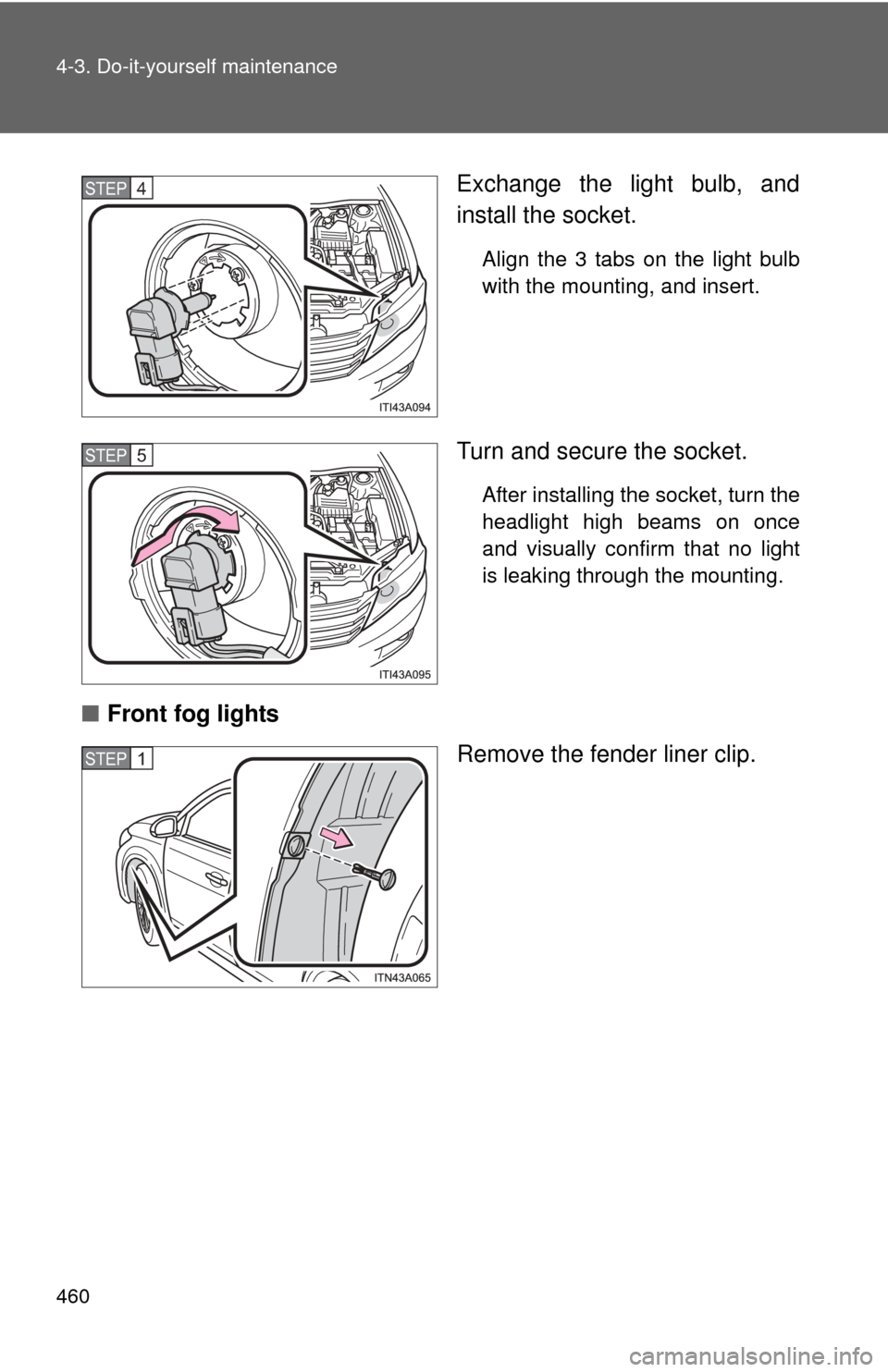

460 4-3. Do-it-yourself maintenance
Exchange the light bulb, and
install the socket.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the socket.
After installing the socket, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.
■Front fog lights
Remove the fender liner clip.
STEP4
STEP5
STEP1
