2012 TOYOTA AVALON Navigation Manual

9

10
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
43
2Scale indicatorThis figure indicates the map scale.41
3“INFO/PHONE”
buttonPush this button to display the “Informa-
tion” screen.23, 124, 140, 289, 290
4“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and disp lay the current posi-
tion.
33
5“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 20, 50
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
6“SETUP” button
Push this button to display the “Setup”
screen.
You can change the language from this
screen. (See “ Selecting a language”
on page 209.)
22, 100, 208,
213, 214, 217, 226, 264, 272
7“DISP” buttonPush this button to display the “Display”
screen.31
8Zoom out buttonTouch this button to reduce the map
scale.41
9“  Off”
Touch this button to obtain a broader
view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “On ”.
222
10“Mark”
Touch th is button to register the current
position or the cursor position as a
memory point.
34
11“Route”Touch this button to change the route.82, 84
12“Show on Map”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
90, 94, 95, 97
13Zoom in buttonTouch this button to magnify the map
scale.41
14Foot print map
buttonTouch this button to display the foot print
map and the building information.42
15
Screen
configuration
buttonTouch this button to change the screen
mode.39
16
Distance and
time to
destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
81
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.96
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
278

12
1Push the “DEST” button.
2Touch “Go Home”.
If home has not been registered, you can
register it by touching “Go Home”.
3Touch “Yes”.
4There are 4 different methods to
search your home.
See “Destination search” on page 50.
— Registering home

13

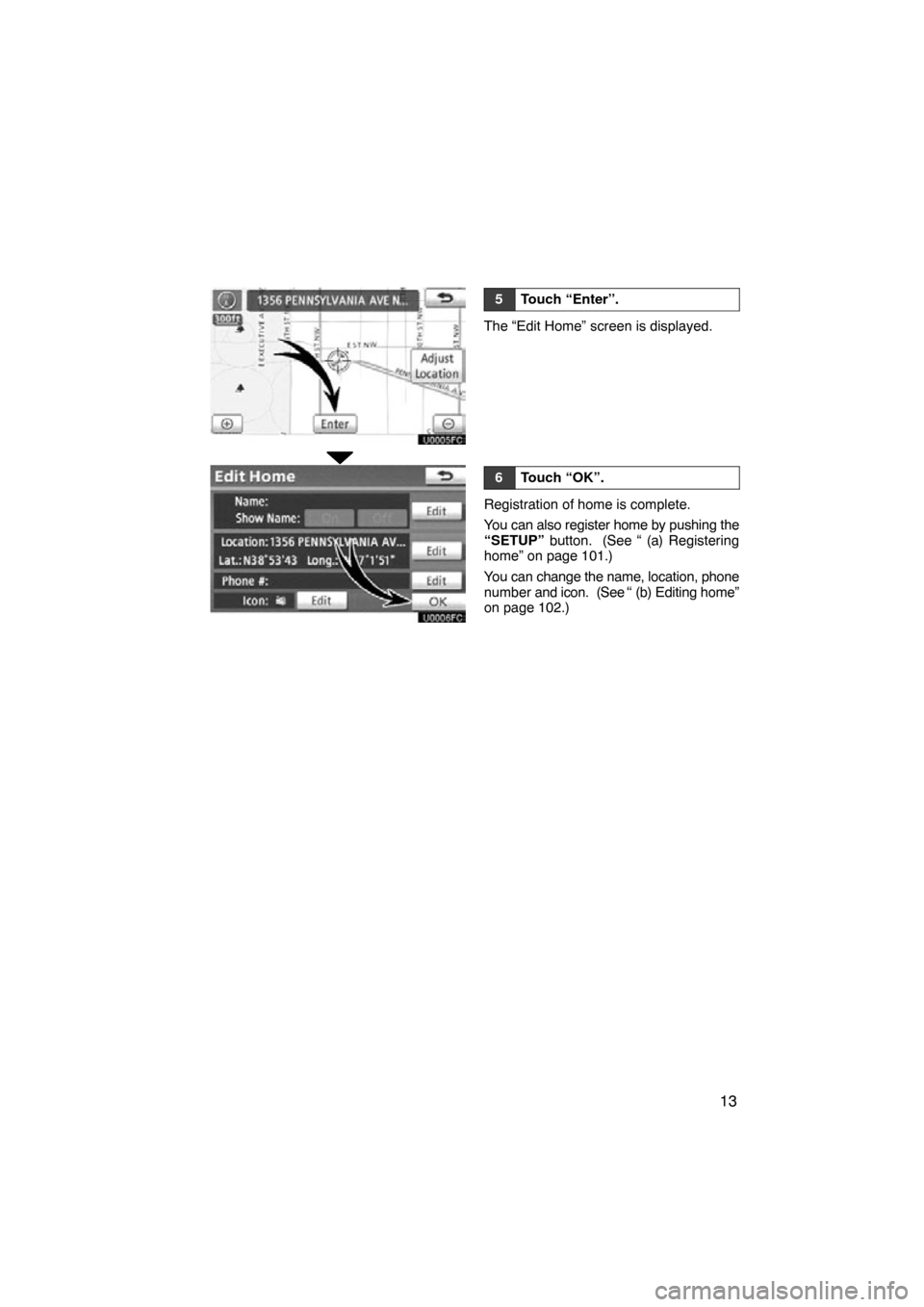

5Touch “Enter”.
The “Edit Home” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can also register home by pushing the
“SETUP” button. (See “ (a) Registering
home” on page 101.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing home”
on page 102.)

14
1Push the “DEST” button.
2Touch one of the preset destina-
tion buttons.
You can set a preset destination to any pre-
set destination button that has not yet been
set.
3Touch “Yes”.
4There are 4 different methods to
search preset destinations.
See “Destination search” on page 50.
— Registering preset destinations

15
5Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
6Touch “OK”.
Registration of preset destinations is com-
plete.
You can also register preset destinations
by pushing the “SETUP” button.
(See “ (a) Registering preset destinations”
on page 104.)
You can change the name, location, phone
number and icon. (See
“ (b) Editing preset
destinations” on page 105.)
The registered points can be used on the
“Destination” screen. (See “ — Destina-
tion search by Preset destinations” on
page 52.)

16
1Push the “DEST” button.
2There are 10 different methods
to search destinations.
See “Destination search” on page 50.
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 70.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route
