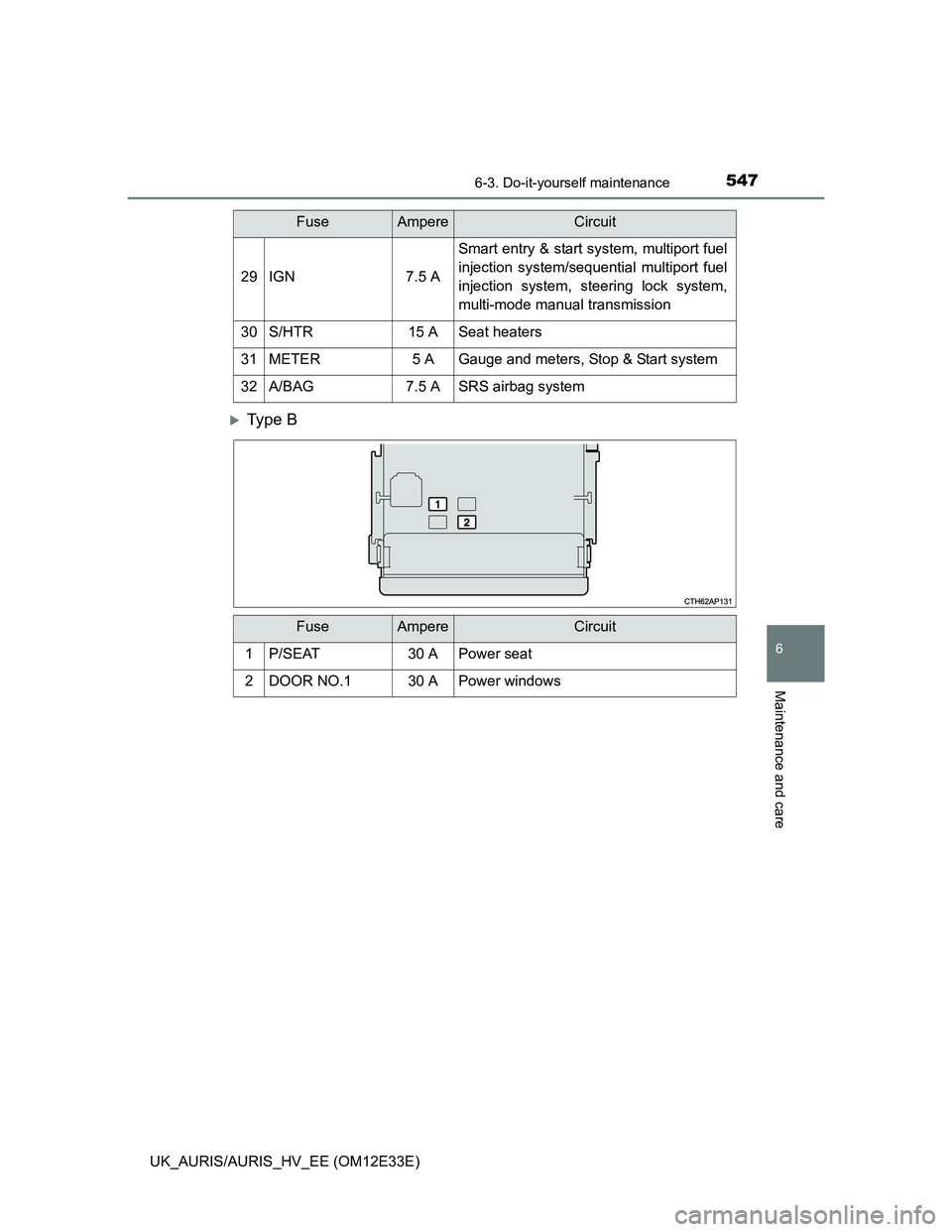

5476-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Ty p e B
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system,
multi-mode manual transmission
30S/HTR15 ASeat heaters
31METER5 AGauge and meters, Stop & Start system
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows

5526-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
14WIPER NO.225 AWindshield wipers
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 AOutside rear view mirrors, audio system,
main body ECU, clock, power outlet
19SFT LOCK-ACC5 A
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 A
23ECU-IG NO.17.5 AElectric cooling fan, AFS, electronically
controlled brake system
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Inside rear view mirror, headlight cleaner,
audio system, AFS, panoramic roof
shade, windshield washer
26HTR-IG7.5 AAir conditioning system, rear window
defogger, seat heaters
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering
29IGN7.5 A
Smart entry & start system, stop lights,
electronically controlled brake system,
power management system
30S/HTR15 ASeat heaters
31METER5 AGauge and meters
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit

571
7When trouble arises
UK_AURIS/AURIS_HV_EE (OM12E33E)7-1. Essential information
Emergency flashers ........... 572
If your vehicle has to
be stopped in an
emergency ....................... 573
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 575
If you think something is
wrong ............................... 583
Fuel pump shut off
system ............................. 584
If a warning light turns
on or a warning buzzer
sounds ............................. 585
If a warning message is
displayed ......................... 599
If you have a flat tire
(vehicles with a spare
tire) .................................. 626
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 638
If the engine will not
start ................................. 664
If the hybrid system will
not start ........................... 666
If the shift lever cannot
be shifted from P ............. 668
If the shift lever cannot
be shifted ......................... 669If the electronic key does
not operate properly ........ 670
If the vehicle 12-volt battery
is discharged (except
hybrid model) ................... 674
If the 12-volt battery is
discharged
(hybrid model).................. 680
If your vehicle overheats
(except hybrid model) ...... 685
If your vehicle overheats
(hybrid model).................. 687
If you run out of fuel and
the engine stalls............... 691
If the vehicle becomes
stuck ................................ 692

5737-1. Essential information
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Except hybrid model: Shift the shift lever to N.
Hybrid model: Change the shift position to N.
If the shift lever is shifted to N (except hybrid model)
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift position can be changed to N (hybrid model)
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N (except hybrid model)
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
3
4

5747-1. Essential information
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
If the shift position cannot be changed to N (hybrid model)
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
CAUTION
If the engine has to be turned off while driving (except hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
If the hybrid system has to be turned off while driving (hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
5

5827-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
NOTICE
To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (Multidrive or hybrid transmission)
Never tow this vehicle from the rear with the front wheels on the ground.
To prevent causing serious damage to the Stop & Start system when
towing (vehicles with Stop & Start system)
Never tow this vehicle with four wheels on the ground. Use a flatbed truck,
or lift up front or rear of the vehicle by using a wheel-lift type truck.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (Multidrive or hybrid transmission)
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (multi-mode manual transmission or manual transmission)
Vehicles without a smart entry & start system: Do not tow the vehicle from
the rear when the engine switch is in the “LOCK” position or the key is
removed. The steering lock mechanism is not strong enough to hold the
front wheels straight.
Vehicles with a smart entry & start system: Do not tow the vehicle from the
rear when the engine switch is off. The steering lock mechanism is not
strong enough to hold the front wheels straight.
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the transmission in emergency
towing
Vehicles with a Multidrive or hybrid transmission, never tow a vehicle from
the rear with four wheels on the ground. This may cause serious damage to
the transmission.

5847-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system (except hybrid
model [gasoline engine only])
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

5887-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
To prevent the clutch from overheating
Observe the following while driving.
Do not keep driving up a hill at low speeds.
Do not start off and stop repeatedly on an uphill.
Do not use the accelerator pedal or starting assist system to hold the vehicle
on a hill.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
